Product Description
SmartSafe/Launch WA613 Wireless 3D Wheel Aligner
WA613 is a wireless 3D wheel aligner with a new industrial design. It abandons the beam and cabinet design of traditional 3D wheel aligners. It consists of 2 magnetic measurement units + 4 wheel clamp targets. It performs four-wheel alignment detection on vehicles through wireless networking communication.
This innovative design enhances mobility and convenience, positioning the WA613 as a top choice among portable alignment machines. Its streamlined setup allow for quick deployment in various workshop environments, making it ideal for both mobile and stationary applications.
Note can only be used on a 4 post or scissors lifts

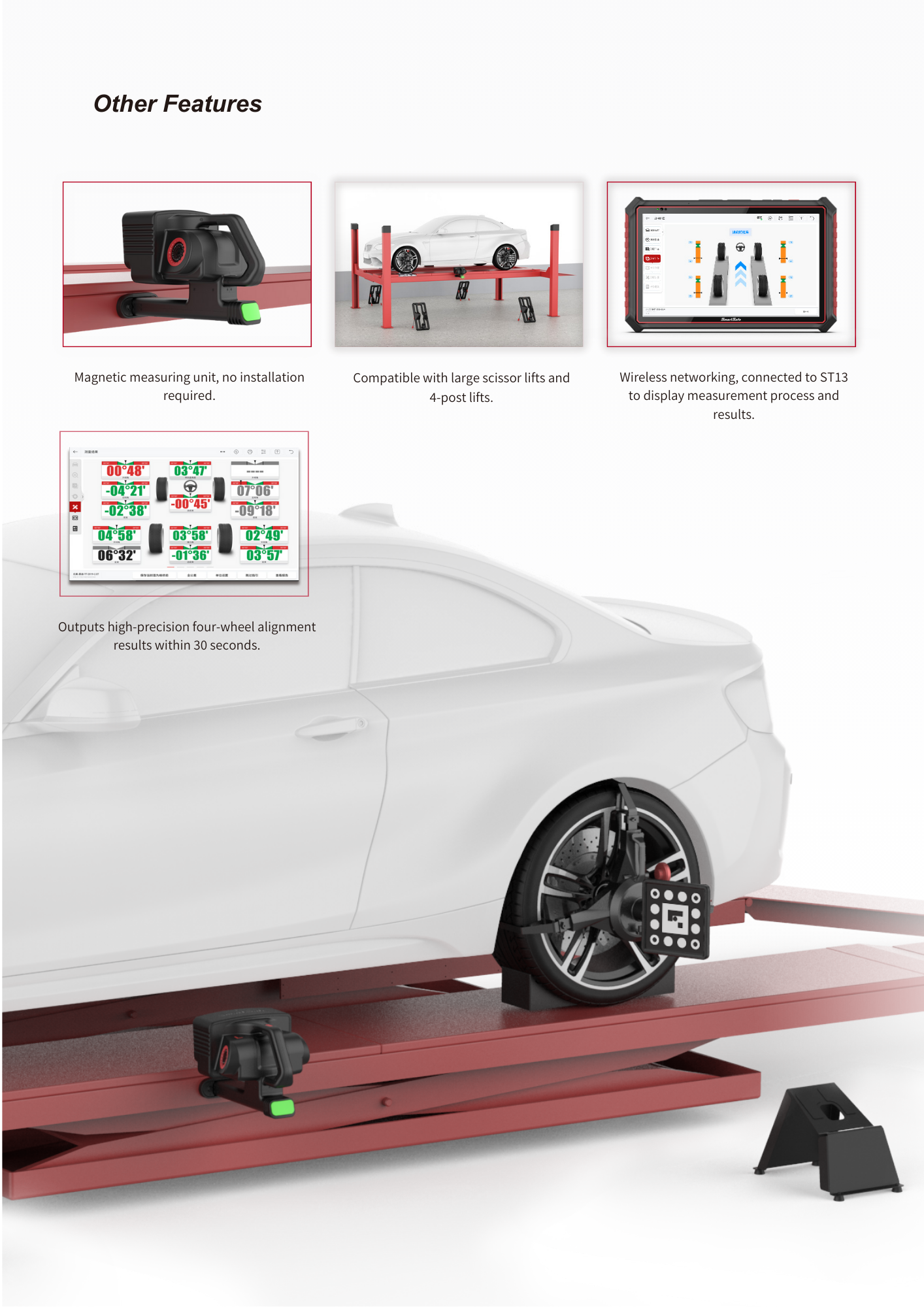

Features
- Instant experience: no installation, no wiring, no calibration required, ready to use right out of the box
- Space-saving: No need to install beams and cabinets, requiring less space
- Quick measurement: Outputs high-precision four-wheel alignment results within 30 seconds
- Two types of wheel clamps are available: 4-point wheel hub clamps are lightweight and more cost-effective, and 3-point tire clamps do not contact the wheel hub. Both types of wheel clamps are universal for target
- Innovative wheel clamp design: lightweight, patented magnesium, easy to operate, and convenient to carry and use
- Magnetic measurement units: no assembly or wiring required, free to go, no calibration required, ready to use out of the box
- Wireless transmission: With ST13 intelligent connection terminal to display measurement results and process, and facilitate vehicle bottom adjustment. also option to add a VCI and diagnostic software to the ST13 terminal to make it into a full scan tool as well
- Compact packaging: Lightweight design and materials significantly reduce packaging weight and size, with transport weight and volume only 20%-30% of traditional 3D four-wheel alignment machines.
- Multi-platform compatibility: Compatible with large scissor lifts and four-post lifts.
Functions
- Four-wheel alignment measurement: It supports standard measurement and quick measurement and can measure key parameters such as toe, camber, caster, kingpin inclination, and thrust angle. Supports additional measurements such as wheelbase, wheel track, axle offset, wheel offset, diagonal, center offset, etc.
- Database: Supports positioning data of 50,000+ global vehicle models, and supports user-defined database.
- Terminal wireless connection: With the ST13 intelligent connection terminal. Measurement data is transmitted wirelessly, and the four-wheel alignment process is displayed with the ST13 intelligent connection terminal.
- Test report: Generate professional test reports, support data comparison before and after adjustment, and support report sharing.
Products Parameters
- Toe-in: ±20°
- Camber: ±10°
- Caster: ±20°
- SAI: ±20°
- Maximum steering angle: ±35°
- Wheel Base: 1940~4600mm
- Wheel Track: 1920~1900mm
- Wheel Diameter (4-point wheel hub clamp): 275~640mm
- Tire Diameter (3-point tire clamp): 470~1100mm
Optional extras:
Please contact us for more information or to arrange a demo
Only logged in customers who have purchased this product may leave a review.
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All SmartSafe wheel aligners come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit (subject to availability) delivered to the customer within 72 hours (Monday to Friday)
The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 1 year warranty are
Machine calibrations (if knocked out of calibration due to mishandling)
Database updates
Problems with the Diagnostic tool by virus and other software’s installed that are causing problems,
Damage to any of the components caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop and Install/set up the unit and once set up will provide 4 hours onsite training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs and Calibrations not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance and calibrations that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
