Product Description
Please enquire for specail pricing and availability

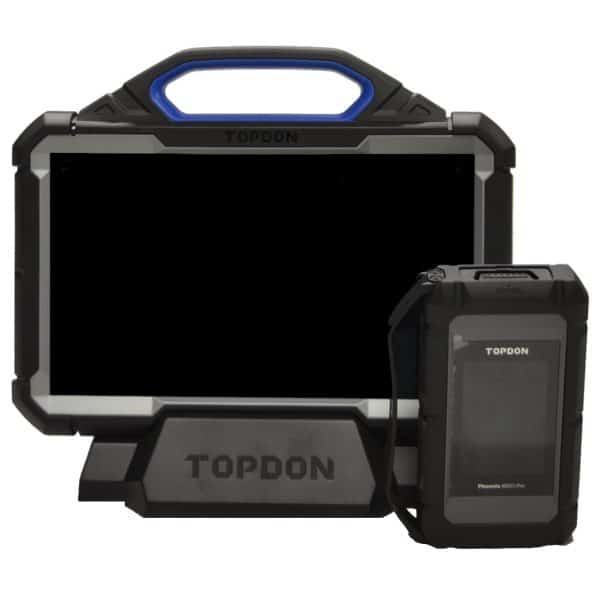

TOPDON Phoenix Max with 2 years updates
TOOL DESCRIPTION
The Phoenix Max is TOPDON’s newest cutting-edge automotive diagnostic scanner. With a 13.3″ screen, this all-in-one tool offers a wide array of functionalities that will expand any technicians’ capacity to complete even more jobs. The Phoenix Max includes a 4-channel oscilloscope, ADAS compatibility, and Topology Mapping that shows all car systems in one view. Its updated MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive and heavy-duty vehicles (heavy duty requires the optional HD add-on software)
The Phoenix Max also supports online programming for over 9 car brands (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all) and includes 2 years of free software upgrades.
This scanner also gives you unprecedented coverage, intelligent diagnoses, and a wide array of maintenance functions
FEATURES
- Scope: Includes a 4-channel Oscilloscope
- TOPDON Phoenix Max: is one of the most intelligent automotive diagnostic tablets on earth, specially designed for mid-scale or large-scale workshops and vehicle repairing houses.
- Superb all round vehicle coverage: covering more than 200 US, Asian and European brands
- Near OE-Level Diagnostics: Includes all you normal diagnostic functions including special functions like adaptions resets etc for a huge range of makes and models,
- Online ECU Coding: make software modifications to customize systems (also know as Retrofits and Conversions) for some systems and models on the following brands: BMW E and F series, VAG group, Toyota, Porsche,
- Cloud-based ECU Programming: for BMW, BENZ, VW/AUDI/SKODA/SEAT, PORSCHE，LAND ROVER/JAGUAR，SUBARU, NISSAN and RENAULT without the need of the manufacture software (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all)
- AutoAuth Access: covering Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, to communicate with FCA SGW Authentication System and bypass SGM for OBDII diagnostics, active test, calibrations etc.
- System topology diagram: The network topology diagram shows the networks and control units in a diagram which is very useful for us to understand how the different networks and systems are connected and when you do a full system scan we can see at a glance a overview of all the available systems and there status (this feature is new and is being added to many makes and models as updates go by)
- Special functions/adaptions: huge range of special functions/adaptions for many makes and models
- Guided Functions: with simple step-by-step procedures for quick and accurate car diagnostics.
- Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.
- Live data: Numerical and graphing functions and also searchable
- Module replacement: Module Replacement, Modification, Personalization, Anti-theft & Key Matching, and more (varies by the vehicle manufacturer, year, and model).
- Maintenance Service: Oil Reset • EPB Reset • SAS Service • ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Service • DPF Regeneration • Throttle Matching • Gearbox Matching • AFS Reset • Sunroof Initialization • Suspension Calibration • EGR Adaption, etc, 34 functions available in total, and still expanding.
- Camera VINScan: quick recognition of vehicle barcode with rear camera (for many makes and models)
- Smart AutoVIN & AutoScan: AutoVIN in many cases will auto identify the car make / model / year, and head towards proper diagnostics and in the cases where it does not AutoVIN the vehicles you can still use the standard manual method of selecting the correct vehicle details
- J2534 Compatible: TOPDON’s Phoenix Max comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols.
- User-Oriented Design: Multitasking; VCI Bluetooth wireless diagnosis; One-touch software update via Wi-Fi; Ideal management of workshop operations; Rubberized outer protection; Automatic power-off.
- Non-16pin Kit: enable to work on pre-OBDII compliant vehicles.
- Multilingual menu support: Chinese Simplified, Chinese Traditional, English, Japanese, Korea, French, Spanish, Portuguese, Italian, Russian, Deutsch, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Farsi, Finnish, Hungarian, Swedish, Turkish, Serbian.
- Modular design: allows for future capability expansions like ADAS and bluetooth battery tester.
- HD diagnostics: HD Diagnostics diagnostic software and heavy-duty cable set also available as a optional add on
ECU PROGRAMMING AND CODING
TOPDON Phoenix Max is capable of ECU Module programming for Mercedes, BMW, VW/AUDI/SEAT/SKODA, Porsche, Nissan, Subaru, Jaguar/Land Rover and Renault directly from Topdons own servers (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all)

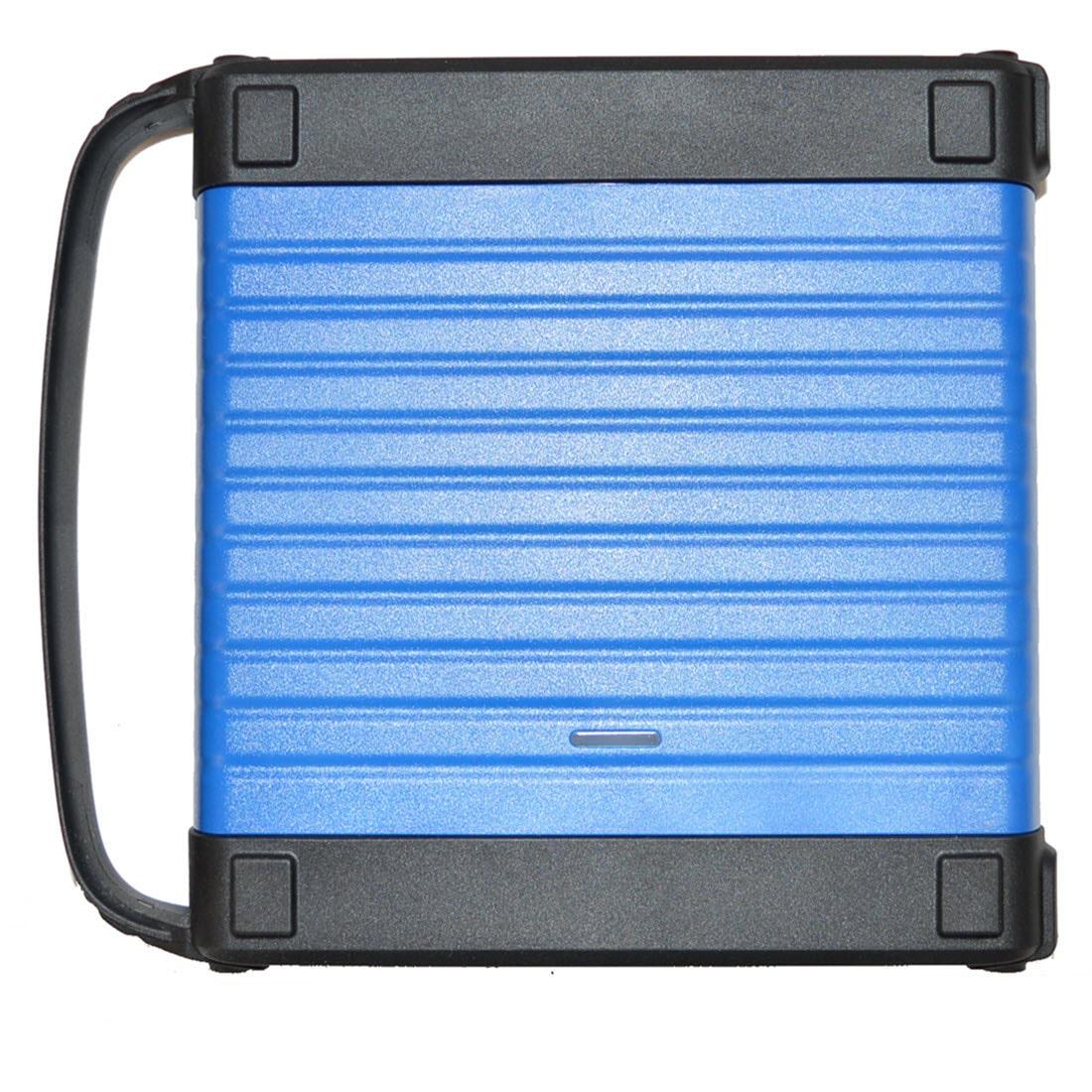

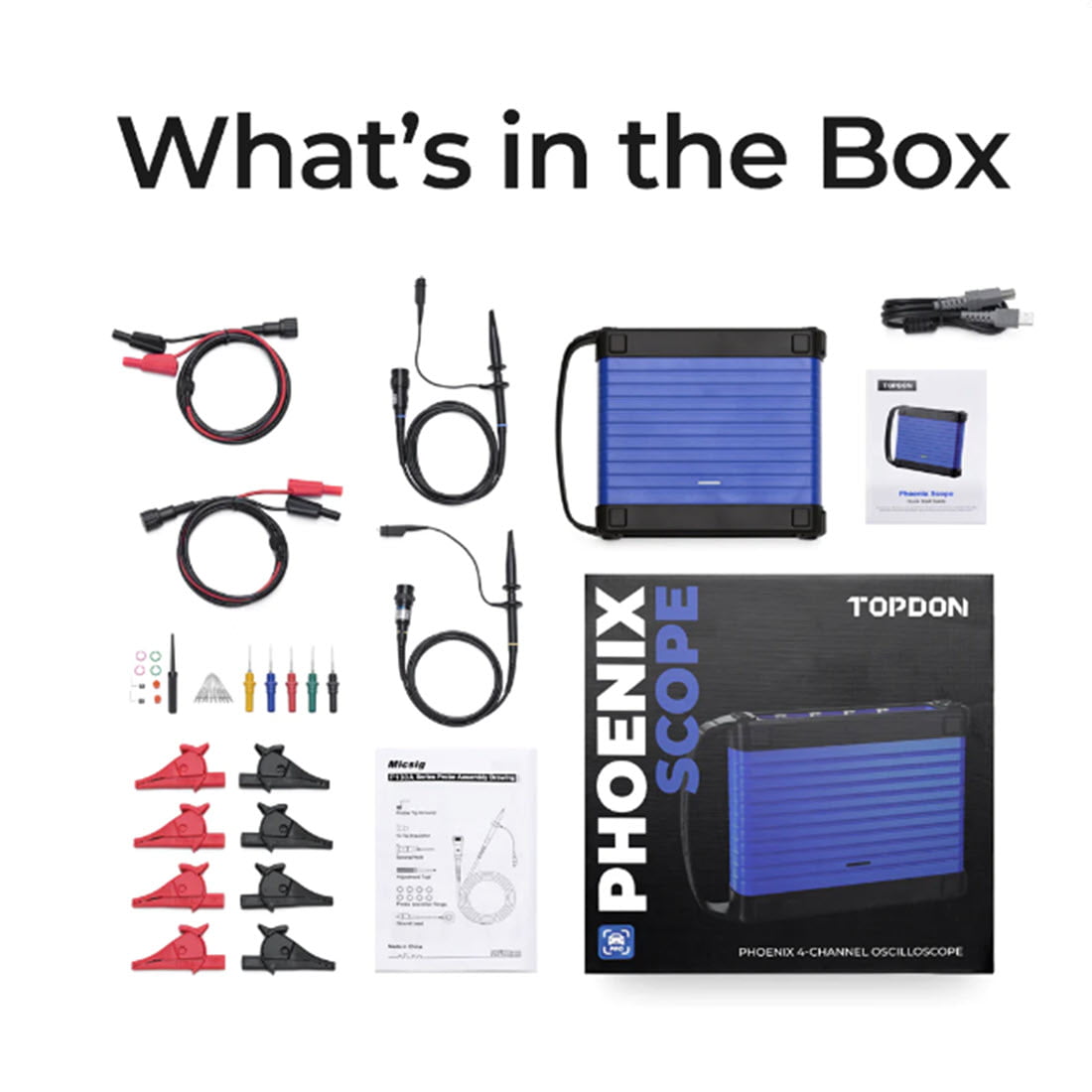

PHOENIX SCOPE

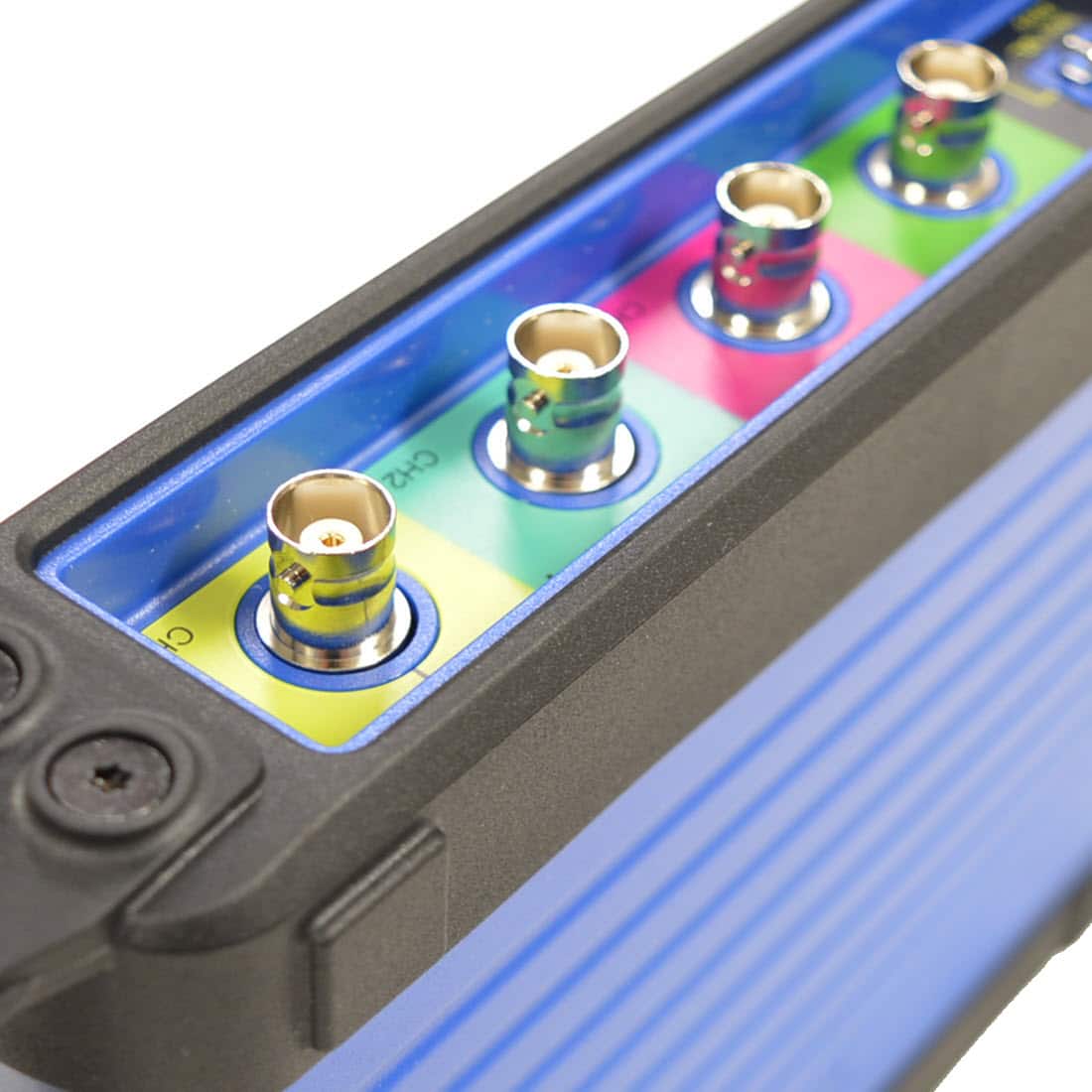

The included Phoenix Scope allows you to diagnose component and circuit faults with even more precision. With its color-coded channels, you can analyze and compare multiple components with ease.
Fix those hard-to-find intermittent problems by evaluating sensors, ignition components, actuators and much more with pinpoint accuracy.
TECHNICAL SPECIFICATIONS
- Memory: 8GB RAM & 256GB ROM
- Battery Capacity: 18600mAh，3.8v
- System: Android 9.0
- Screen Size: 13.3 inches
- Screen Resolution: 1920×1200
- Wi-Fi: Supports 2.4GHz&5GHz dual frequency
- Camera: Rear13 Megapixels

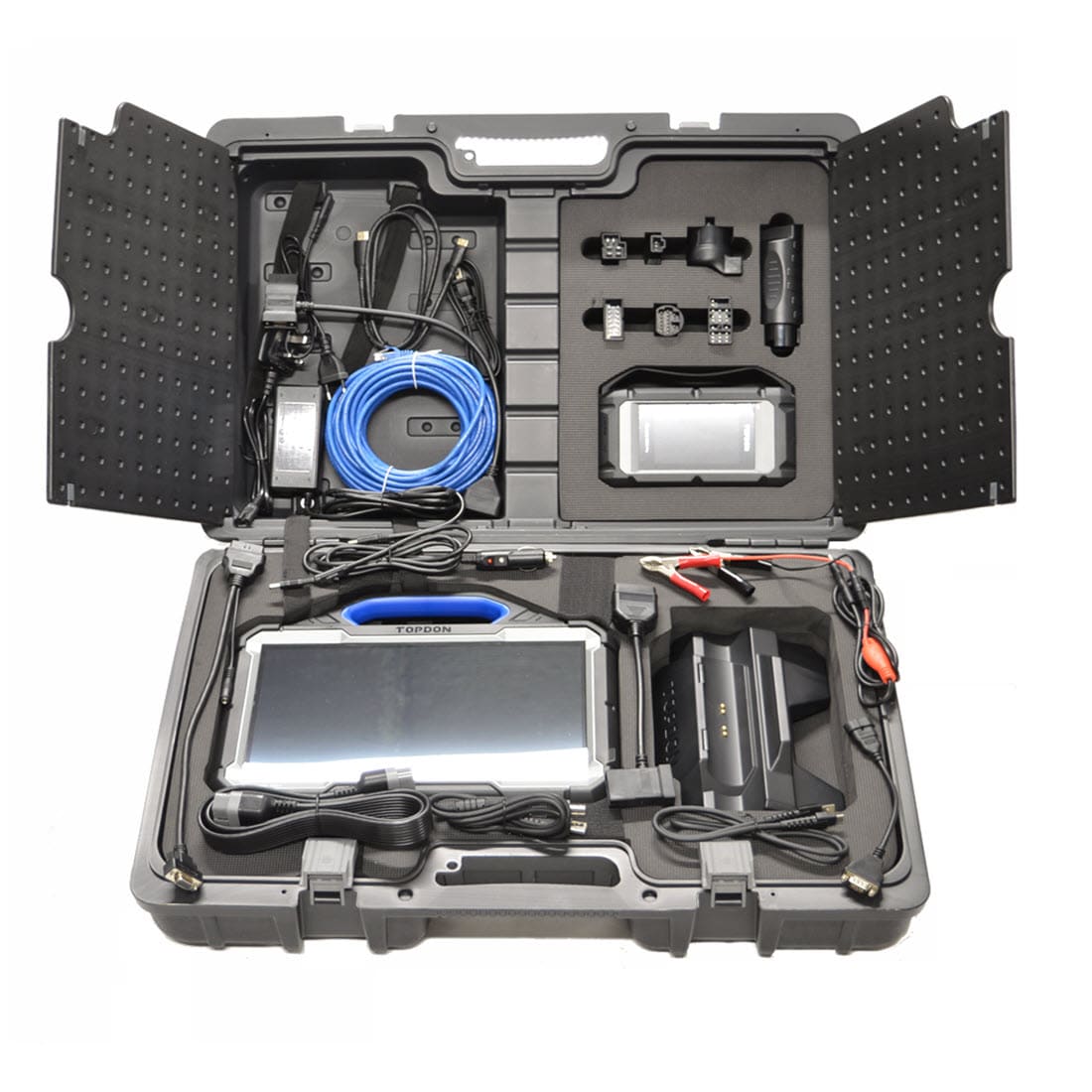

- Phoenix Max
- MDCI Eqquiped with MegaCan, CanFD, and J2534 Protocols
- Base station/charging station
- 4 Channel Oscilloscope
- OBDII Extension Cable
- Cigarette Lighter Cable
- Type-C to USB Cable
- Battery Cable
- LAN cable
- Other USB cables x 2
- Power Adaptor
- User Manual
- Password Envelope
- Non-16pin Adaptor Cable Kit
Smart MDCI Specs
- J2534 Compatible
- CanFD compatible
- Doip compatible
- 9-36V working range
Optional Extras
COVERAGE LIST: Click here to view coverage list
For other Topdon models please click HERE
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them every day in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.
Warranty
All Topdon diagnostic tools come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).
Items excluded from the 1 year warranty are
Cables, OBD connections, scope leads and scope accessories
Problems caused by other APPS or other software’s that the user installs on the device
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorized modifications.
Delivery and Training
Ryan’s Automotive or a courier will deliver the unit to your workshop registered and updated and ready to work,
And spend 4 hours onsite (or if not possible to call onsite can provide training over team viewer and phone) providing training on use of the machine.
We also can provide extra chargeable training if required.
Support
Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use).
We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
Additional support packages are required for vehicle technical support.
Not included in the support
Technical information that is found on systems like Autodata, Alldata etc,
The above support does not include vehicle technical support but we are always willing to help customers were we can.
Repairs not covered by the warranty and after the warranty period
For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
1 Log into the unit via team viewer
2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)
If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT
