Automotive Resistance Substitution Box

Product Description

Automotive resistance substitution box

Device is useful for simulation, inspection and testing applications of all car resistor type sensors

Many of the sensors found in modern day cars are resistor typed. Resistor type sensors are such sensors that change their resistance when the physical value they control has changed. Anyone who has ever worked in auto diagnostics has come across the necessity of having a suitable resistance, in order to check the efficiency of a sensor or the whole system that includes the sensor.

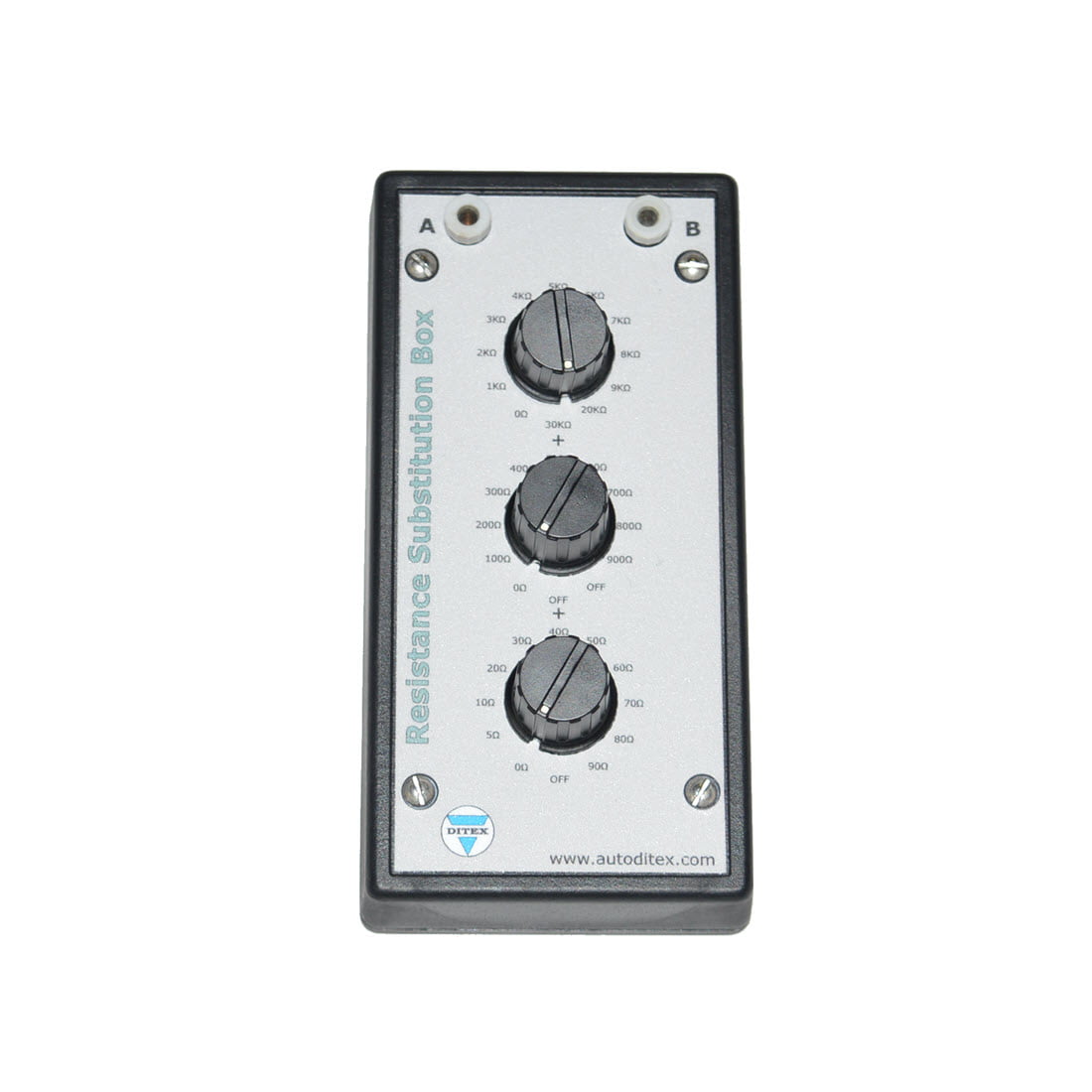

An Automotive Resistor Substitution Box is a unit containing resistors of many different resistance values, with 3 mechanical switches which allow any one of various discrete resistances offered by the box to be dialed in. This automotive type box offers a convenient way of selecting and quickly changing a resistance, without needing to attach resistors one by one or even stock each value.

The automobile resistor simulator is a very useful tool for simulating, checking and testing all kinds of resistances found in an automobile. You can choose a random resistance value between 0 ohm and 30990 ohm with a resolution of 10 ohm. The required resistance value is chosen using 3 rotary switches. Because of this, the necessity of maintaining a stock of resistors, changing one resistor after another and having to decode their color code, is gone.

Specifications:

• Resistance range = 0 ohm to 30990 ohm
• Minimum resolution = 10 ohm
