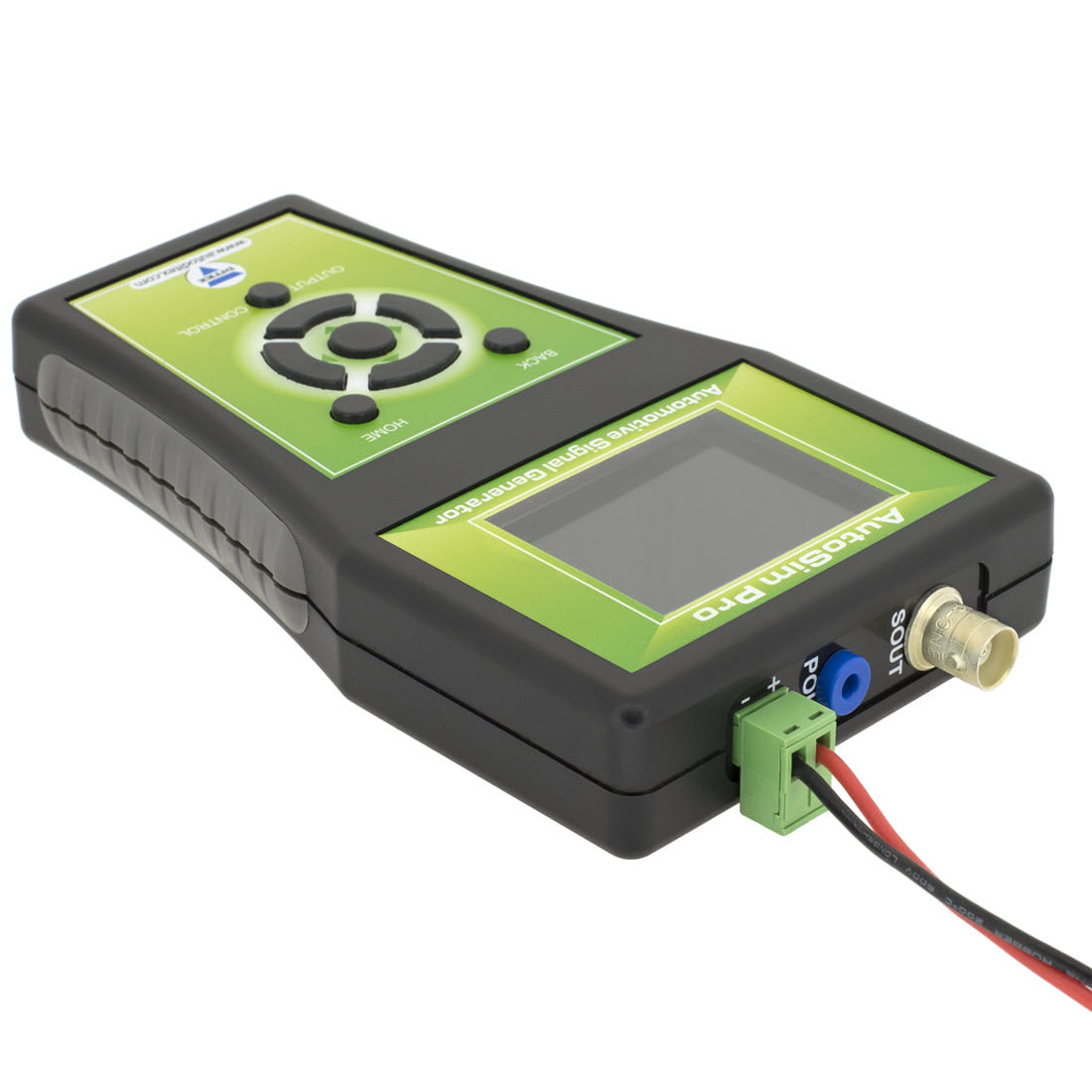

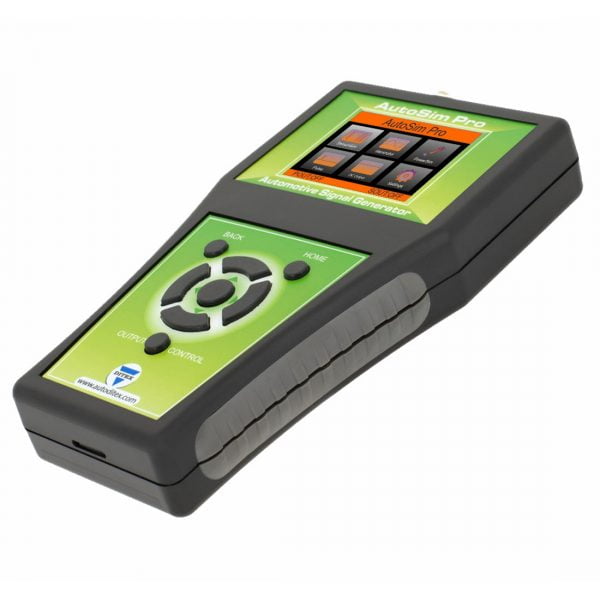

Autosim Pro Automotive Sensor Simulator and PWM generator

Since its releasing in 2012, the AutoSim sensor simulator has proven itself extremely popular with both technicians and professional diagnosticians thanks to its friendly user interface, attractive and reliable operation.

Eight years on from the release of the original model, we from Ditex present the second generation AutoSim Pro. Distinguished by its completely updated design and significant functional improvements, the AutoSim Pro Automotive Sensor Simulator from Ditex is a very useful tool suitable for cars, trucks and tractors applications in a variety of working situations. This advanced sensor simulator creates an electrically equivalent system to simulate the sensors and actuators found on an actual vehicle.

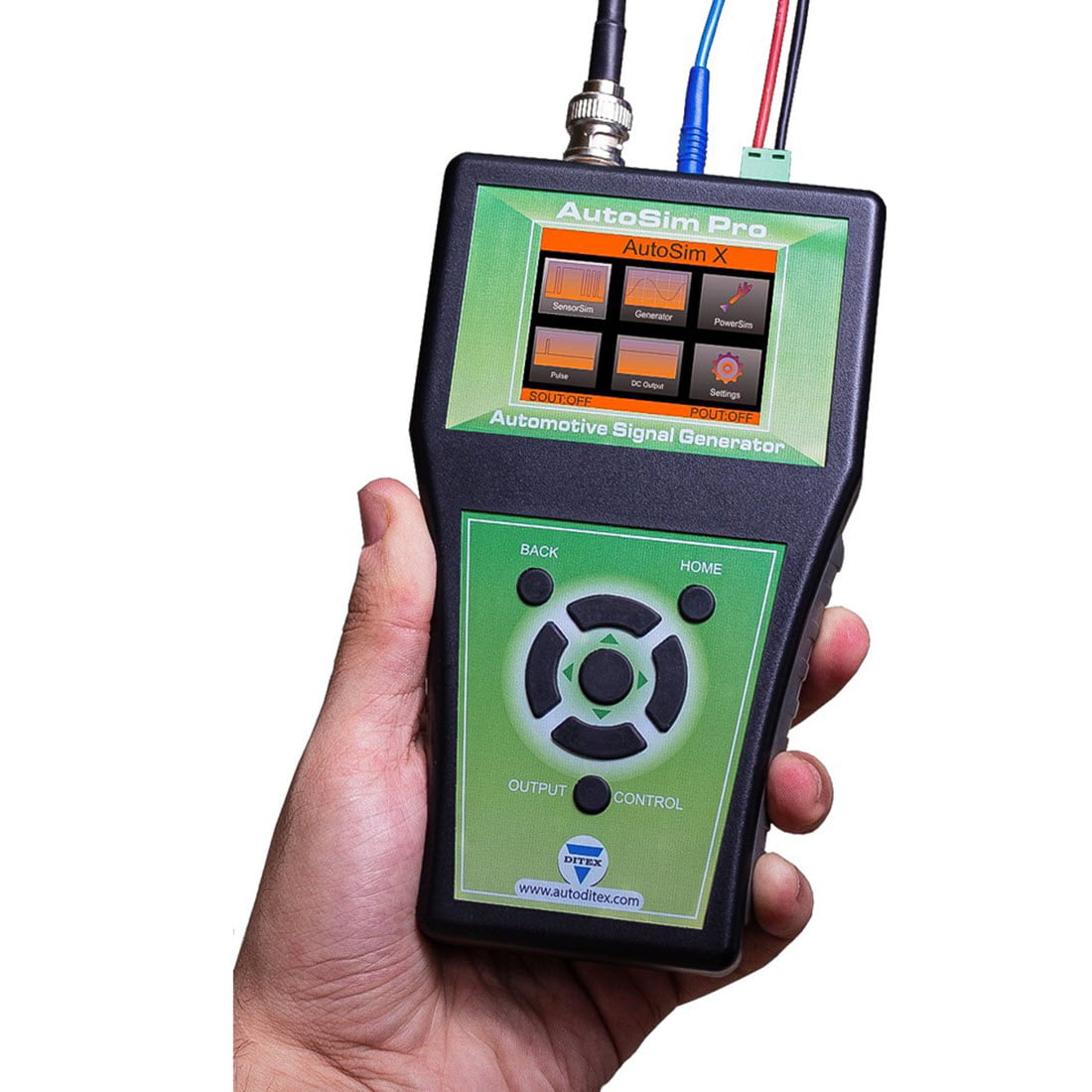

In general, the AutoSim Pro is a specialised signal generator for testing sensors, including leads and connections when installed. In this way, it is possible to tell whether an ECU, a feed, a plug-in connection or a sensor is defective. This allows efficient fault elimination without replacing parts “on suspicion”. One of the special features of this device is its easy and intuitive operation via function keys. The display continuously shows the most important settings such as current waveform, frequency, amplitude, offset, ramp time and pulse width.

Signal generator:

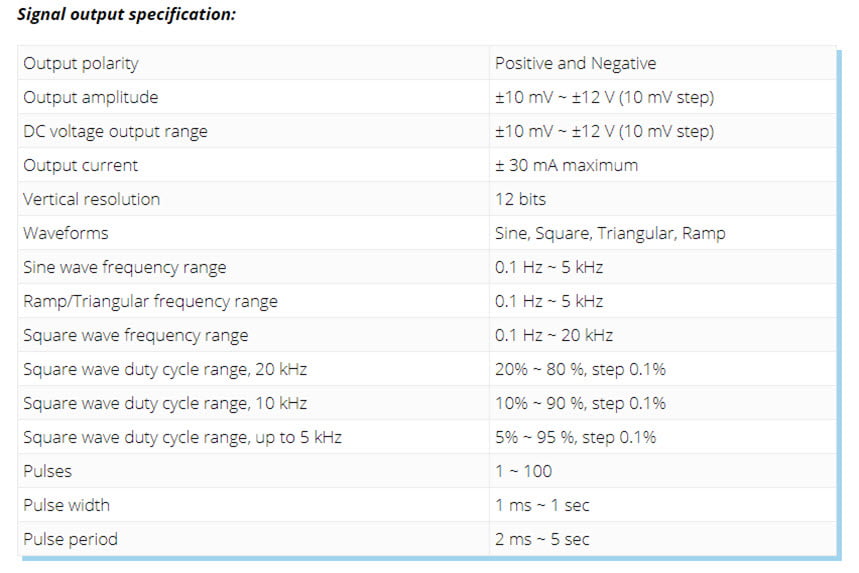

Providing the most important signals: sine, square, triangle and ramps, up to 20 kHz make the device the ideal companion for experiments with all type components and sensors as well as for the analysis of electrical wiring circuits. You have complete control over the output signal: peak-to-peak amplitude, frequency, duty-cycle and pulse width. A micro controller sets the output voltage in the range of 0V to ±12V accordingly to the programmed curves.

PWM:

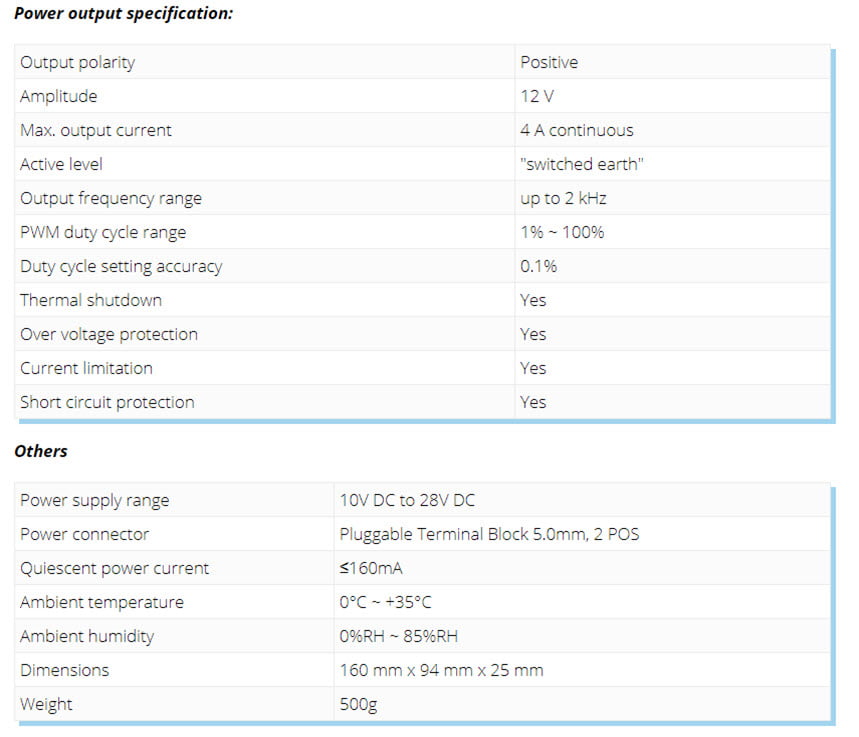

PWM generator for the dynamic control of vehicle actuators using pulse width modulation. The PWM generator function was specially designed to control flaps, actuators, valves, injectors and smaller DC motors. Generating variable power PWM signal up to 4 A.

Precise DC voltage source:

The AutoSim Pro low-noise, high-resolution DC voltage output function is the right choice when a precision source of DC voltage is needed. Its bipolar output delivers up to ±12 V with 10 mV resolution and up to 35 mA of current.

Sensor embedded presets:

Automotive Sensor Simulator with built-in preset configurations for simulation of CKP Inductive, CKP Hall Effect, Lambda sensor Zirconia, Lambda sensor Titania and Knock Sensor. You can disconnect sensor from the vehicle harness, inject the signal in the harness and watch the scope and or diagnostic tool to see if the PCM responds positively.

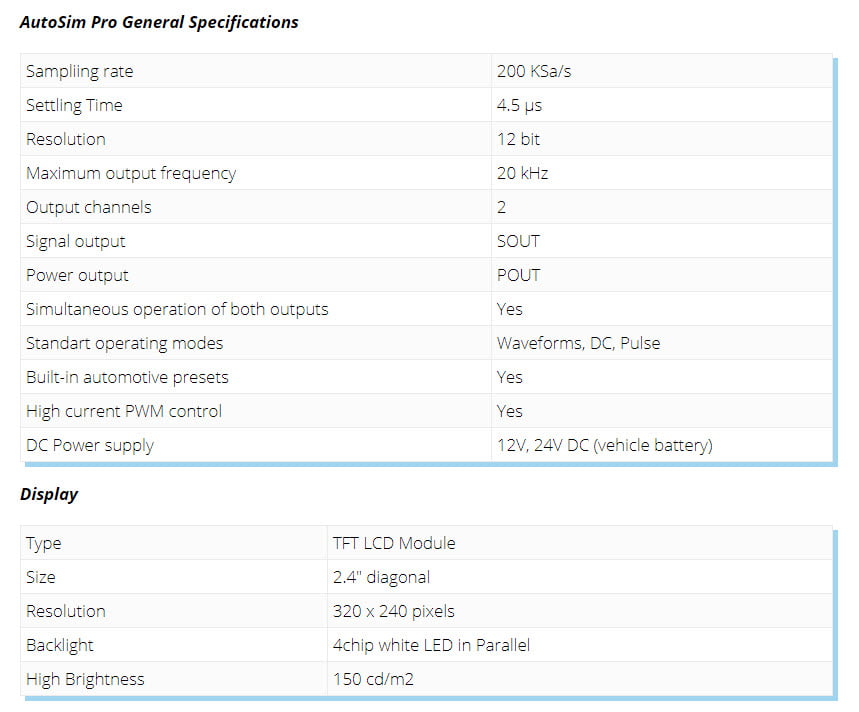

Features:

• Handheld standalone device;
• Intuitive operation via function keys;
• Ultra-fast boot time;
• Excellent industrial design;
• Operates on both 12 and 24 Volt electrical systems;
• Illuminated 2.4″ TFT LCD 320х240 display for optimum visibility;
• Protection against reverse polarity connection;
• Low distortion factor and high signal-to-noise ratio for brilliant signals;
• Adjustable frequency range from 0.1 Hz to 20 kHz;
• Generating variable power PWM signals up to 4 A;
• One-wire hook-up PWM output;
• Precise DC voltage source;
• Internal Micro SD card for firmware updates.

Applications:

• Simulates actual working condition of the most automotive sensors;
• Efficient fault elimination without replacing parts “on suspicion”;
• Simulates O2 sensor signals: Zirconia and Titania;
• Checking of basic ECU operation;
• Controlling the output signal allows to check the ECU response and operation;
• It can drive ECU into “open” or “closed” loop;
• Activation of a large number of actuators;
• Variable adjustable voltage output from 0 to ±12 volts;
• Simulates crank and cam sensors inductive and hall;
• In both crank and cam modes you are able to adjust the number of teeth and the missing teeth.

In the set:

• AutoSim Pro main device;

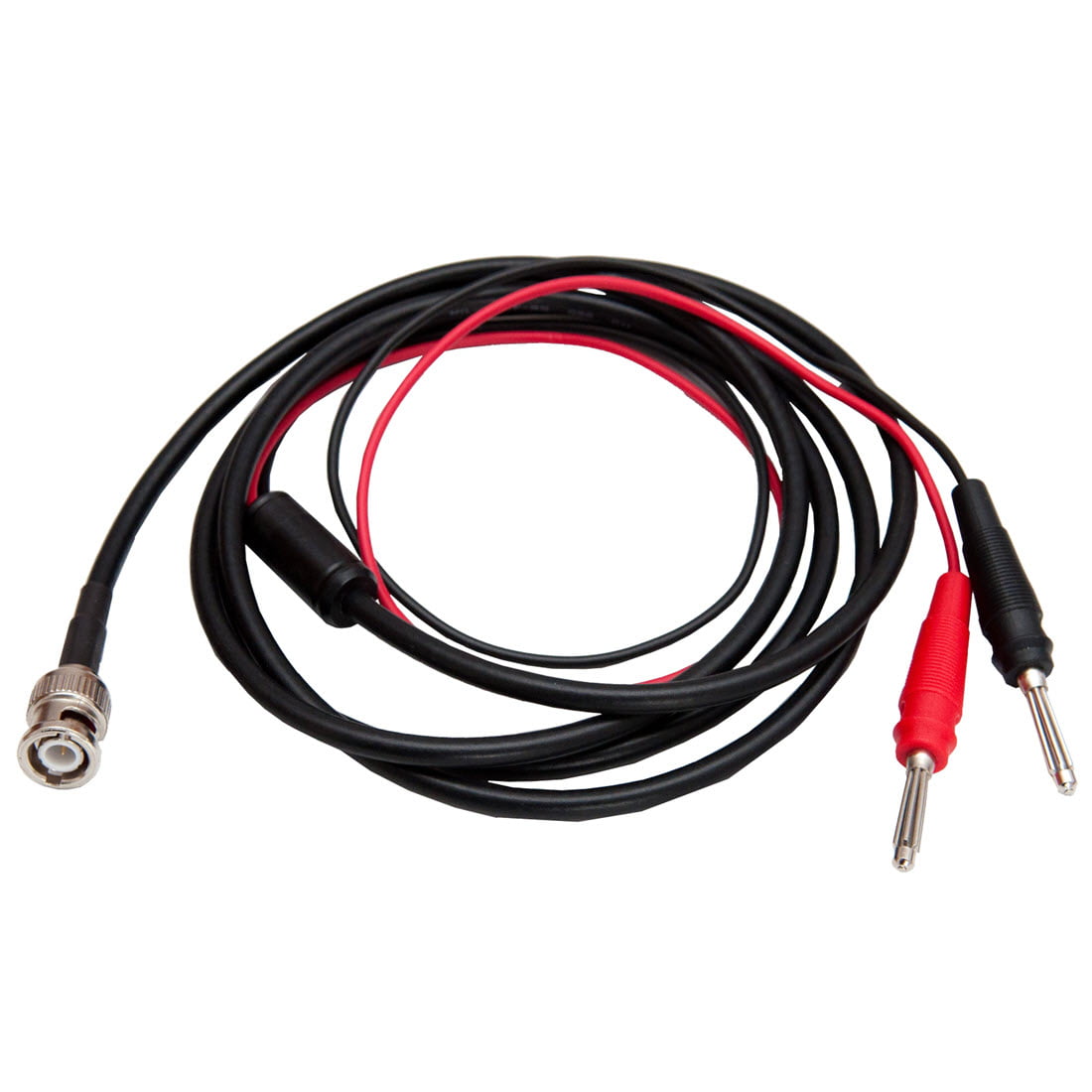

• Test Lead, BNC Coaxial, Straight Plug to 4mm Banana Plugs x 2, 60 V, 1000 mm;
• Test Lead, 2mm Banana Plug to 4mm Banana Plug, Blue, 60 V, 10 A, 800 mm;

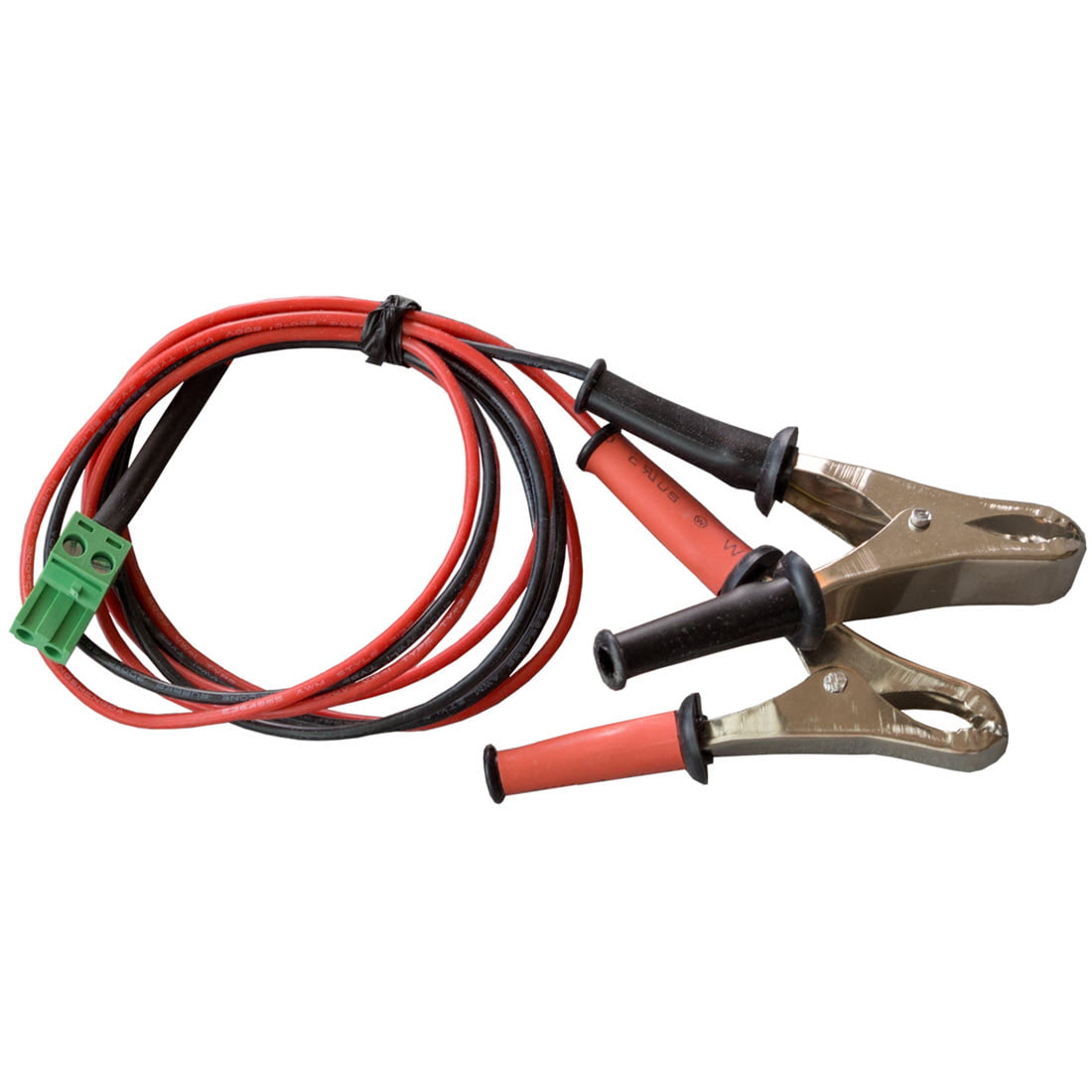

• Power supply cable;
• Micro SD memory card.
