Product Description
CarScope Viso Basic Kit
Automotive tablet oscilloscope for troubleshooting automotive electrical problems
Extremely easy to use 2 channel scope meter/multimeter
Ideal for the novice scope user or the experienced user who want a robust and fast scope to perform quick checks

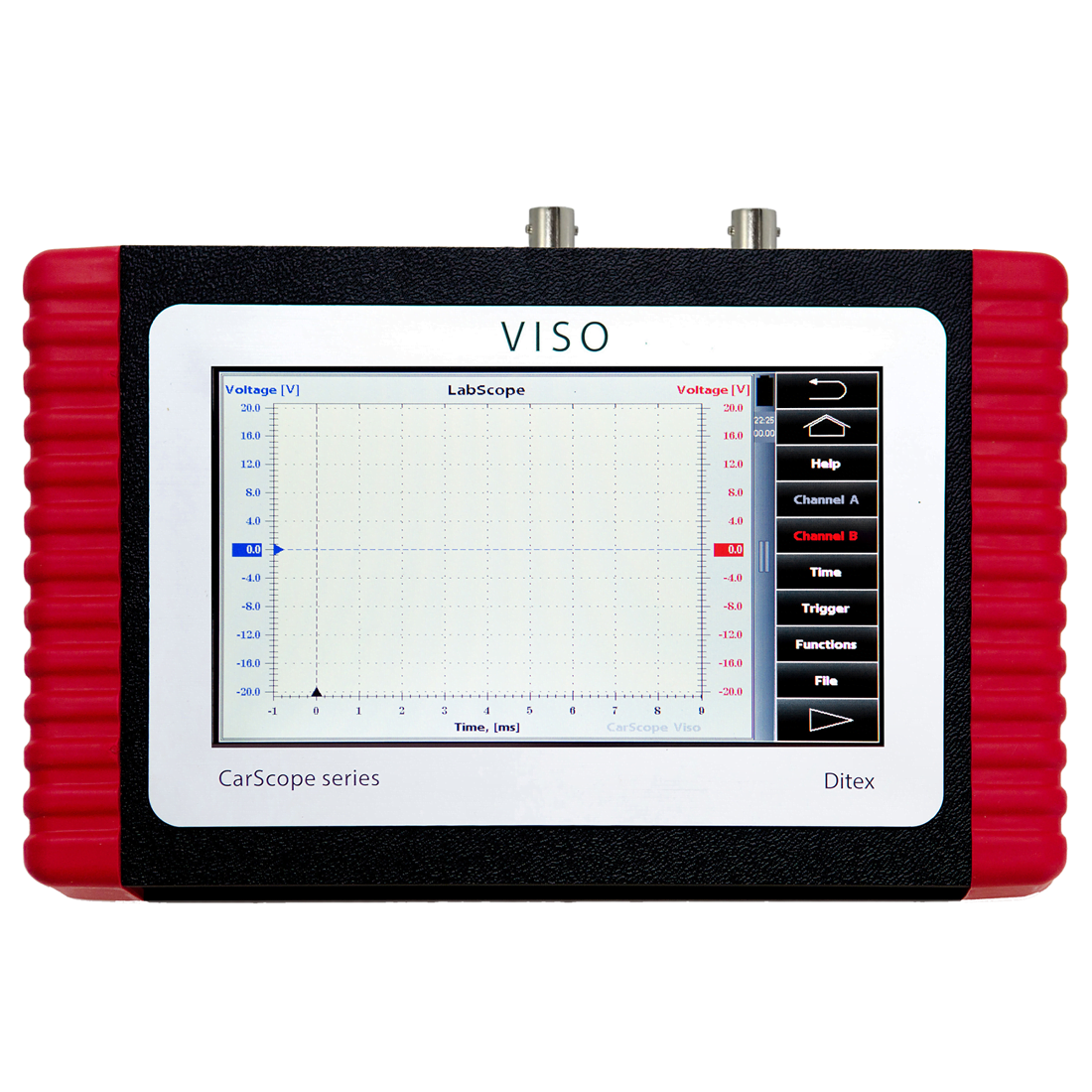

CarScope Viso is the newest member of CarScope’s popular family of automotive diagnostic oscilloscopes. It is dedicated professional automotive component tester with touch screen colour display and it is the single solution to all your engine analysis needs.
The Viso automotive digital storage oscilloscope provides you with affordable performance in a compact design.
It’s packed with useful features such as: USB connectivity, component tester with built-in preset configurations, primary and secondary ignition capabilities with presets, dual graphing voltmeter, frequency counter and context sensitive help menu. The Viso oscilloscope helps you get more done, in less time.
Start with the basic kit and add more power and functionality to suit your needs.
The basic kit includes the embedded firmware and measurement leads for the 2-Channel oscilloscope and for the digital voltmeters.
Key performance specifications:
- 2-channel oscilloscope
- Each channel has its own independent ADC
- Advanced hardware trigger
- 8k point record length on all channels
- Up to 20 MS/s sample rate on each channel
- 7 inch WVGA (800X480), Active TFT Color Display
- Capacitive touch screen
- Specially designed real-time embedded system
- Ultra fast boot time
- Embedded generic information system
- Built-in automatic pre-set measurement configurations
- Built-in context-sensitive help
- Peak detect mode for viewing narrow pulses spaced far apart in time
- Zoom function
- Internal Micro SD card to save and review measurements
- Store, share and recall waveforms as a BMP file or Viso’s specific output format
- PC connectivity via USB port to save waveforms to you PC
Specifications:
- Channels = 2
- Maximum sampling rate = 2 independent 20 MS/s ADCs
- Bandwidth = 2MHz
- Oscilloscope Inputs = 2 Inputs; ±20 Volts; 1MΩ in parallel with 30 pF
- Secondary Ignition Inputs = Any input channel (capacitive pick-up clamp,optional and coil on plug pick up optional not included in this set)
- Primary Ignition Inputs = Any input channel (20:1 attenuator)
- Input ranges (full scale) = ±0.5V; ±1V; ±2V; ±5V; ±10V; ±20V (real)
- Input Overload Protection = ±200V DC+AC peak
- Trigger Source = Channel 1 and Channel 2
- Trigger Type = Automatic, Single Shot, None
- Trigger Edge = Rising edge, Falling edge
- Vertical Resolution = 8 bit
- Hardware memory buffers = 32,000 bytes RAM buffer per channel
- Record length = 8k point record length on all channels
- Horizontal zoom = Horizontally expand or compress a live or stopped waveform
- Peak Detect acquisition mode = User selectable
- Sample acquisition mode = Sample data only
- Connectivity = USB 2.0 device port for easy connection to a PC
- Data storage = 8GB internal SD card
- Power source = Lithium Ion Battery – 18650 cell – 2600mAh
- Total Power Consumption = 400mA max
- Average Battery Life = 4 hours
- Battery charging voltage range = 4.75V to 5.5V DC
- Battery charging adapter = 5V / 2.0 Amp DC out, 5.5mm x 2.1mm, Positive Center
- Dimensions – main device = Approximately 250mm (L) x 175mm (W) x 40mm (H)
- Weight (main unit) = Approximately 0.4kg
- Weight (basic set) = Approximately 0.95kg

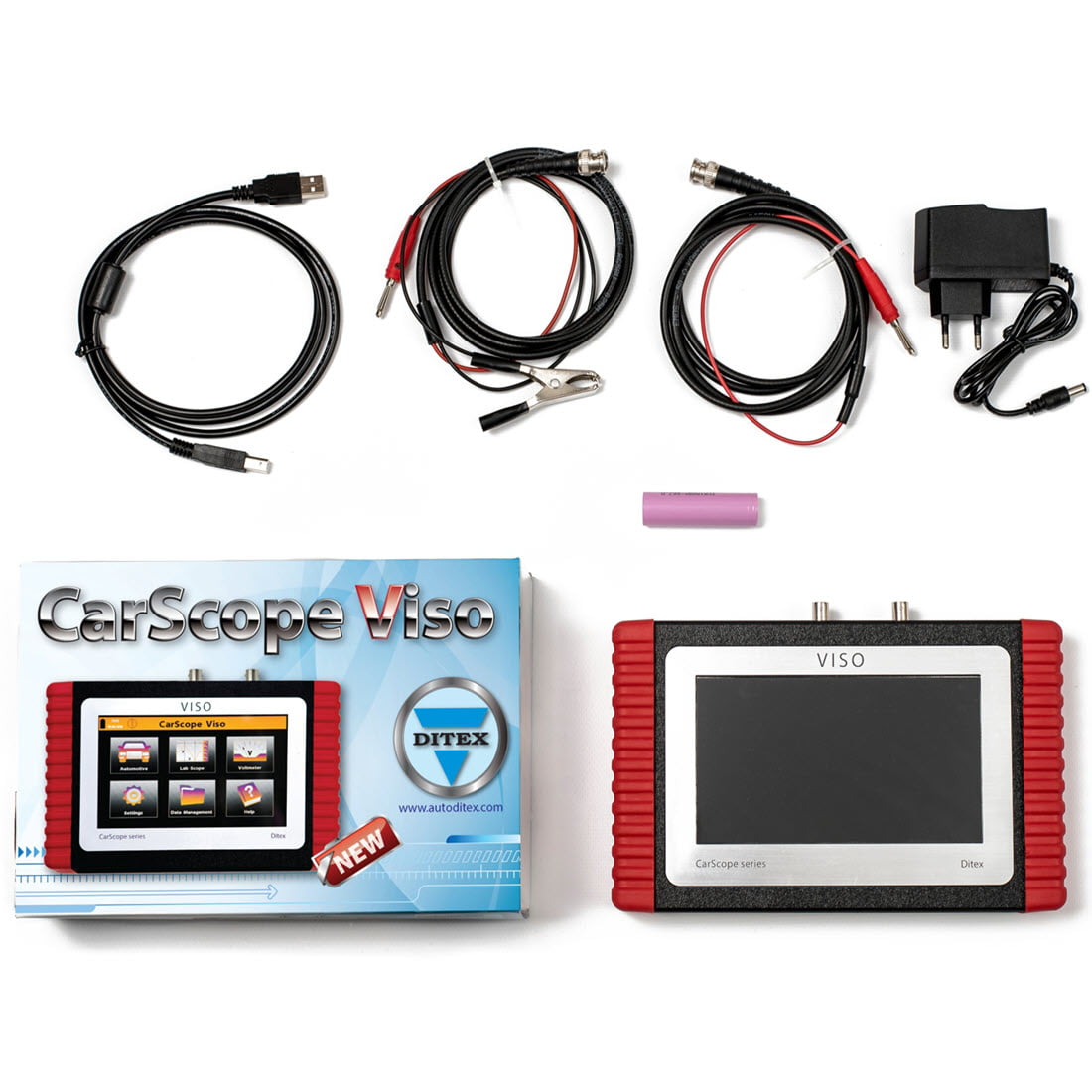

Includes:
- CarScope Viso – main hardware unit;
- Scope leads – 2 pieces;
- AC coupling 1:1 x 1
- 18650 Li-ion Cell Battery 2600mAh;
- 5V/2A DC Wall Power Adapter – 5.5mm x 2.1mm plug;
- USB 2.0 Cable Type A Male to Type B Male (optional) – this is a standard issue USB 2.0 cable.This is the most common A to B Male/Male type peripheral cable, the kind that’s usually used for printers.
Optional extras:
The are many options available for this scope please enquire for more info
Many useful test leads and accessories available Click here to see test leads and accessories
CarScope VISO demonstration program can be Downloaded here
Download and run this file and it will install the Carscope Viso simulation software on you PC this allows you to see how the scope works and how the software is laid out
