Ditex Current Clamp CA-60

Product Description

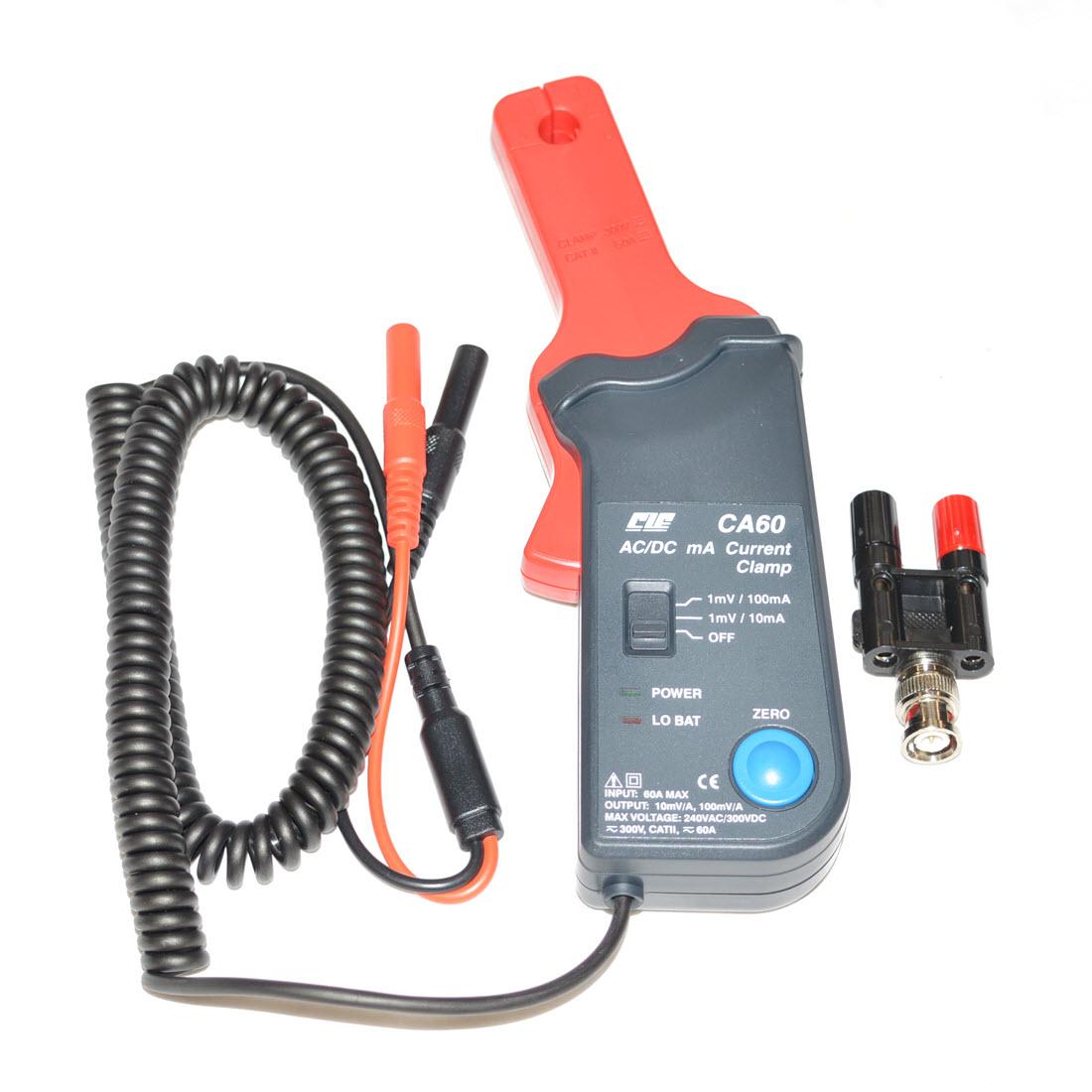

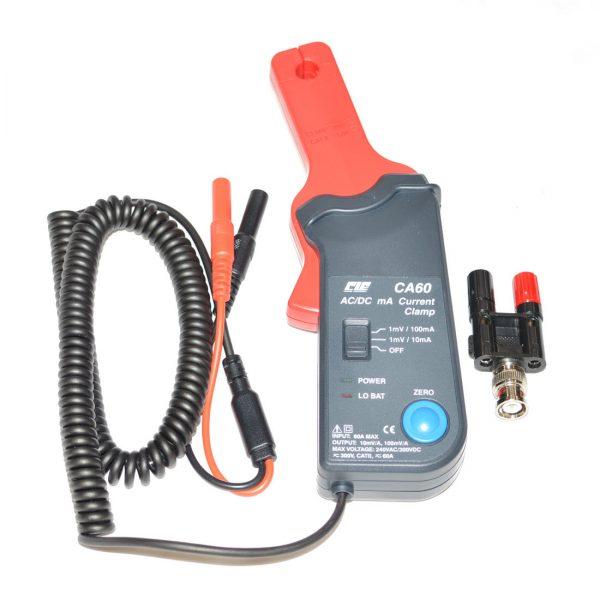

Ditex CA-60 20/60 amperes two range AC/DC Current Clamp

The model CA-60 clamp adapter is transducer which will allow your oscilloscope, motortester or multimeter to measure electrical current from 10 mA up to 60A, both types AC or DC, with a frequency response up to 20 kHz.

In use for measuring current with this clamp adapter, there is not need to break into the circuit or disturb the isolation as the opening jaws simply clamp around the current carrying conductor. No electrical contact is required.

The small measuring jaws allow the measurement to be made at very difficult locations.

Specifications:

• Jaws Opening Capability, Max 9mm conductor
• Low battery indicator, Red LED lightning
• Battery type, 9V DC, 6F22
• Connection type male 4mm banana and also includes a banana to BNC adapter

Applications:

• Display current waveforms for fuel injectors
• Display current waveforms for fuel pumps
• Display current waveforms of primary and secondary circuits of ignitions coils
• For electronic diesel fuel injection control (EDC) systems, test of the Solenoid Valve
• And much more

The CA-60 current clamp is supplied with 4mm (banana) plug type connectors and a banana to BNC adapter so can be plugged directly into the mScope or AutoScope Easy, Carscope Viso, Carscope i-Tester etc.

• The CA-60 current clamp has two calibration settings, set by a slider switch on the handle of the probe.
• 10 mA – 20 A DC/AC range: Transfer rate: 1 mV/10 mA (100 mV = 1 A). Use this for testing currents up to 20A..
• 20 A – 60 A DC/AC range: Transfer rate: 1 mV/100 mA (10 mV = 1 A). Use this for testing current up to 60A.
