Pressure Pulse Sensor

Product Description

Pressure pulse sensor

For use with Ditex scopes

In normal operation of internal combustion engines pulse waves of pressure are generated in various systems. All engines produce such waves and their shape is predictable. All engines produce a predictable pattern of these pulses so any change in shape or appearance of asymmetry of these pulses indicates a problem with the engine. PPS detects such faults as burnt valves, bad injectors and other performance problems without major disassembly of the engine. To visualise the waveform of the output signal of PPS, its electrical part is connected to an oscilloscope (motortester; automotive scope). The screen will show in real time the work of valves, cylinders and injectors, and by using synchronization to the first cylinder it can be determined by its performance which cylinders has a problem. The auto mechanic can therefore quickly and accurately get an idea of the actual condition of the engine. Pressure Pulse Sensor does not need additional external power supply and it can be used with most modern digital storage oscilloscopes (motortester).

Use in conjunction with a Ditex scopes to check the following:

• Pulsation of exhaust gases in the exhaust;
• Changes in the gas pressure in the inlet manifold;
• Fluctuations in the membrane pressure regulator of the fuel;
• Crankcase gases and other;

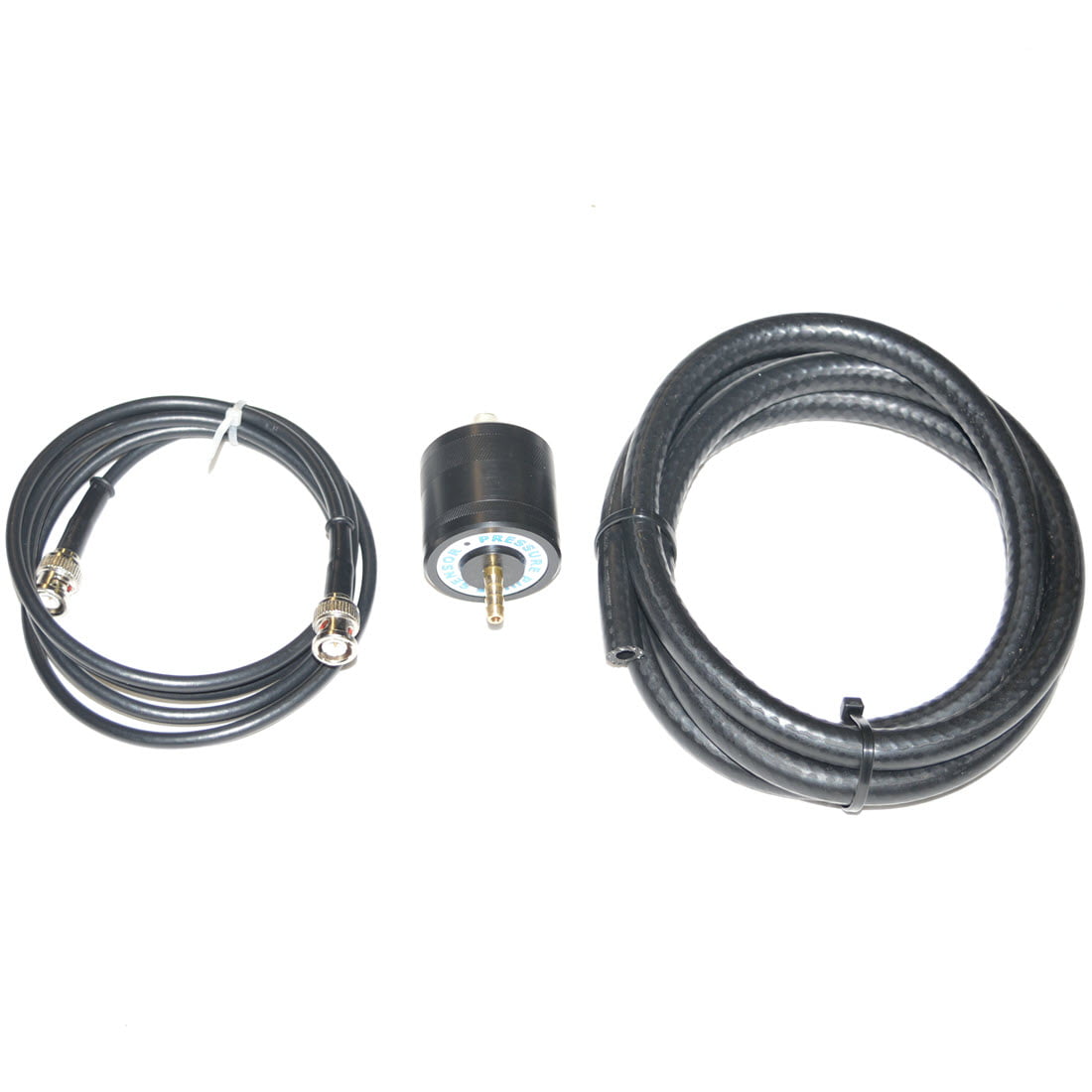

In the set:

• Pressure Pulse Sensor;
• BNC to BNC cable – 2m cable;
• 2m hose;

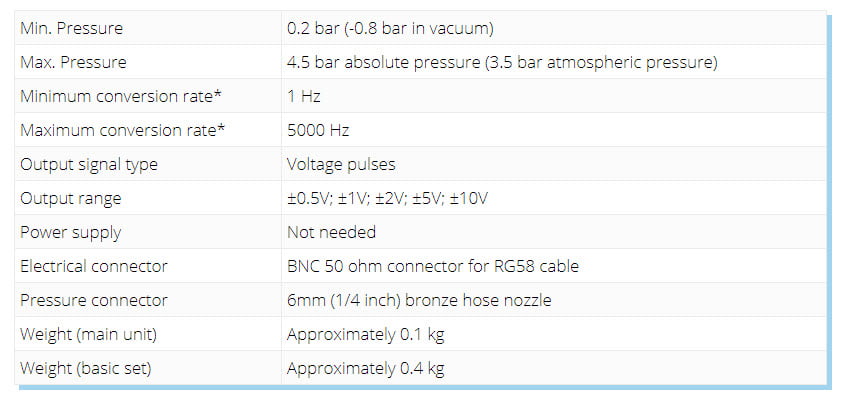

Specifications:
