ABS Braking system training board-simulator

Product Description

Automotive training equipment | ABS braking system trainer

Order number: MSABS1

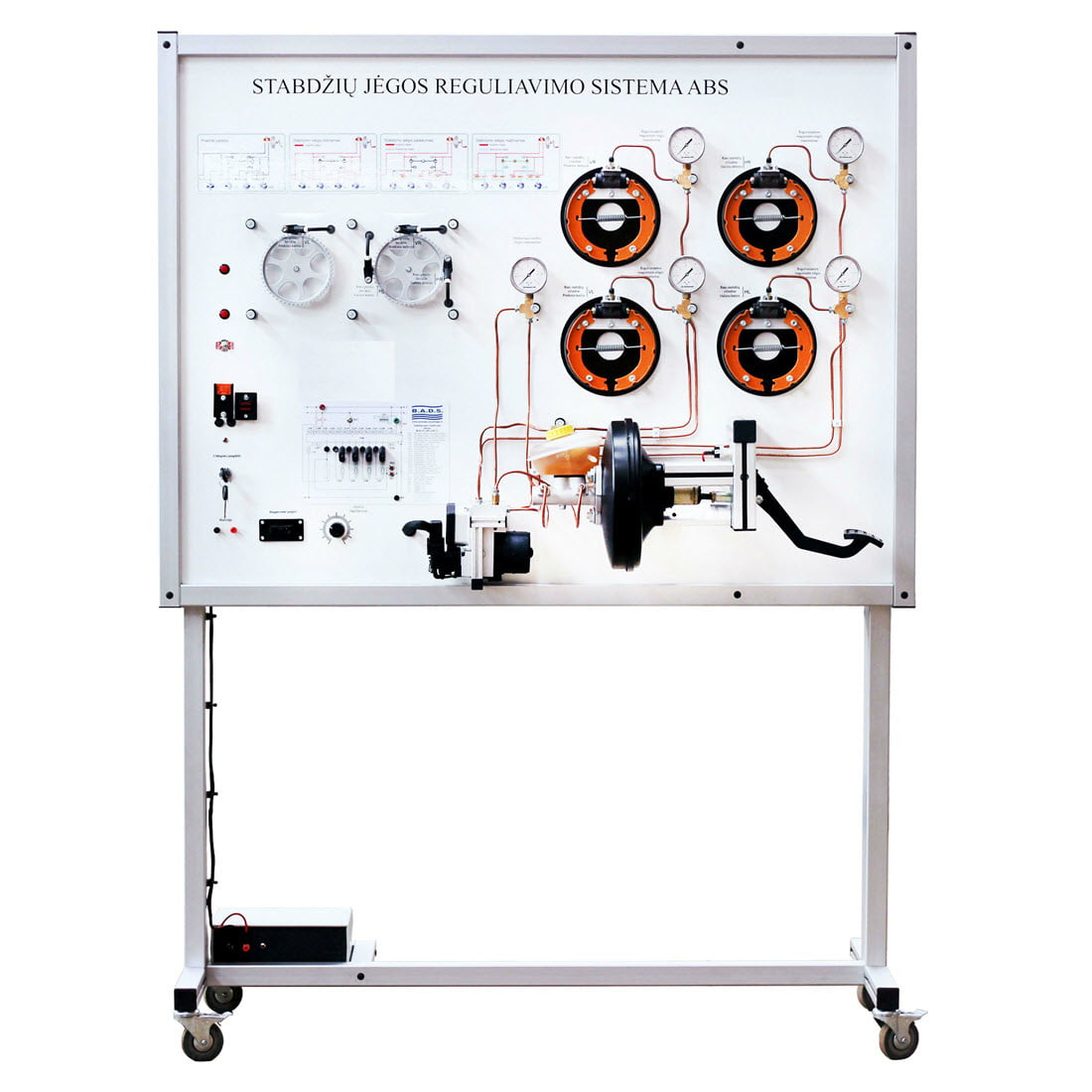

Fully functional ABS electronic braking system is installed in a mobile aluminum frame. This training board-simulator is specially designed to demonstrate ABS braking system and operational structure. The educational training board is based on Audi/VW OEM components. The stand is equipped with a functional BOSCH 5.3 ABS braking system and shows the different operation modes.

The training board-simulator is a great educational tool that allows students to learn the structure of ABS control system, study its components, perform various measurements, tests and other diagnostic procedures.

Technical specifications and functions:

• The training board is equipped with a functional BOSCH 5.3 ABS braking system;
• With installed pressure gauges it is possible to monitor the pressure in the main brake circuit and the individual pressure of each wheel;
• The training board is equipped with original hydraulic brake system. Just the brake pads of the brake drums are used instead of the brake discs, to
• show better, when the pressure rises up and the braking moment starts;
• The operation of the hydraulic circuit is shown on the stand in the pictures in different mode;

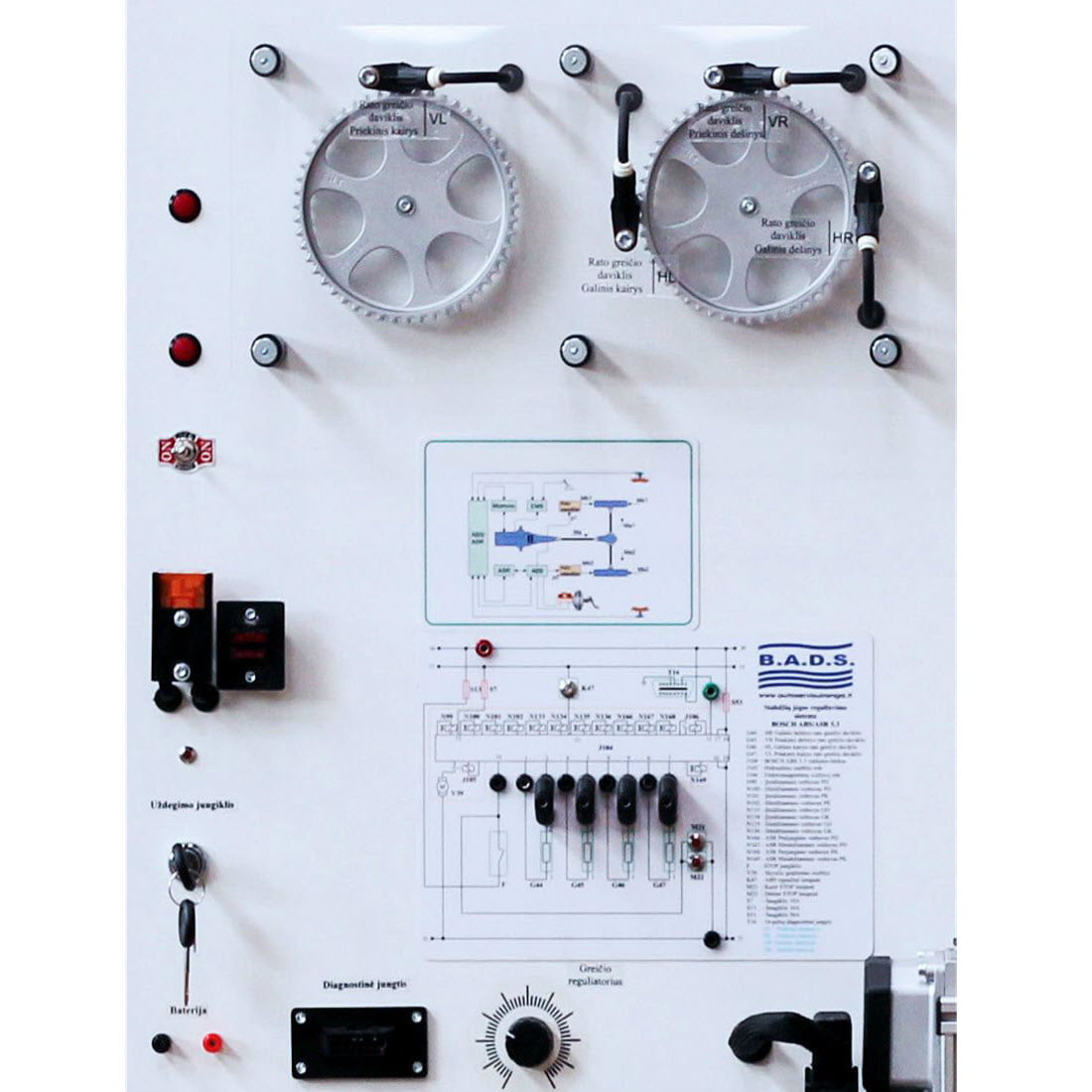

• Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of the system’s fault codes;

Diagnostic and measurement

Oscilloscope/multimeter:

• System’s parameters are measured by connecting to the banana connector;
• Ability to measure electrical signal parameters of each system component;

Control unit diagnosis:

• Diagnosis through OBD 16 – pin diagnostic connector;
• Electronic control unit (ECU) identification;
• Reading/erasing fault codes;
• Displaying the operating system parameters (live data);
• Activating the actuators (Depends on the control unit);

Other:

• The stand has a closed structure – internal wiring is not visible
• Power supply: 12 V from the battery (not included as standard accessory)
• Dimensions approx. (HxLxW): 1820x1360x500 mm
• Nett weight approx.: 60 Kg
• Made in Lithuania
• CE certificate

Optional accessories:

• 12 V Battery
• 220/12 V power supply unit
• Automotive oscilloscope
• OBD Diagnostic scan tool
