ABS/ASR Braking system training board simulator

ABS/ASR 5.3 BOSCH Braking system training board – simulator

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

Automotive training equipment | ABS/ASR braking system trainer

Order number: MSABS/ASR1

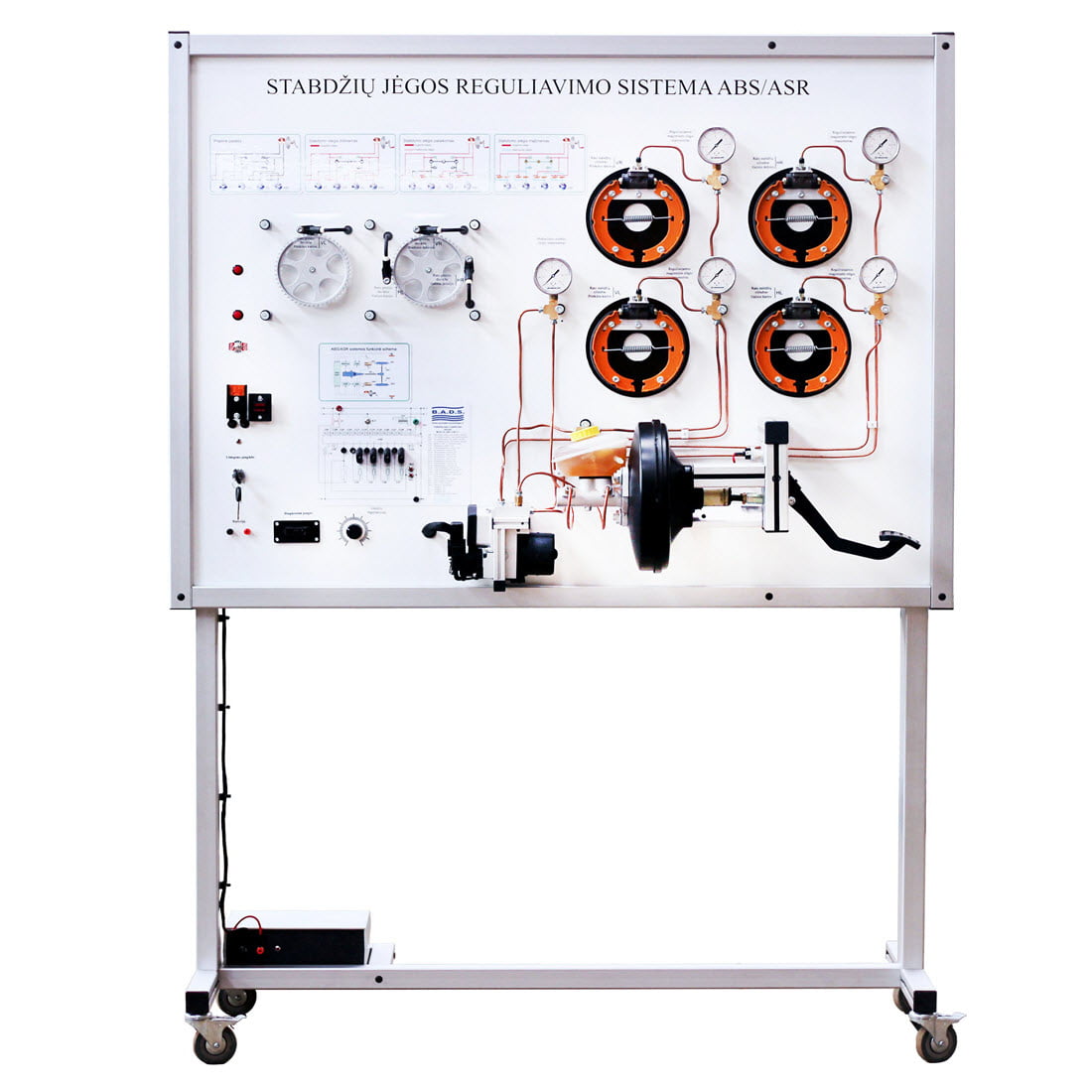

Fully functional ABS/ASR electronic braking system is installed in a mobile aluminum frame. This training board-simulator is specially designed to demonstrate ABS/ASR braking system and operational structure. The educational training board is based on Audi/VW OEM components. The stand is equipped with a functional BOSCH 5.3 ABS/ASR braking system and shows the different operation modes.

The training board-simulator is a great educational tool that allows students to learn the structure of ABS/ASR control system, study its components, perform various measurements, tests and other diagnostic procedures.

Technical specifications and functions:

  • The training board is equipped with a functional BOSCH 5.3 ABS/ASR braking system;
  • With installed pressure gauges it is possible to monitor the pressure in the main brake circuit and the individual pressure of each wheel;
  • The training board is equipped with original hydraulic brake system. Just the brake pads of the brake drums are used instead of the brake discs to
  • show better when the pressure rises up and the braking moment starts;
  • The operation of the hydraulic circuit is shown on the stand in the pictures in different mode;
  • Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of the system’s fault codes;

Diagnostic and measurement

Oscilloscope/multimeter:

  • System’s parameters are measured by connecting to the banana connector;
  • Ability to measure electrical signal parameters of each system component;

Control unit diagnosis:

  • Diagnosis through OBD 16 – pin diagnostic connector
  • Electronic control unit (ECU) identification
  • Reading/erasing fault codes
  • Displaying the operating system parameters (live data)
  • Activating the actuators (Depends on the control unit)

Other:

  • The stand has a closed structure – internal wiring is not visible;
  • Power supply: 12 V from the battery (not included as standard accessory)
  • Dimensions approx. (HxLxW): 1820x1360x500 mm
  • Nett weight approx.: 70 Kg
  • Made in Lithuania
  • CE certificate

Optional accessories

  • 12 V Battery
  • 220/12 V power supply unit
  • Automotive oscilloscope
  • OBD Diagnostic scan tool
