Automotive training equipment | CAN BUS network system trainer

Order number: MSCAN1

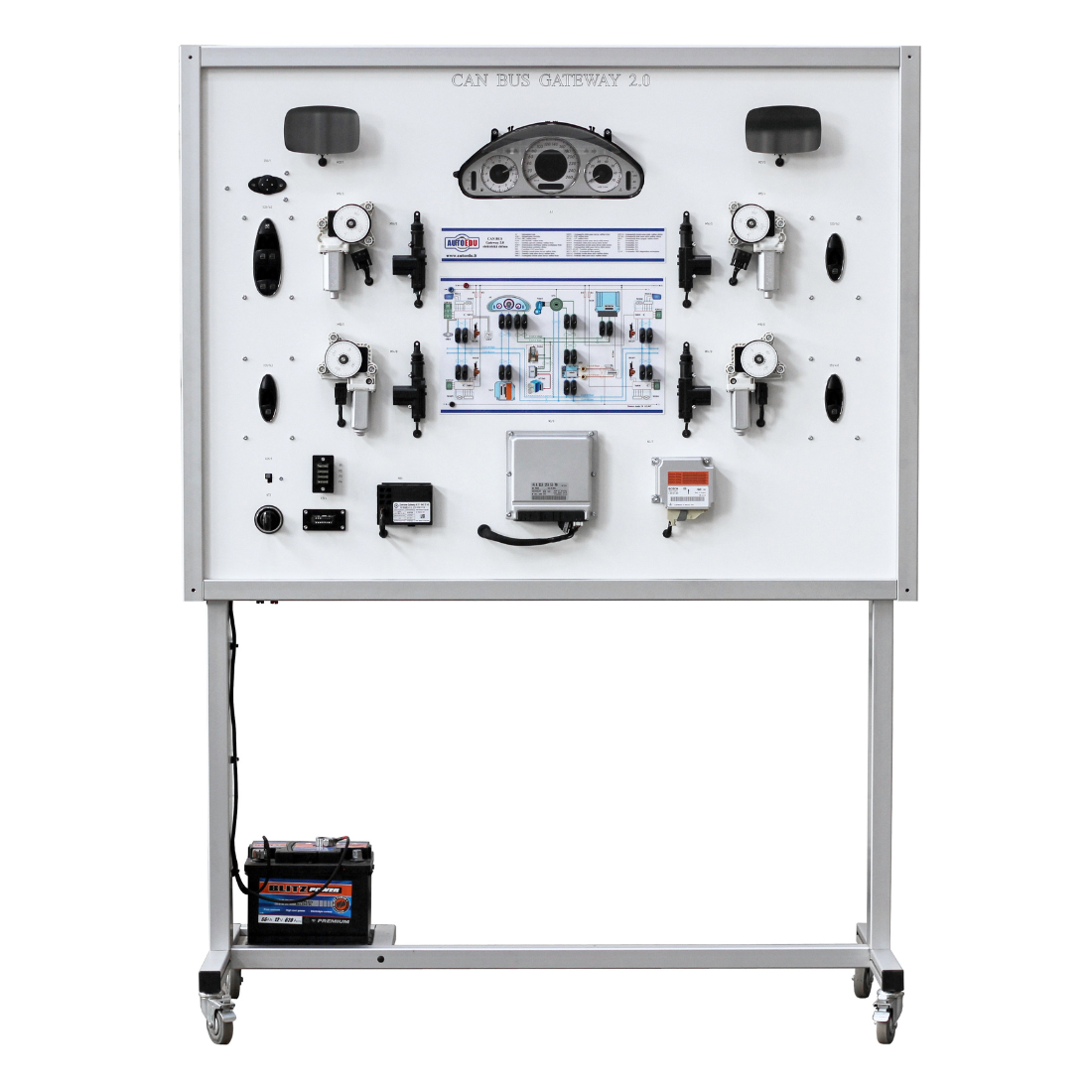

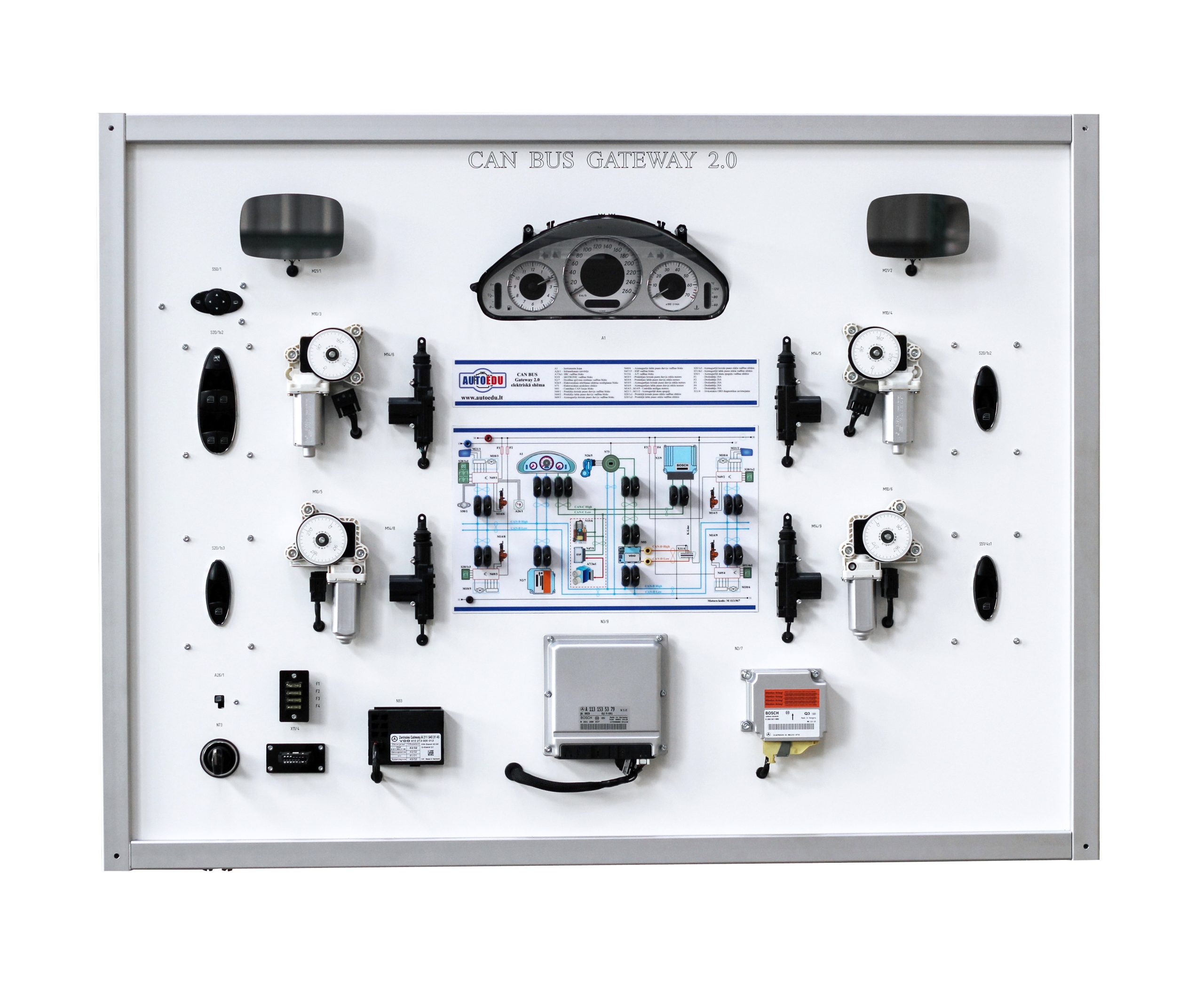

Fully functional CAN – BUS network system is installed in a mobile aluminum frame. This training board-simulator is specially designed to help technical students understand better the system`s construction.

The educational training board is based on OEM components of Mercedes – Benz. The stand is equipped with a functional CAN GATEWAY 2.0 system.

The training board-simulator is a great educational tool that allows students to learn the structure of CAN gateway system, study its components, and perform various measurements, tests and other diagnostic procedures.

Technical specifications and functions

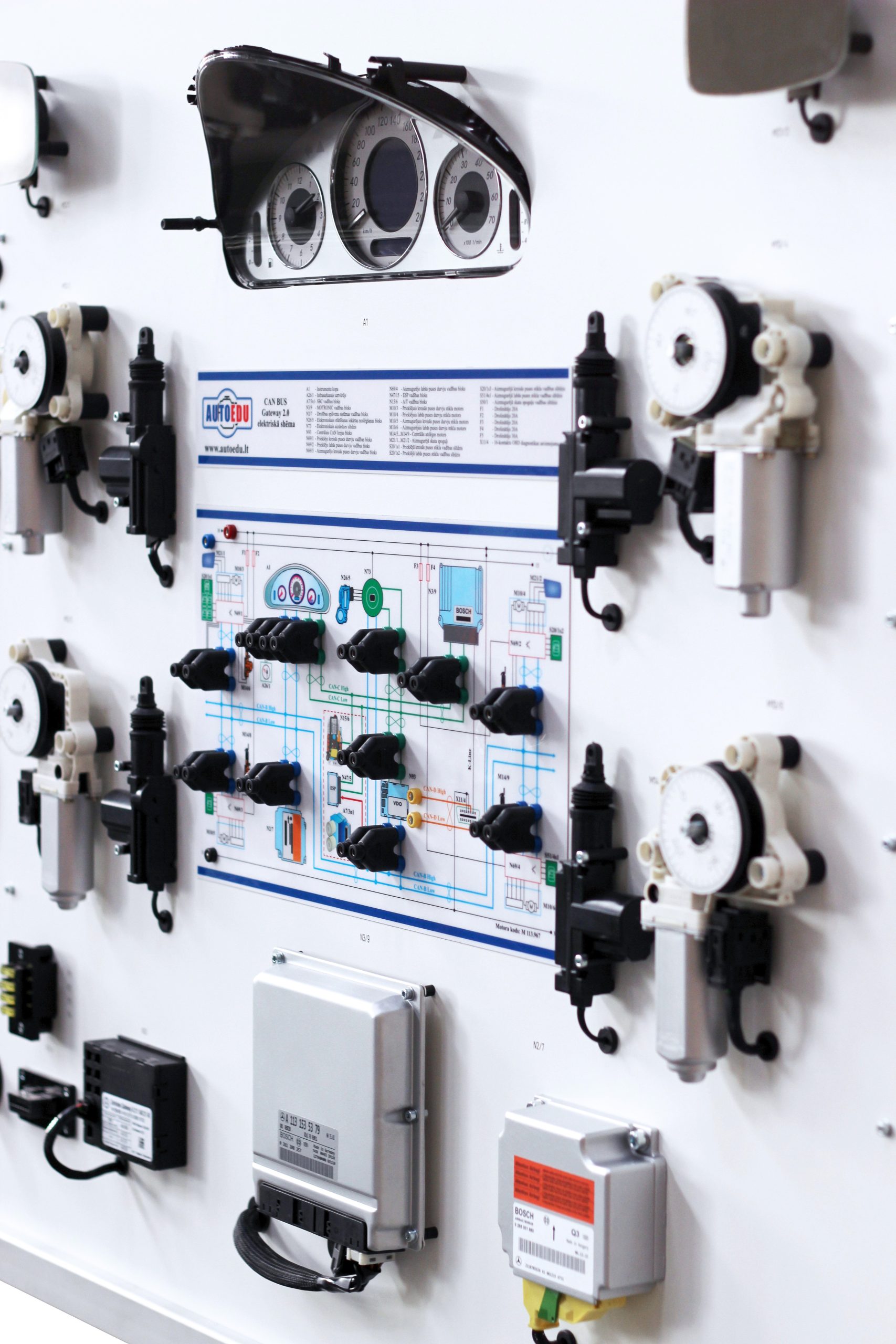

  • The training board is equipped with a CAN gateway 2.0 network system that includes:

    – Dashboard ;

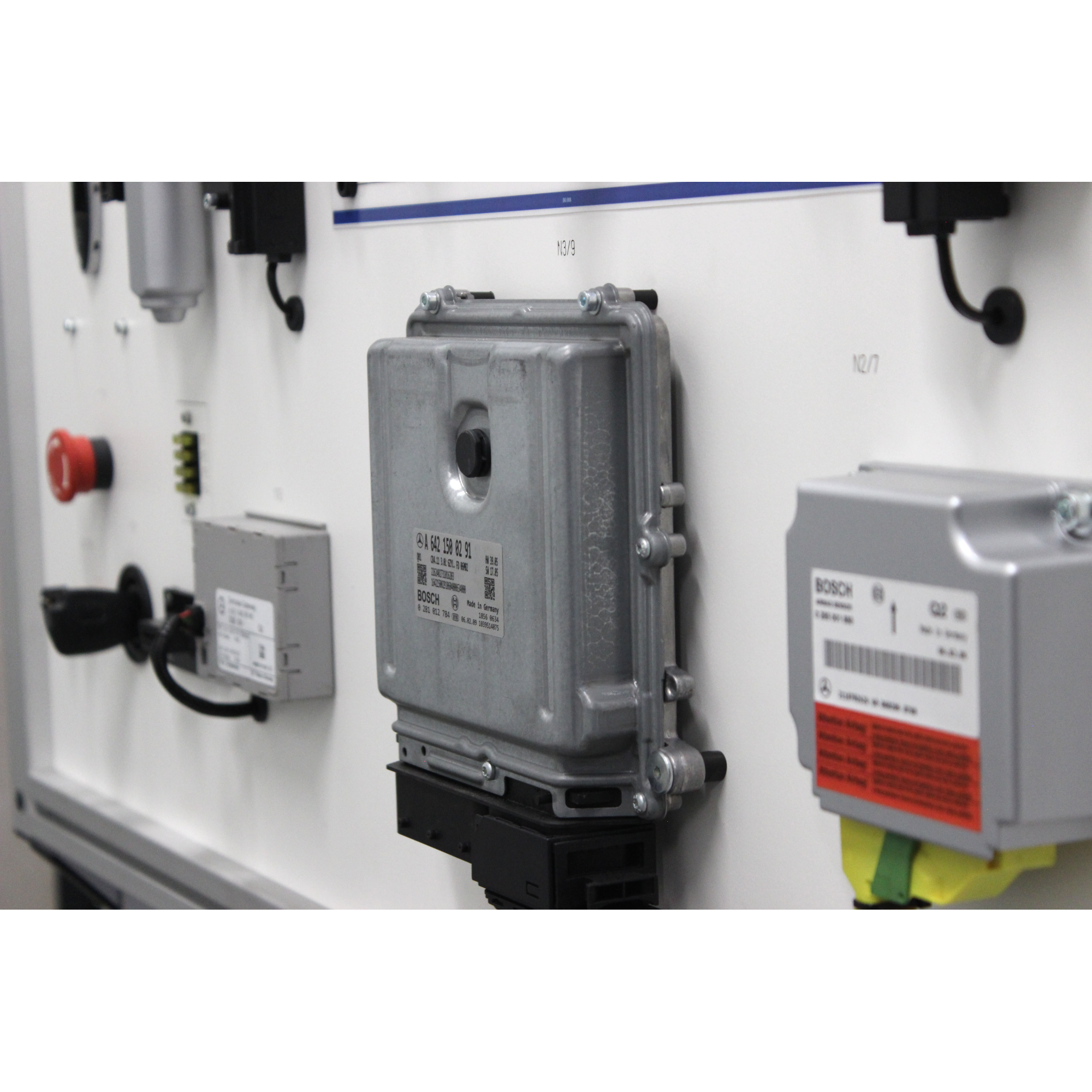

    – Engine ECU;

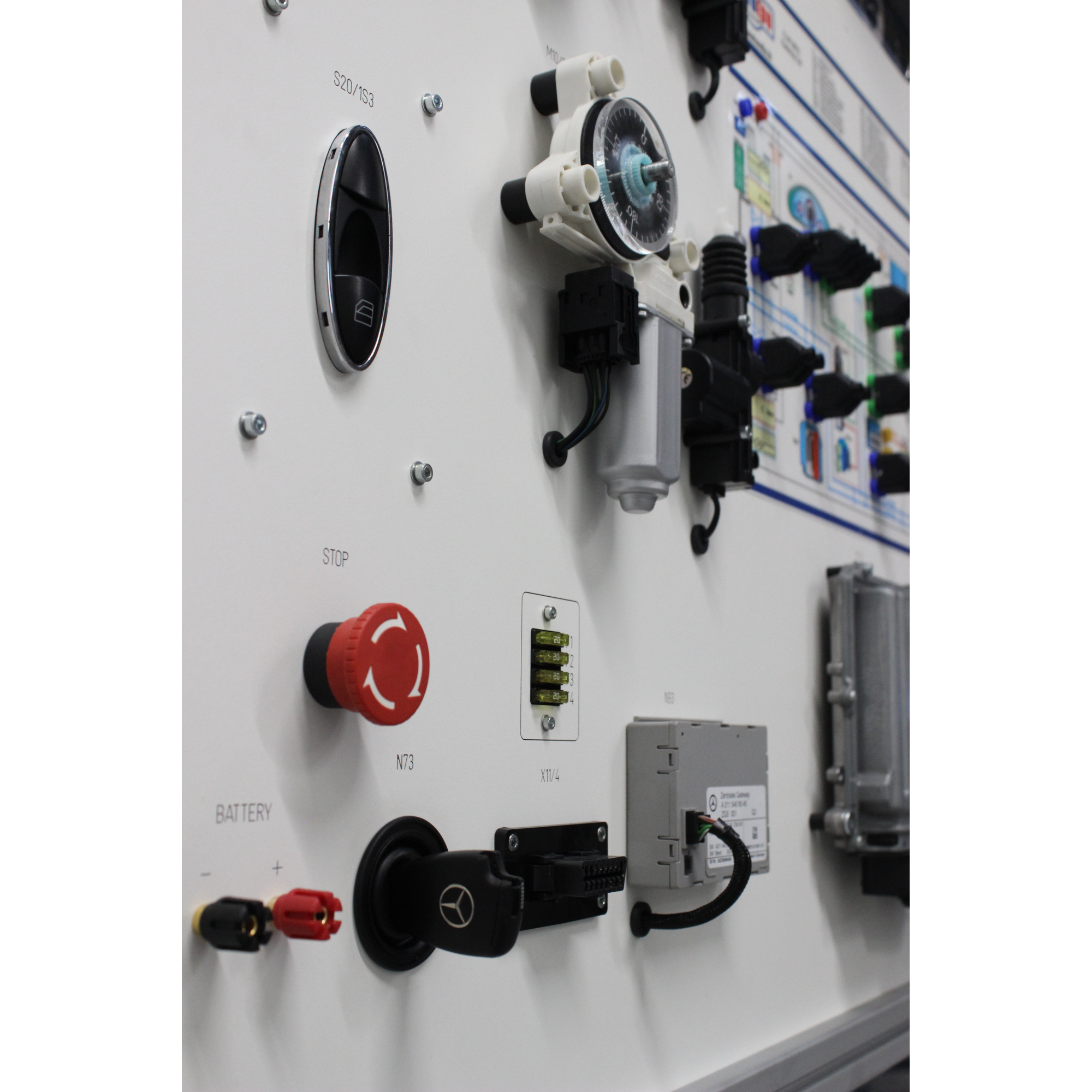

    – Smart Key, ignition module, lock module;

    – SRS Airbag ECU ;

    – Central CAN Gateway module (ECU)

    – Front and rear doors control modules;

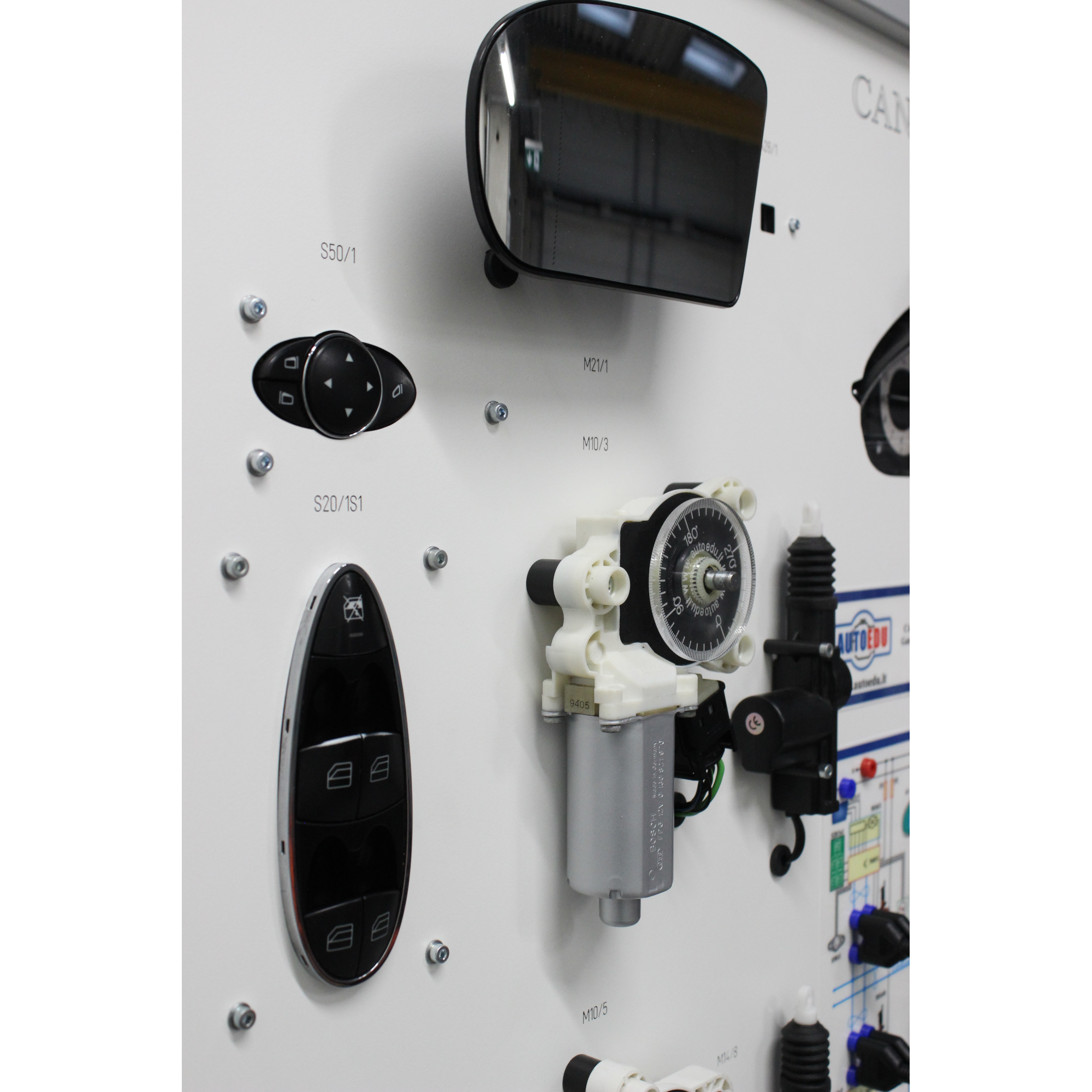

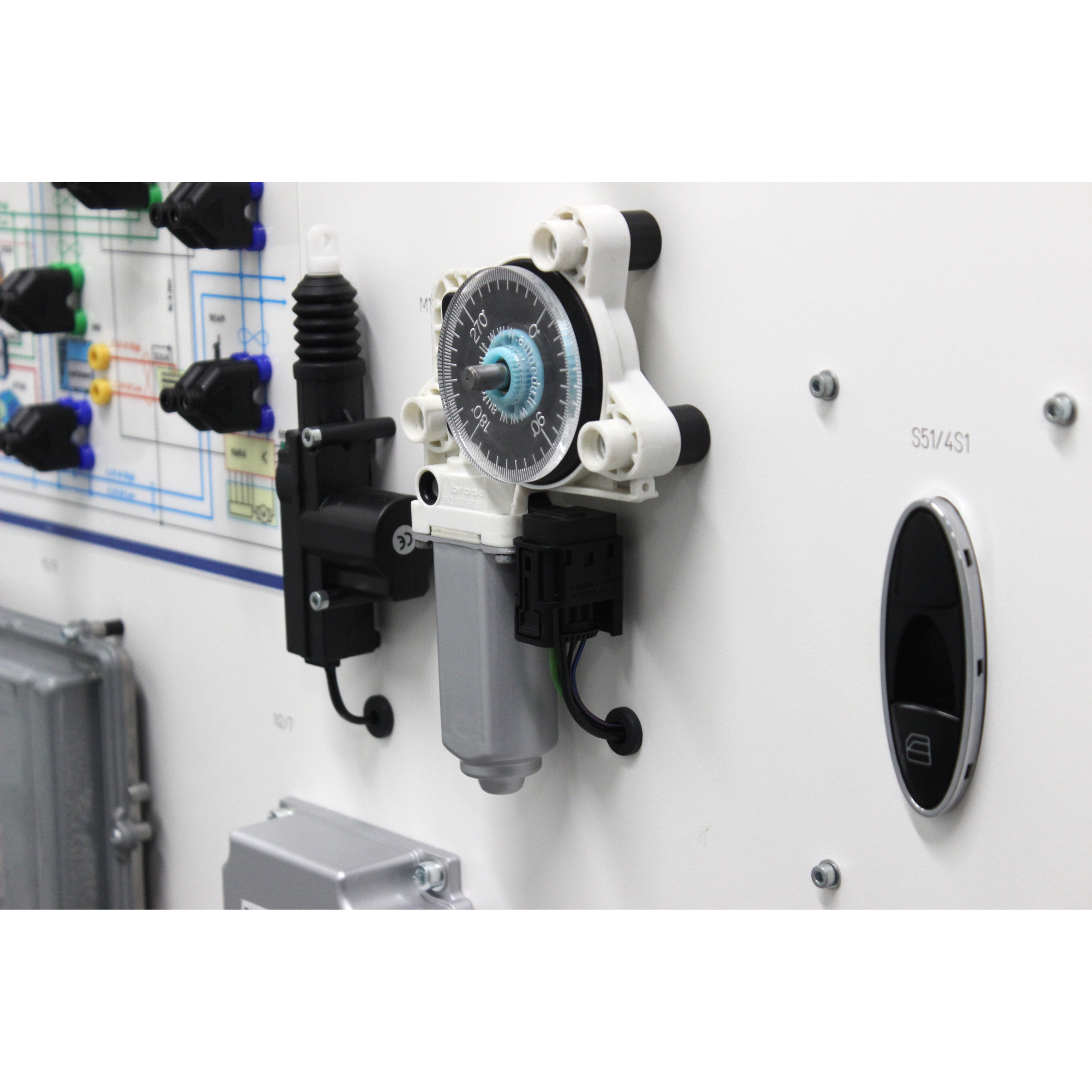

    – Front and rear windows lifting motors

    – Front and rear windows lifting switches

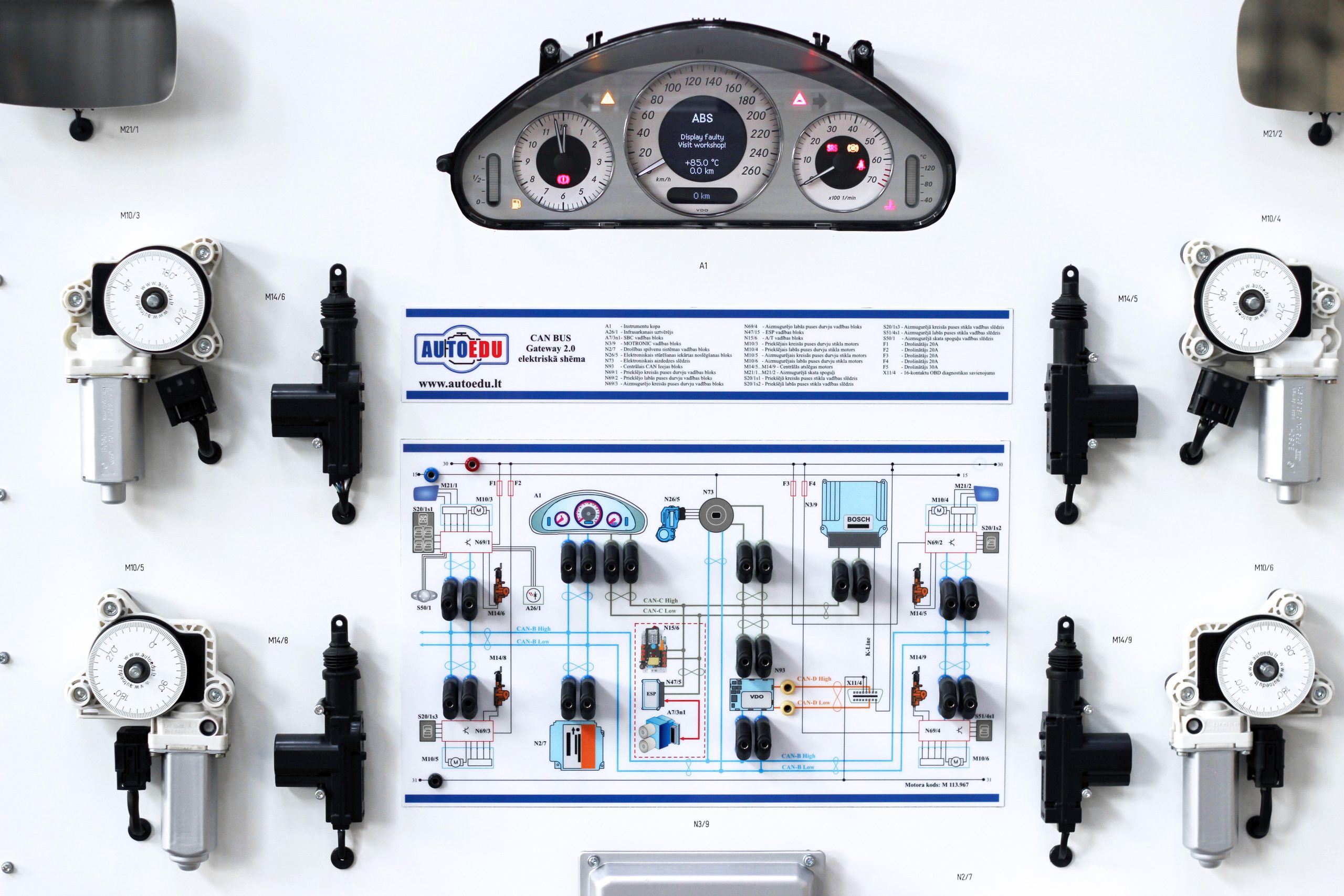

  • All the components are connected to the internal network. The Network is shown as a diagram for better understanding;
  • The modules communications can be connected or disconnected by banana plug jumpers. There can be disconnected Low and High speed CAN lines on the stand;
  • CAN getaway diagram with built in banana plug jumpers for measurements and simulation of system malfunctions;
  • Ability to simulate more than 10 system faults;
  • The window lifting motors are active and controlled by a switches and doors control modules through CAN gateway network of the car;

Diagnostic and measurement

Oscilloscope/multimeter:

  • System’s parameters are measured by connecting to the banana connector
  • Ability to measure electrical signal parameters of system component

Control unit diagnosis:

  • Diagnosis through OBD 16 – pin diagnostic connector
  • Diagnose all presented control units in the CAN bus network by using an automatic search (depending on the diagnostic tool possibilities)
  • Diagnose of each control module separately
  • Electronic control unit (ECU) identification
  • Reading/erasing fault codes
  • Displaying the operating system parameters (live data)
  • Activating the actuators (Depends on the control unit)
  • Control unit encoding/configuration (Depends on the control unit)

Other:

  • The stand has a closed structure – internal wiring is not visible
  • Power supply: 12V from the battery (not included as standard accessory)
  • Dimensions approx.: (HxLxW) 1820x1360x500 mm
  • Nett weight approx.: 60 Kg
  • Made in Lithuania
  • CE certificate
  • Optional accessories

Optiona Extras:

  • 12 V battery
  • 220/12 V Power supply unit
  • Automotive oscilloscope
  • CAN Network analyzer
  • OBD diagnostic scan tool
