Product Description

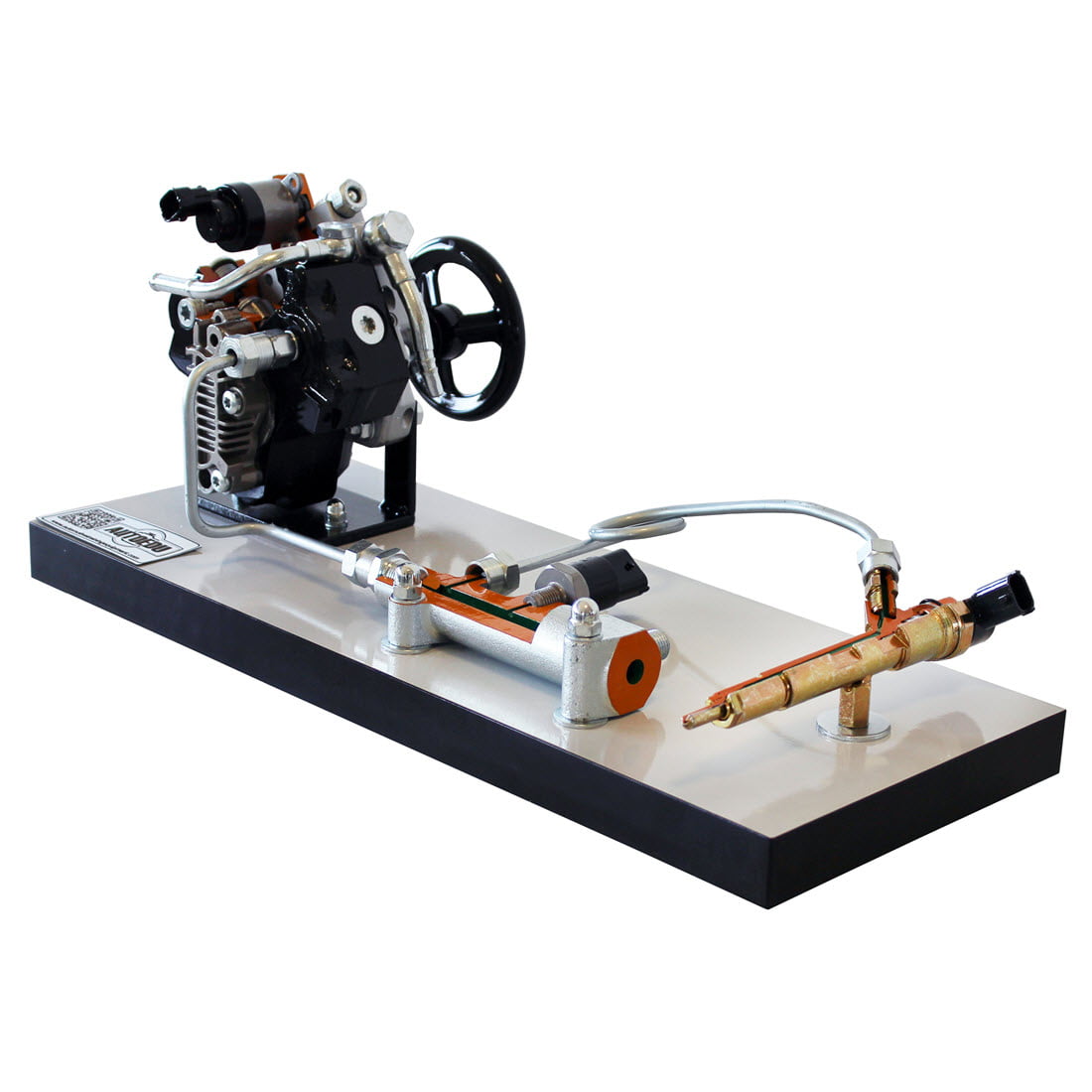

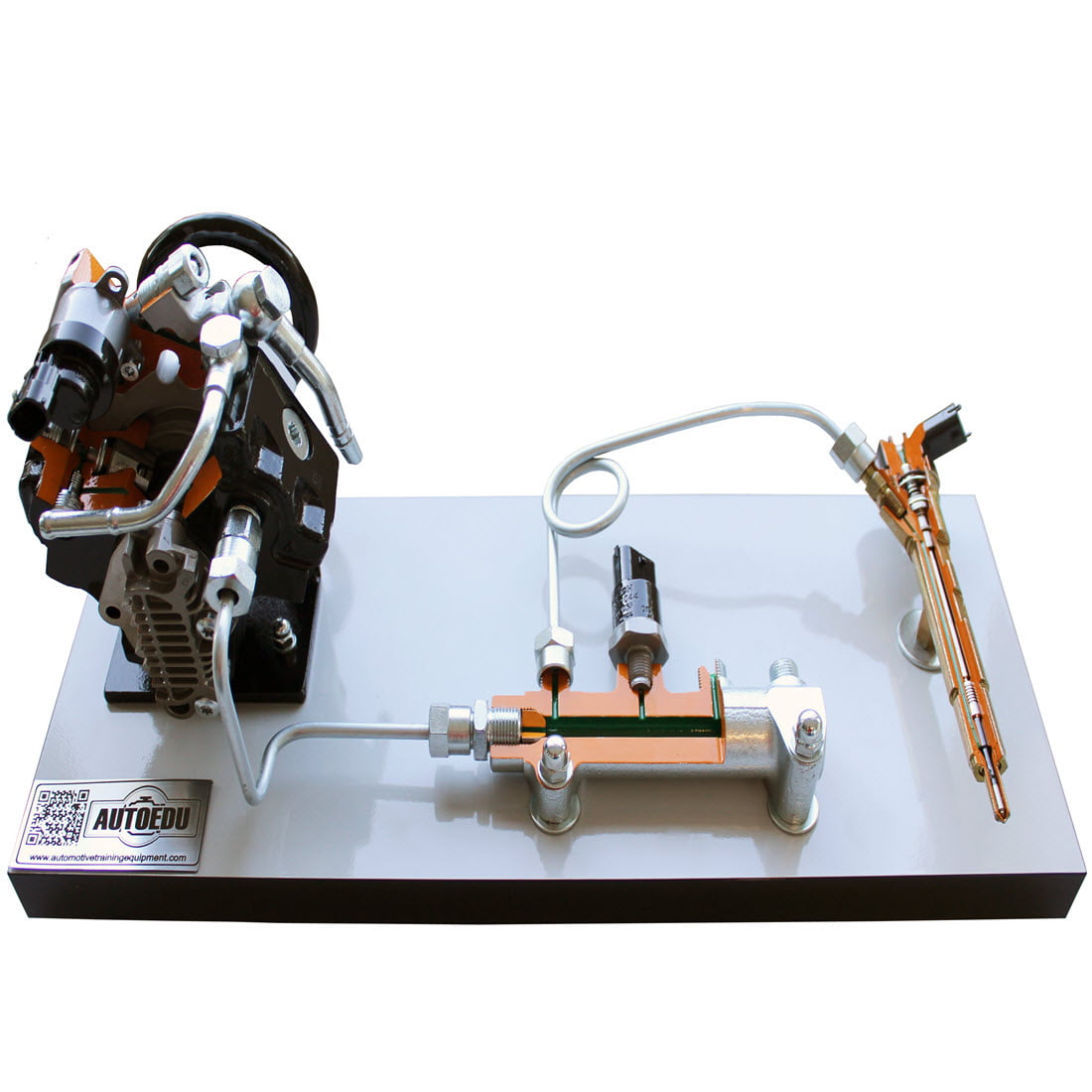

Diesel common rail system cutaway (on base)
Order nr.: AE10300
Accurate cross-section of the high pressure (1600 bar) fuel system known as Common-rail. This circuit consists of a radial piston pressure pump, one delivery manifold and an electro-injector, all connected via high pressure hoses.
- Bosch CP3 system
