Educational Diesel Engine Trainer With Common Rail And AdBlue EURO 6 System

Product Description

Educational Diesel Engine Trainer With Common Rail, AdBlue and DPF EURO 6 System

Order number: MVCR5

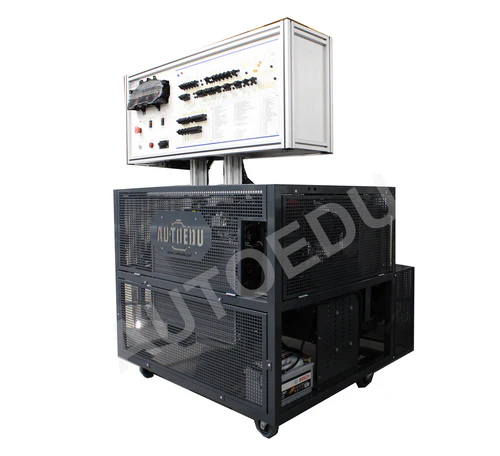

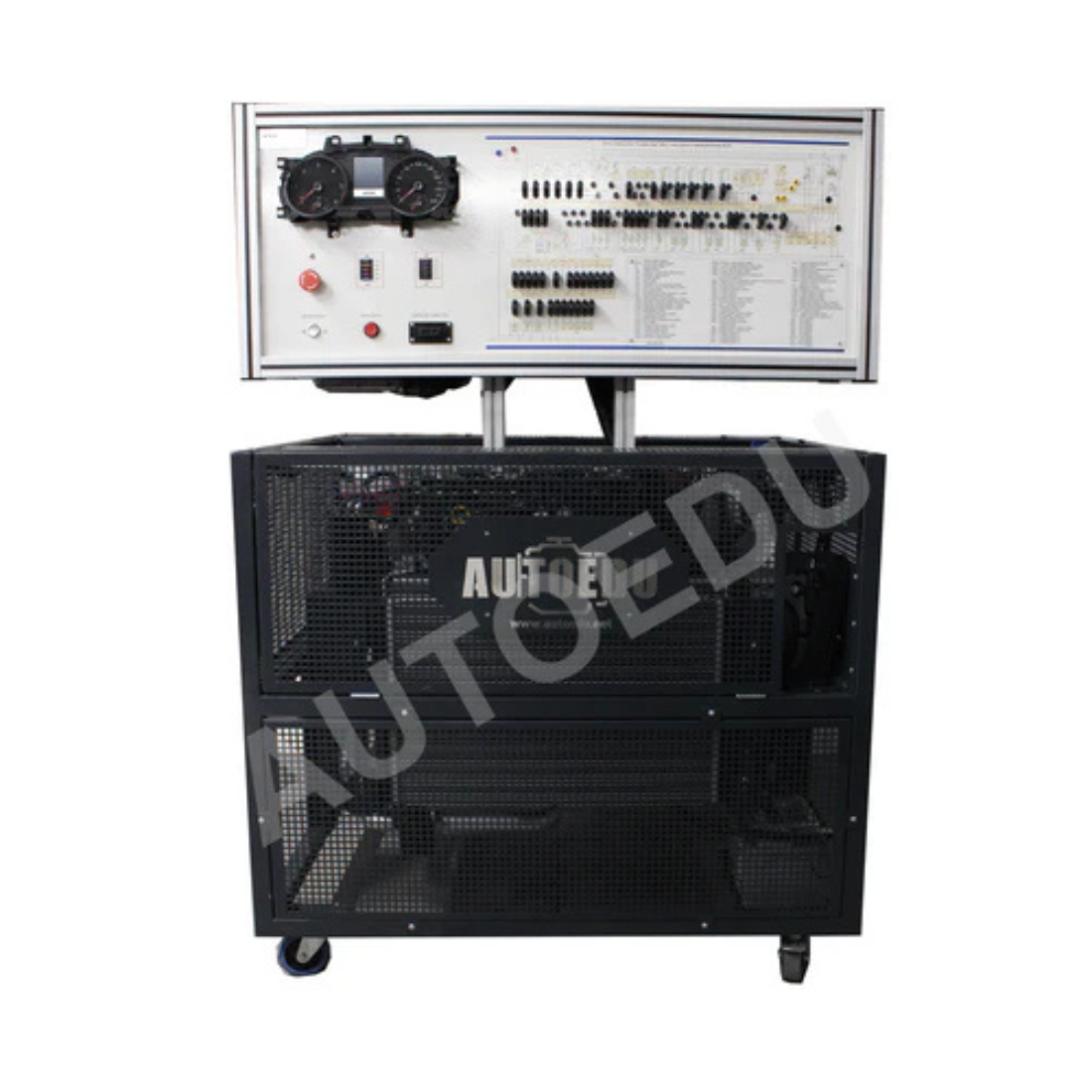

Self – contained, fully operational diesel engine model is installed in a mobile frame. This training engine is specially designed to demonstrate Common Rail diesel injection system, SCR and DPF  and operational structure. The educational training engine is based on VAG Group original (refurbished) components with functional engine control system Bosch EDC 17.

The training engine is a great educational tool that allows students to learn the structure of the engine and its components, power supply system, cooling system, engine control system etc. It also allows to study components and operation modes of the engine control system, perform various measurements, tests and other diagnostic procedures.

Technical specifications and functions:

• The educational functional engine model with CR fuel supply system, instrument cluster, cooling system, power supply system and the exhaust system;
• Completed with safety removable panels to protect against hot and rotating parts;
• Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes;
• Ability to simulate faults by disconnecting Banana plug jumpers;
• Engine with external components is clearly visible after removing safety panels. Easy access to the engine and its components for service and maintenance;
• Integrated engine emergency stop button;

Diagnostic and measurement

Oscilloscope/multimeter:

• System’s parameters are measured by connecting to the banana connector;
• Ability to measure electrical signal parameters of each system component (such as sensor or actuator);

Control unit diagnosis:

• Diagnosis through OBD 16 – pin diagnostic connector
• Electronic control unit (ECU) identification
• Reading/erasing fault codes
• Displaying the operating system parameters (live data)
• Activating the actuators (Depends on the control unit)
• Control unit coding/configuration

Other:

• The stand has a closed structure – internal wiring is not visible; Instrument cluster, measurement and fault simulation panel is integrated in a closed aluminium frame construction;
• Made in Lithuania
• CE certificate

Optional accessories:

• Vacuum gauge
• Low pressure gauge
• Hidden Fault Simulation For Engine Control System
• Automotive oscilloscope
• OBD diagnostic scan tool
• Diesel smoke meter
• The exhaust extraction system
