Educational working engine (TSI) direct petrol injection with Dyno

Order number: MVTSI1+DYNO

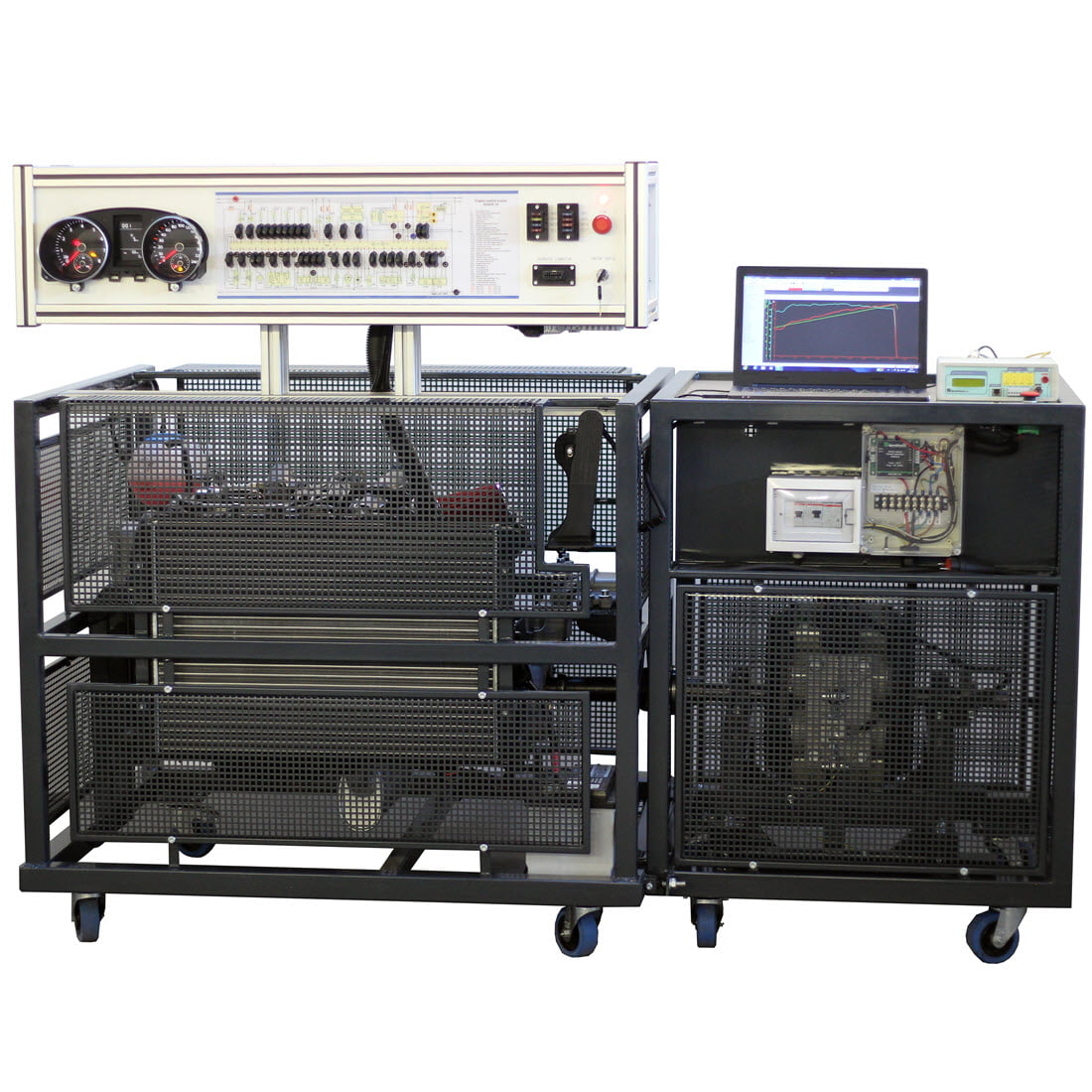

Self – contained, fully operational engine is installed in a mobile frame. This training engine with direct petrol injection (TSI) system is specially designed to demonstrate the engine management system and operational structure. The educational training engine is based on Audi/VW original (refurbished) components with MOTRONIC MED 17.5.5 engine management system.

The training engine is a great educational tool that allows students to learn the structure of the engine and its components, power supply system, cooling system, engine control system, turbocharger. It also allows to study components and operation modes of the engine control system, perform various measurements, tests and other diagnostic procedures.

Technical specifications and functions:

  • The educational functional engine model with direct petrol injection (TSI) system, instrument cluster, cooling system, power supply system, turbocharger and the exhaust system;
  • Ability to measure the exhaust gas before and after the catalytic converter;
  • Completed with safety removable panels to protect against hot and rotating parts;
  • Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes;
  • Ability to simulate more than 30 faults by disconnecting Banana plug jumpers;
  • The engine with external components is clearly visible after removing safety panels. Easy access to the engine and its components for service and maintenance;
  • Integrated engine emergency stop button;

Diagnostic and measurement

Oscilloscope/multimeter:

  • System’s parameters are measured by connecting to the banana connector
  • Ability to measure electrical signal parameters of each system component (such as sensor or actuator)
  • Ability to measure high voltage circuit of the ignition system

Control unit diagnosis:

  • Diagnosis through OBD 16 – pin diagnostic connector
  • Electronic control unit (ECU) identification
  • Reading/erasing fault codes
  • Displaying the operating system parameters (live data)
  • Actuator test (Depends on the control unit)
  • Throttle adaptation
  • Control unit coding/configuration

Other:

  • The stand has a closed structure – internal wiring is not visible; Instrument cluster, measurement and fault simulation panel is integrated in a closed aluminum frame construction;
  • Dimensions approx.: (HxLxW) 1550x1000x1200 mm
  • Nett weight approx.: 300 Kg
  • Made in Lithuania
  • CE certificate

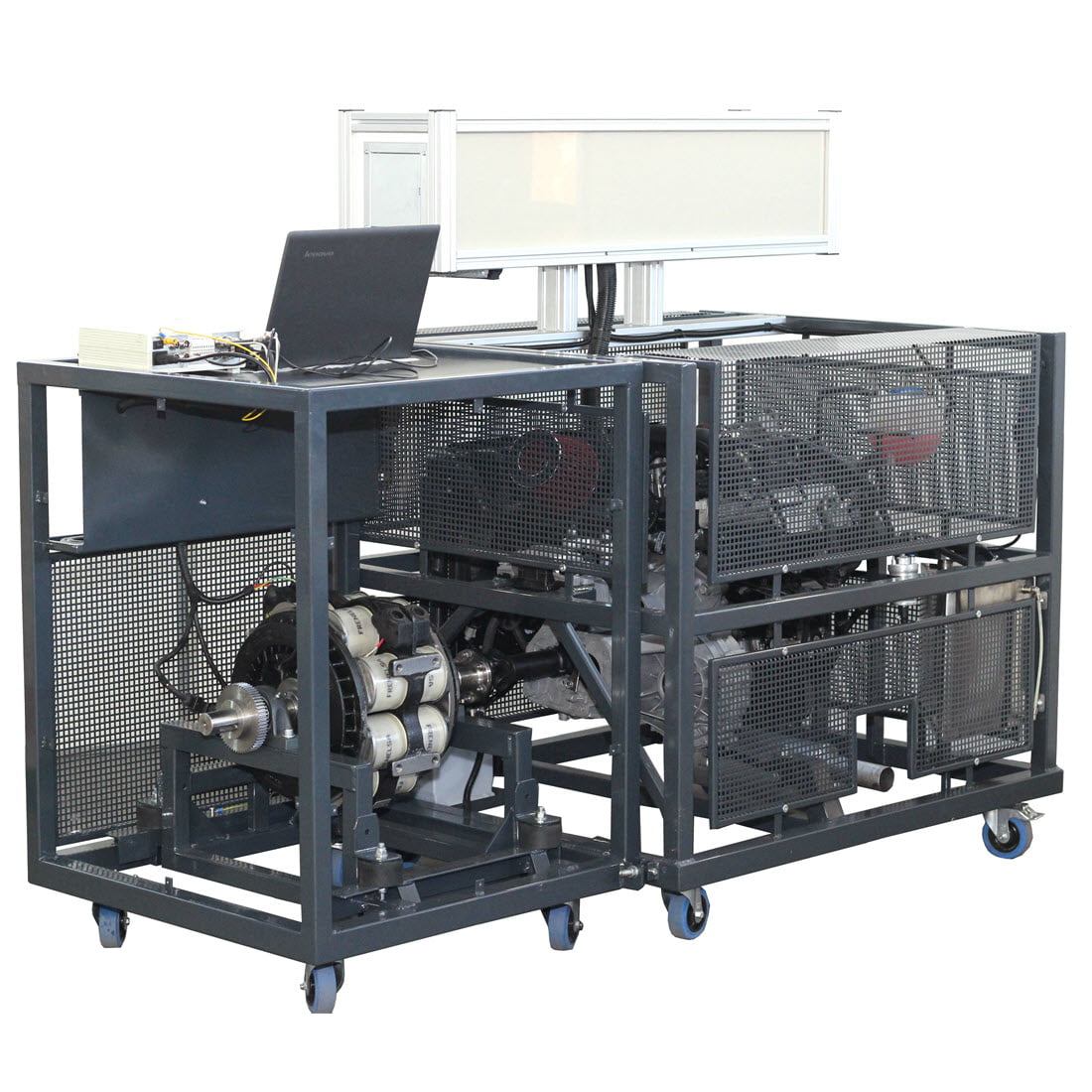

Educational engine connected with the engine dynamometer complete with:

  • Eddy current brake
  • Frame on 4 wheel, with the protection guards
  • Assembly flange at flywheel of the engine
  • Drive shaft with coupling
  • PC based software compatible with Win 7, 8
  • Eddy current brake controlling device with information screen
  • Emergency stop button

Optional accessories:

  • Examination console for 10 hidden fault simulations
  • Vacuum gauge
  • The pressure gauge in the fuel supply line
  • Automotive oscilloscope
  • OBD diagnostic scan tool
  • The gas analyser
  • The exhaust extraction system
