Electronic Parking Brake Functional Cutaway Model

Product Description

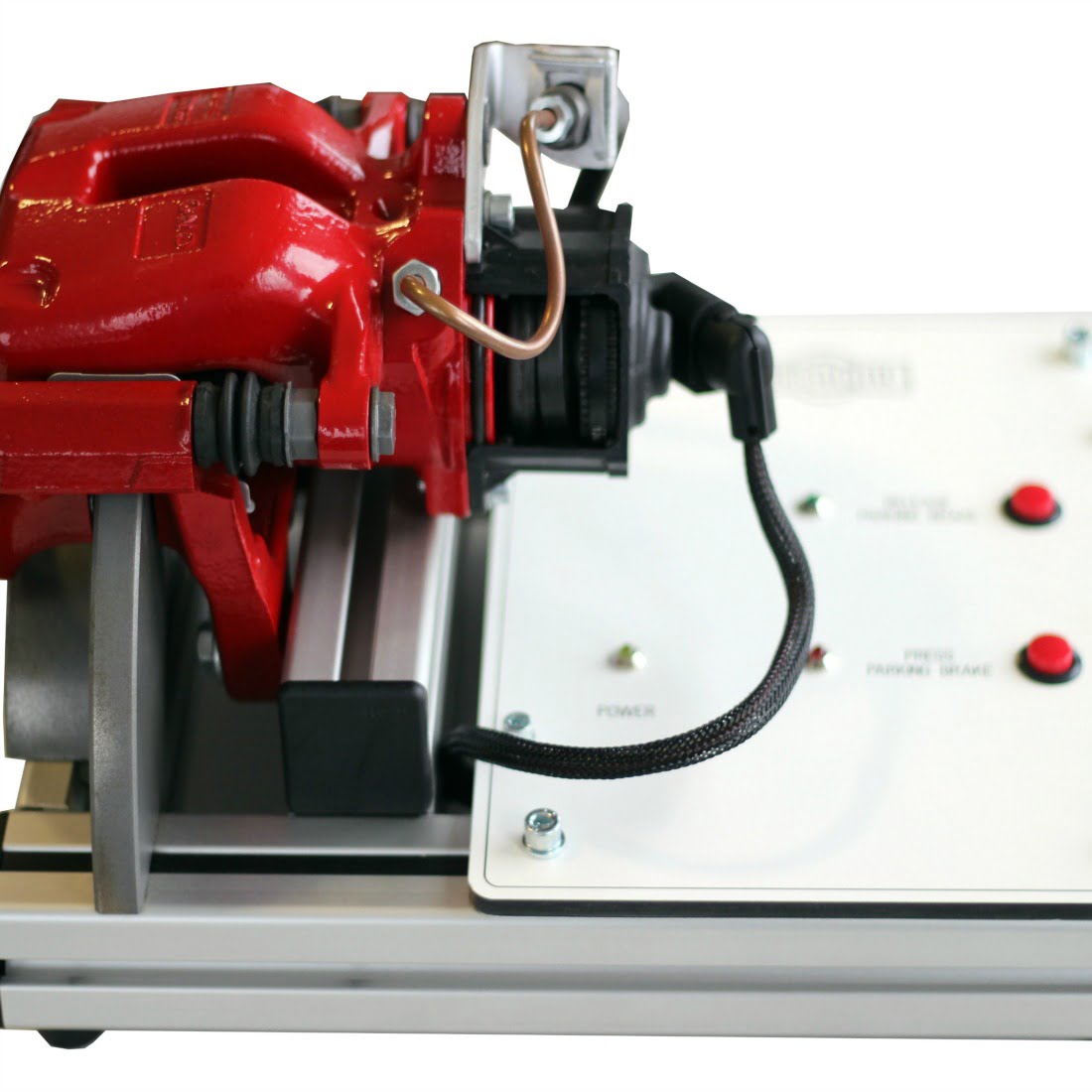

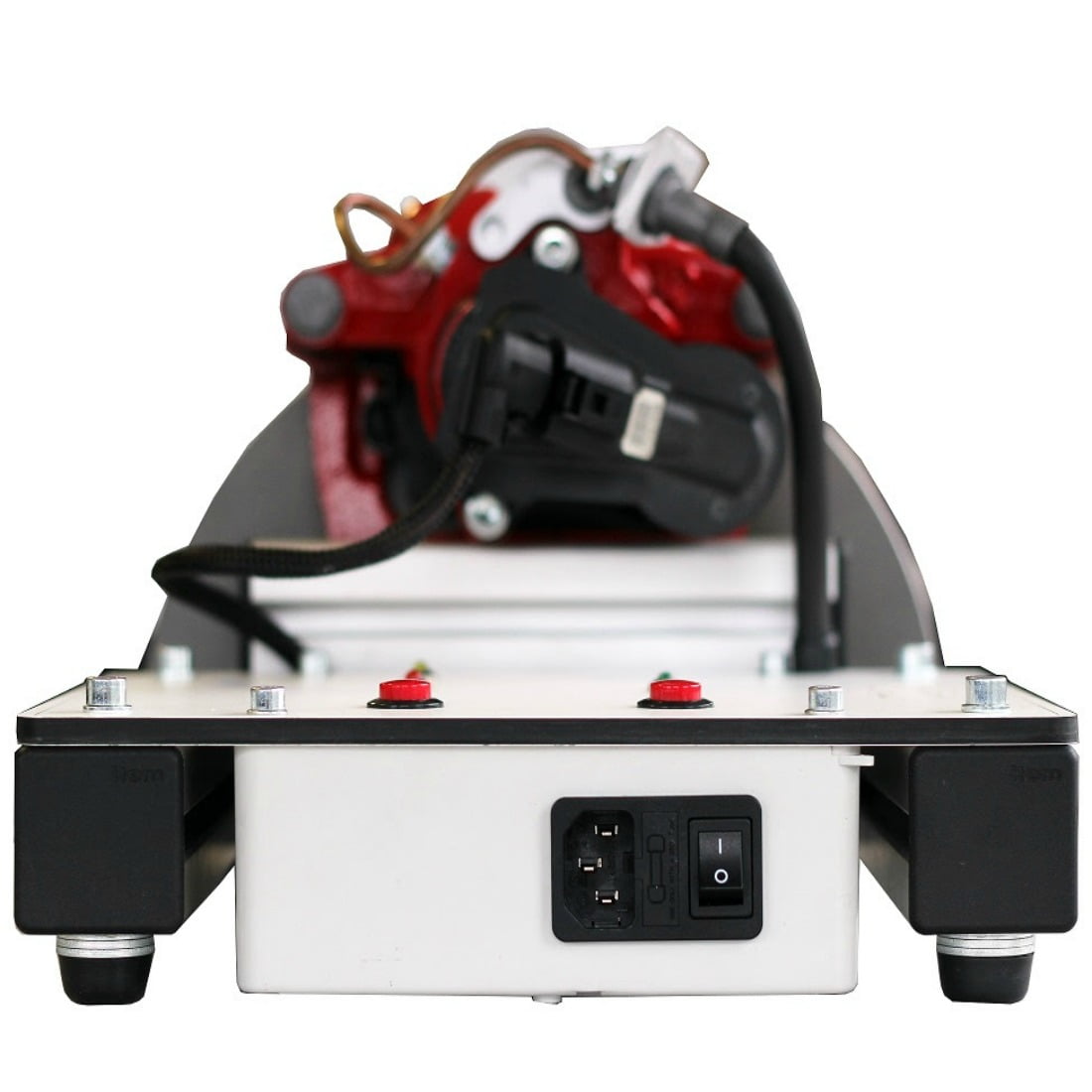

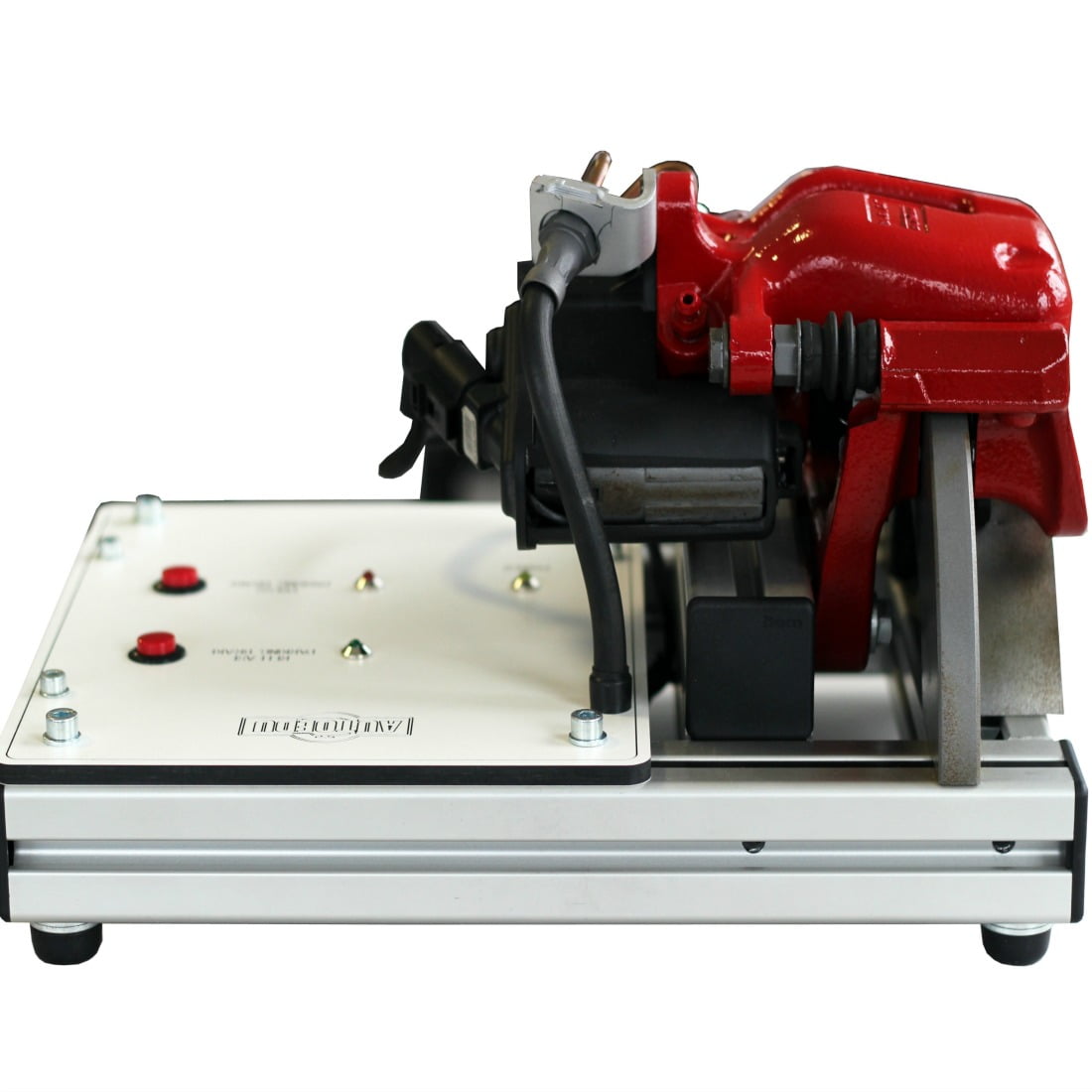

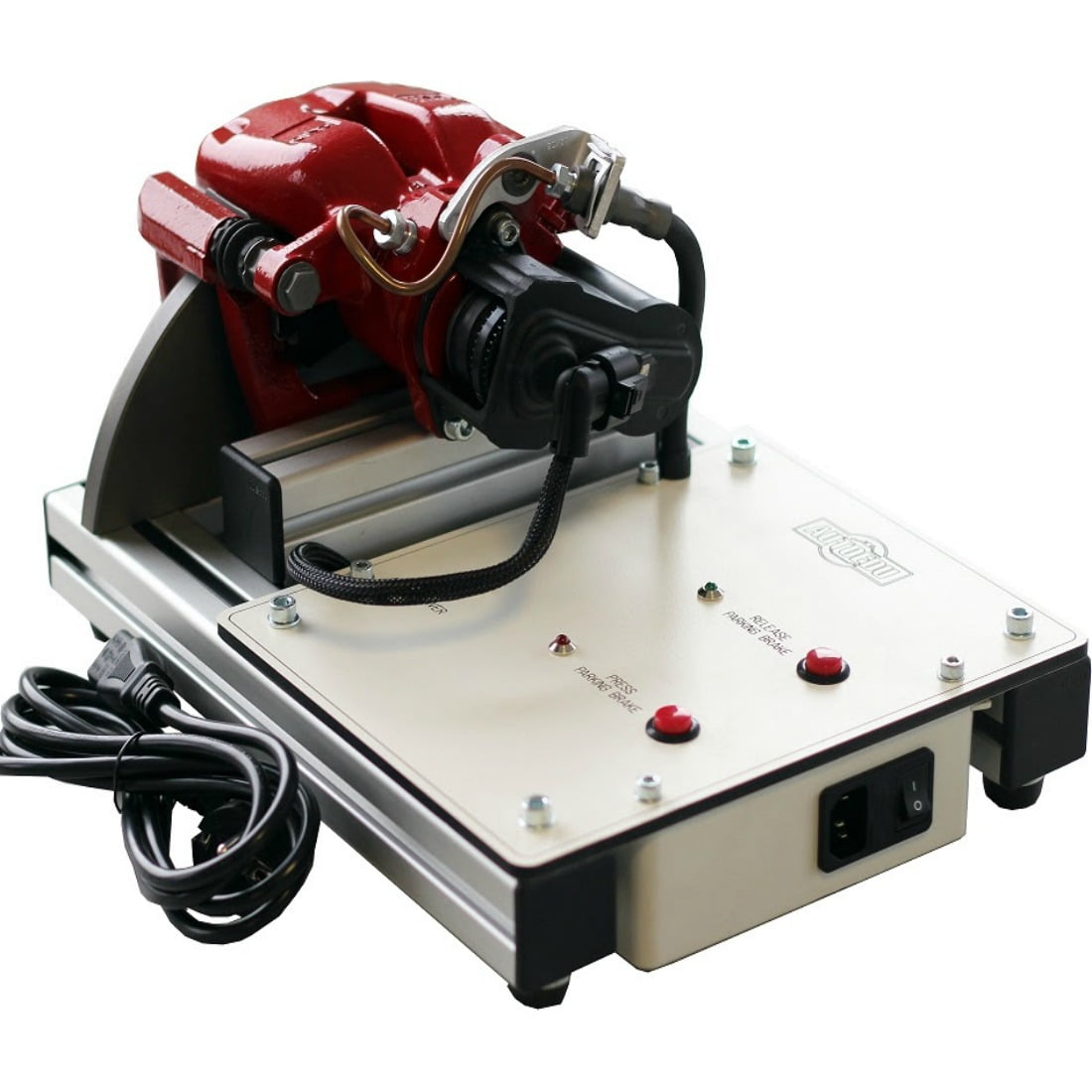

Electronic Parking Brake Functional Cutaway Model

Educational electro mechanical parking brake (EPB) model is based on original Audi/VW brake components. The cutaway of the multi-stage gear mechanism of electro mechanical brake made for an easier explanation and demonstrate the principle of operations.

This type of training or demonstration model is a great teaching aid which allows students to become familiar with the car’s hydraulic brakes and electro mechanical parking brake mechanism, the structure, modes of operation and maintenance methods, technical information, spec. tools and their use.

Electro mechanical brake model demonstration does not need any additional equipment or tools, without having to connect with diagnostic device it is possible to perform activation of the electro mechanical parking brake. Educational electro mechanical parking brake mechanism powered by 12V/220V.

Two electrical buttons for press and release the brake pads and the brake disc.

It is possible to demonstrate the operation of the parking brake and simply to explain the electronic systems such as “AUTOHOLD” or “Dynamic drive-off assistant” or brake pad replacement procedure. The electro mechanical brake model is not filled with the brake fluid, there is no pressure inside. Activation is performed by pressing the buttons to press or release the brake disc mechanically.

Technical specifications and functions

• Clearly visible fully functional multi-stage gear mechanism of electro mechanical brake, electrical motor with the belt drive and swash plate gear;
• Hydraulic braking system with the rear disc with caliper and brake pads;
• Activation of electrical driven electro mechanical brake by pushing two electrical buttons to press and release brake pads and the brake disc;
• The cutaway of the multi-stage gear mechanism of electro mechanical brake made for an easier explanation and demonstrate the principle of operations;

Other

• Power supply: 12 V / 220V
• Dimensions (height x length x width) 1250 x 1000 x 750 mm
• Nett weight approx.: 20 Kg
• Made in EU
