Lighting training board – simulator

Lighting training board – simulator

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

Automotive training equipment | Lighting trainer

Order number: MSAS1

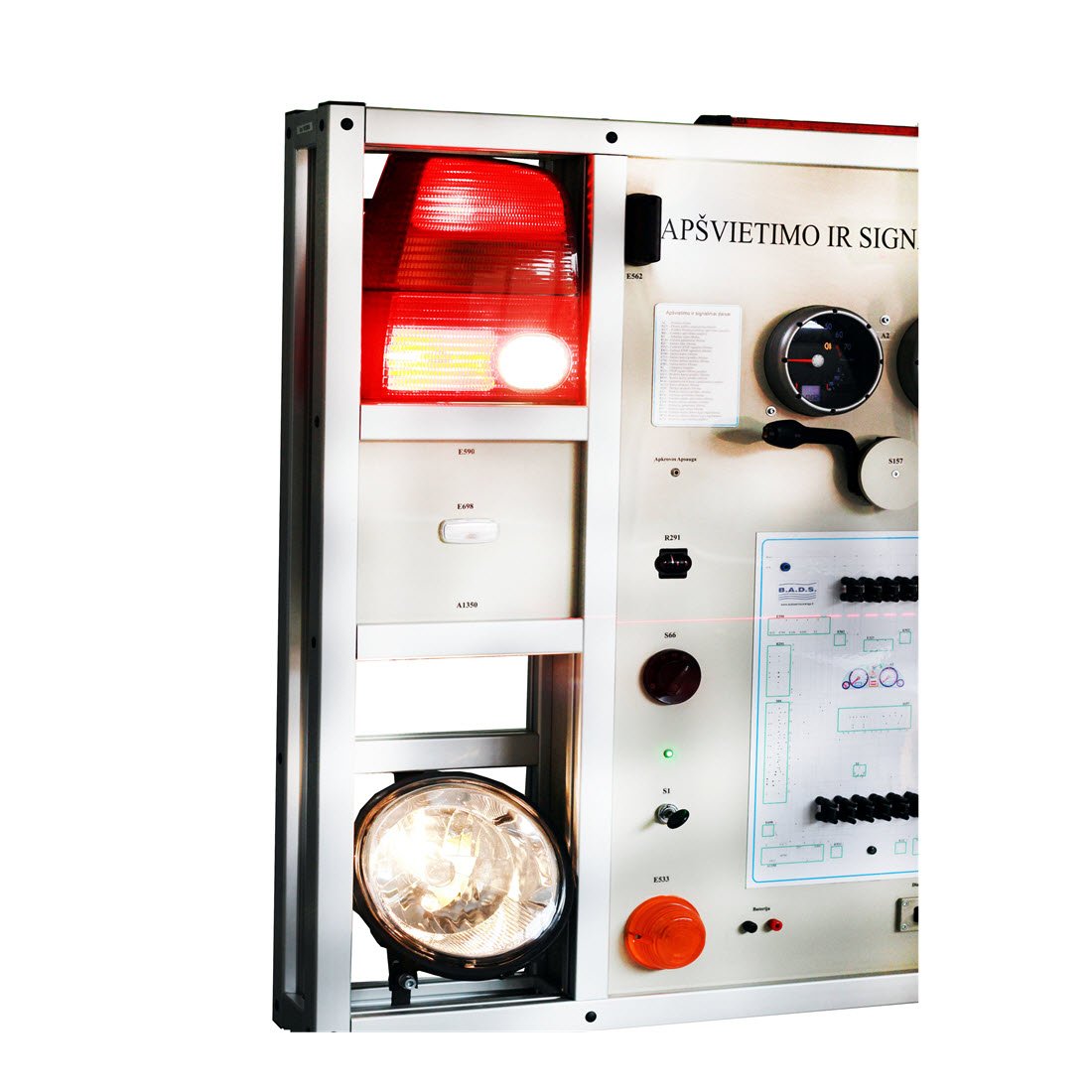

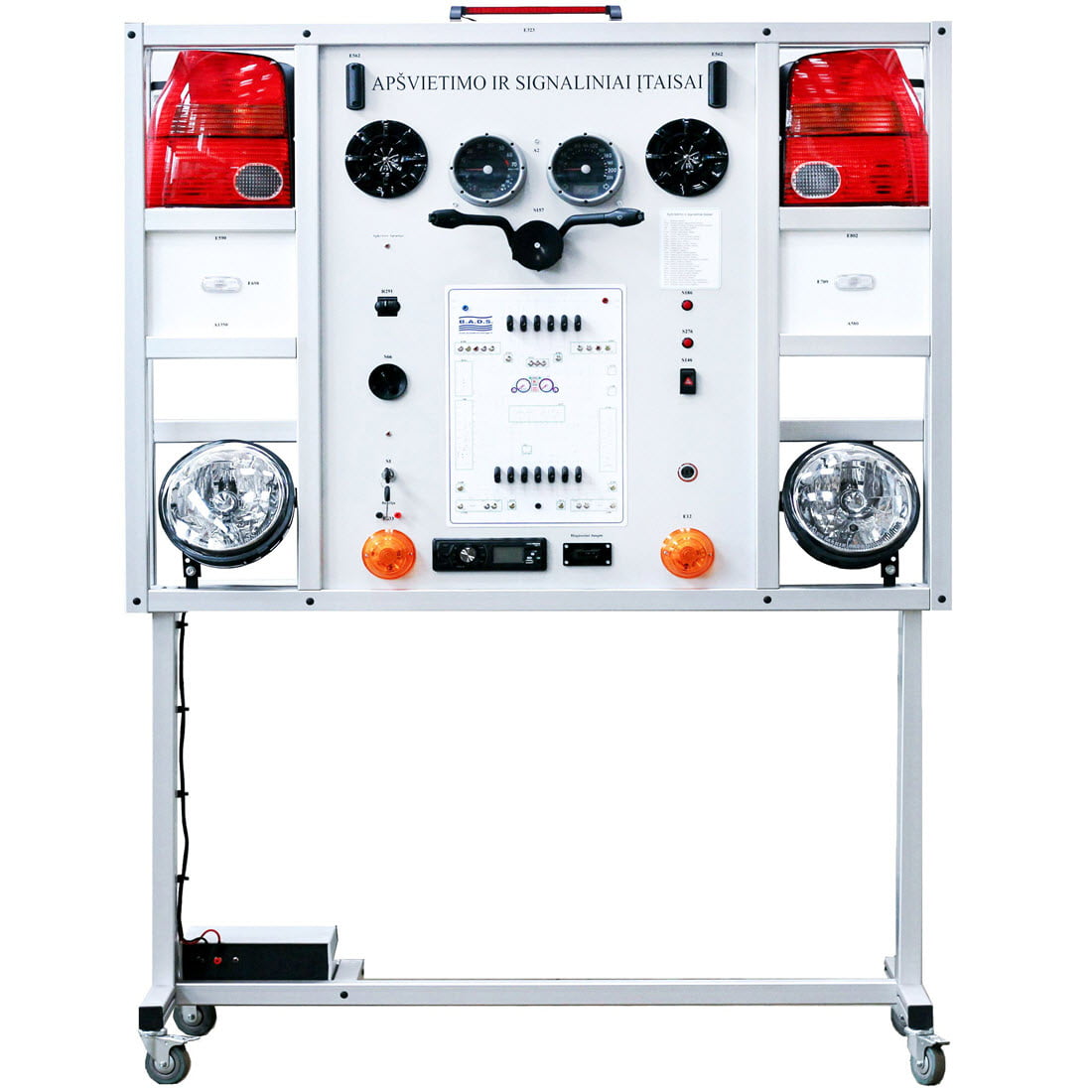

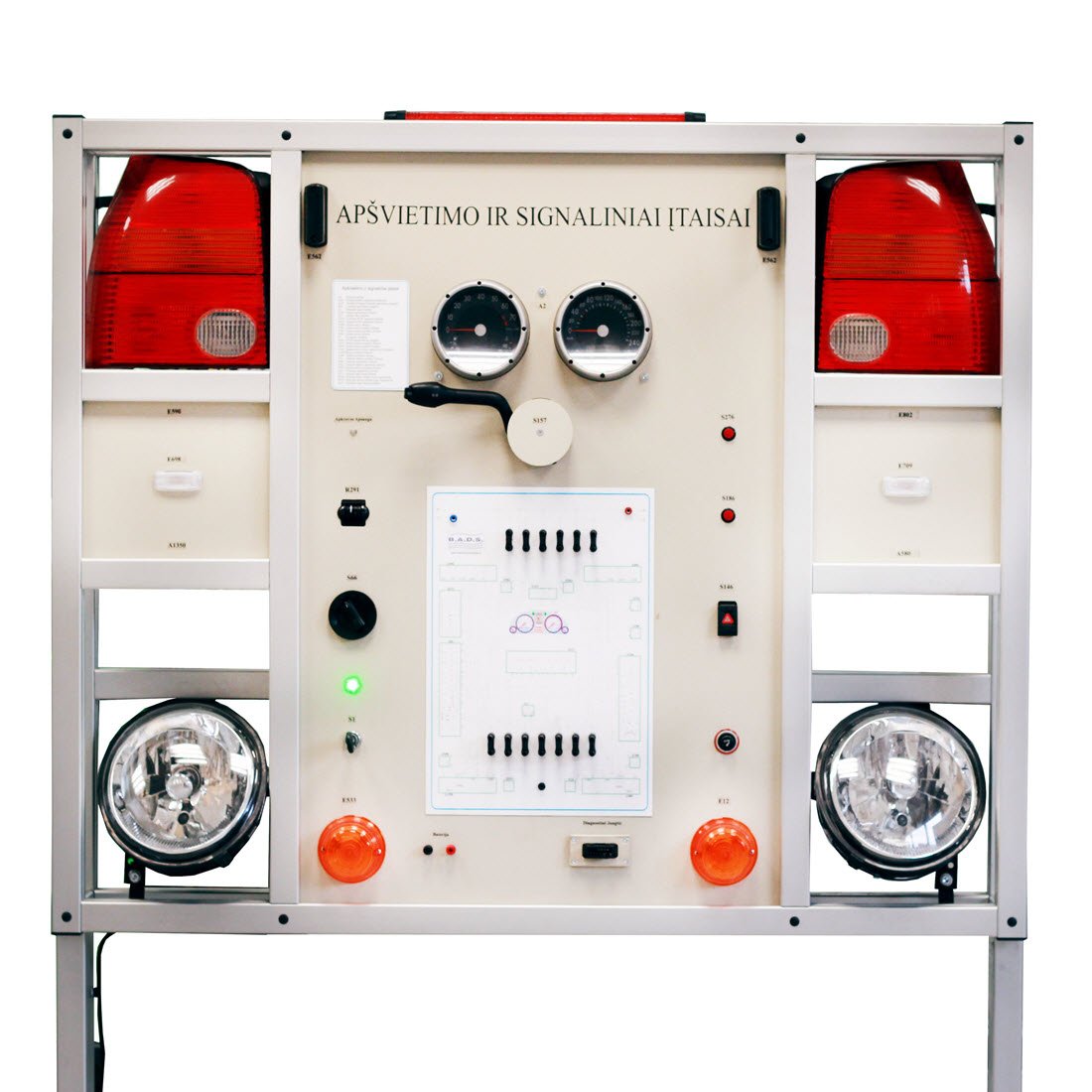

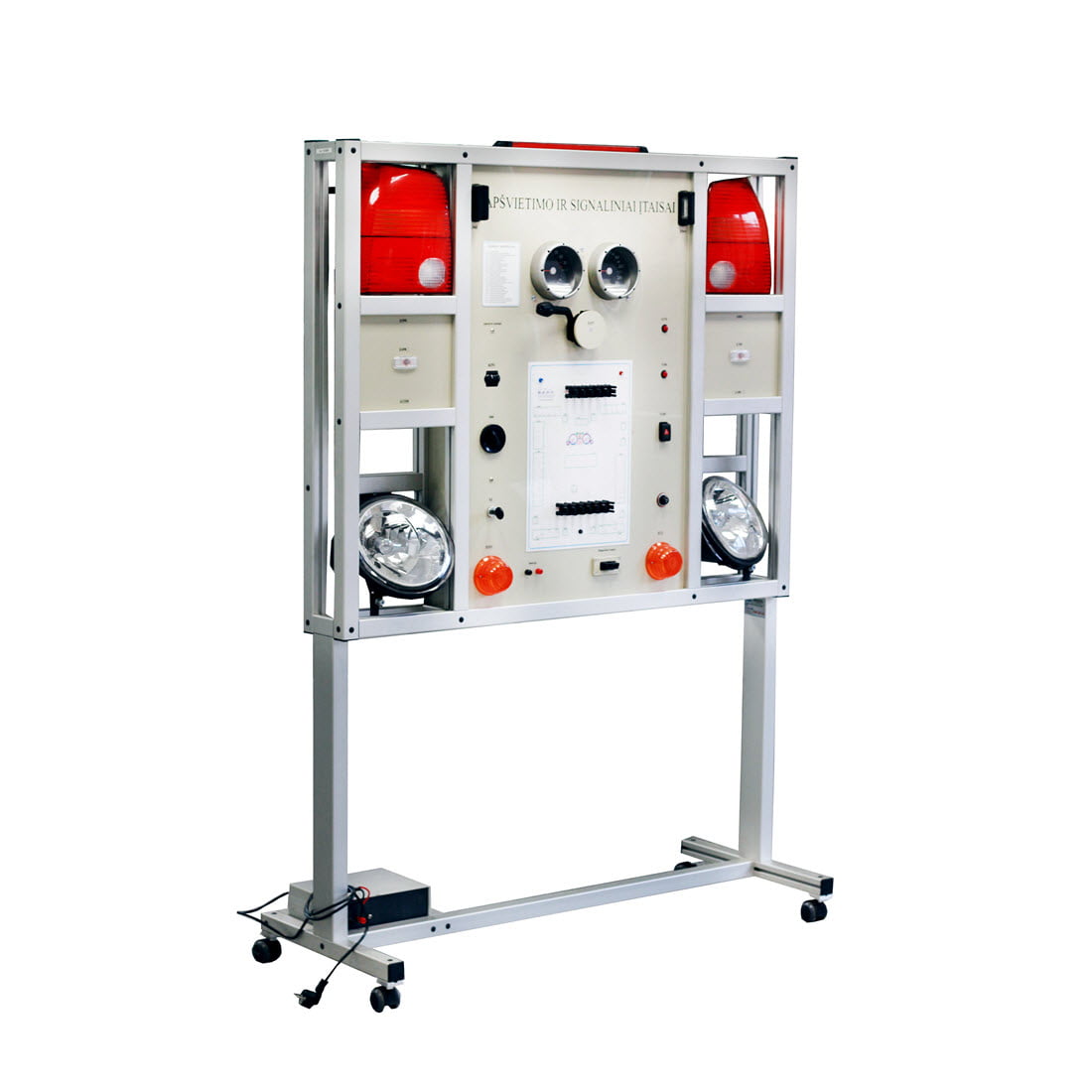

Fully functional lighting training system is installed in a mobile aluminum frame.

The educational training board is based on VW/AUDI OEM components.

The training board-simulator is a great educational tool that allows students to learn the structure of lighting system, study its components, and perform various measurements, tests and other diagnostic procedures.

Technical specifications and functions:

  • Electric wiring diagram with built – in banana plug jumpers for measurements and connecting or disconnecting the components
  • Open contacts for measuring of system’s components and circuits
  • Diagnosis through OBD (J1962) 16 – pin diagnostic connector (Dashboard only)
  • Adjustable beam levels with the motors of front headlights
  • Possible adjustments training with the headlight tester (optional)

Diagnostic and measurement

Oscilloscope/multimeter:

  • Ability to measure electrical signal parameters of system component;
  • Control unit diagnosis
  • Diagnosis through OBD (J1962) 16–pin diagnostic connector;
  • Electronic control unit (ECU) identification;
  • Reading/erasing fault codes;
  • Displaying the operating system parameters (live data);
  • Activating the actuators (Depends on the control unit);

Other:

  • The stand has a closed structure– internal wiring is not visible
  • Power supply: 12V from the battery (optional)
  • Dimensions approx. (HxLxW): 1820x1360x500 mm
  • Nett weight approx.: 60 Kg
  • Made in Lithuania
  • CE certificate

Optional accessories:

  • 12 V battery
  • 220/12 V Power supply unit
  • Automotive oscilloscope
  • OBD diagnostic scan tool
