SRS BOSCH AB 8.4 AIRBAG training board-simulator

SRS BOSCH AB 8.4 AIRBAG training board-simulator

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

Automotive training equipment | SRS (Airbag) trainer

Order number: MSSRS1

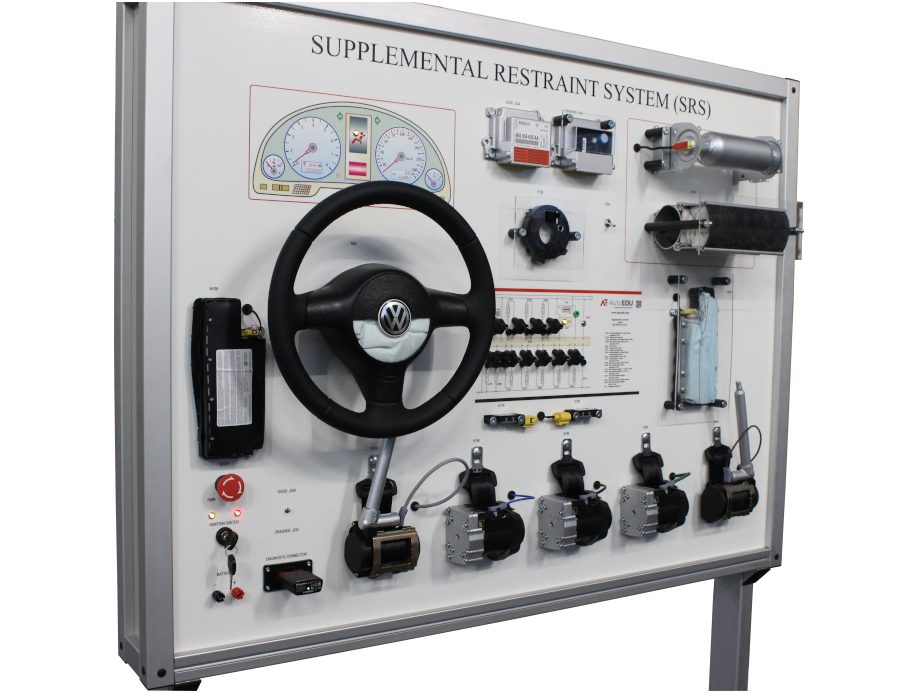

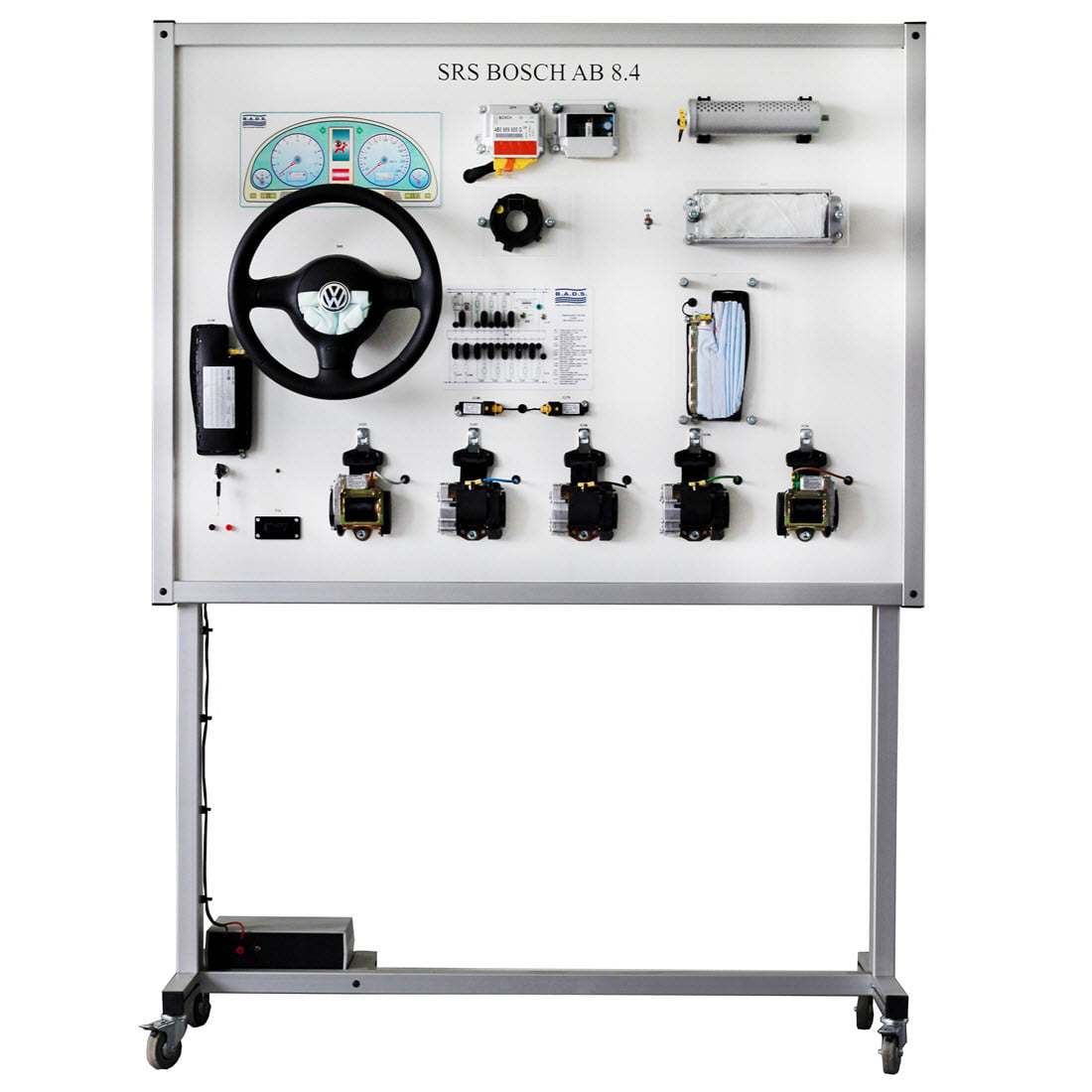

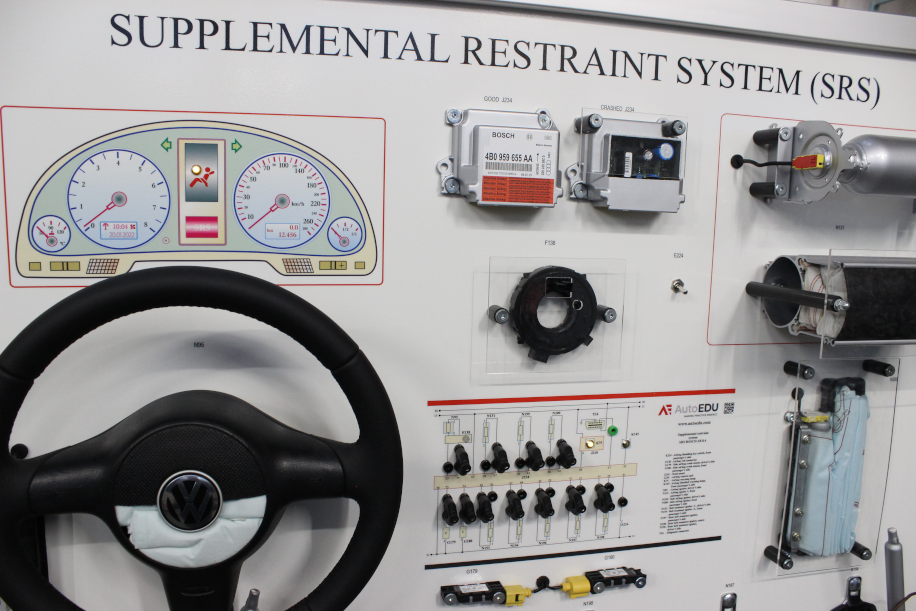

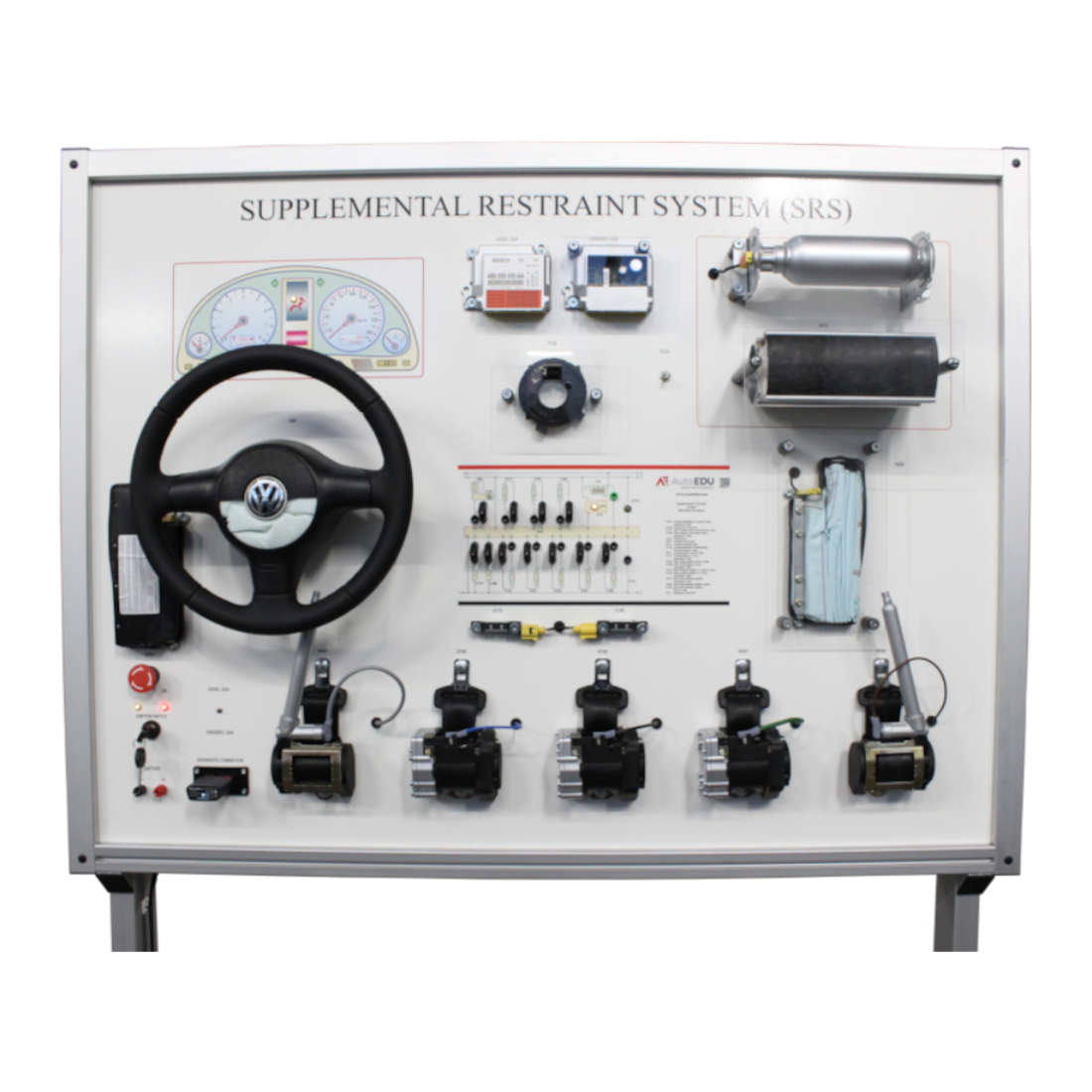

Fully functional supplemental restraint system is installed in a mobile aluminum frame. This training board-simulator is specially designed to help technical students understand better the system`s construction.

The educational training board is based on Audi/VW OEM components. The stand is equipped with a functional car safety system SRS BOSCH AB 8.4 (AIRBAG).

The training board-simulator is a great educational tool that allows students to learn the structure of supplemental restraint system, study its components, perform various measurements, tests and other diagnostic procedures.

Technical specifications and functions:

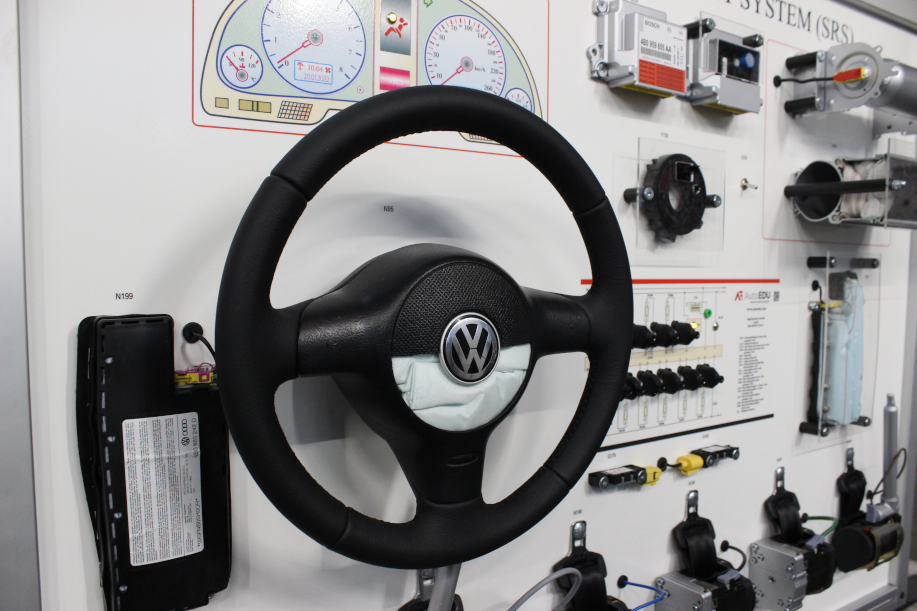

  • The training board is equipped with a safety SRS BOSCH AB 8.4 (Airbag) system that includes four air bags, crash sensors, mechanism of air bag

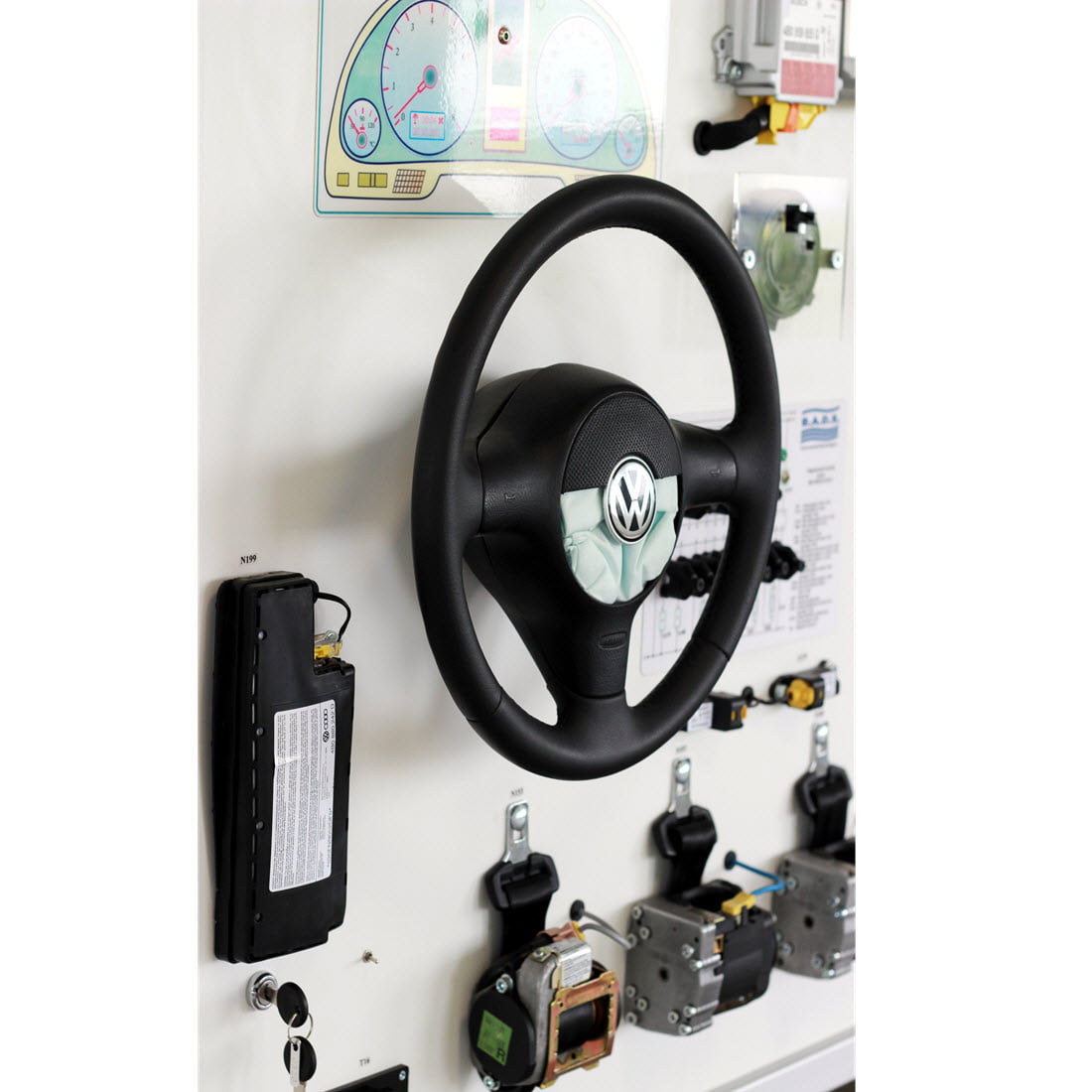

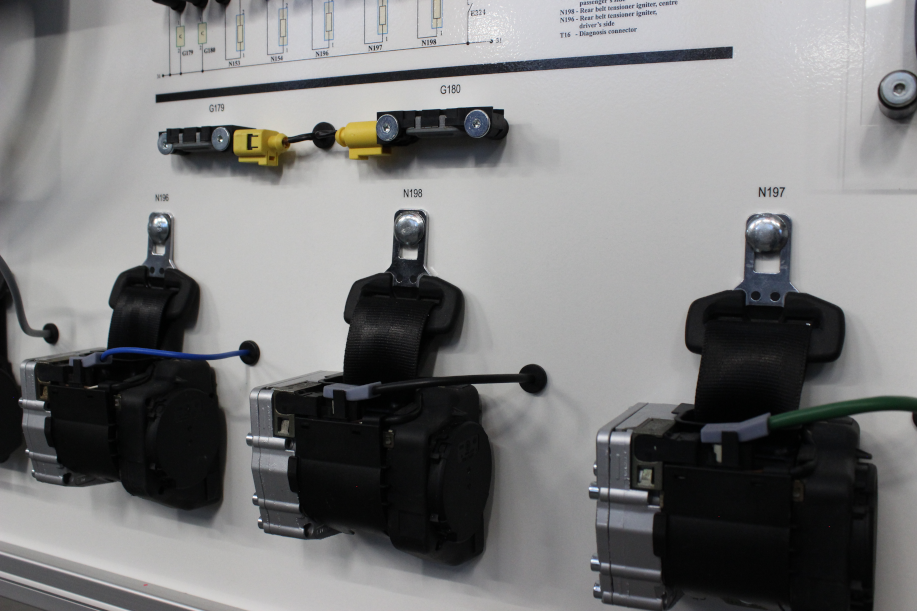

  • steering wheel module and spiral cable, front seat belts with igniters and tensioners, rear seat belts and two control units;

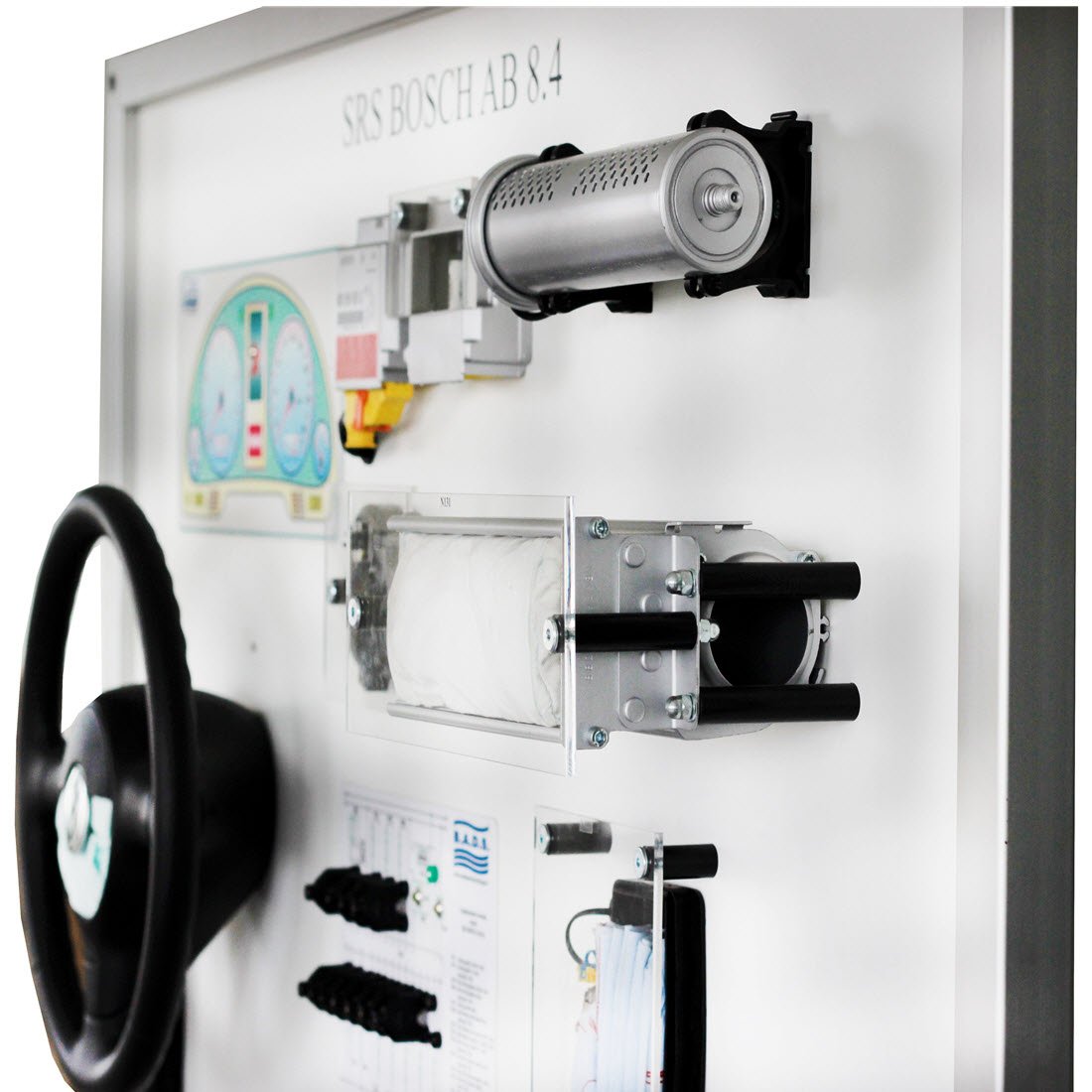

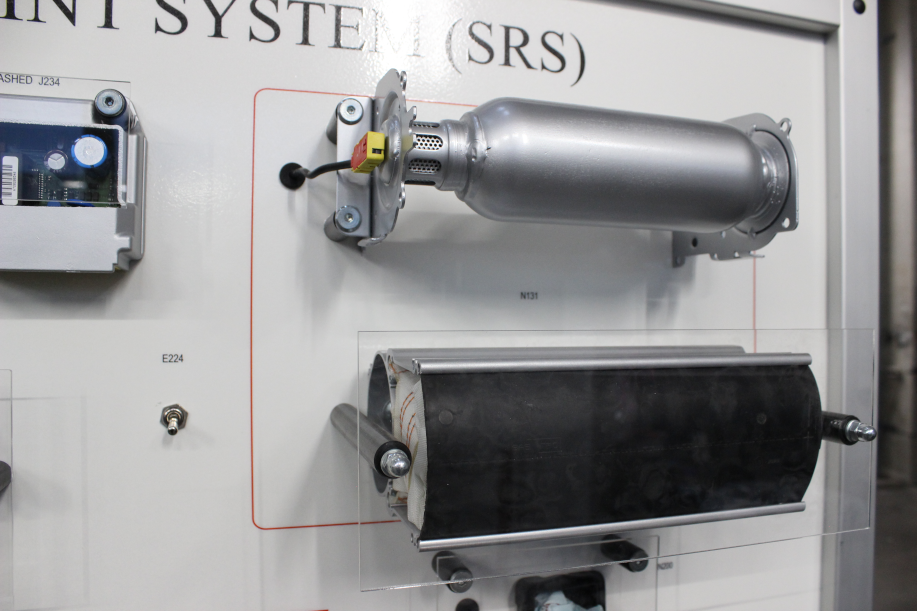

  • Cutaway technology of the passenger`s side airbag and control unit allows to see the structure of the components;
  • Integrated inactive airbag igniters (after activation);

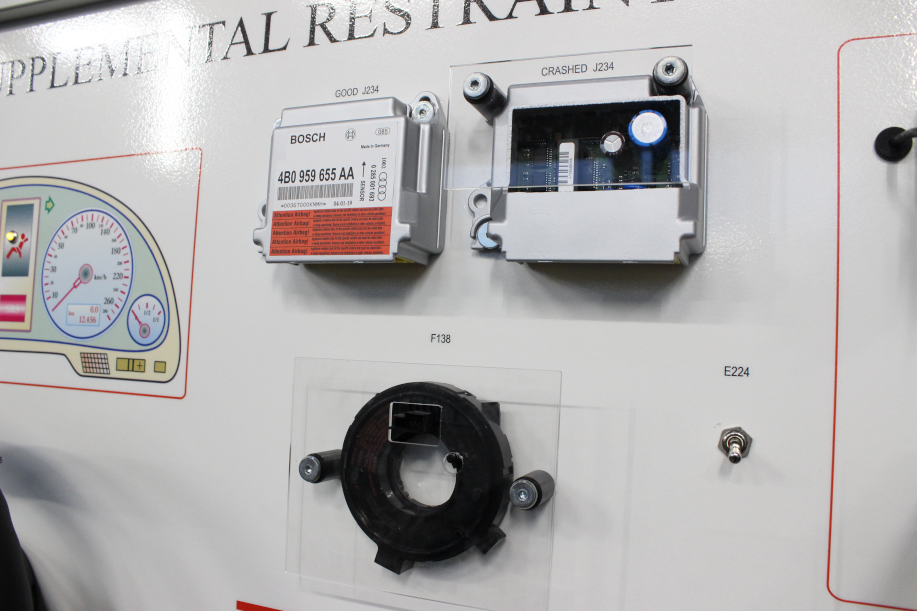

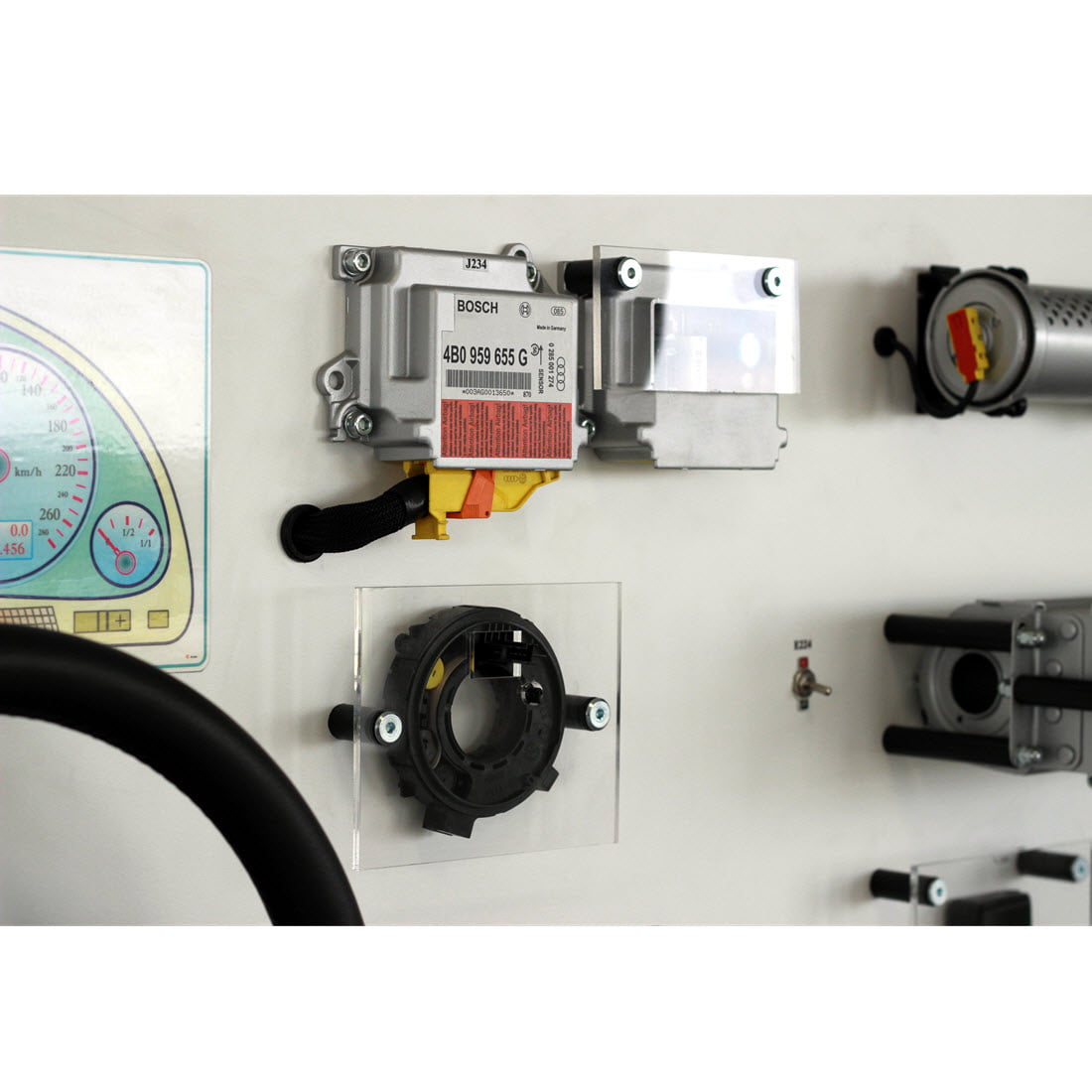

  • The training board is integrated with two safety system control units. One functional – with diagnostic possibilities, second – after activation, with recorded crash data;

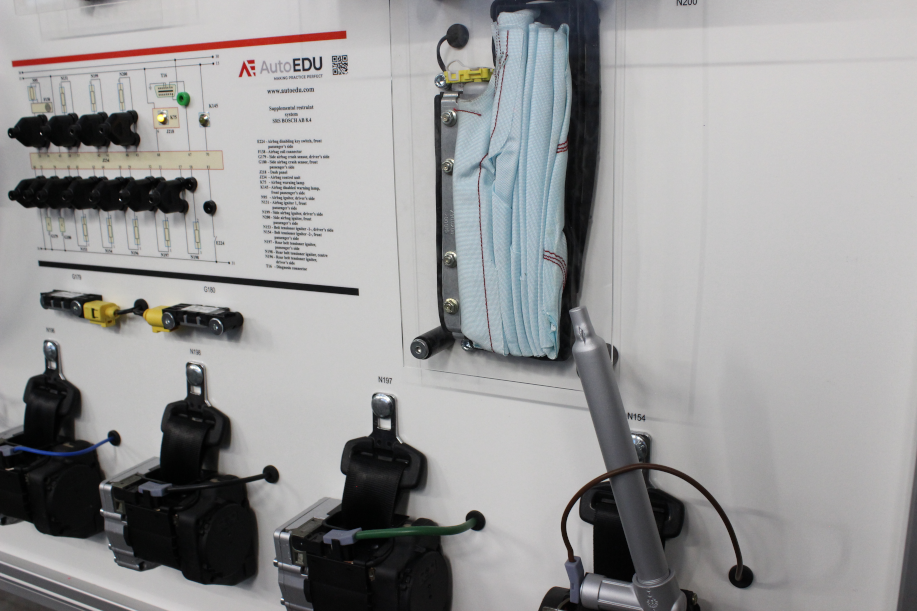

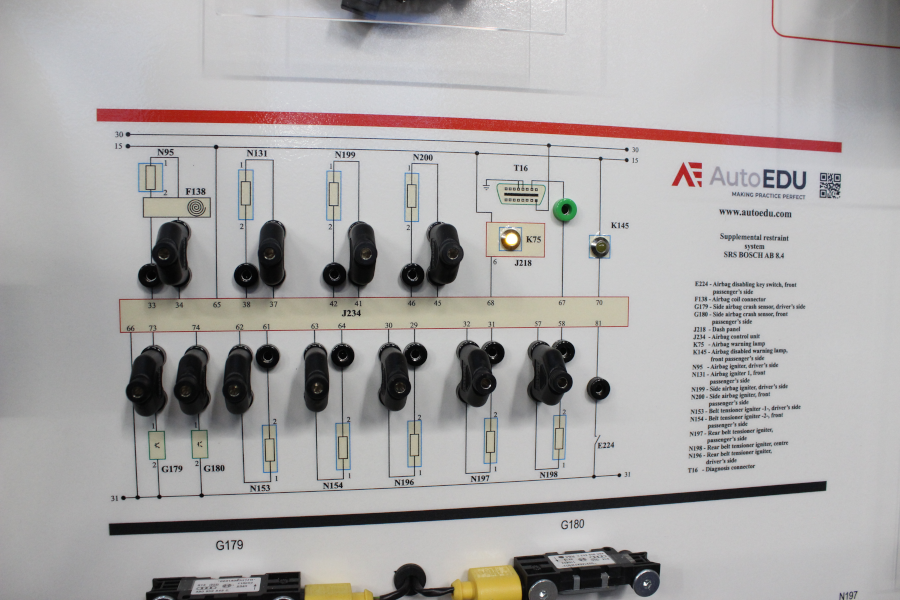

  • Electric wiring diagram with built in banana plug jumpers for measurements and simulation of system fault codes;
  • Ability to simulate more than 10 system faults by disconnecting Banana plug jumpers;

Diagnostic and measurement

Oscilloscope/multimeter:

  • System’s parameters are measured by connecting to the banana connector;
  • Ability to measure electrical signal parameters of each system component;

Control unit diagnosis:

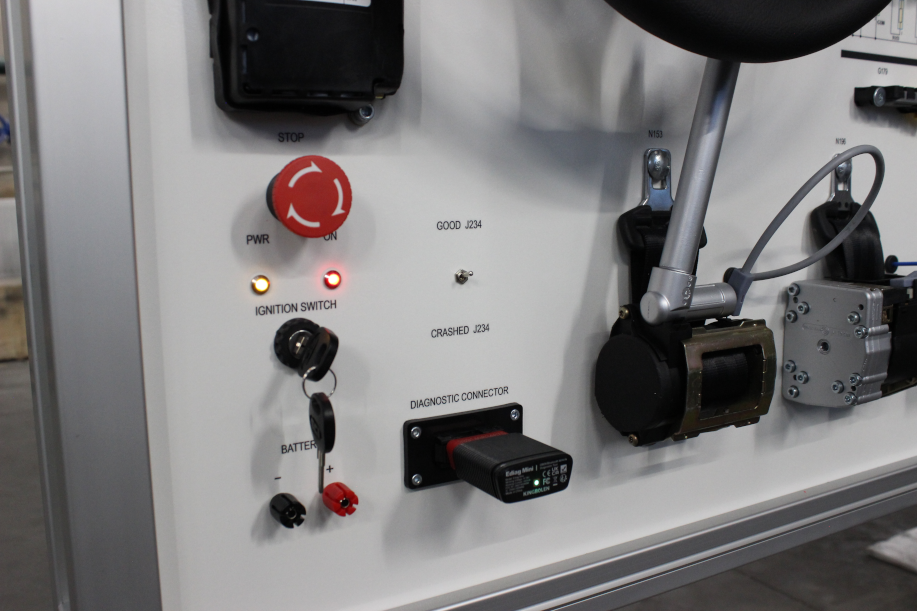

  • Diagnosis through OBD 16 – pin diagnostic connector;
  • Electronic control unit (ECU) identification;
  • Reading/erasing fault codes;
  • Displaying the operating system parameters (live data);
  • Activating the actuators (Depends on the control unit);
  • Control unit encoding/configuration;

Other:

  • The stand has a closed structure – internal wiring is not visible
  • Power supply: 12 V from the battery (not included as standard accessory)
  • Dimensions approx. (HxLxW): 1820x1360x500 mm
  • Nett weight approx.: 60 Kg
  • Made in Lithuania
  • CE certificate

Optional accessories:

  • 12 V Battery
  • 220/12 V power supply unit
  • Automotive oscilloscope
  • OBD Diagnostic scan tool
