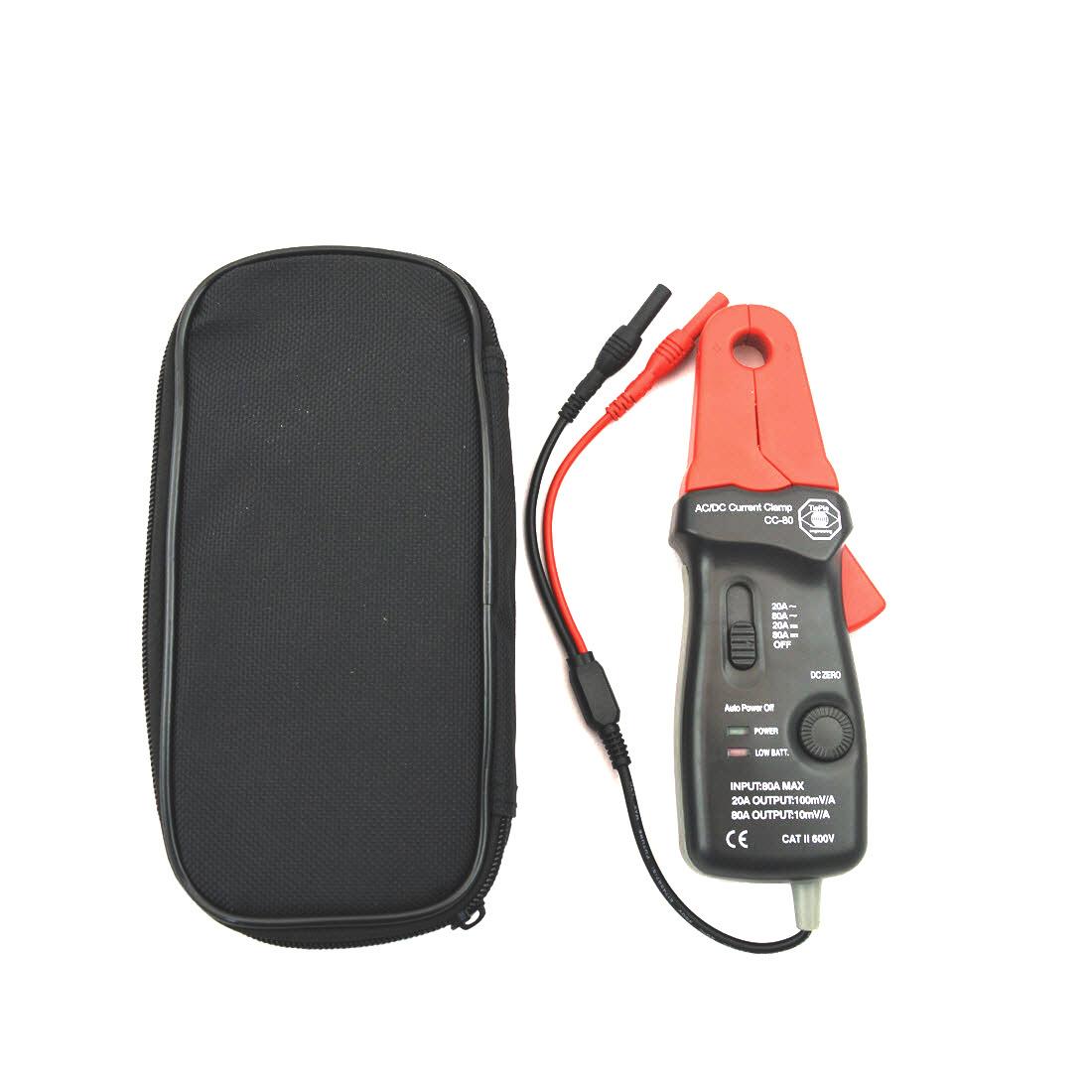

20/80 Amps Clamp Female Connections

Product Description

20/80 Amps clamp with female 4mm banana connection

Universal use with any brand of scope or DMM

Great tool for accurate measurement of low current. Use with your graphing meter or lab scope to view current waveforms on fuel injectors, fuel pumps, primary ignition coils and more. Also works very well with digital multimeters. Resolution of 10 milliamps is low enough for most parasitic drain testing. In addition, the clamp opening of 1/2 inch is large enough to clamp over most negative battery cables for those parasitic drain tests.

Features:

Compatible with many lab scopes and graphing multimeters

Use to generate current waveforms for diagnostic analysis

Also works great with digital multimeters

Jaw opening of 1/2 inches clamps over most negative battery cables

Low battery indication, Auto Power-Off

TEST RANGES:

DC Amps: 0-20A, 0-80A (resolution .01A)

AC Amps: 0-20A, 0-80A (resolution .01A)
