Product Description

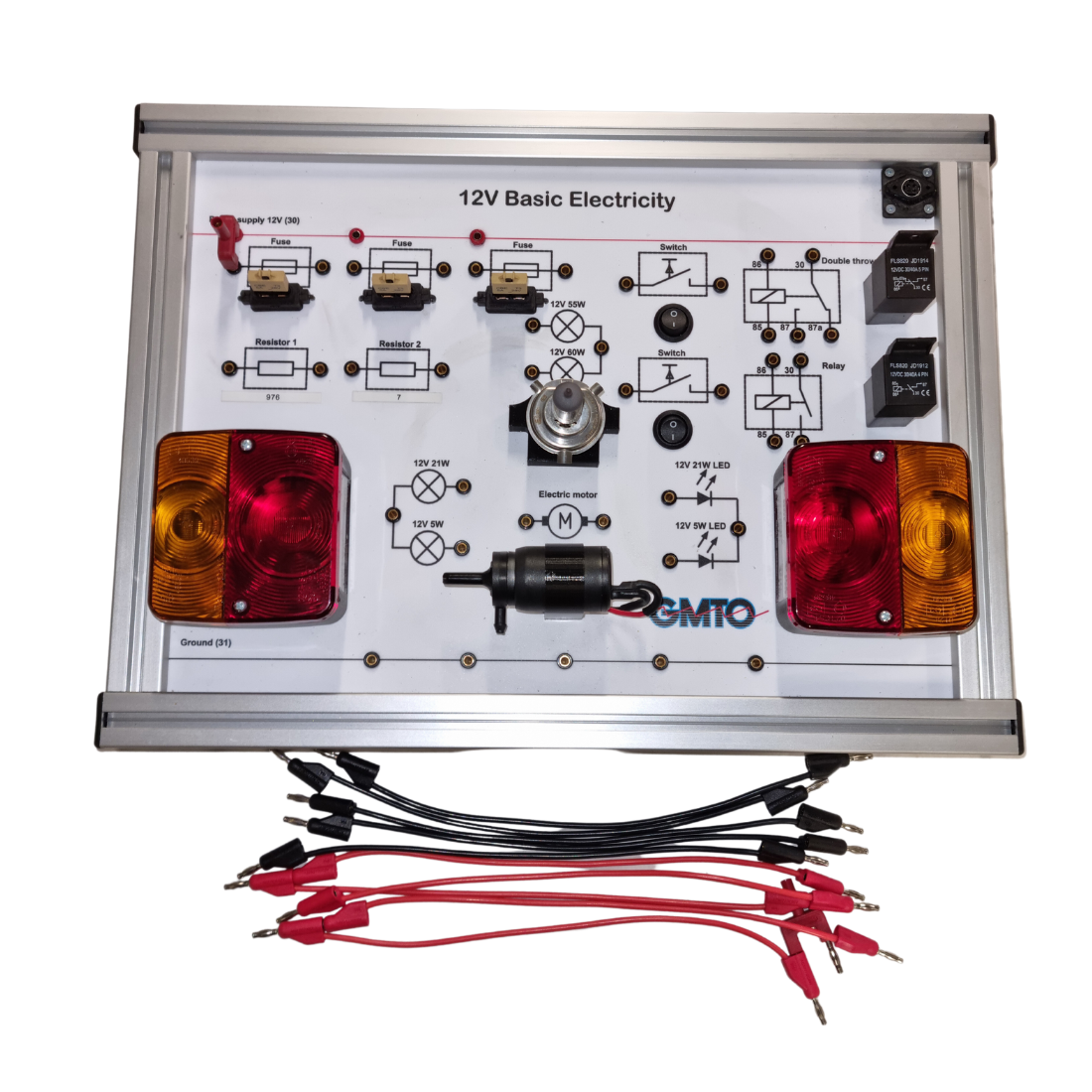

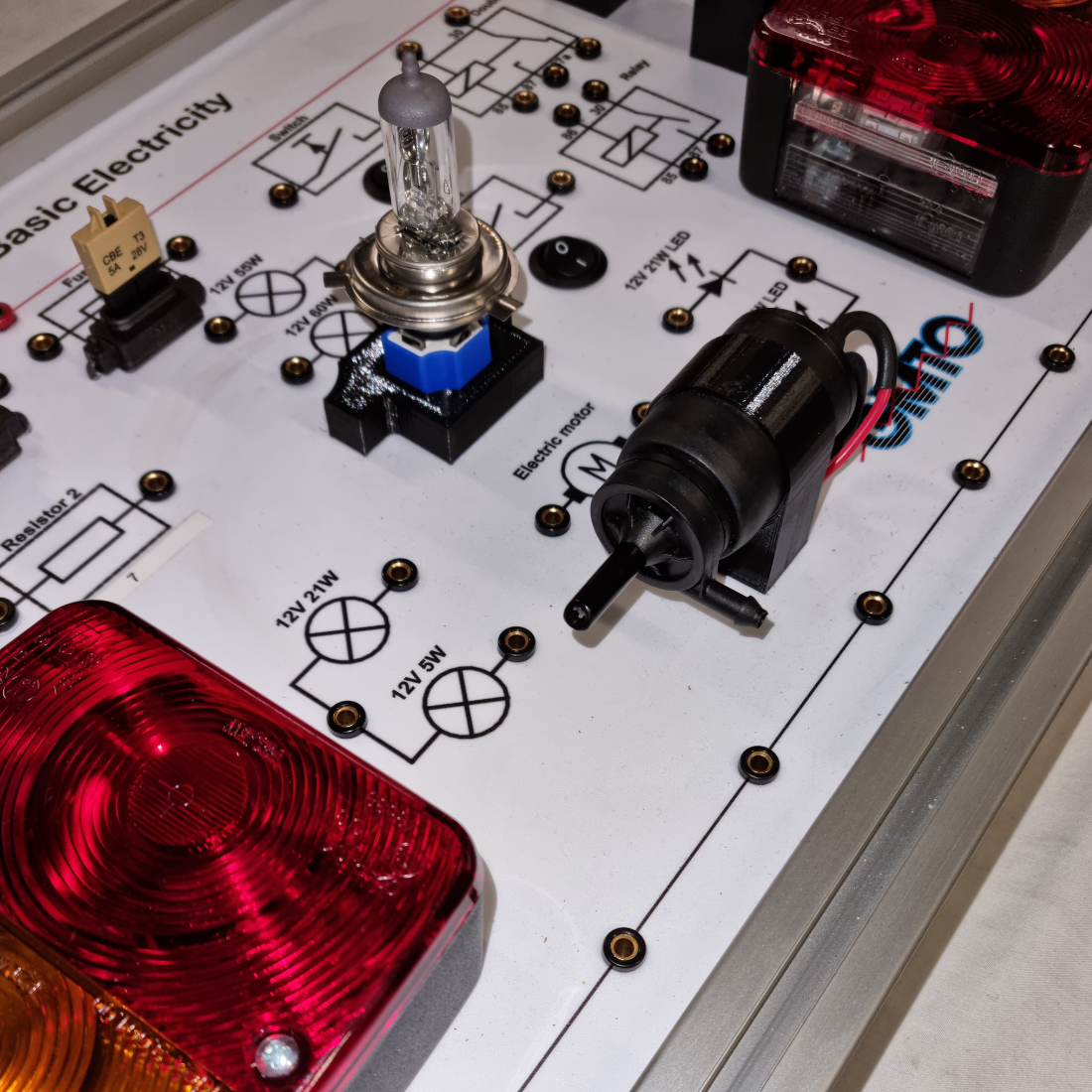

GMTO 12V Basic Electricity System Training Board

With the Basic Electrical Board we make Ohm’s law and the basis of electrical systems clear by means of some simple components such as light bulbs and relays etc. This allows  the user to independently master the operation on the basis of any supplied assignments. Its also very portable due to its compact size

The board consists of the following components/circuits:

  • Power supply input 12 volts
  • Fuse x 3
  • Fuse automatic (the short circuit protection of the power supply is faster than the fuse)
  • Switches x 2
  • Relay x 1
  • Double throw relay x 1
  • Windshield washer pump
  • LED light x 1 5W
  • LED light x 1 21W
  • H4 Head light bulb 60/55W Light bulb
  • 21W bulb
  • 5W bulb
  • Resistance 1: 1 KOhm
  • Resistance 2: 6.8 Ohm

What’s Included:

  • Training Board
  • Manual
  • Power Adaptor
  • Circuit building cables x 5 red and x 5 black

Product Specifications

Weight 5.7 kg
Dimensions 70 × 57 × 32 cm
