GMTO Duty Cycle Training Board

With the Duty cycle  board, principles such as duty cycle,  frequency, PWM pulse width modulation, postive and ground side switching become clear. On this system board with the aid of a oscilloscope and a multimeter the user can master these difficult principles completely independently on the basis of the supplied commands. Its also very portable due to its compact size

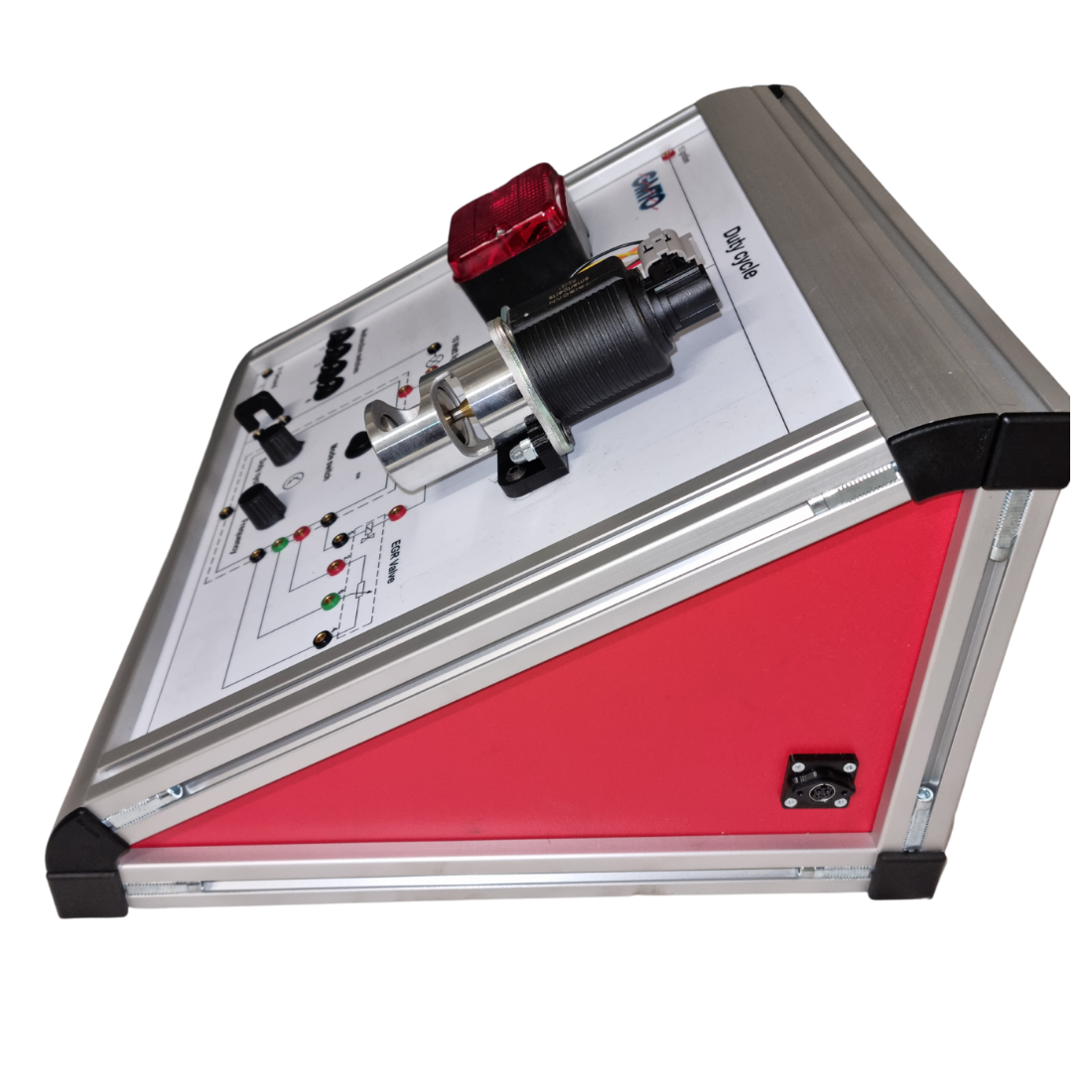

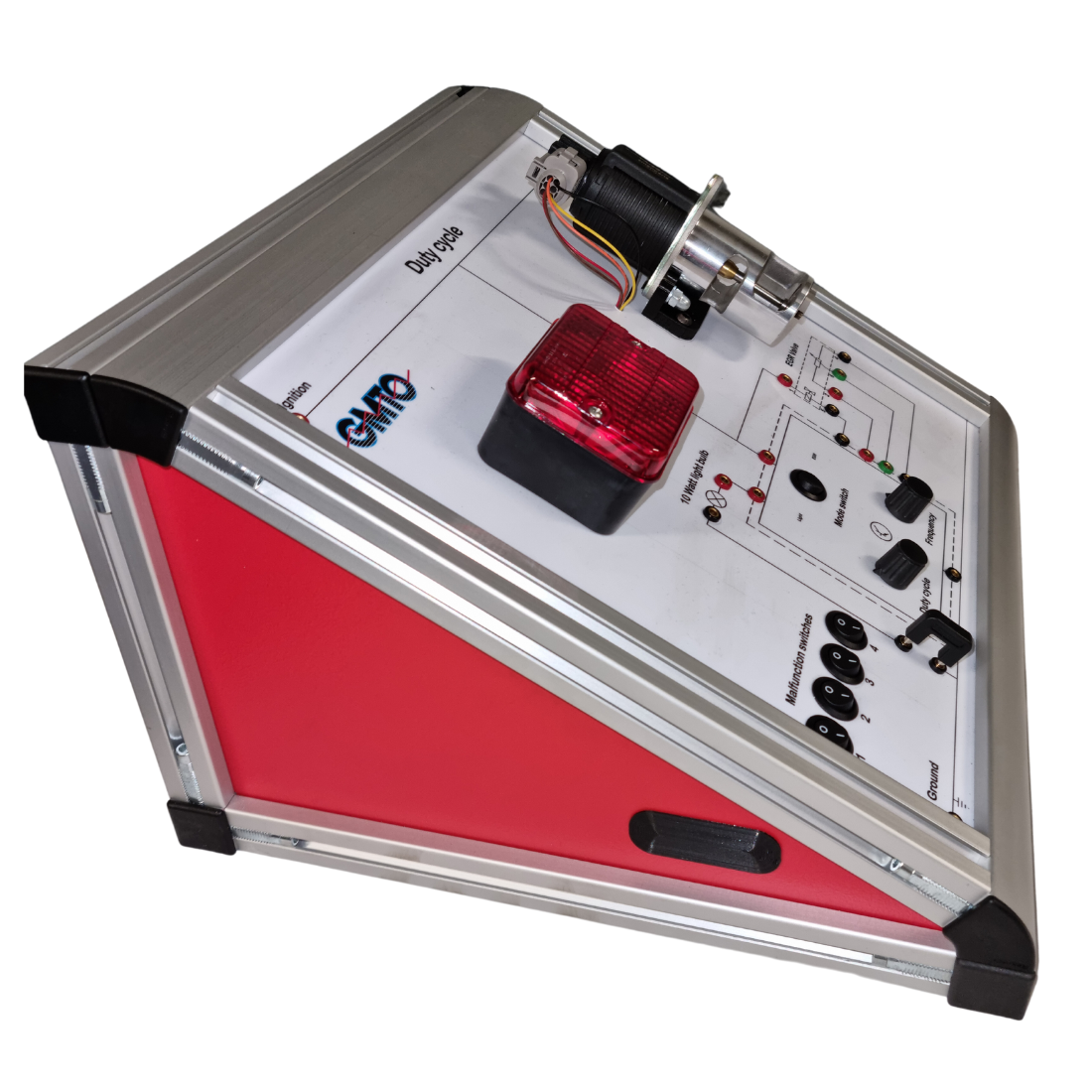

The board consists of:

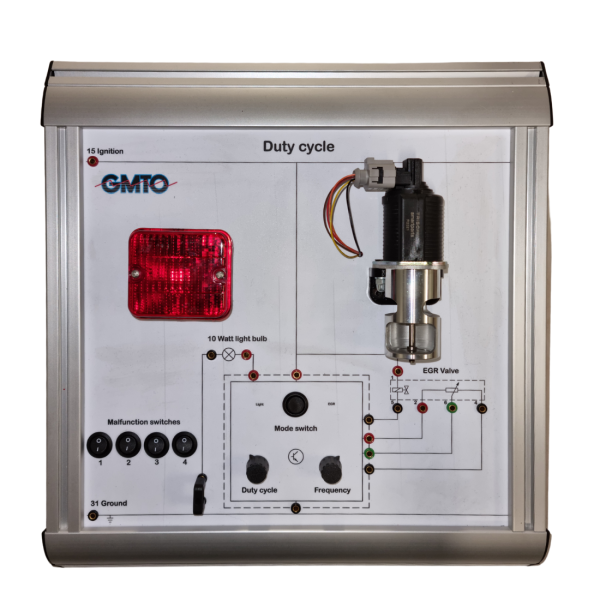

  • Lamp unit, allows the sudent to visualy see the affects of altering the duty cycle and the frequency
  • Fault switches x 4, allows you to make various faults in the lamp and the EGR circuit
  • Connecting bridge for current measurment on the lamp circuit
  • EGR valve, allows the sudent to visualy see and hear the affects of altering the duty cycle
  • Selector switch, for switching between the lamp circuit and the EGR valuve
  • Frequency adjustment knob, allows you to vary the frequency on the lamp circuit
  • Duty Cycle Adjustment Knob, allows you to vary the duty cycle on the lamp circuit and the EGR valuve
  • 4mm measuring points

What’s Included:

  • Training Board
  • Manual
  • Power Adaptor

Optional:

  • ATIS lite scope software, which gives scope sample wave froms and technical information on PWM/duty cycle controlled componets
  • Various types of oscilloscopes click here to see our range of PC based oscilloscopes and click here to see our hand held range

Product Specifications

Weight 8.5 kg
Dimensions 60 × 60 × 46 cm
