Product Description

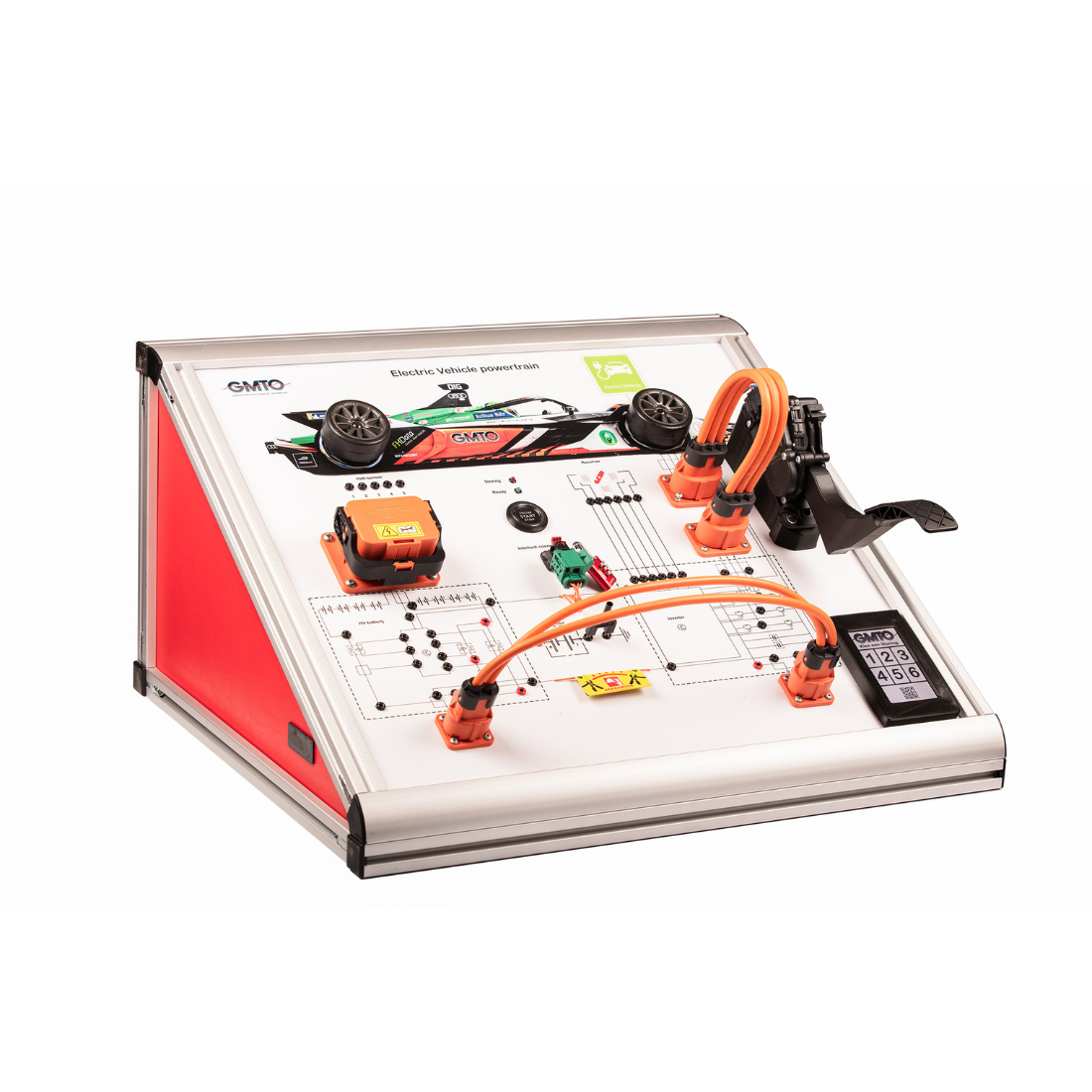

GMTO Electric Vehicle Powertrain System Training Board
The electric vehicle powertrain system board is one of the most comprehensive learning tools currently available for electric vehicles. The system board is suitable for levels 2, 3, and 4!
Capabilities:
- Learn the basics and construction of an electric vehicle (battery, inverter, electric motor).
- Differentiate between AC & DC, safety systems (interlock, service plug), control of 3-phase electric motor, including current measurements and much more
- System securing according to NEN9140:2024
- Measure resolver and hall sensor feedback.
- Pre-charge coil resistors and insulation measurements. • Ability to activate faults.
- Learn to work safely on an electric vehicle by performing safety procedures.
- Understand how a 3-phase alternating current is generated from direct current.
- Diagnose common practical faults.
- Perform common measurements such as milli-ohm measurement and insulation measurement realistically.
- Available with 1, 2, or 4-channel scope for measurements.
What’s Included:
- Training Board
- Manual
- Power Adaptor
Options:
- Available with 15 Electude E-learning assignments.
- Various types of meters and test accessories
- 4 channel GMTO scope
