Product Description

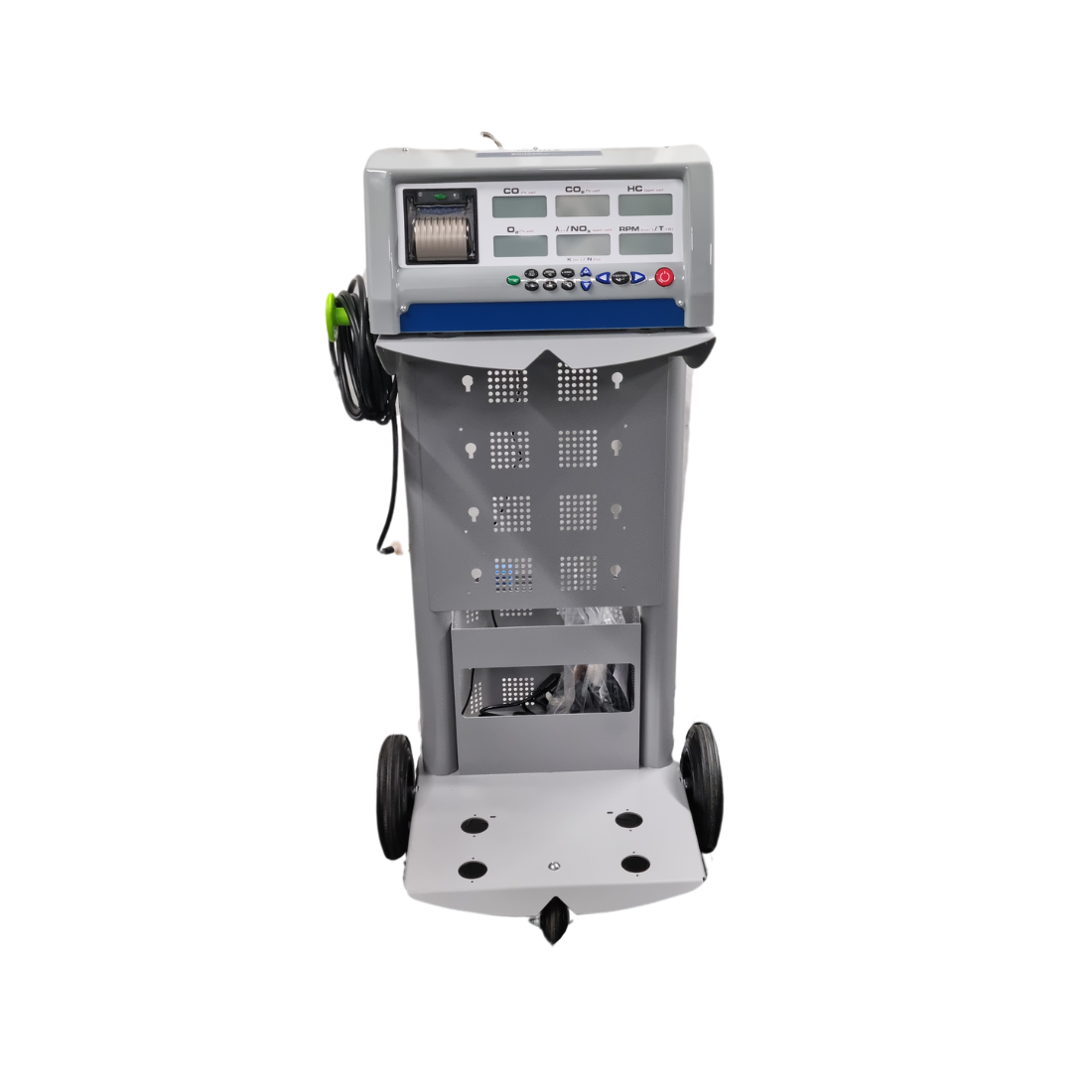

MAHLE EmissionPRO Petrol Emissions Tester With Trolley
EmissionPRO® BMU 688
The BMU 688 gas analyser can work both statically and dynamically, by sampling emissions at the exhaust pipe using the supplied probe designed for this purpose. With the intuitive operator panel, users have all the functions of the exhaust gas analyser at their fingertips, and can easily swap from independent measurements to the legally specified test. The BMU 688 features six backlit LCD units, which display the readings of ongoing tests. When analysis is complete, the user can print out the test result straight away or send it to a connected computer.
This BMU 688 can work stand alone without a laptop or PC thanks to the built in display and printer, but if the user wishes it can also be viewed via a laptop or PC with specail software,
Pneumatic assembly:
The integrated condensate separator is drop-forged to prevent any hindrance to the gas flow and reduce maintenance times. Its special design facilitates the continuous drainage of condensate that forms in the separator. The separation filter has two parts: a net filter and a coalescing filter. In addition to the gas and air inlet for the autozero phase, the BMU 688 also features another special inlet for calibration using a gas sample cylinder. The rear side of the unit features connections for the supply, for measuring revolutions and temperature either wired or wirelessly, and a wired or wireless connection to a PC.
Advantages at a glance
- The optional RPM counter is incorportaed via an induction clamp, capacitive clamp or optional wireless module RMU 300 (via bluetooth).
- Connection to a PC can be Serial, USB or Bluetooth (BT-100 optional).
- If the workshop wants to add a opacimter the BMU 688 enables connection to the opacimeter via the OMNIBUS port. In this case, the gas analyser can display the smoke density readings from the DMU300 opacimeter for diesel engines.
- Emissions are sampled at the exhaust pipe using the specially designed probe. With the intuitive interface users can easily switch between modes, i.e. from independent measurements to a legally specified test. The BMU 688 features six backlit LCD displays, clearly showing the readings of ongoing tests. When analysis is complete, the user can directly print out the test results or optional send them to a connected computer. The integrated condensate separator is designed to prevent an obstacle in the gas flow and reduces maintenance costs. Its special design facilitates the continuous drainage of condensate that forms in the separator. The separation filter has two parts: a net filter and a coalescing filter. In addition to the gas and air inlet for the autozero phase, the BMU 688 also features a special inlet for calibration using a gas sample cylinder.
- The rear side of the unit has connections for the power supply, for RPM and temperature probes, which can either in wired or wireless mode communicate to the PC.
Optional:
Please enquire for more details and prices on the options
- Oil temp probe
- RPM counter (different methods available, please enquire)
- NOx-010 sensor for for the gas analizer
- Blue tooth module
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All Mahle emission testers come with 2 year warranty.
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and if necessary sent back to Mahle and a loaner unit will be left with the user until the unit is delivered back.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday)
The 2 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 2 year warranty are
Sampling hoses and probes
Service parts (Filters and other service items and labour to replace these service items)
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive or a courier will deliver the unit to your workshop and we will install and set up the software on your laptop/PC in person or via Team viewer and test it on a vehicle and ensure it is ready to work, (if a PC based tester the laptop or PC the customer wants to use must have the required specs and space and be in good working order)
And spend 2 hours onsite (or if not possible to call onsite can provide training over team viewer, WhatsApp and phone) providing training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
Spare parts and service items
We keep a stock of the following parts if required
All filters
Oxygen sensors
USB cable
Sample hoses
If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT
