Automatic Transmissions Online Training 12 Months Access

COVERED IN THIS COURSE

As automatic transmissions have developed, they have decreased in size and their structures are more compact. At the same time the gear count has risen to even as high as 9 gears, and their efficiency has caught up with other transmission types. Due to this, the technicians need to update their knowledge on “traditional” automatic transmissions.

  • Presentation of different transmissions
  • Structure and gear ratios of an automatic transmission
  • Torque converter, operation and hydraulic control
  • Planetary gear sets and operation
  • Planetary gear sets’ clutches and brakes
  • Hydraulic pressure regulation levels and shifting pressure control
  • Other components of the hydraulic control system
  • The transmission’s control unit and shifting programme
  • Electrohydraulic control
  • Speed, temperature and pressure
  • Driver’s functions and transmission control

WHAT WILL YOU LEARN?

In the first study section, after presenting the different transmission types, we go through the automatic tranmission’s structure, for example the torque converter, hydraulic system and transmission mechanics in-depth. In this section you will learn what happens inside the transmission when you see the modes P, R, N, D, D1, etc. on the instrument cluster display. In the section “Components”, you will study the torque converter’s operation, which is made easy by the module’s visual animations.

The planetary gear sets and the clutches and brakes used to control them make up their own entity. In the planetary gear set operation you familiarise yourself with gear sets that have made the development of the transmission possible, for example Compound Planetary Gear Sets (Ravigneaux ja Simpson Gear Set) and Nested Planetary Gear Sets.

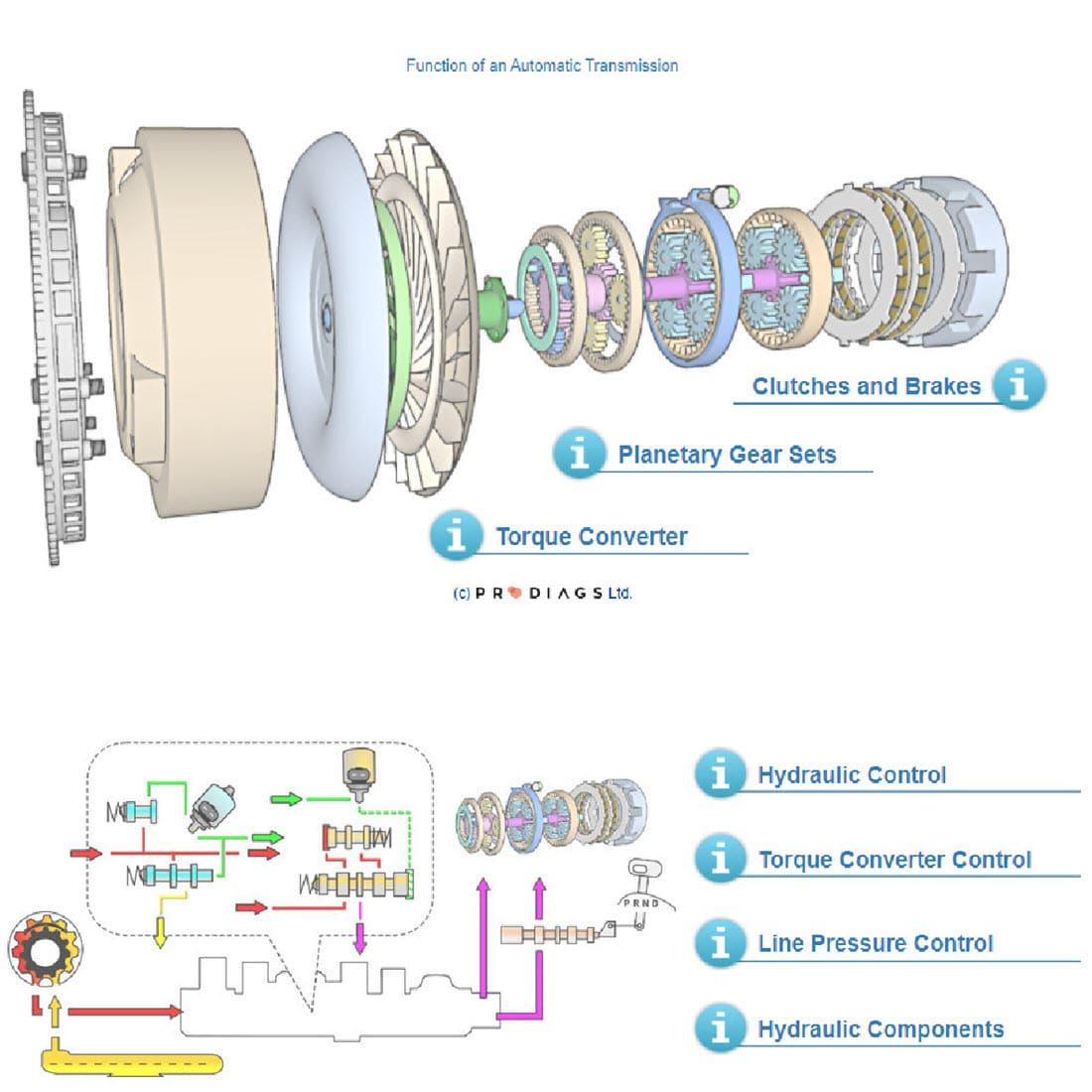

The structure of the automatic transmission. Torque converter, planetary gear set and the clutches and the brakes.

In the section on hydraulics you learn what kind of different hydraulic pressures are regulated in the transmission, how different torque converters are controlled and what the shifting pressure, that makes shifting smooth, is.
General overview of the transmission’s hydraulic control. In the image the automatic transmission’s solenoids and valves and oil pump. Also brakes and clutches and manual valve or gear selector valve in the image.



In the second study section, the center is the control system of the mechanics and hydraulics, and its electrical structure. With this module you learn how to utilise the electrical and structure schematics provided by the manufacturer, and use them to make an assumption of what operational checks can be performed with electrical measurements.

The hydraulics control uses different pressure levels, such as; line pressure, shifting pressure, control pressure and torque converter pressure, with which the pressure is kept stable and solenoids’ mechanical movement is quicker even though the control currents are lower.
In addition to the regulating and switching solenoids used in the control, the manual valve (gear selector valve) is a central part of the operation, even though it might be fully electrically operated.

In addition to their compact construction, automatic transmissions are special due to the fact that transmissions contain very different amounts of sensors, which we are used to use as aid when troubleshooting. Many programme and calculation measures decrease the need for sensors. That is why it is crucial to understand the function of the sensors in the transmission, since a fault in these might interrupt driving at once.
Example images on electrical measurement connected to automatic transmission troubleshooting.

At the end of the study section, we get to know the driver’s functions, control devices and driving modes’ differences in the shifting maps. The electrification of the gear selector used by the driver has also brought many versions of its connection to the transmission itself. Electronic use also has a crucial effect on the release of the Park Lock mechanism in a fault situation.

PREREQUISITES (PRE-KNOWLEDGE / SKILLS) FOR TAKING THIS COURSE

To reach the best learning outcomes you will benefit from having a basic knowledge in electricity and measuring technology as well as the basics of common solutions in sensor and actuator technology. To study Electricity, we recommend the Training Modules:

  • Electricity
  • Electronics
  • Automotive Electrical Troubleshooting Basics

SYSTEM REQUIREMENTS

  • Internet connection, PC or laptop, Browser with flash plug-in support

LEARNING OUTCOMES

After studying you will have a strong knowledge of the automatic transmission’s operation. You will be ready to develop your troubleshooting skills in practice and adopt the differences across different manufacturers solutions, as well as utilising instruction and training effectively. This training gives you the opportunity to even specialise in becoming an automatic transmission expert.

CERTIFICATE

After completing your module of study and approved completion of the exercises, you will be allowed to take the final exam. After completing the final exam, you can print a Prodiags certificate from your attainments register as proof of your expertise.

HOW TO BUY?

Just click on this link below or in the description above and this will link you to the Prodiags online training shop
Click here to purchases this course or other courses on Prodiags website
And add it to your cart and complete the order and you will then receive a email with your username and a link to activate the course.

You must activate the course within 3 days of receiving the email and when activated you will have 12 months access to the course.

Note the email you use to place the order will be your username for the course.

It can take up to 24 hrs (Monday to Friday) to receive the activation email

On the support page it has information on how to order and how to use etc, click here to view support page
