Product Description

Automotive Electrical Troubleshooting Basics  Online Training 12 Months Access

COVERED IN THIS COURSE:

Checking the function and operational preconditions of an electrical component is applying electrical engineering knowledge at its finest. In addition to electrical engineering you should be able to “read” electrical circuit diagrams and perform measurements with the correct equipment. Being successful in the troubleshooting requires, amongst other things, proper use and understanding of the oscilloscope.

  • Electrical Circuit Diagrams and Markings
  • Oscilloscope Operating Principle and Connections
  • Settings, Accuracy and Measuring Probes
  • Electrical Operational Preconditions of a Component
  • Checking the Operational Preconditions
  • Short Circuit Troubleshooting
  • Battery Discharge Current Troubleshooting

WHY THIS COURSE?

The switch from theoretical knowledge of electrical engineering to practical know-how in the workshop requires a good understanding about the basic skills of troubleshooting. Utilising circuit diagrams, and being familiar with the properties and use of your own measuring equipment, such as the oscilloscope, is a basic requirement for the troubleshooting work for a mechanic.

WHAT WILL YOU LEARN?

This study will help you understand the required equipment and its properties, and challenge you to start using it. You will deepen your knowledge in electrical engineering through measuring technology and you will reach a level where you can apply your knowledge about voltage drop and electrical operational preconditions.

With this online training learn how to use the oscilloscope for checking the condition of the grounding .



Learn to perform short circuit troubleshooting.

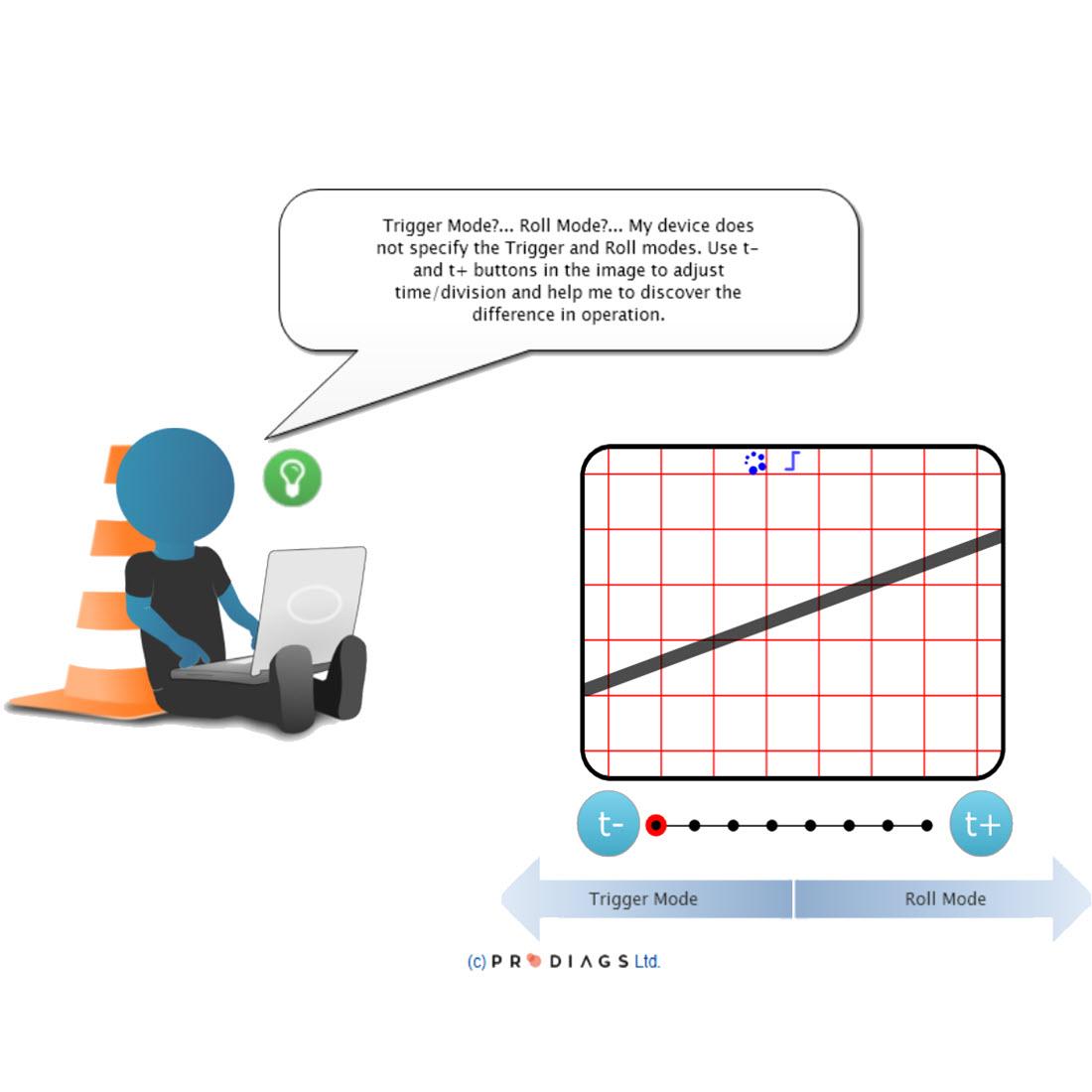

With this online training module, learn how to use the oscilloscope's trigger and roll modes as well as adjusting the time/division of the oscilloscope.

PREREQUISITES (PRE-KNOWLEDGE / SKILLS) FOR TAKING THIS COURSE

To get the best possible learning outcome, we hope that you have a basic knowledge in electricity and electronics. For studying these subjects, we recommend the modules:

  • Electricity
  • Electronics

SYSTEM REQUIREMENTS

Internet connection and  PC or laptop with browser.

LEARNING OUTCOMES

After this study you will have the skills to apply your knowledge in electrical engineering in system-specific studies, measuring technology and troubleshooting. These skills will develop the more you practice and use your measuring equipment.

CERTIFICATE

After completing your module of study and approved completion of the exercises, you will be allowed to take the final exam. After completing the final exam, you can print a Prodiags certificate from your attainments register as proof of your expertise.

HOW TO BUY?

Just click on this link below or in the description above and this will link you to the Prodiags online training shop
Click here to purchases this course or other courses on Prodiags website
And add it to your cart and complete the order and you will then receive a email with your username and a link to activate the course.

You must activate the course within 3 days of receiving the email and when activated you will have 12 months access to the course.

Note the email you use to place the order will be your username for the course.

It can take up to 24 hrs (Monday to Friday) to receive the activation email

On the support page it has information on how to order and how to use etc, click here to view support page
