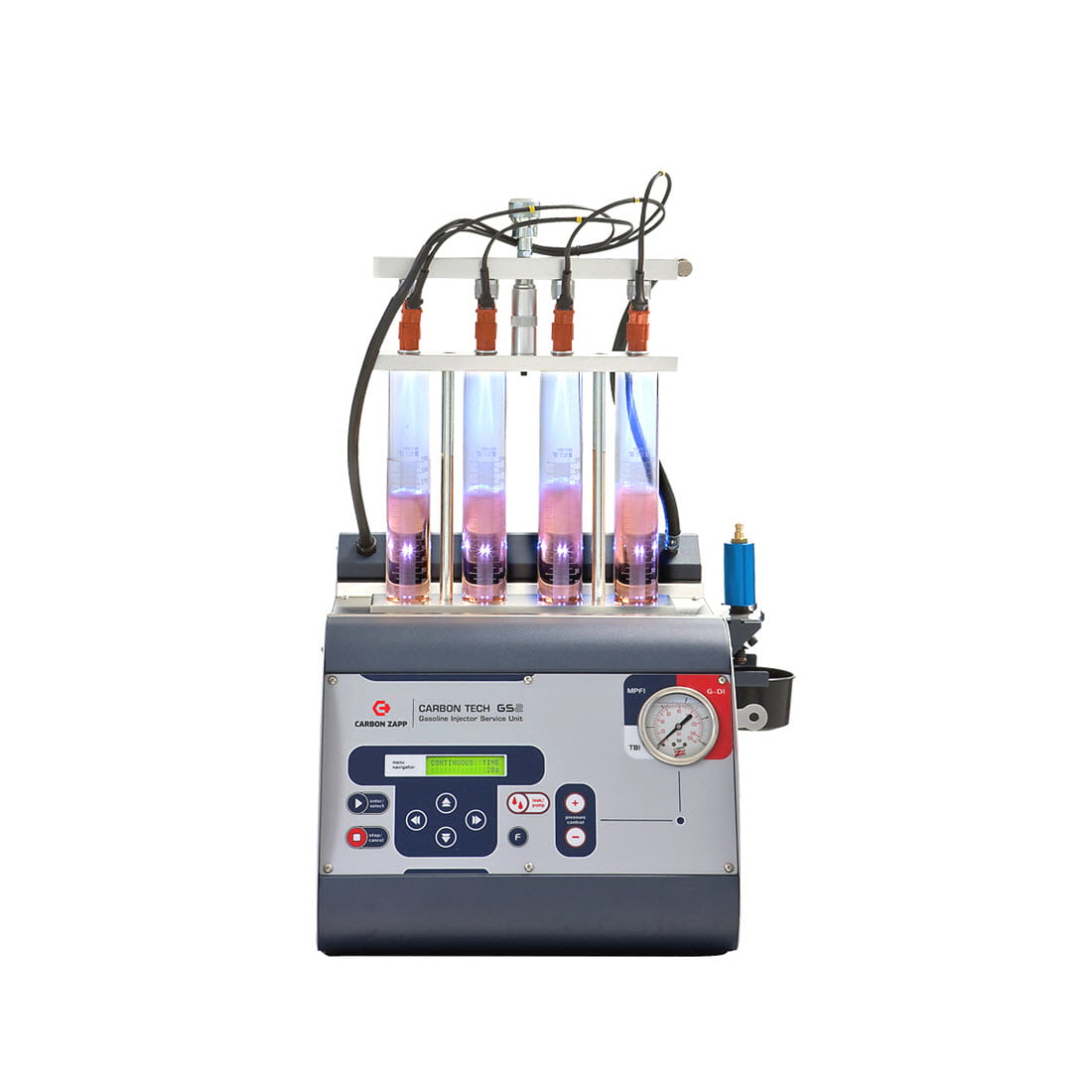

Carbon Zapp Injector Test Bench GS2

Product Description

Carbon Zapp Injector Test Bench GS2

Prices from 1950 + vat

An efficient, cost-effective and proven workshop solution to bench test and service standard gasoline fuel injector and solenoid GDI injectors.

• Bench for Testing & Ultrasonic Cleaning up to 4 Fuel Injectors
• Manual Function
• Electronic Pressure Control 0-10Bar
• Dynamic & Static iVM (injector volume measurement)
• Manual-iRF (injector reverse flush) function
• Injector Leak Test function
• Racing Injectors Capable*
• Illuminated spray pattern chamber.
• eRSO = Function (Electrical Resistance, Short Circuit and Open Circuit Test)
• iRF = Injector Reverse Flush Device used to remove all dirt remained inside injector body after cleaning with the use of Ultrasonics
• iVM= Injection Volume Metering Precise graduated led illuminated tubes are used for efficient diagnosis of uneven flow rates and weak or defective nozzle springs. Automatic drainage after each test.resolution 1ml, accuracy ±1ml/130ml

Injector types tested:

• Solenoid Direct Injectors (G-Di, FSI…)
• Multi-Port Fuel Injectors (MPFi / SPFi)
• Racing Application Injectors*
• Central-Port Fuel Injectors (CSFI / CPFI)
• Throttle Body Injectors (TBI / CFI)
• Continuous Injection Injectors (K-Jetronic)
• Marines Application Injectors (E-TEC / FICHT)
• Motorcycle Application Injectors (Racing*)
• LPG & Alternative fuels Injectors

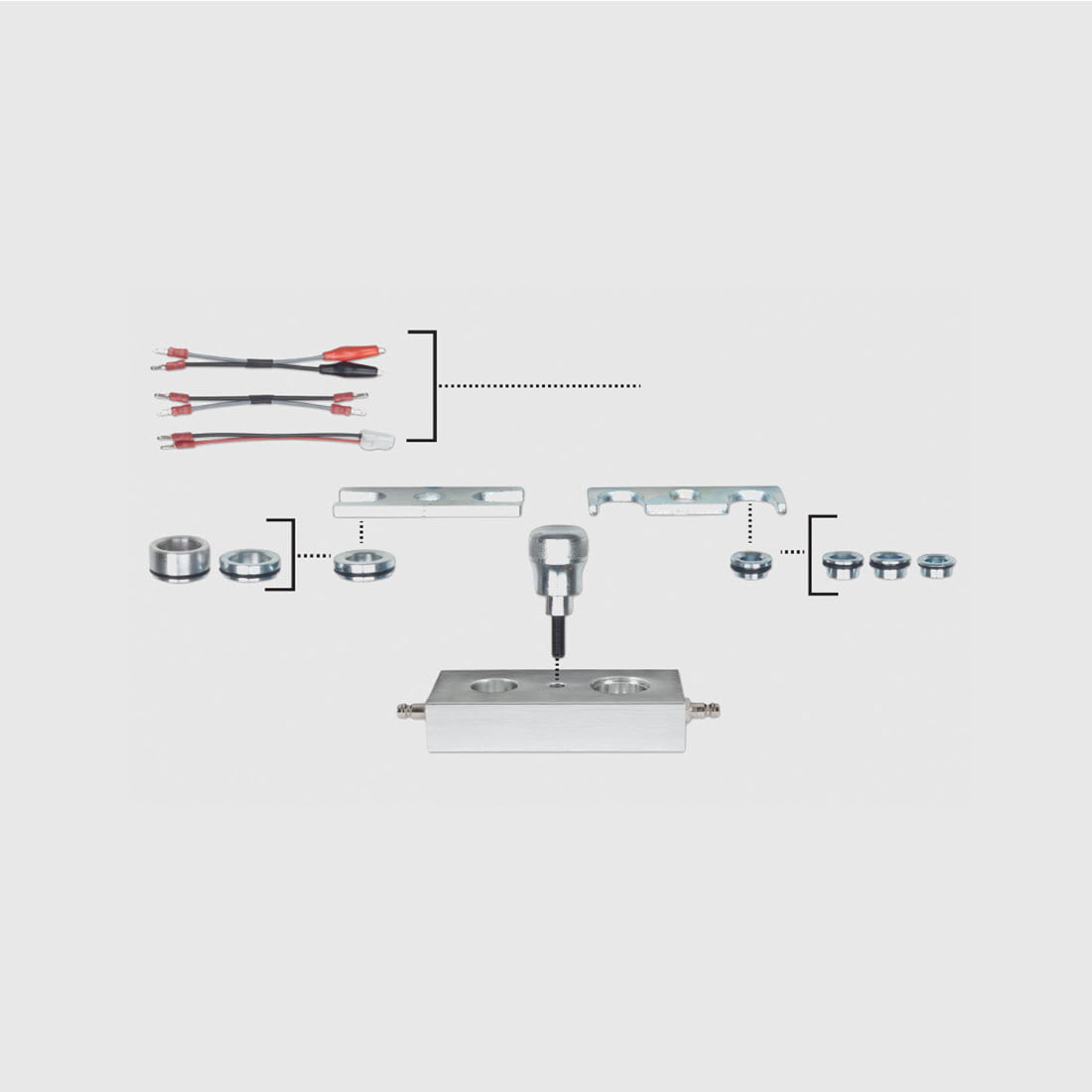

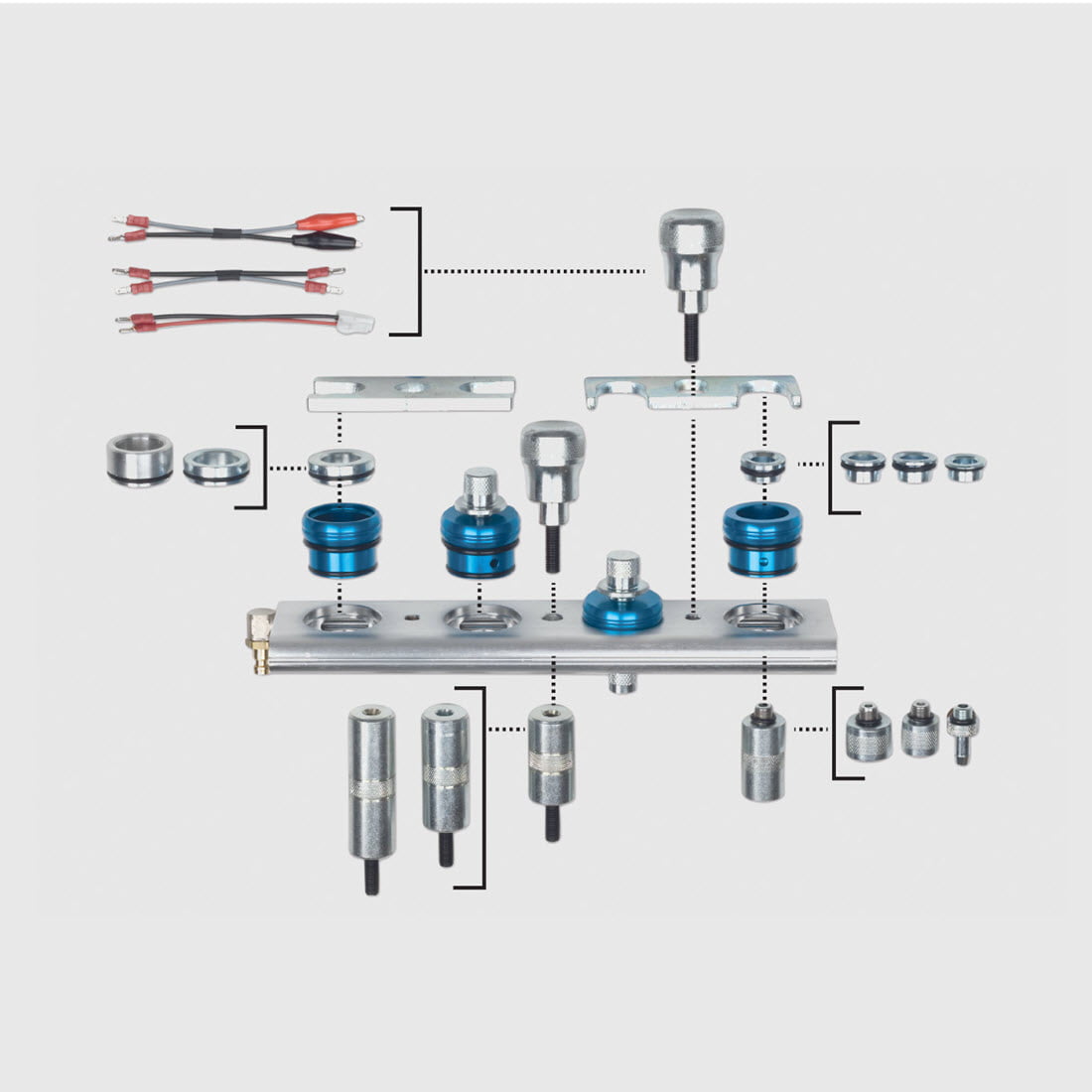

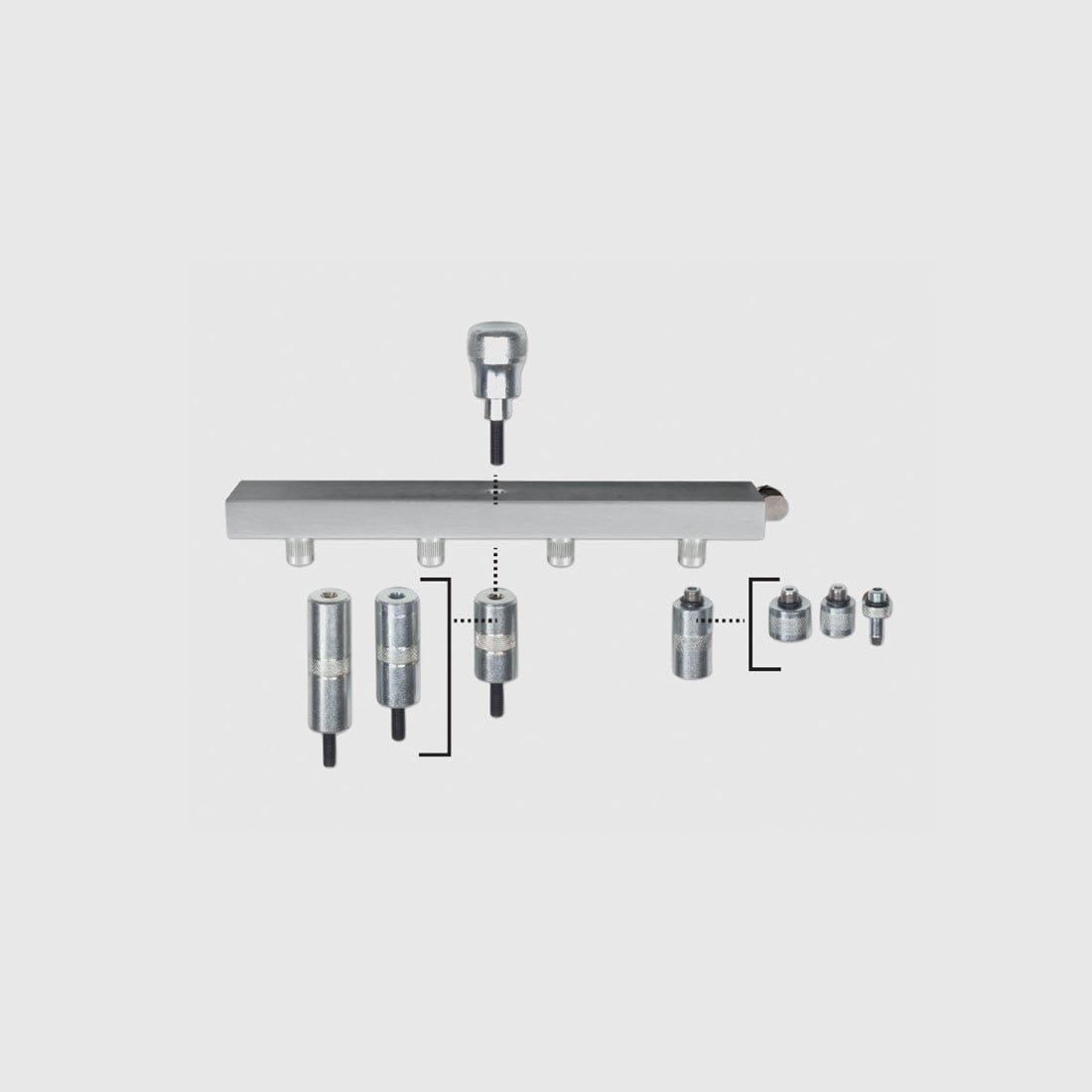

Ultrasonic baths, Racing injector testing feature, trolley and adaptor kits for side feed injectors and other adaptors available as optional extras, please enquire for more info
