Carbon Zapp Injector Test Bench GS4

Product Description

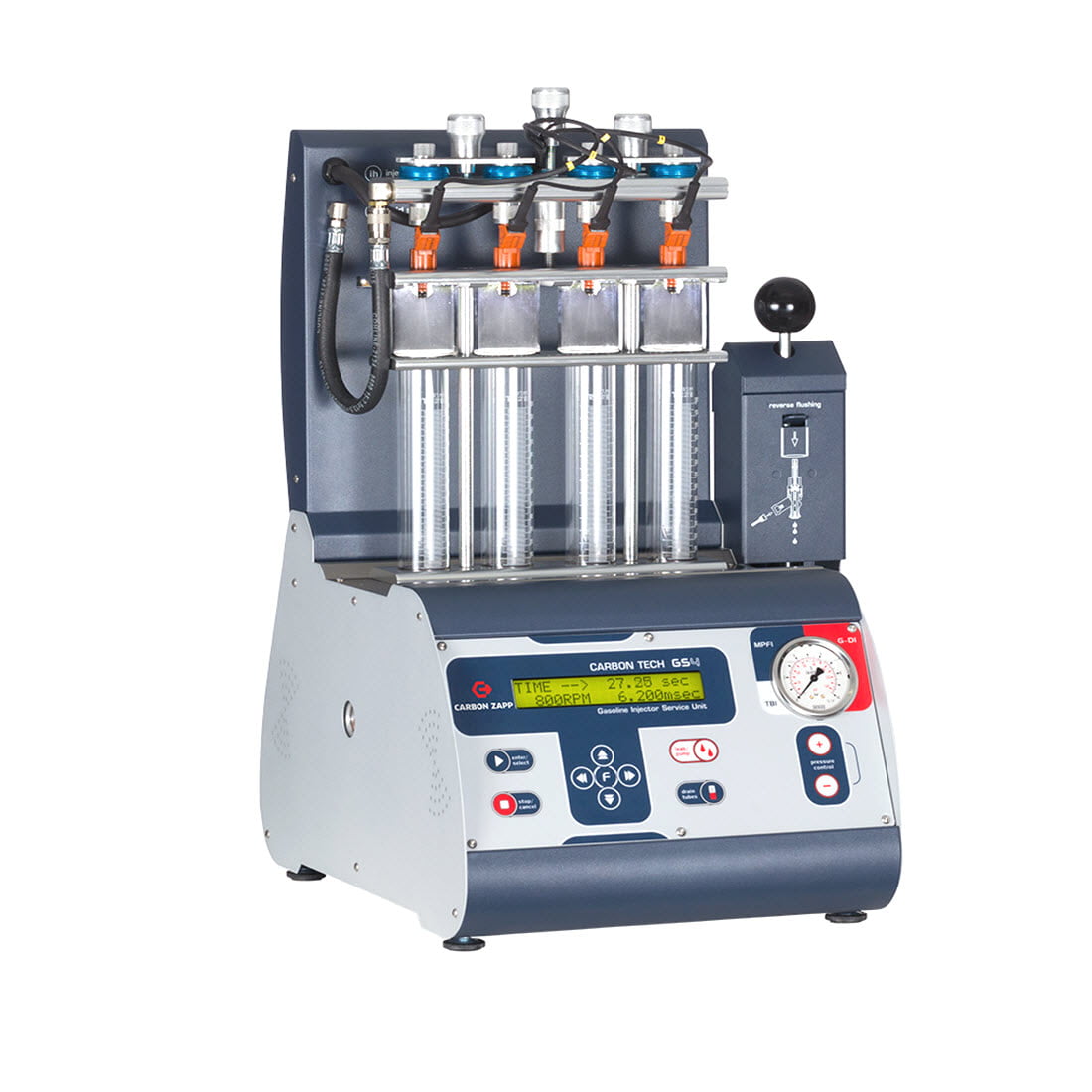

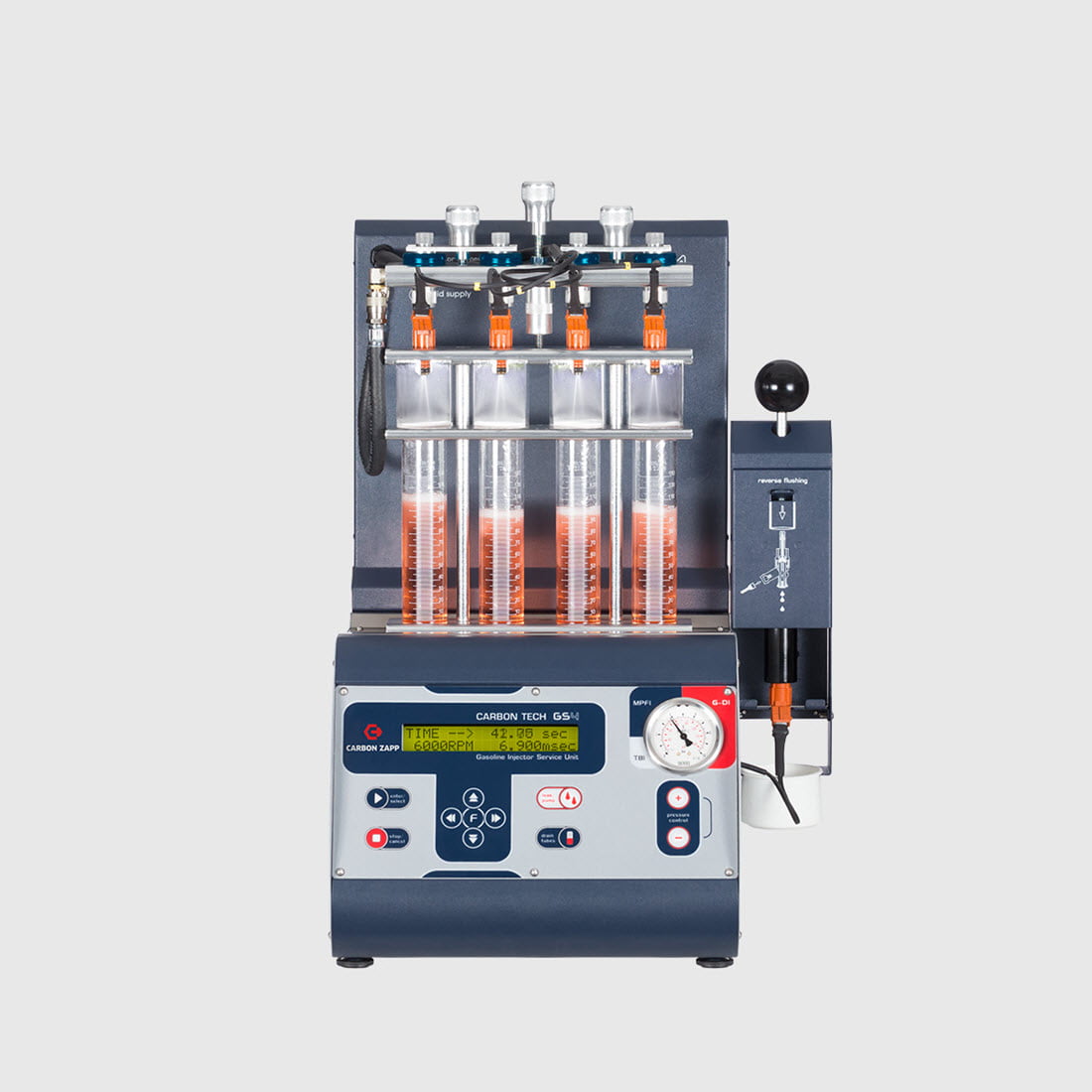

Carbon Zapp Injector Test Bench GS4

An efficient, cost-effective and proven workshop solution to bench test and service standard gasoline fuel injector and solenoid GDI injectors.

• Bench for Testing & Cleaning up to 4 Fuel Injectors
• Fully Automatic Function
• Electronic Pressure Control 0-10Bar
• Racing Injectors Capable*
• Illuminated spray pattern chamber.
• Dynamic & Static iVM (injector volume measurement)
• Auto iRF = Injector Reverse Flush Device used to remove all dirt remained inside injector body after cleaning with the use of Ultrasonics
• iVM = Injection Volume Metering Precise graduated led illuminated tubes are used for efficient diagnosis of uneven flow rates and weak or defective nozzle springs. Automatic drainage after each test.resolution 1ml, accuracy ±1ml/130ml
• eRSO Function (Electrical Resistance, Short Circuit and Open Circuit Test)
• Injector Leak Test function
• User-Friendly Design
• Language Localization

Injector types tested:

• Solenoid Direct Injectors (G-Di, FSI…)
• Multi-Port Fuel Injectors (MPFi / SPFi)
• Racing Application Injectors*
• Central-Port Fuel Injectors (CSFI / CPFI)
• Throttle Body Injectors (TBI / CFI)
• Continuous Injection Injectors (K-Jetronic)
• Marines Application Injectors (E-TEC / FICHT)
• Motorcycle Application Injectors (Racing*)
• LPG & Alternative fuels Injectors

Ultrasonic baths, Racing injector testing feature, trolley and adaptor kits for side feed injectors and other adaptors available as optional extras, please enquire for more info
