Govini Mobile Battery Lifting Table GO1500B

Product Description

Govini Mobile Battery Lifting Table GO1500B

Made in Italy by Govoni

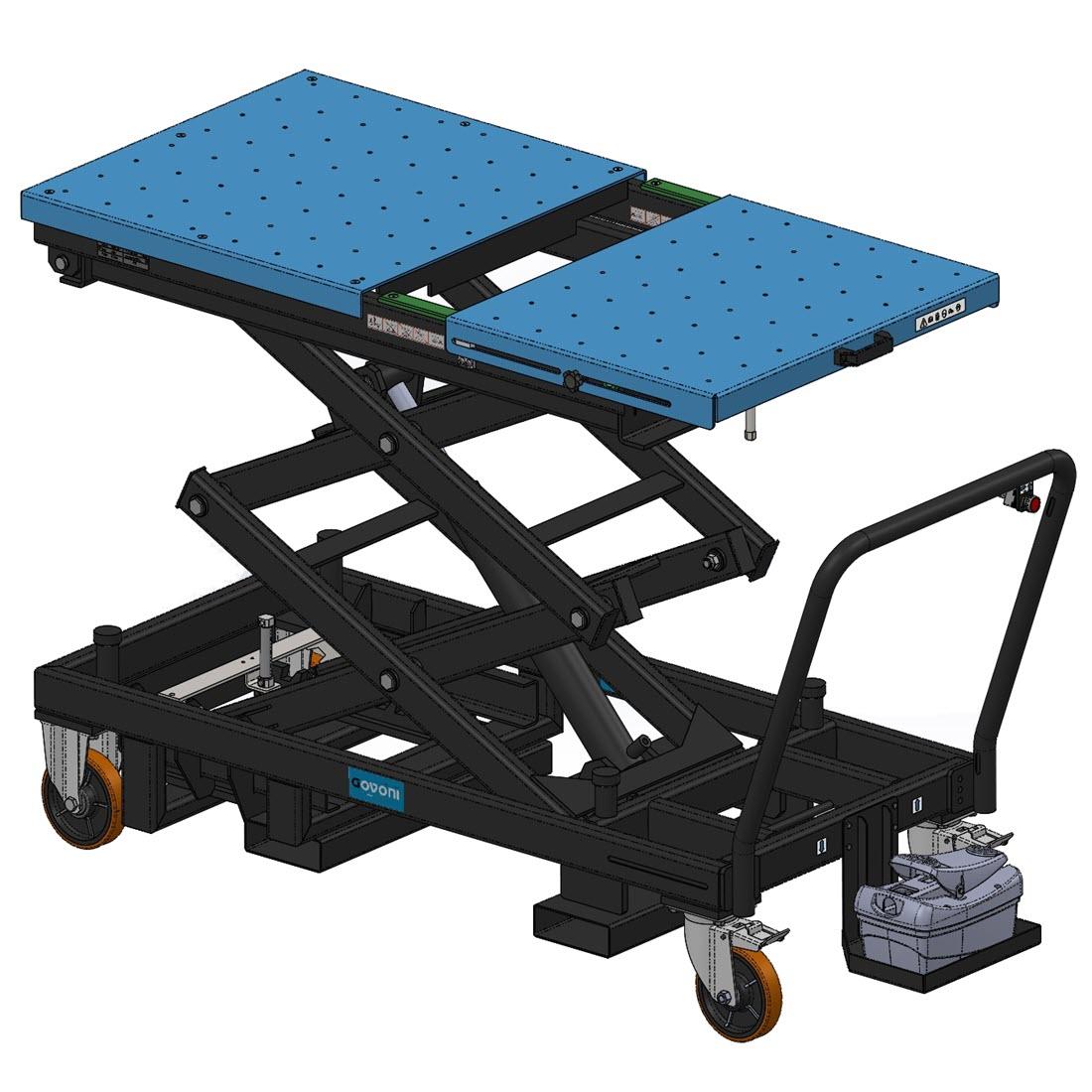

This is a universal lifting table that has fork housing with an extendable & tilting table that can hold up to 1.5 Tonne and Aside from lifting electric car batteries, this product is also perfect for lifting and moving engines, automatic gearboxes and chassis components.

Features & Benefits:

• The table is powered by compressed air.
• It allows convenient battery installation or removal, thanks to the sliding cover that can be opened.
• It’s high ground clearance makes it compatible with most workshop cranes on the market.
• It’s suitable for all types of batteries weighing up to 1500 kg and other automotive components.

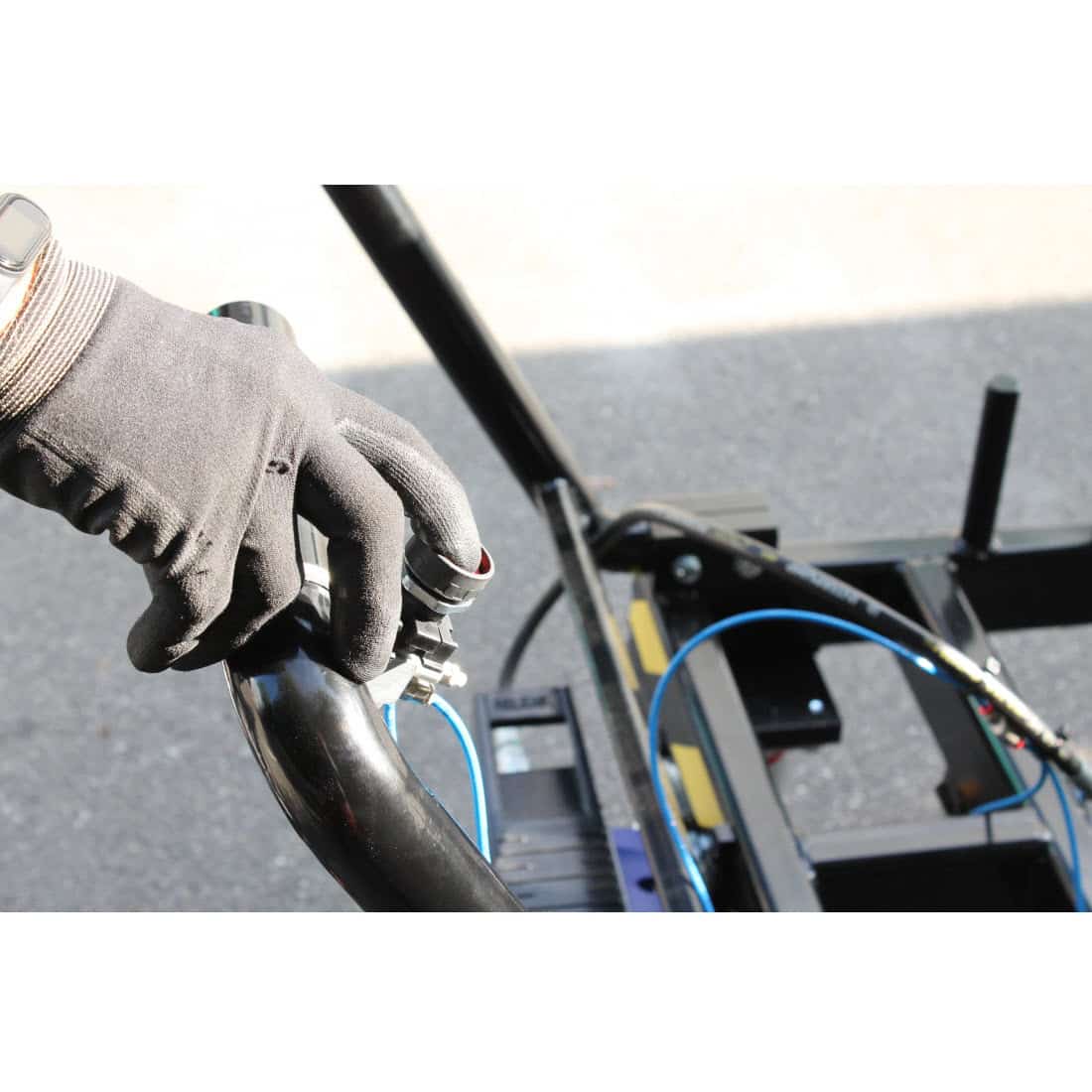

• The table only lowers when the operator presses the button.

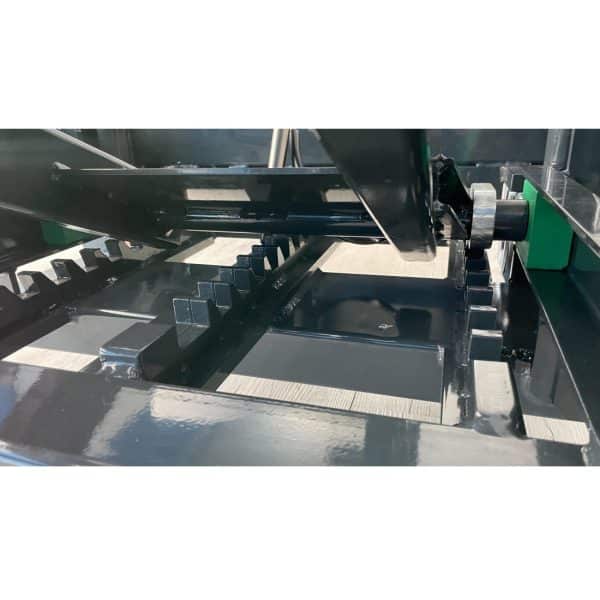

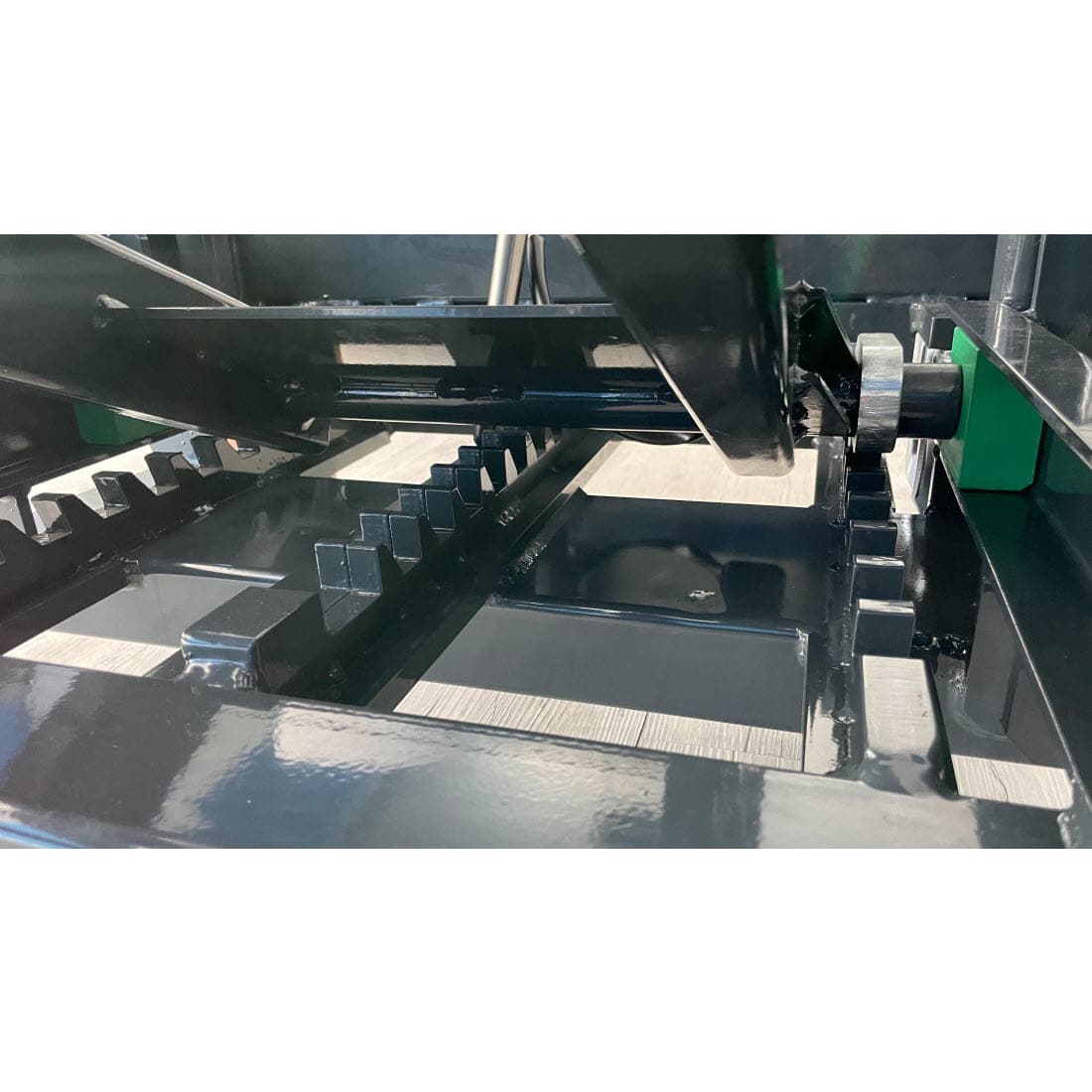

• The rack safety system is also useful for any maintenance.
• When the table is not being operated, it locks automatically by means of a mechanical anti-lowering safety wedge.

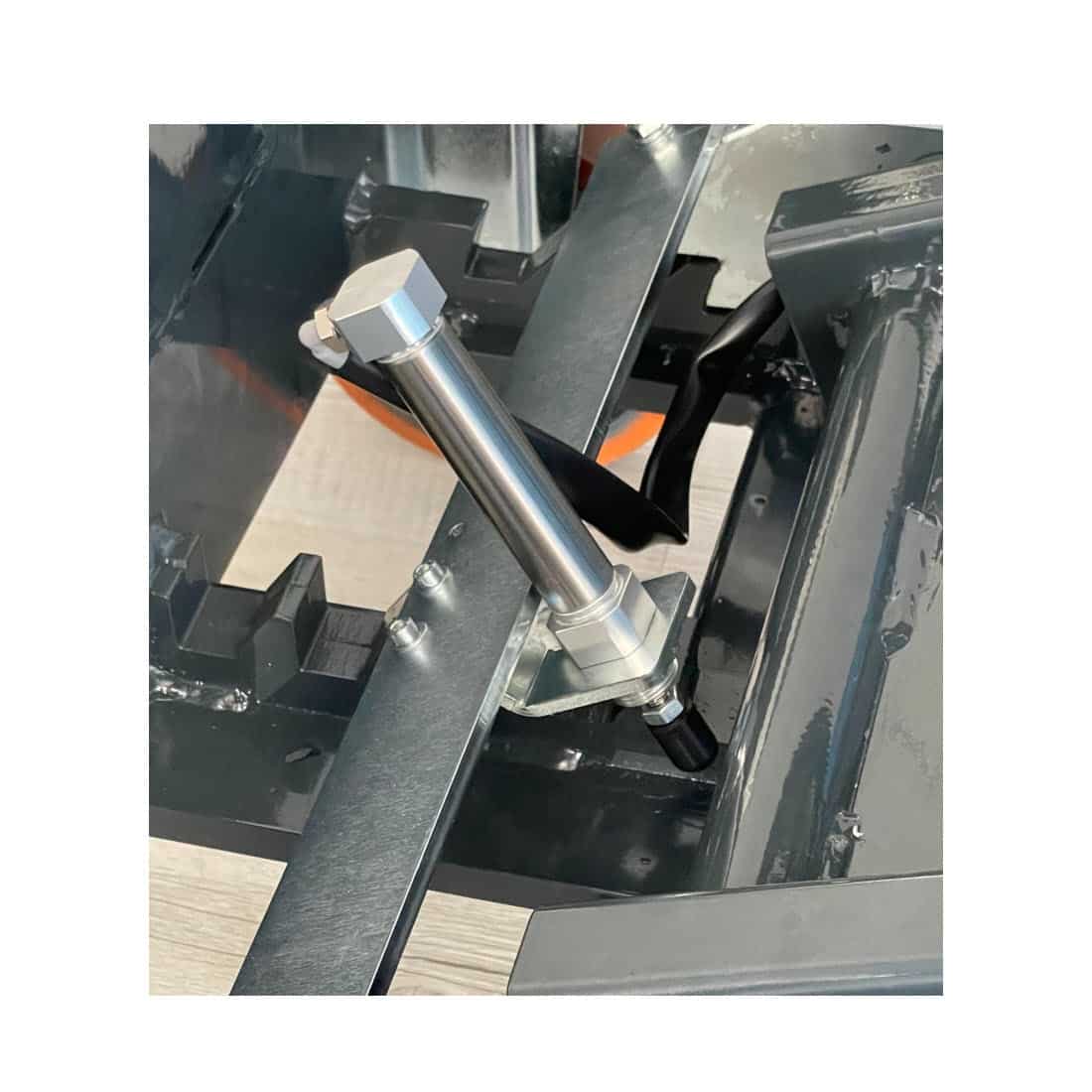

• The top table is extendable and can be tilted by means of a mechanical screw.

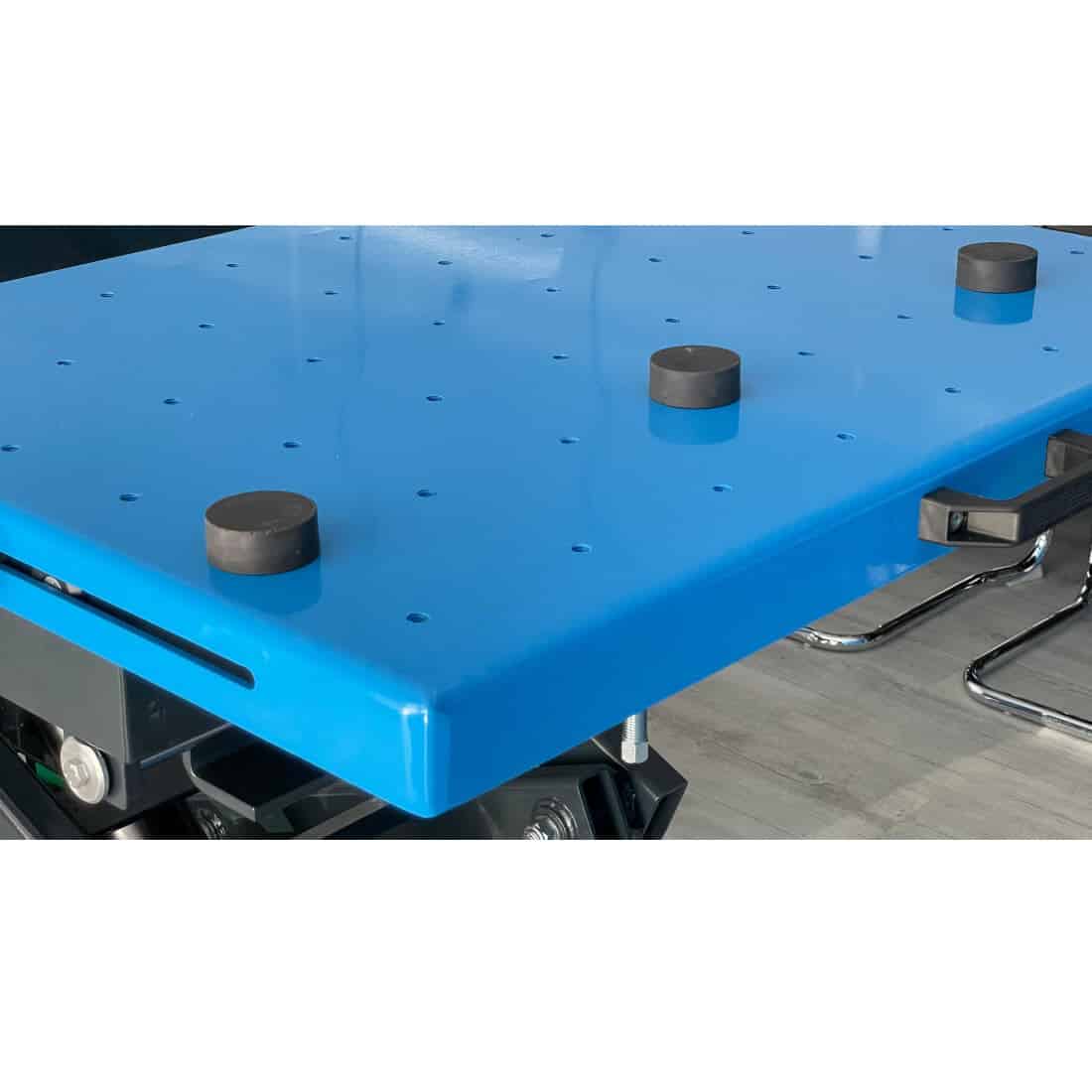

• It has holes with M12 thread on which all types of supports or accessories can be mounted such as special hooks, special brackets, plastic caps or protective mats for battery packs.

Technical Information:

• Extendable table = 200mm
• Fork housing = Yes
• Tilting table = +3°
• Max capacity =  1500Kg
• Time to lift with no load = 80s
• Time to lift with a full load = 150s
• Time to lower with no load = 70s
• Time to lower with a full load = 15s

The below document shows the differences in the 3 different models, the model we are speaking about above is GO1500B

Optional Extras

• Govoni Battery Lift Table Accessories Kit – View Here

• Rubber Support Adapter For Govoni Battery Lifting Tables – View Here
