Product Description

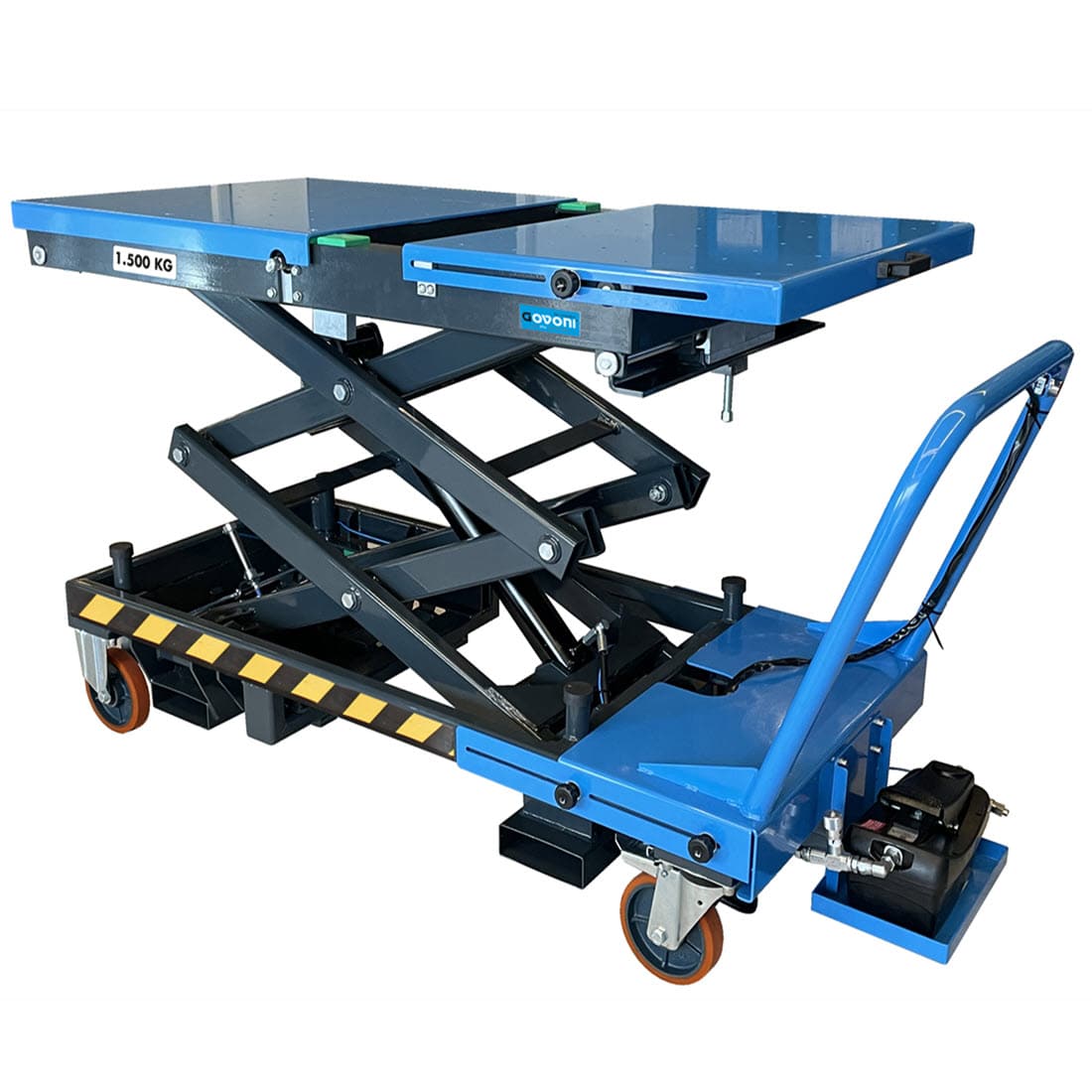

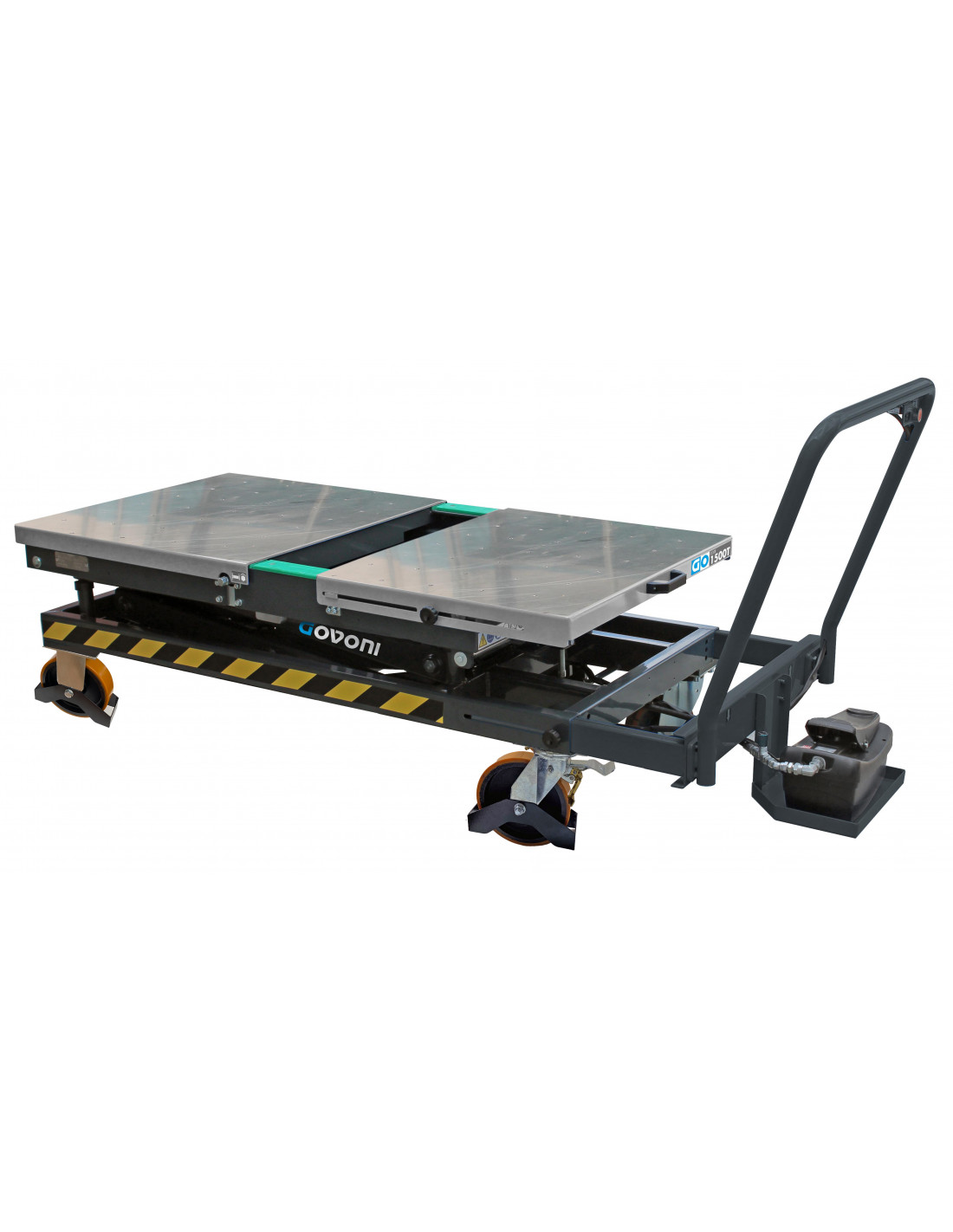

Govini Mobile Battery Lifting Table GO1500T
Made in Italy by Govoni

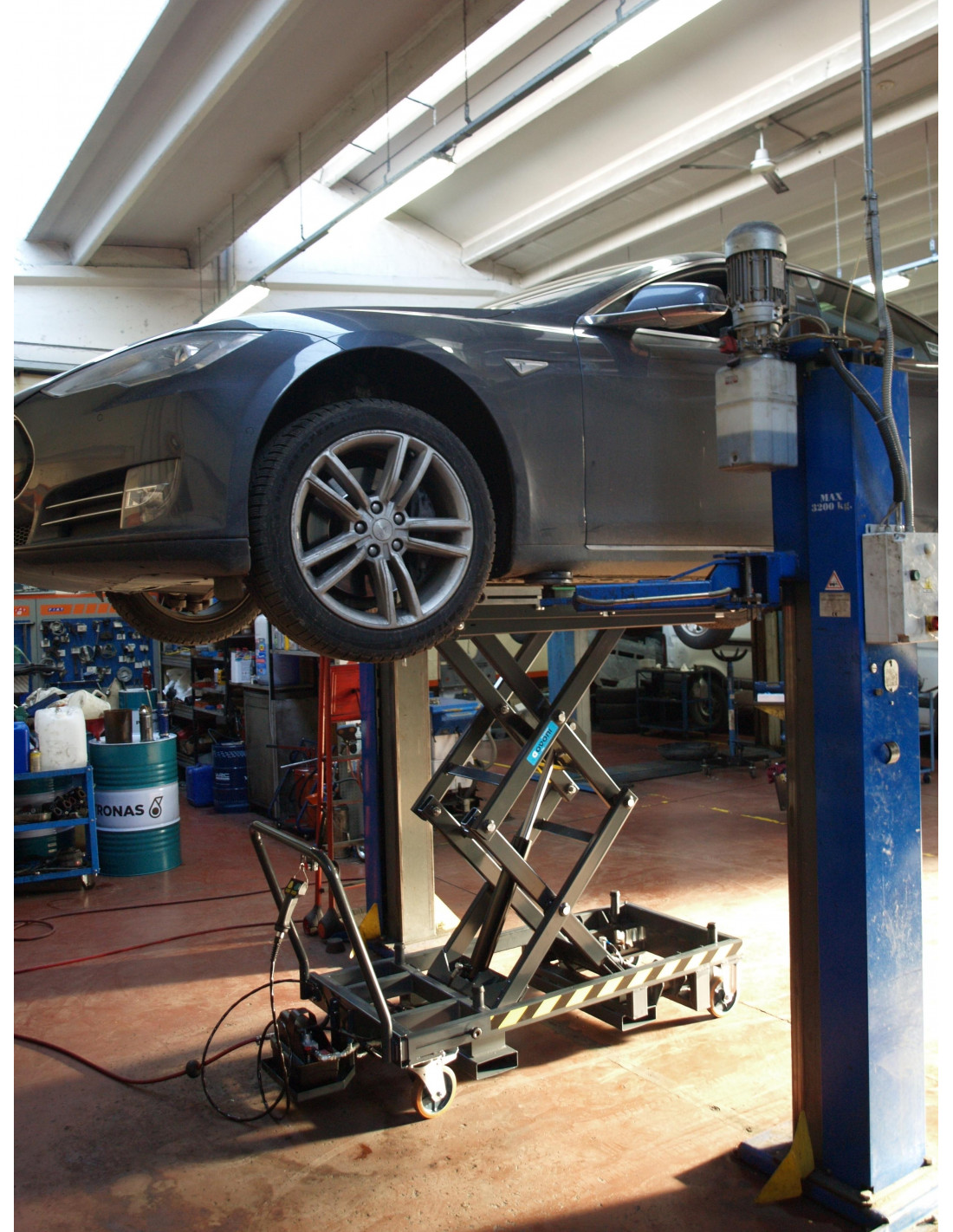

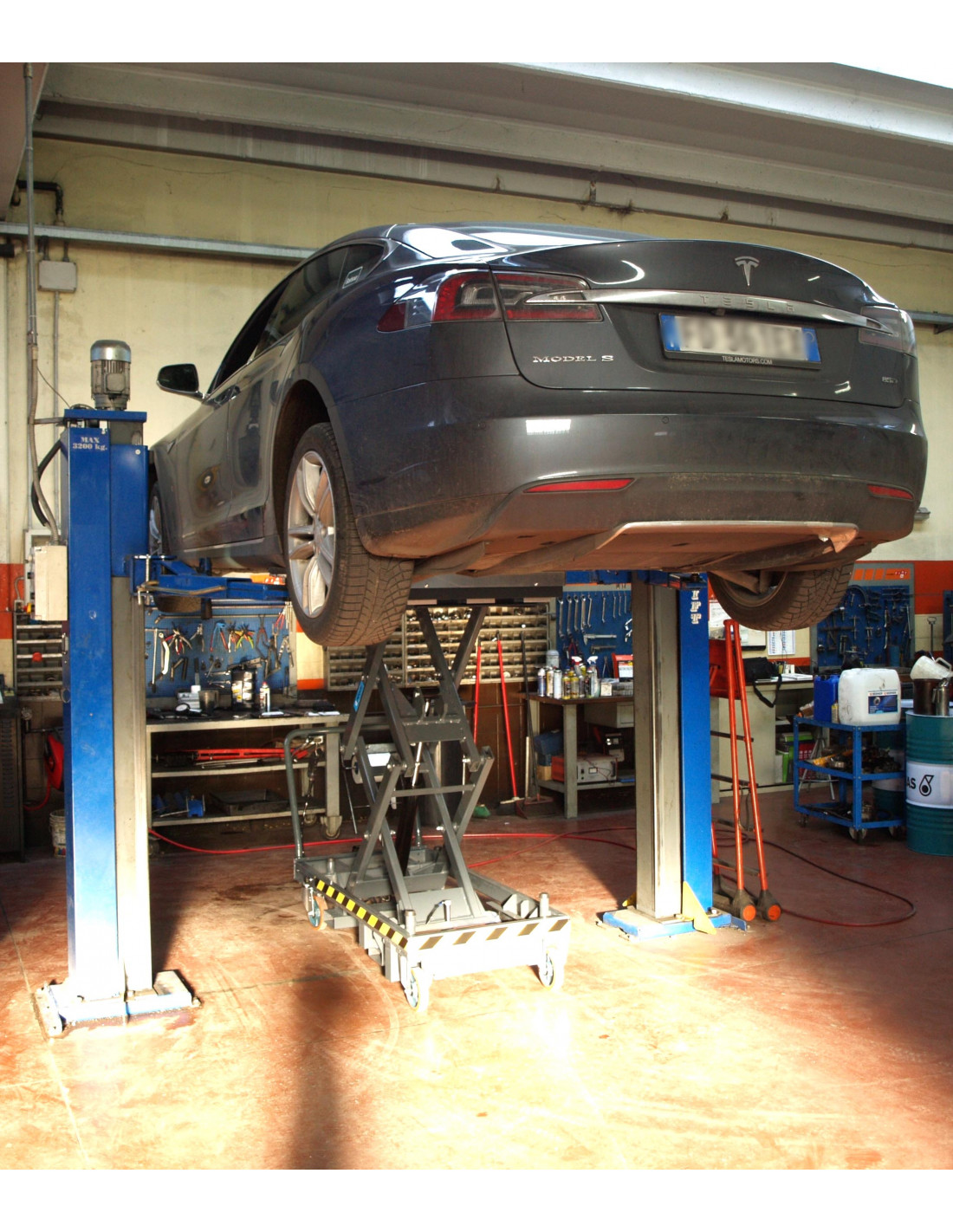

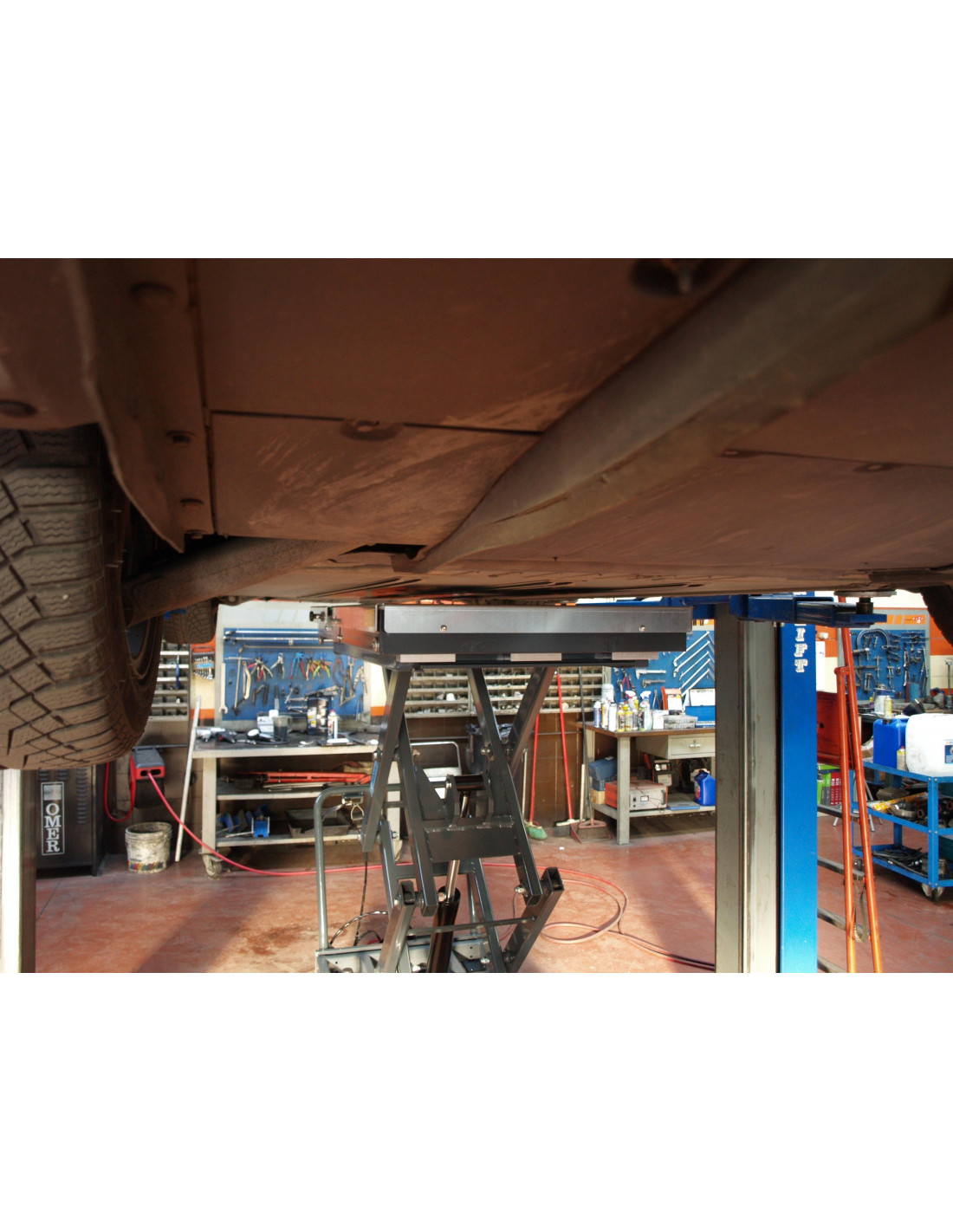

This is a universal lifting table that has fork housing with a shifting, extendable & tilting table that can hold up to 1.5 Tonne and it also comes with fork housing and an extendable handle and Aside from lifting electric car batteries, this product is also perfect for lifting and moving engines, automatic gearboxes and chassis components.
Features & Benefits:
- The table is powered by compressed air.
- It allows convenient battery installation or removal, thanks to the sliding cover that can be opened.
- It’s high ground clearance makes it compatible with most workshop cranes on the market.
- It’s suitable for all types of batteries weighing up to 1500 kg and other automotive components.

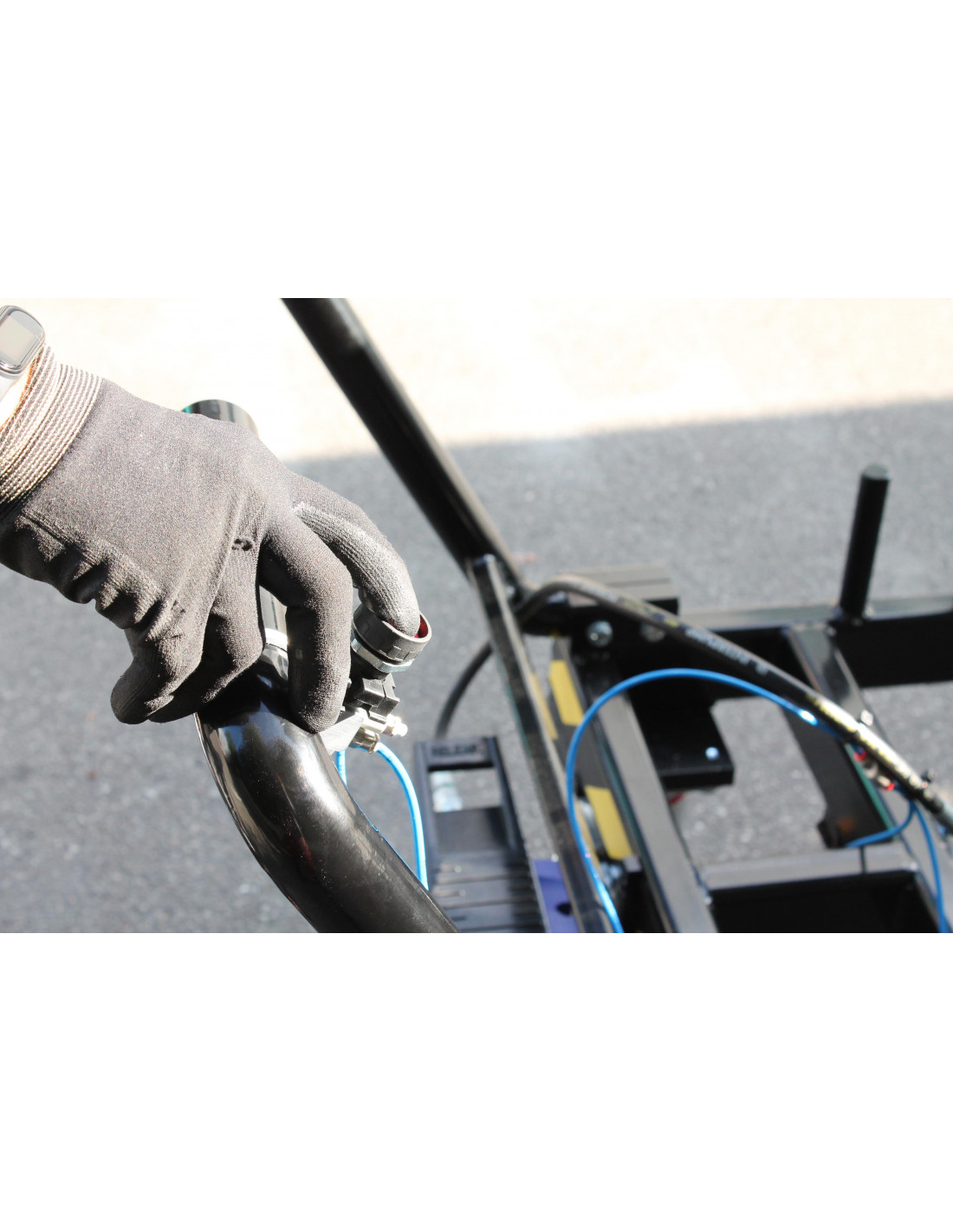

- The table only lowers when the operator presses the button.

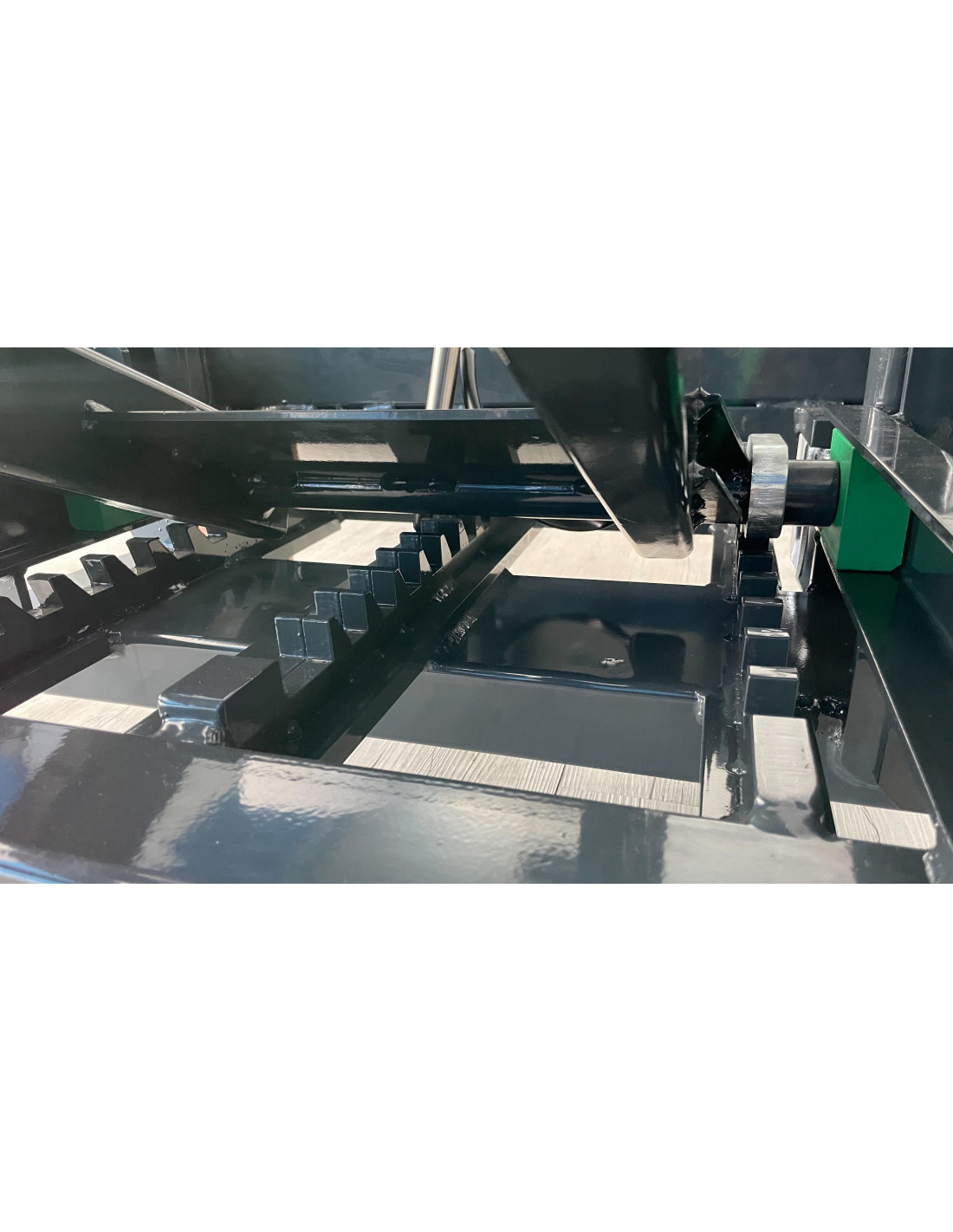

- The rack safety system is also useful for any maintenance.

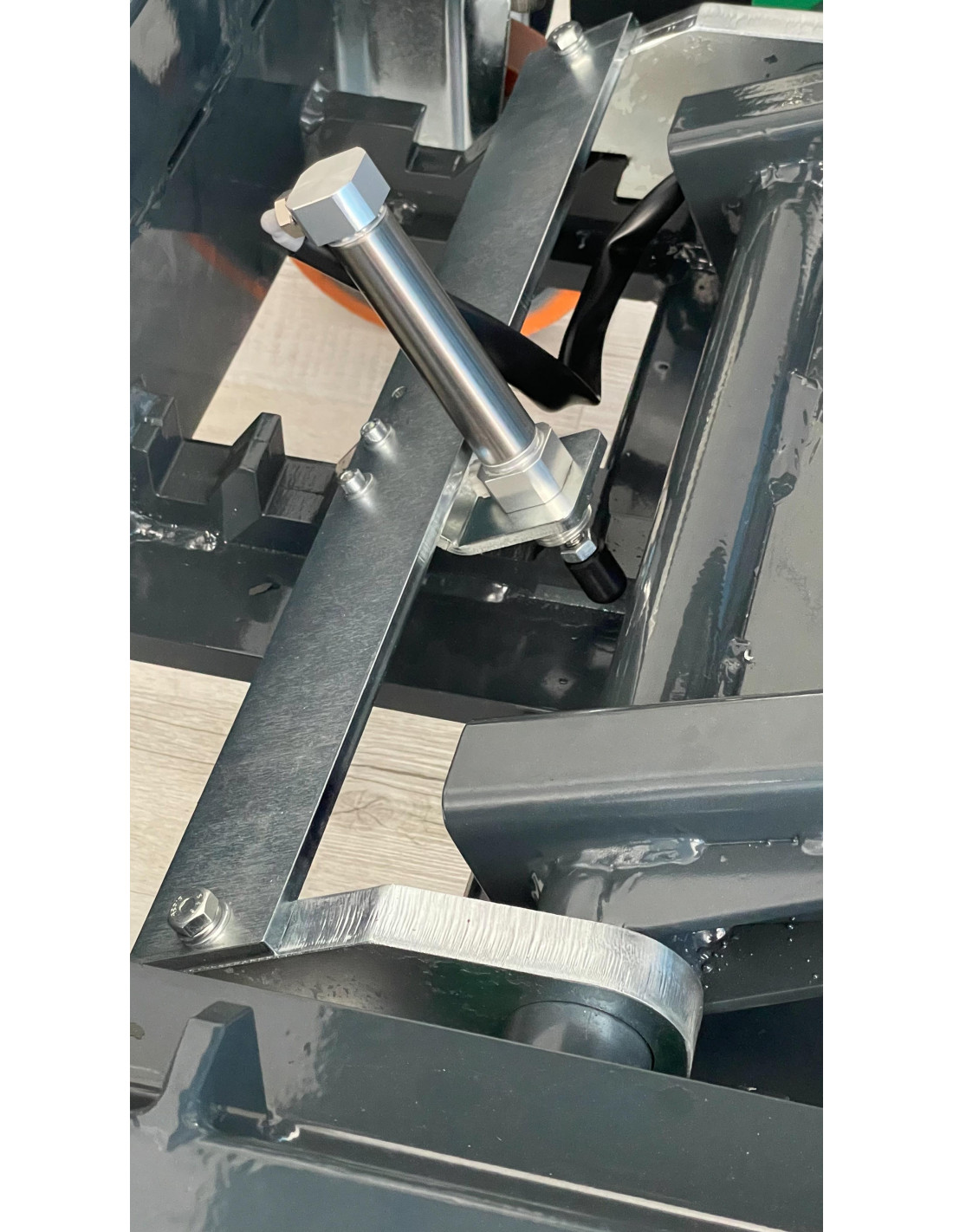

- When the table is not being operated, it locks automatically by means of a mechanical anti-lowering safety wedge.
- The table can shift, extend and tilt.
- The table also comes with fork housing to allow you to move or lift the table easily.
- The top table is extendable and can be tilted by means of a mechanical screw.

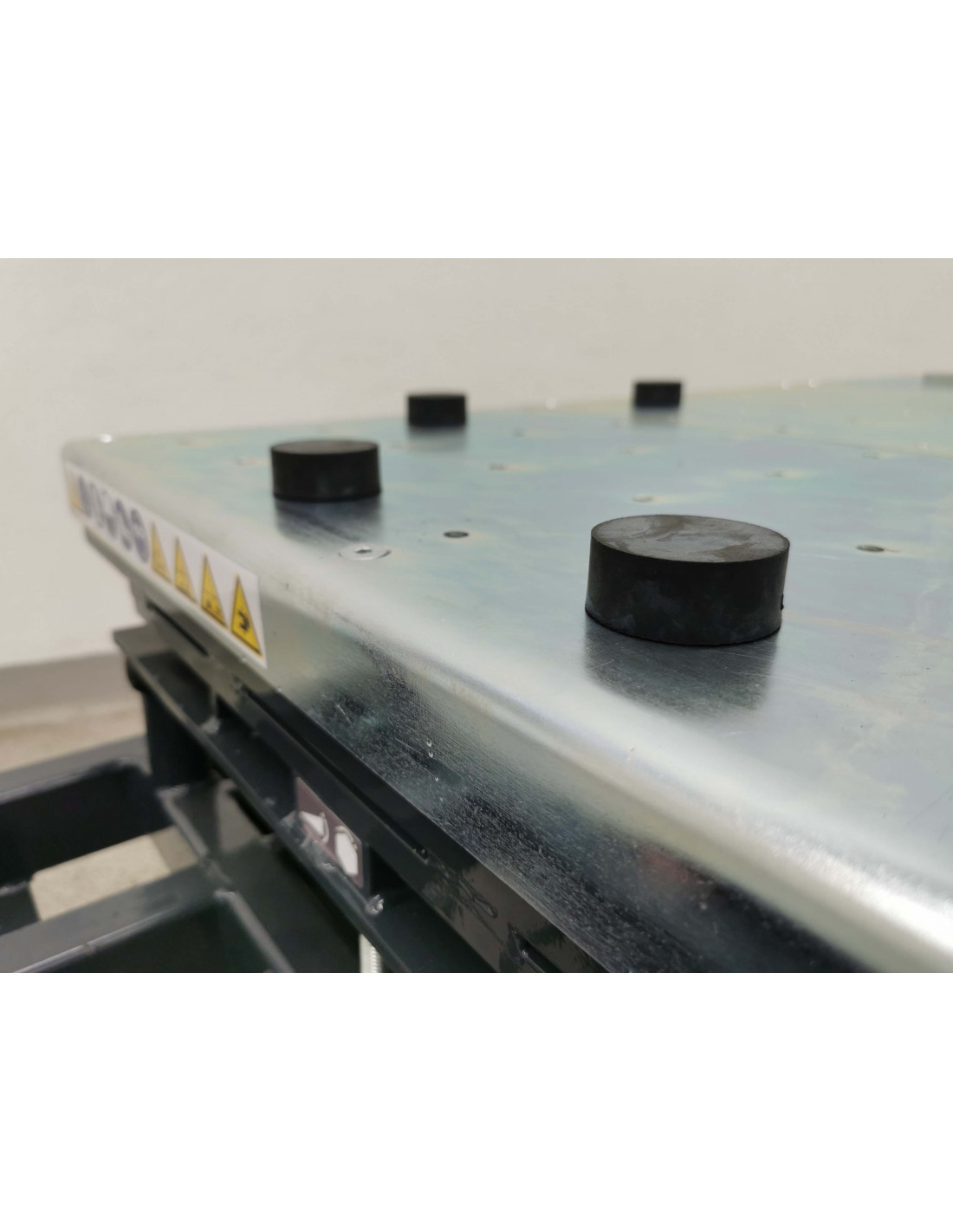

- It has holes with M12 thread on which all types of supports or accessories can be mounted such as special hooks, special brackets, plastic caps or protective mats for battery packs.
Technical Information:
- Extendable table = 200mm
- Fork housing =Yes
- Tilting table = +3°
- Shifting table = +30mm
- Extendable handle = 225mm
- Max capacity = 1500Kg
- Time to lift with no load = 80s
- Time to lift with a full load = 150s
- Time to lower with no load = 70s
- Time to lower with a full load = 15s

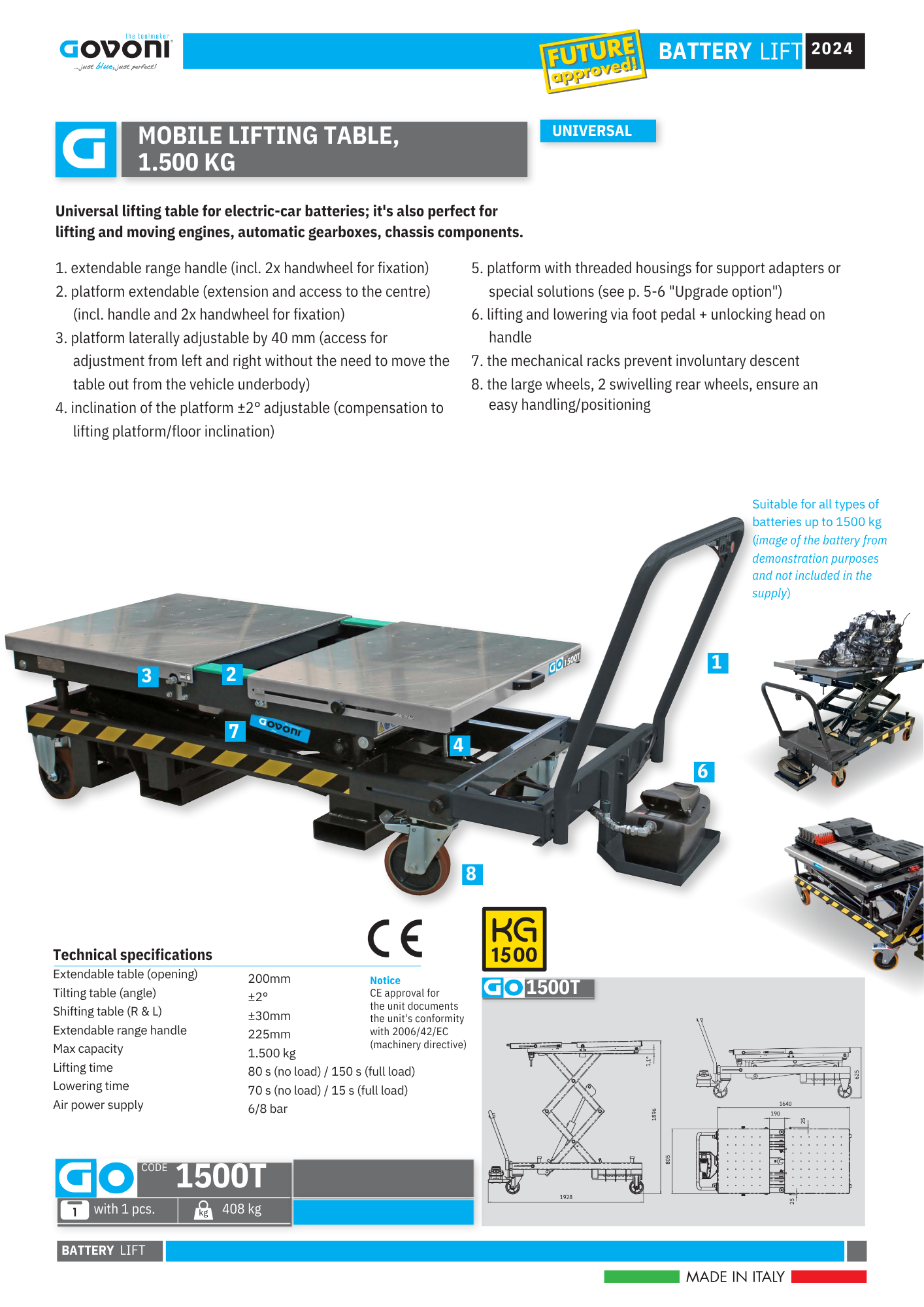

The below document shows the differences in the 3 different models, the model we are speaking about above is GO1500T
