Injector Removal Socket For Ford 2.0 Ecoblue

Product Description

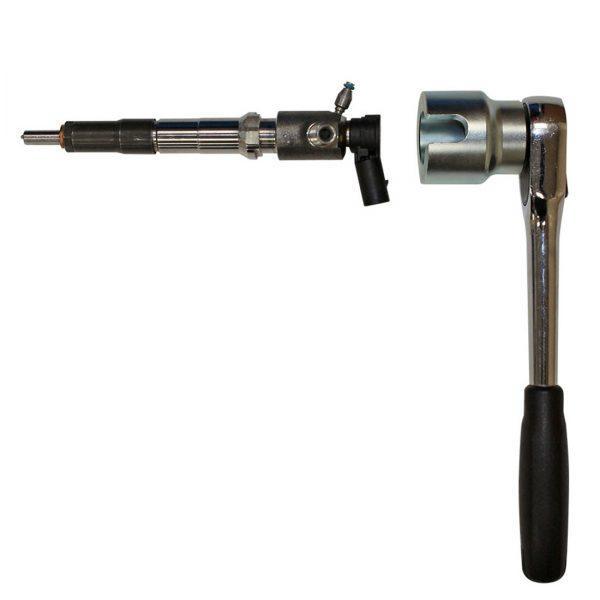

Injector Removal Socket For Ford 2.0 Ecoblue

This special socket is used to unscrew the main part of the injector from the nozzle cap (which will stay behind in the head). To do so the electrical connection must be broken off

Then when the main part of the injector has come out you then need to use parts in set GO434 to tap and pull out the nozzle cap
Click here to see GO434

Applications: Ford 2.0 ecoblue TDCI from 2016 (Ford Galaxy, S-max,Mondeo,Focus C-Max, Transit and Custom (from 2018), etc

Engine codes: YLFS 77 kW – YLF6 77 kW – YMFS 96 kW – YMF6 96 kW – YNFS 125 kW – YNF6 125 kW – YLR6 77 kW – YMR6 96 kW – YNR6 125 kW

Limitations:
The max torque limit of this tool is 250 Nm,
If the injector is tighter than this other methods may have to be used
