iSmartEV DP750 DC Adjustable Digital Power Supply for EV Vehicles

iSmartEV DP750 DC Adjustable Digital Power Supply for EV Vehicles

3,250.00 ex. VAT

Part Num: DP750 Categories: , Tags: ,

Available on back-order

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

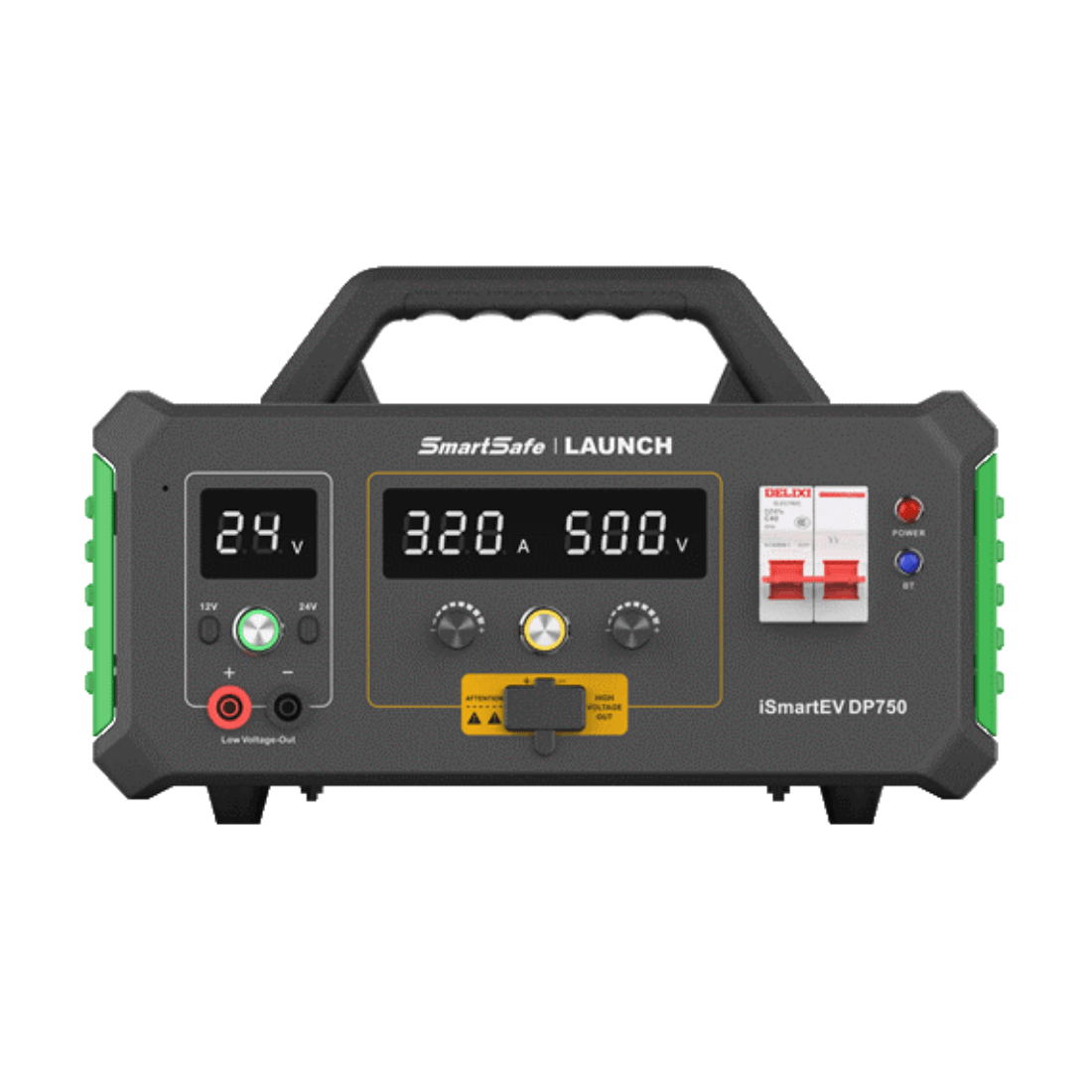

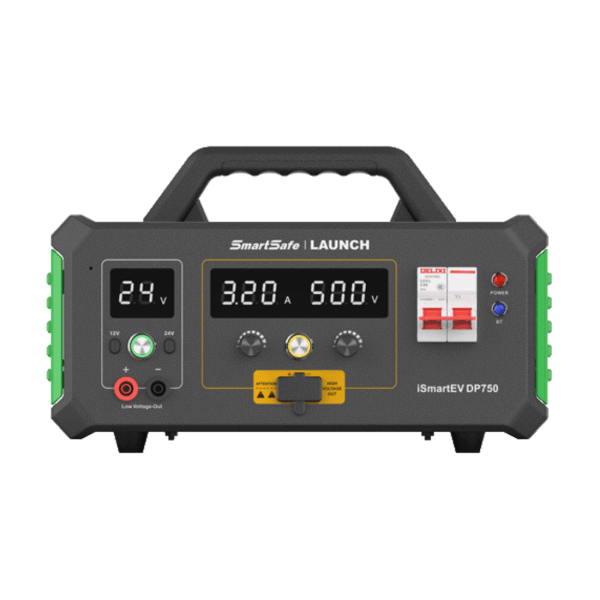

iSmartEV DP750 DC Adjustable Digital Power Supply for EV Vehicles

iSmartEV DP750, an ideal Adjustable Power Supply for EV vehicles, was designed with isolated low and high voltage modules to provide dual output, and can be remote controlled by Bluetooth (via P01 or P03 Smartsafe EV scan tools) to adjust multiple working environments. Its purpose is to creat safe, stable and intelligent power supply for different EV components.

Features:

  • Applicable to new energy & fuel vehicles –  iSmartEV DP750 is applicable to the maintenance scenarios of new energy vehicles and fuel vehicles, and can be used for off vehicle control and maintenance testing of high-voltage electrical components, such as air conditioning compressor, power steering machine, DC-DC module, electronic fan, etc.
  • High & low voltage dual module – High voltage modules and low voltage modules are independent of each other and can be managed, maintained, monitored independently. They can be protected from each other when the power output is made.
  • High voltage self inspection protection – iSmartEV DP750 has independent protection mechanism in input circuit, high voltage output circuit and low voltage output circuit. It can
    detect under voltage, over voltage, over current, short circuit and other faults and make corresponding protection measures.
  • Bluetooth wireless connection – It can be controlled and monitored through iSmartEV P01  and iSmartEV P03 via Bluetooth;

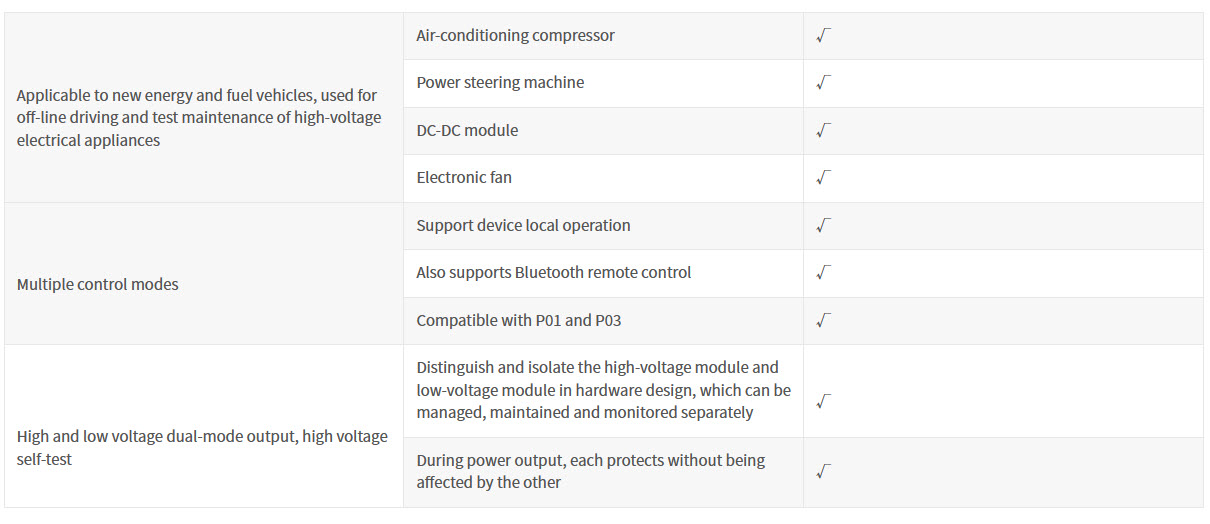

Functions:

What can be solved in your shop
It can be used to power up the below high voltage components directly or any other components operating on similar voltages

Technical Information:

  • Power Input – AC100-240V@16A
  • Maximum Power – 3200W Max
  • Communication – BT(BLE4.2)
  • Display Mode – LED Digital Tube
  • Low Voltage Output – 12/24V
  • High Voltage Output – 250~750V
  • Front Panel(High Voltage) – Voltage SWK, Current SWK, Switch Button
  • Front Panel(Low Voltage) – 12V Button, 24V Button, Switch Button
  • High Voltage(Voltage) – 250~750V
  • High Voltage(Current) – 0-5A
  • Low Voltage(Voltage) – 12/24V
  • Low Voltage(Current) – 1A
  • Protection – Short Circuit, Current-Limiting, OverVoltage, UnderVoltage, Over Temp
  • Working temperature – -10~65℃
  • Size – 315mm×192mm×186mm
  • Weight – 4.85kg

Product Specifications

Weight 6 kg
Dimensions 49 × 40 × 30 cm

User Manual

Flyer
