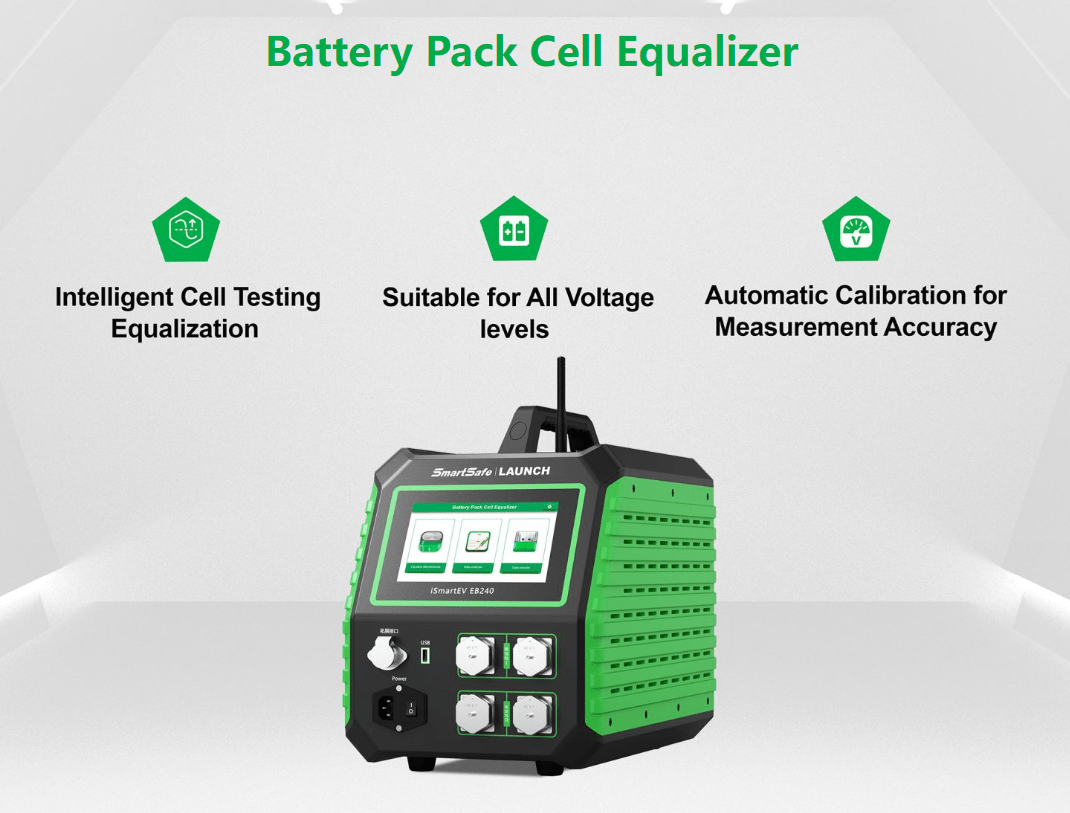

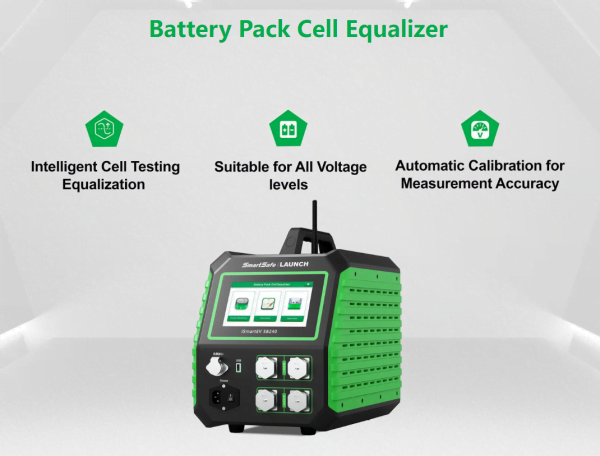

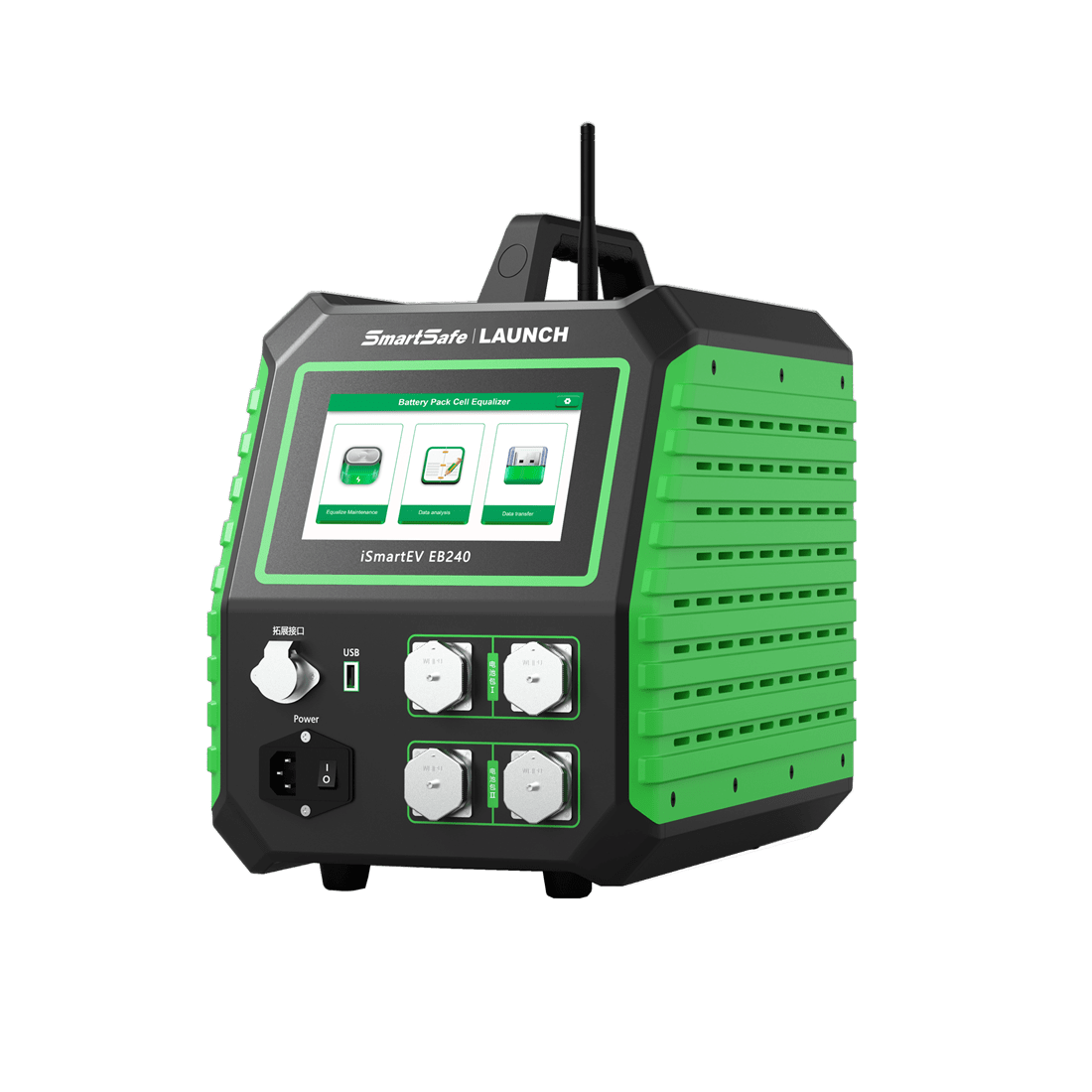

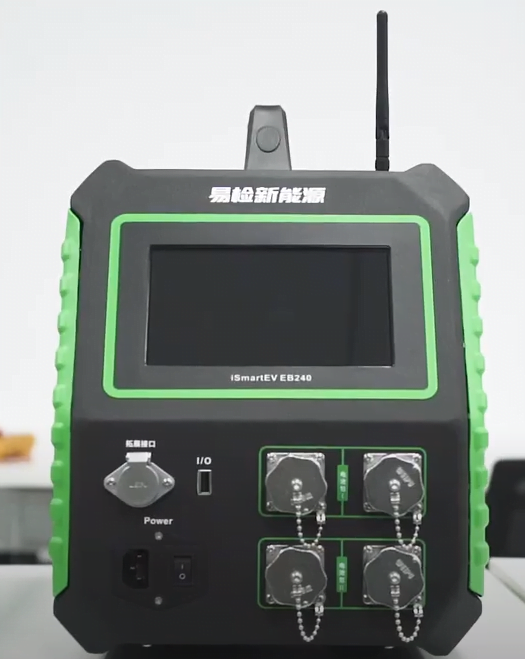

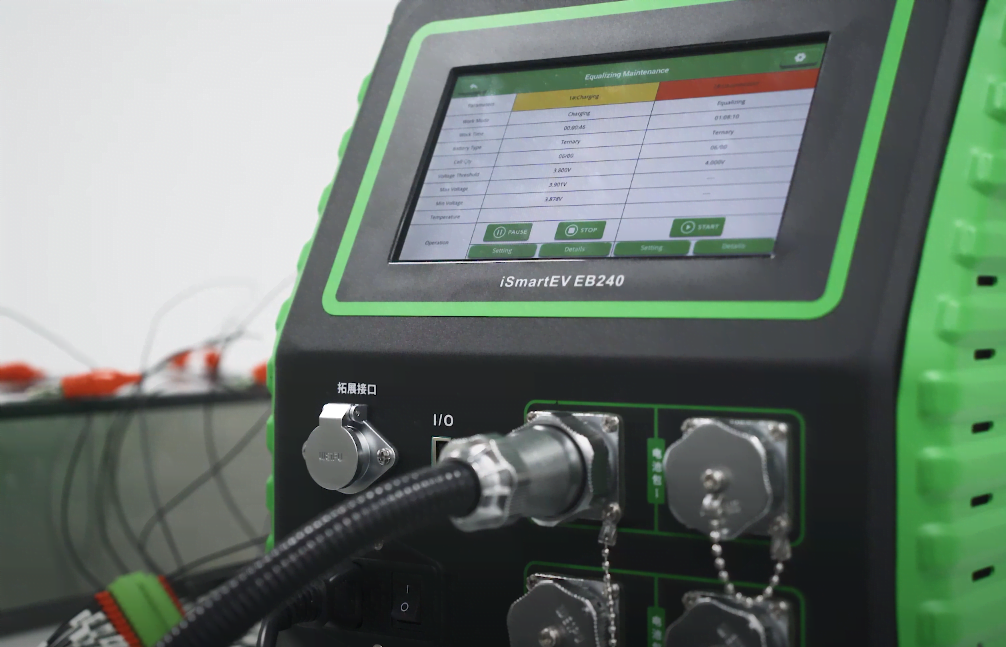

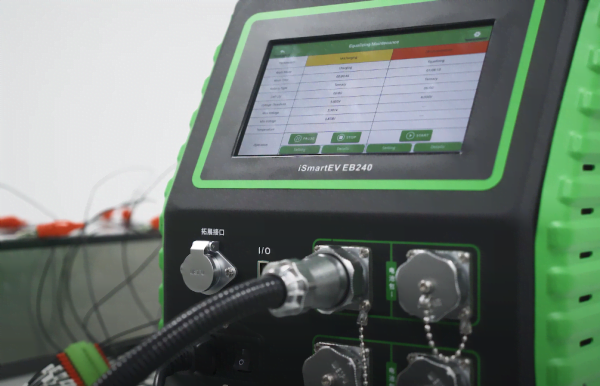

iSmartEV EB240 Battery Pack Cell Equalizer

The iSmartEV EB240 is an intelligent and efficient battery pack equalization device for quickly solving the problems of inconsistent voltage of lithium battery packs.

This battery pack cell equalizer or balancer allows you to charge, discharge and balance cells in a battery module

Use examples:

  • Equalizer/balance cells in a module,
  • Charge, discharge and balance cells in modules to recover capacity
  • Test modules cells by charging and discharging and monitoring
  • Manage batteries modules held in stock for a long time to keep them balanced

Features:

  • Charge And Discharge Equalization: Independent channel design, which can detect the module cells and charge or discharge evenly. When charging or discharging it ensures that each cell in the module is not overcharged or over-discharged.

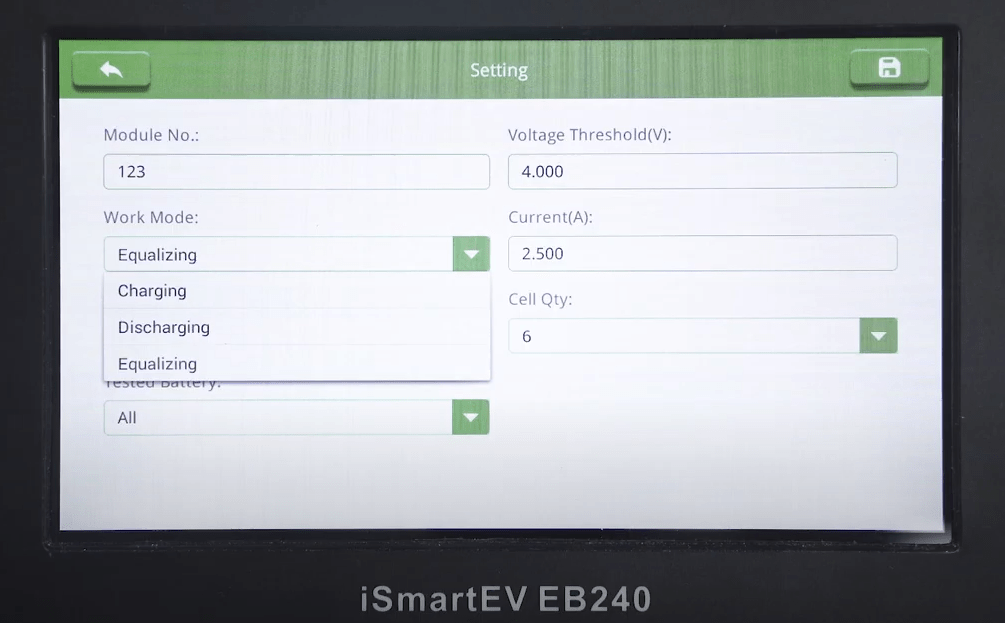

  • Equilibrium Maintenance Preset: Equilibrium maintenance parameters can be set as needed, to quickly carry out equilibrium maintenance according to the preset parameters.
  • Voltage Clamp: It has the mechanism of reducing working current to achieve the goal, and makes the voltage of cells in the battery pack infinitely close to the target threshold during the test.
  • Multiple Protection: Detect voltage and cell temperature, and provide various test shutdown thresholds to avoid overcharge and over discharge of cells.

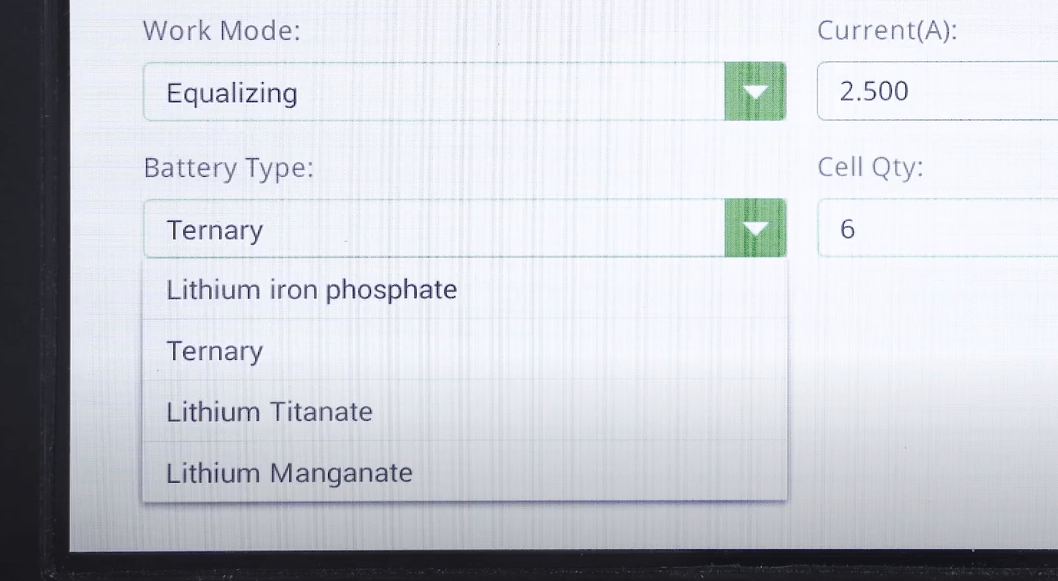

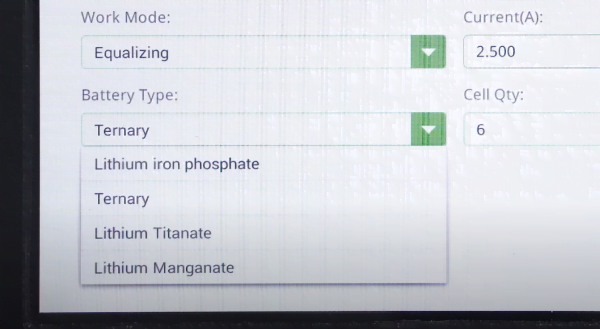

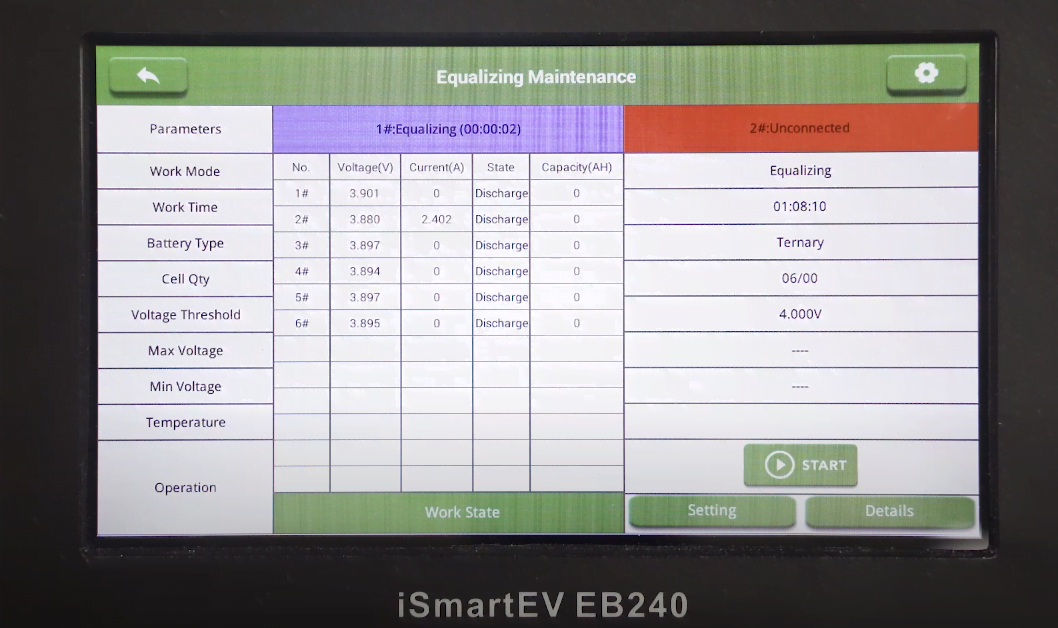

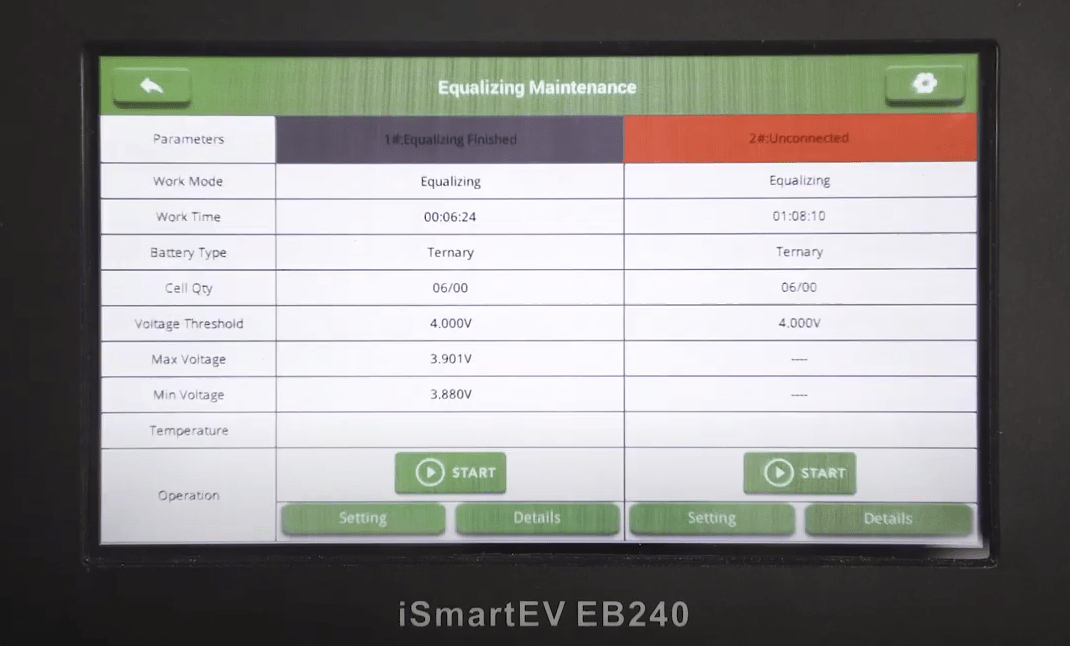

  • 7-inch Display Screen: Large LCD screen, fast display of all real-time data and icons, support touch operation, user-friendly input mode and menu design simplify the operation process.

Technical Information:

  • Power input: Single-phase AC90-264V
  • Rating range: 40~60Hz
  • Charge and discharge voltage range: 1.8~4.2V
  • Voltage detection accuracy: ±0.1%FS±2mV (maximum range 5V)
  • Charge and discharge current range: 0.1~5A MAX
  • Current detection accuracy: ±1% FS土0.05A (maximum range 5A)
  • Battery temperature detection accuracy: ±2℃ (-25℃~85℃)
  • Number of channels: 2×12 (24 in total)
  • Charge and discharge power: Max 600W

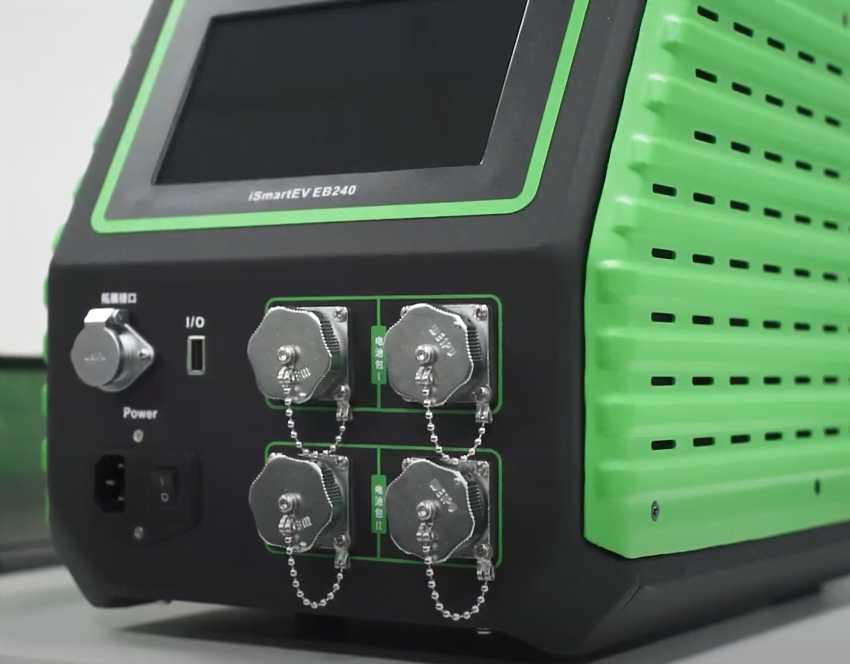

  • Battery interface: 16Pin, 24Pin
  • Display: 7-inch TFT LCD screen, resolution 800×480
  • PC data communication: TCP/IP, USB-Device
  • Wireless communication: WiFi and BT (external WiFi antenna)
  • Charge control: Constant current charging + constant voltage charging
  • Dischargemode: Constant current discharging + constant voltage discharging
  • Protection function: Input over-current protection, over-voltage protection, output over-current protection,over-temperature protection

Product Specifications

Weight 20 kg
Dimensions 55 × 35 × 48 cm

The below video shows use examples of the EB240 but also other Smartsafe EV equipment

User Manual

    If you want to ask a pre-sale question about this product, please feel free to use the form below.

    Your First Name (required)

    Your Phone (required)

    Your Last Name (required)

    Your Email (required)

    Your Question

    General
    We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
    As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
    We are also in a great position to support these products as we use them in our own workshop,
    Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
    All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland

    Warranty
    The Smartsafe EB240 comes with 1 year warranty
    And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs.
    We aim to keep the customer up and running and will either have the issue fixed or a loaner unit (subject to availability) delivered to the customer within 72 hours (Monday to Friday)
    The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.

    Items excluded from the 1 year warranty are
    Leads and cables and connectors
    Machine calibrations (if knocked out of calibration due to mishandling)
    Damage to any of the components caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.

    Conditions to keep warranty valid
    All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.

    Delivery and Training
    Ryan’s Automotive or a courier will deliver the unit to you workshop and Install/set up the unit and once set up will provide 4 hours onsite training (or online if customers is not based in Ireland) on use of the machine.

    Support and extra training
    Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.

    Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
    Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
    For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
    1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
    completion
    2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
    transportation fees)
    3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
    4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
    operation
    5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
    warranty repairs and subject to availability)
