iSmartEV EC100 Current Clamp for Electric Vehicles

iSmartEV EC100 Current Clamp for Electric Vehicles

340.28 ex. VAT

2 in stock (can be backordered)

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

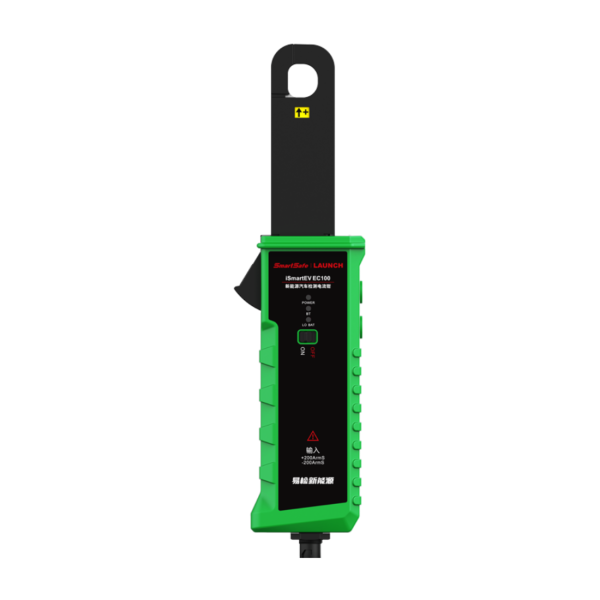

iSmartEV EC100 Current Clamp for Electric Vehicles

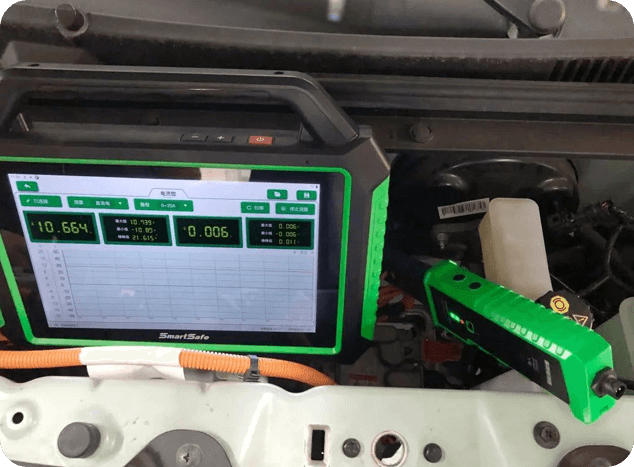

SmartEV EC100 is a current clamp developed by SmartSafe for the detection of electric vehicles. It needs to be used with iSmartEVP01 (optional),  iSmartLink D01  (optional) or the iSmartEVP03 (standard), and other detection equipment for data display side use. The current clamp has small volume, high accuracy and stable performance, and supports AC / DC current test and DC voltage test.

Features:

  • Simple and safe –  Non-contact DC testing; can detect when power is on.
  • Compact and portable – Ergonomic design, portable, and easy to use.
  • Fast and accurate – Ultra-high sampling frequency combined with a noise reduction algorithm enables rapid and accurate measurement.
  • Data stability – Immune to EMI and provides stable and reliable measurement data.
  • DC voltage / current testing
    • Supports current and voltage dual-mode display
    • Supports measurement range selection
    • Supports real-time test value digital display
    • Supports maximum, minimum, and peak-to-peak value display
    • Support measurement waveform storage and playback
  • AC testing
    • Supports measurement range selection
      Supports real-time test value digital display
      Supports maximum, minimum, and peak-to-peak value display
      Support measurement waveform storage and playback

Technical Information:

  • Test functions – DC test, DC voltage test, and AC test
  • Battery – 9V dry battery
  • Current test methods – Clamp CT, non-contact measurement
  • Jaw dimension – φ16 mm×18 mm
  • Input measuring range – 0~200A AC/DC
  • Resolution – 1 mAAC/DC
  • Output gear – 10mV/A (0~20 A), 100 mV/A(0~200 A)
  • Accuracy – ±3%FS (23℃±5℃, below 75%rh)
  • Phase error – ≤3°(AC50Hz / 60Hz, 23℃±2℃)
  • Zero-setting – Adjustthe ZERO key for zero setting
  • Frequency response – DC~ 50kHz
  • Working current – 500mA
  • Working temperature – 0~50℃
  • Dimension – 278×71×37 mm

Product Specifications

Weight 1.5 kg
Dimensions 43 × 35 × 18 cm
