iSmartEV ET30 Battery Pack Airtightness Detector

iSmartEV ET30 Battery Pack Airtightness Detector

Price from €3750 + vat

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

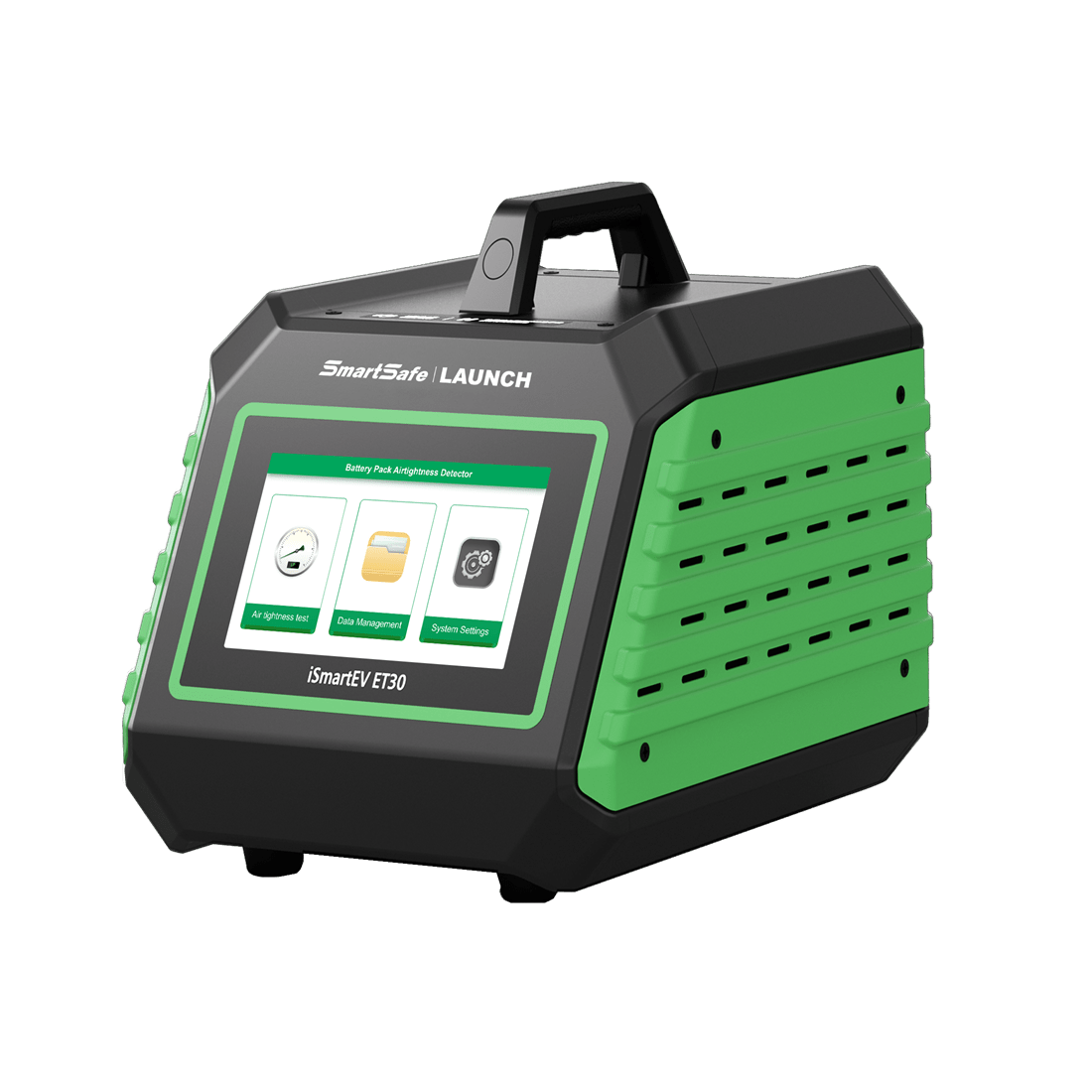

iSmartEV ET30 Battery Pack Airtightness Detector

A high precision non destructive testing device for checking sealing of EV batteries,
it uses compressed air as medium to a exact certain pressure on the inner cavity of the battery to be tested and then uses high sensitivity sensors to detect change of pressure so as to determine the sealing performance of the product to be tested.

Features:

  • High Sensitivity: High sensitivity pressure sensing, greatly improve the test accuracy and stability
  • Process Visualization: The progress time of each stage in the testing process can be displayed
  • Double Display of Pressure Value: Real-time display on pressure dial and process pressure curve display
  • Parameter Management: The test parameters of standard parts can be pre-set, and it is convenient and quick to call and use directly
  • Parameter Setting: Parameters such as workpiece number, volume, pressure, time of each stage and leakage limit can be pre-set
  • Intelligent Alarm: When the test is abnormal or fails, it will give an audible and visual alarm, which is safe and worry-free

Technical Information:

  • Electrical requirements: AC220V
  • Test Pressure Range: 0~30Kpa
  • Sensor Resolution: 1Pa
  • Test accuracy: ±5pa
  • Communication interface: RS-232 / USB
  • Power: 20W(MAX)
  • Air Source Requirements: 0.1~1.0 Mpa Dry Compressed air
  • Air Inlet Interface/Test Interface: φ6 mm air pipe
  • Working Temperature: -10°~55°C
  • Working Humidity: 10%~90%

Product Specifications

Weight 10 kg
Dimensions 44 × 35 × 36 cm

The below video shows use examples of the ET30 but also other Smartsafe EV equipment

User Manual

    If you want to ask a pre-sale question about this product, please feel free to use the form below.

    Your First Name (required)

    Your Phone (required)

    Your Last Name (required)

    Your Email (required)

    Your Question

    General
    We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
    As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
    We are also in a great position to support these products as we use them in our own workshop,
    Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
    All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland

    Warranty
    The Smartsafe ET30 comes with 1 year warranty
    And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs.
    We aim to keep the customer up and running and will either have the issue fixed or a loaner unit (subject to availability) delivered to the customer within 72 hours (Monday to Friday)
    The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.

    Items excluded from the 1 year warranty are
    Leads and cables and connectors
    Machine calibrations (if knocked out of calibration due to mishandling)
    Damage to any of the components caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.

    Conditions to keep warranty valid
    All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.

    Delivery and Training
    Ryan’s Automotive or a courier will deliver the unit to you workshop and Install/set up the unit and once set up will provide 1 hours onsite training (or online if customers is not based in Ireland) on use of the machine.

    Support and extra training
    Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.

    Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
    Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
    For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
    1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
    completion
    2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
    transportation fees)
    3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
    4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
    operation
    5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
    warranty repairs and subject to availability)
