Product Description

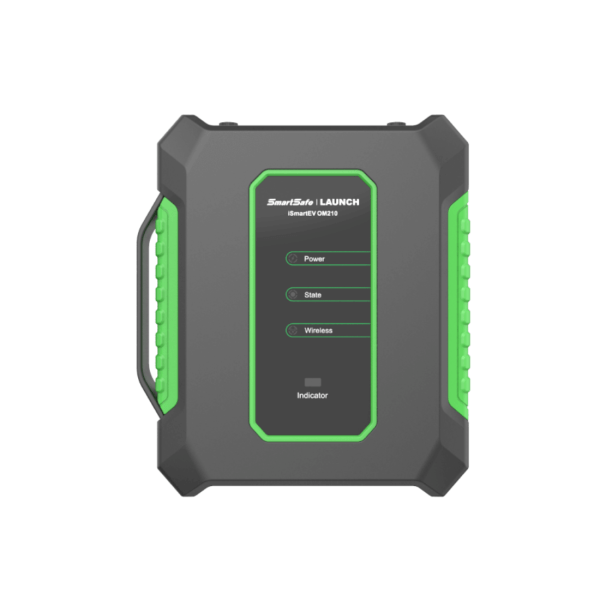

iSmartEV OM210 Oscilloscope Multimeter for Electric Vehicles
Note cant be used stand alone, can only be used with the iSmartEV P01 or the iSmartLink D01
iSmartEV OM210 is newly launched by SmartSafe. It is an oscilloscope with multimeter, which has the functions of both oscilloscope and multimeter. It is suitable for current, voltage and resistance measurement of electric vehicles. Used with iSmartEV P01 or the iSmartLink D01 it supports both wireless and wired communication methods, and is easy to operate. It is the first choice for car repair shop personnel!
The oscilloscope is mainly used to measure voltage and current signals (when used with optional current clamp) and analyse the form of electronic signals. The multimeter mainly measures voltage, current (when used with optional current clamp) and resistance. It can judge whether the part is good or not and whether the circuit is complete by simple measurement.
Features:
- Multi-purpose device – Integrates multimeter and 2 channel oscilloscope functions
- Waveform playback – Save and playback waveform locally
- Automatic measurement – Supports manual, tracking, and automatic cursor measurement functions.
- Multiple communication modes – Supports wired and wireless communication modes, and can be used with iSmartEV P01.
- Oscilloscope – Dual channel oscilloscope, Vehicle testing, Waveform recording and playback
- Multimeter – Voltage measurement: DC and AC voltage measurement, Current measurement: DC and AC measurement (when used with optional current clamp) Resistance measurement, Diode measurement, Continuity measurement
Technical Information:
- Battery – 3100 mAh/3.8V
- Dimensions – 160 x 195x 42mm
Oscilloscope:
- No.of channels – 2
- Bandwidt – 10 MHz
- Maximum real time sampling rate – 100 Mbps
- Time base range – 1us/div~10s/div, step by 1~2~5 times
- Sampling methods – Common, peak value detection, average
- Input coupling – DC,AC and earth
- Input impedance – 1MΩ±2%, parallel with 15pF±5pF
- Input capacitance – 20 pF Max
- Automatic measurement – Peak-peak,value, average.
Multimeter:
- DC voltage – ±600V
- AC voltage – ±600V
- DC – ±10 A
- AC – ±10 A
- Resistance – 0~6MΩ
- Diode – 0~2.0 V
- Continuity – Buzz when less than 50Ω
