Product Description

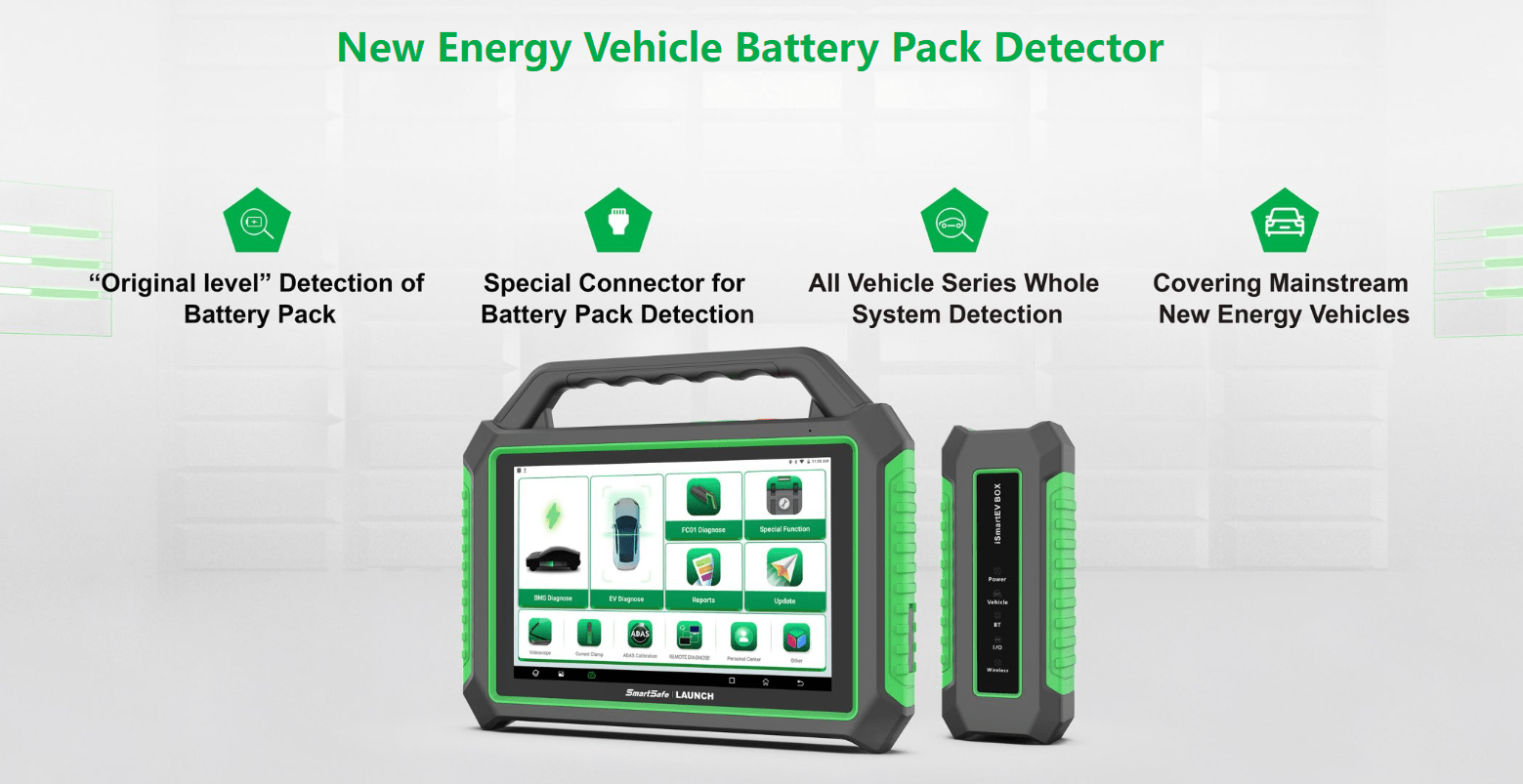

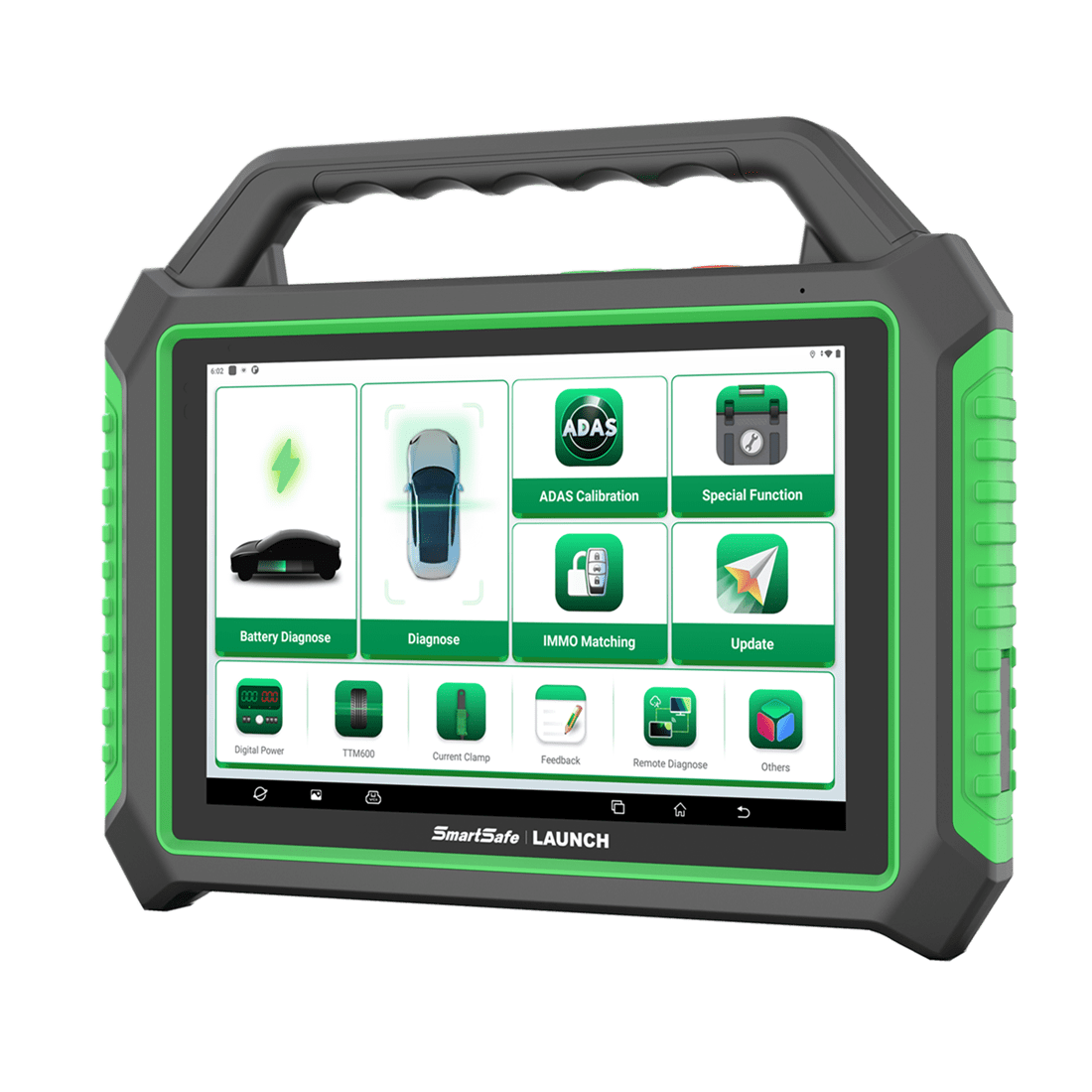

iSmartEV P01 Hybrid & EV Diagnostic Tool & Battery Pack Tester With 3 Years Updates
The Smartsafe P01 is a full diagnostic tool and battery pack diagnostic tool for new energy vehicles like Hybrid, PHEV, EV etc
Note this tool can also be upgraded at any time to include coverage for diesel and gasoline vehicles for only €650 euro + vat (including 1 years updates for diesel and gasoline)
TOOL DESCRIPTION
The iSmartEV P01 new generation of intelligent diagnostic tools. Equipped with Octa-core processors and a 10.1″ HD touch screen, this tool allows you to diagnose fault codes and trouble codes with one click. Its 12000mAh battery can work all day without fear of losing power. The Smartsafe P01 also supports online programming for over 9 car brands (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all) and includes 3 years of free software upgrades. Combined with the VCI, this scanner gives you unprecedented coverage, intelligent diagnoses, and a wide array of maintenance functions on new energy vehicles
Its also can connect directly to many battery BMS unit allowing you in some cases to get more in depth data than is available from the OBD port,
And this function is also very useful for doing tests on a battery that is not fitted to the vehicle, so you can test a used battery before purchasing it and or test before fitting to the vehicle
FEATURES
- Smartsafe P01: The go to tool for diagnosing and repairing new energy vehicles
- Original level” detection of battery pack: Support reading the current SOC/SOH, single/module voltage, input/output current and power, battery temperature and other parameters of the battery pack. Support reading the detailed status information and fault information of the battery pack, automatically calculating the key index data such as total voltage, voltage difference, maximum/minimum voltage and automatically marking abnormal data.
It has the above features for many vehicles and coverage increasing with every update
- Innovate detection by quick charging port: Read battery pack data by connecting to the quick charging port for faster battery detection. (still in development not available for European market yet)
- Battery Diagnose: Plug directly into the battery with the direct fit or universal cable to do more in depth tests on the battery (this feature is in development and does not have this feature for all EV and Hybrid cars yet)
- Three battery pack detection methods: Support connecting through special connector, through jumper and OBD which provide more choices for users.
- Special detection software of battery pack: Built in special detection software for battery pack, which supports battery pack detection according to vehicle brand or battery manufacture, allowing users to enter the battery pack detection function more quickly.
- Superb all round vehicle coverage: coverage for US, Asian and European brands
- Near OE-Level Diagnostics: Includes all you normal diagnostic functions including special functions like adaptions resets etc for a huge range of makes and models,
- Online ECU Coding: make software modifications to customize systems (also know as Retrofits and Conversions) for some systems and models on the following brands: BMW E and F series, VAG group, Toyota, Porsche,
- Cloud-based ECU Programming: for BMW, BENZ, VW/AUDI/SKODA/SEAT, PORSCHE，LAND ROVER/JAGUAR，SUBARU, NISSAN and RENAULT without the need of the manufacture software (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all)
- SGW security gate way: Optional FCA SGW yearly subscription provides SGW unlock for FCA vehicles (Abarth, Chrysler, Dodge, Jeep, Alfa Romeo, Maserati, Ram trucks, Lancia and Fiat)
Optional Renault SGW token activations provides SGW unlock for Renault and Dacia
VAG group SGW unlock available in conjunction with 3rd party providers on pay as needed basis (full VAG SGW unlock coming soon)
SGW unlock for other brands coming soon
- System topology diagram: The network topology diagram shows the networks and control units in a diagram which is very useful for us to understand how the different networks and systems are connected and when you do a full system scan we can see at a glance a overview of all the available systems and there status (this feature is new and is being added to many makes and models as updates go by)
- Special functions/adaptions: huge range of special functions/adaptions for many makes and models
- Guided Functions: with simple step-by-step procedures for quick and accurate car diagnostics.
- Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.
- Live data: Numerical and graphing functions and also searchable
- Module replacement: Module Replacement, Modification, Personalization, Anti-theft & Key Matching, and more (varies by the vehicle manufacturer, year, and model).
- Maintenance Service: Oil Reset • EPB Reset • SAS Service • ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Service • DPF Regeneration • Throttle Matching • Gearbox Matching • AFS Reset • Sunroof Initialization • Suspension Calibration • EGR Adaption, etc, 34 functions available in total, and still expanding.
- Camera VINScan: quick recognition of vehicle barcode with rear camera (for many makes and models)
- Smart AutoVIN & AutoScan: AutoVIN in many cases will auto identify the car make / model / year, and head towards proper diagnostics and in the cases where it does not AutoVIN the vehicles you can still use the standard manual method of selecting the correct vehicle details
- User-Oriented Design: Multitasking; VCI Bluetooth wireless diagnosis; One-touch software update via Wi-Fi; Ideal management of workshop operations; Rubberized outer protection; Automatic power-off.
- Non-16pinKit: enable to work on pre-OBDII compliant vehicles.
- Multilingual menu support: Chinese Simplified, Chinese Traditional, English, Japanese, Korea, French, Spanish, Portuguese, Italian, Russian, Deutsch, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Farsi, Finnish, Hungarian, Swedish, Turkish, Serbian.
- Modular design: allows for future capability expansions like Adas and bluetooth battery tester.
ECU PROGRAMMING AND CODING FOR NEW ENERGY VEHICLES
The Smartsafe P01 is capable of ECU Module programming for Mercedes, BMW, VW/AUDI/SEAT/SKODA, Porsche, Nissan, Subaru, Jaguar/Land Rover and Renault directly from Smartsafes own servers (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all)
Technical Information:
Host:
- Display Size: 10.1inches(1920×1200)
- CPU: 2.0GHz Octa-core
- Memory: 4 GB
- Storage: 64 GB
- System: Android11
- Wi-Fi: 2.4GHz/5GHz
- Camera Front: 800MP, BatteryPost 1300MP
- Battery: 3.8V/9360mAH
- Interface: Type A, Type C
- Communication: Wi-Fi, BT, USB
- Product size: 318×40.5×246.5mm
VCI;
- Voltage: DC9~36V
- CPU: Cortex-A7 + Cortex-M7
- Memory: 256 MB
- Storage: 8 GB
- System: Linux
- Wi-Fi: 2.4GHz/5GHz
- Communication: Wi-Fi, BT, USB
- Interface: USB Type B, OBDⅡ-16, DC-IN
- Product size: 197×40×83mm
Includes:
- Main unit
- VCI
- OBD lead and extension cable
- USB cable
- Power supply
- User manual
- Password envelope
- Soft cloth
- Non 16 pin adapter kit, includes: OBD1 transfer cable, Merc 38pin, BMW 20pin, GM 12pin, Chrylser 6pin, Toyota 17pin, Toyota 22pin, Kia 20pin, Honda 3pin, Nissan 14pin, Fiat 3pin, Mitishubi 12pin and 3 types of Tesla cables
- Cigarette lighter charger cable
- Spare fuses x 2
- Battery connection Jumper cable 8 way to OBD,
- 9 different universal battery connection cable sets, includes a variety of sizes and types,
Each set has 4 connection cables
Optional:
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them every day in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.
Warranty
All SmartSafe diagnostic tools come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).
Items excluded from the 1 year warranty are
Cables and OBD connections,
Problems caused by other APPS or other software’s that the user installs on the device
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorized modifications.
Delivery and Training
Ryan’s Automotive or a courier will deliver the unit to your workshop and we will assist in setting it up on your phone or tablet in person or remotely via phone and team viewer,
And spend 4 hours onsite (or if not possible to call onsite can provide training over team viewer and phone) providing training on use of the machine.
We also can provide extra chargeable training if required.
Support
Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use).
We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
Additional support packages are required for vehicle technical support.
Not included in the support
Technical information that is found on systems like Autodata, Alldata etc,
The above support does not include vehicle technical support but we are always willing to help customers were we can.
Repairs not covered by the warranty and after the warranty period
For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
1 Log into the unit via team viewer
2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)
If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT
