Modular Kit For Removing Seized or Sheared Glow Plugs

Product Description

Universal Modular Kit For Removing Seized or Sheared Glow Plugs

Brand: Govoni made in Italy

This is a advanced set to cover all different scenarios  and works with a sliding hammer system that dose not require a flat surface on the head

Can do the following sizes glow plugs depending on the modules you have

• M8x1,
• M9x1,
• M10x1, M10x1,25

This kit is available in 5 different modules

• MODULE 1 – 311227000 (13 pcs.) It contains the BASIC tools required to be able to use each specific Module for each glow plug size: M8x1 -M9x1 – M10x1 – M10x1.25.
• MODULE 2 – 311227001 (5 pcs.) It contains the tools required to remove the M8x1 glow

  plugs. To be used in combination with the BASIC modular tool kit 311227000.

• MODULE 3 – 311227002 (5 pcs.) It contains the tools required to remove the glow plugs M9x1. To be used in combination with the BASIC modular tool kit 311227000.
• MODULE 4 – 311227003 (7 pcs.) It contains the tools required to remove the glow plugs M10x1 – M10x1.25. To be used in combination with the BASIC modular tool kit 311227000.
• MODULE 5 – 311227004 This is the complete master kit which includes all of the above

See this document for more info about the MODULE options Universal Modular Kit Document

This modular kit allows you to buy one size at a time and build up the kit as you need

You just need to note that Module 1 is the basic kit and is needed with all sizes

Module 1, 311227000 Includes:

• Sliding hammer
• Shaft for sliding hammer
• Extension shaft for sliding hammer
• 3 different sizes roller extractors for removing center electrode
• 2.5 mm allen key
• 2 different size guides and special drill bits to drill out center electrode
• Extension shaft for drill bits
• Extension shaft for sliding hammer

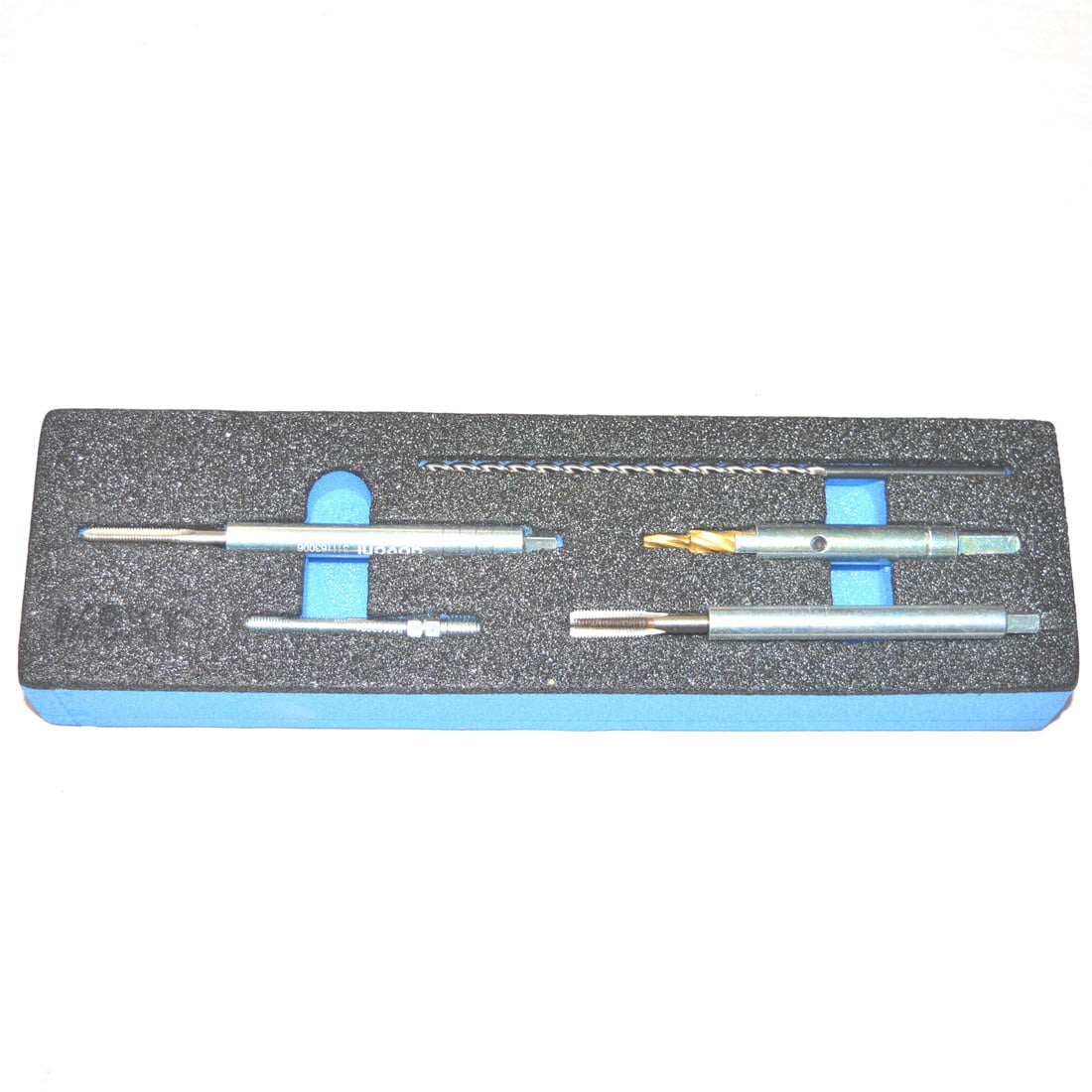

Module 2, 311227001 Includes:

• Long 4.5 mm drill bit
• Special drill bit 7 – 4.5 mm
• Drill bit holder
• 12-28 tap and tap holder
• 12-28 adapter shaft
• M8 x 1 tap and holder

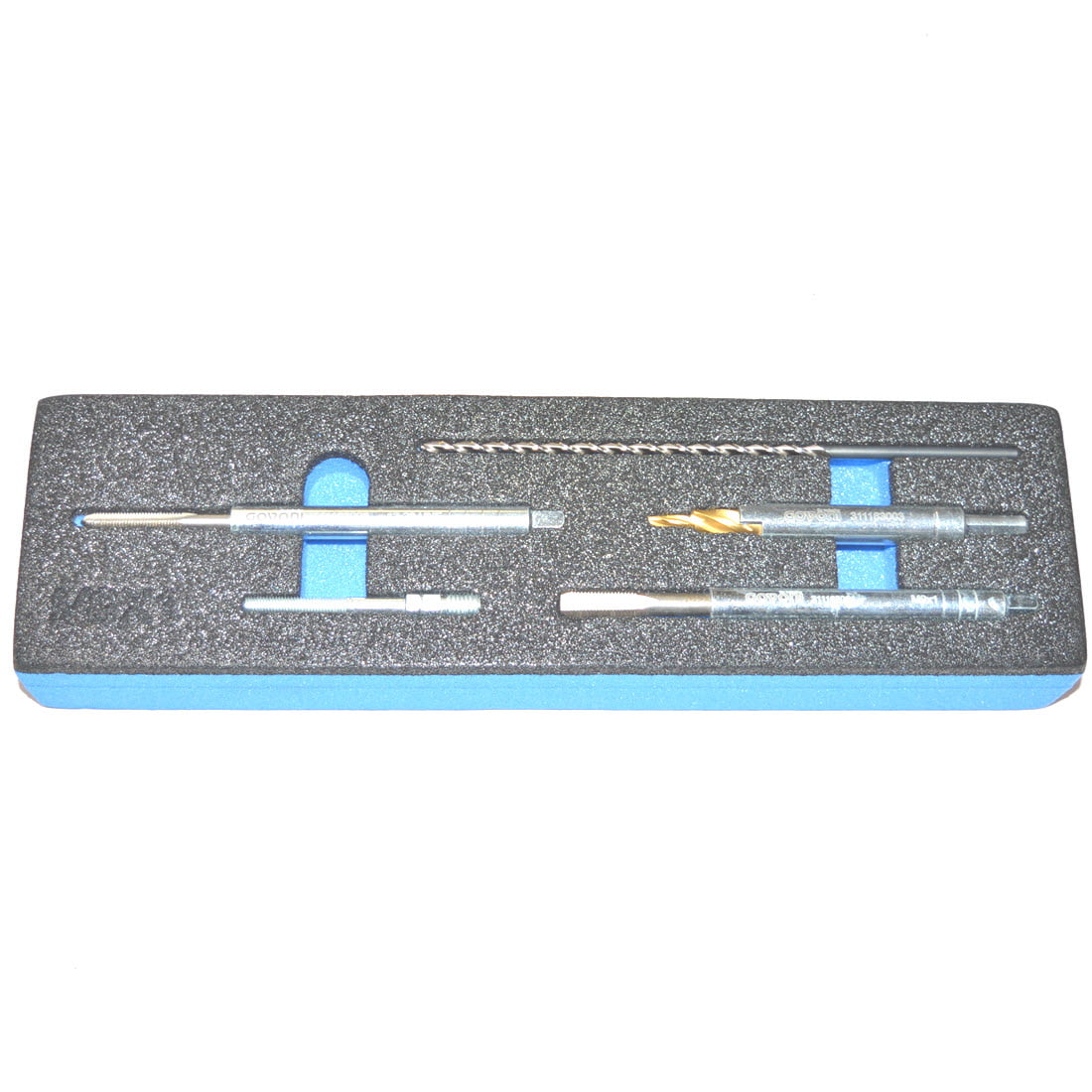

Module 3, 311227002 Includes:

• Long 4.5 mm drill bit
• Special drill bit 8 – 4.5 mm
• Drill bit holder
• 12-28 tap and tap holder
• 12-28 adapter shaft
• M9 x 1 tap and holder

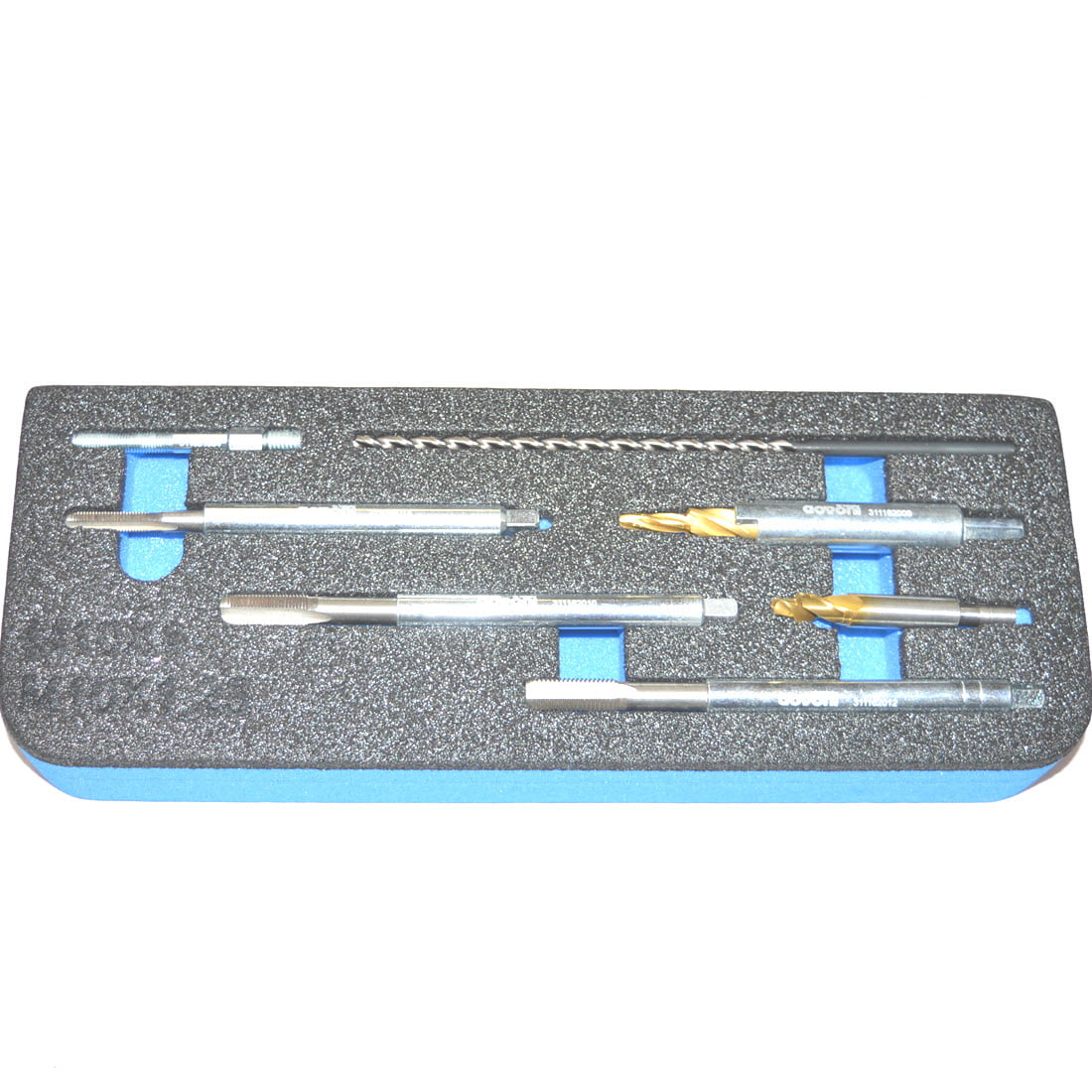

Module 4, 311227003 Includes:

• Long 5.5 mm drill bit
• Special drill bit 8.9 – 5.5 mm
• Special drill bit short  8.9 – 5.5 mm
• Drill bit holder
• 1/4-28 tap and tap holder
• 1/4-28 adapter shaft
• M10 x 1 tap and holder
• M10 x 1.25 tap and holder

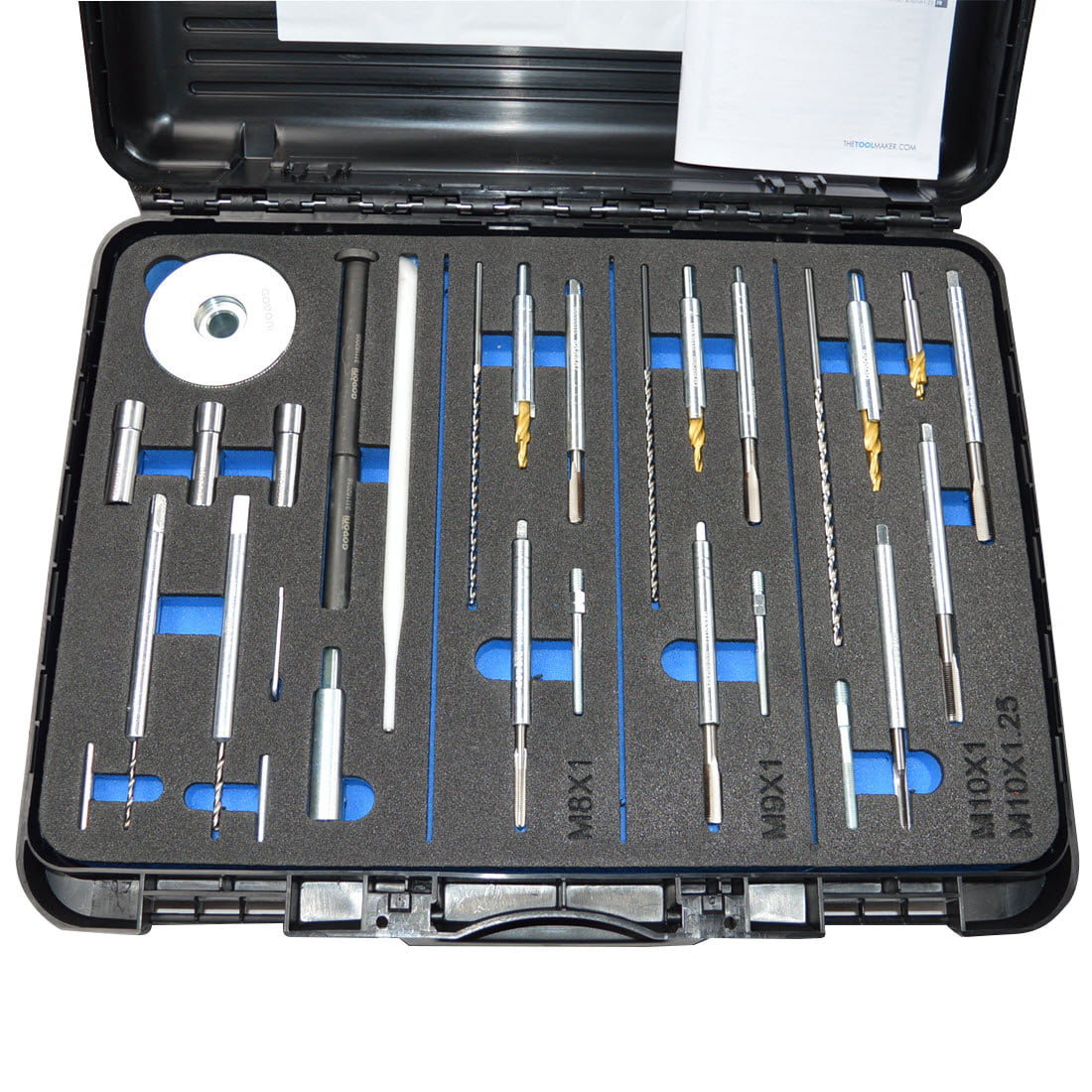

Module 5, 311227004 Includes:

• is the master kit and includes all the above items in modules 1, 2, 3 and 4
