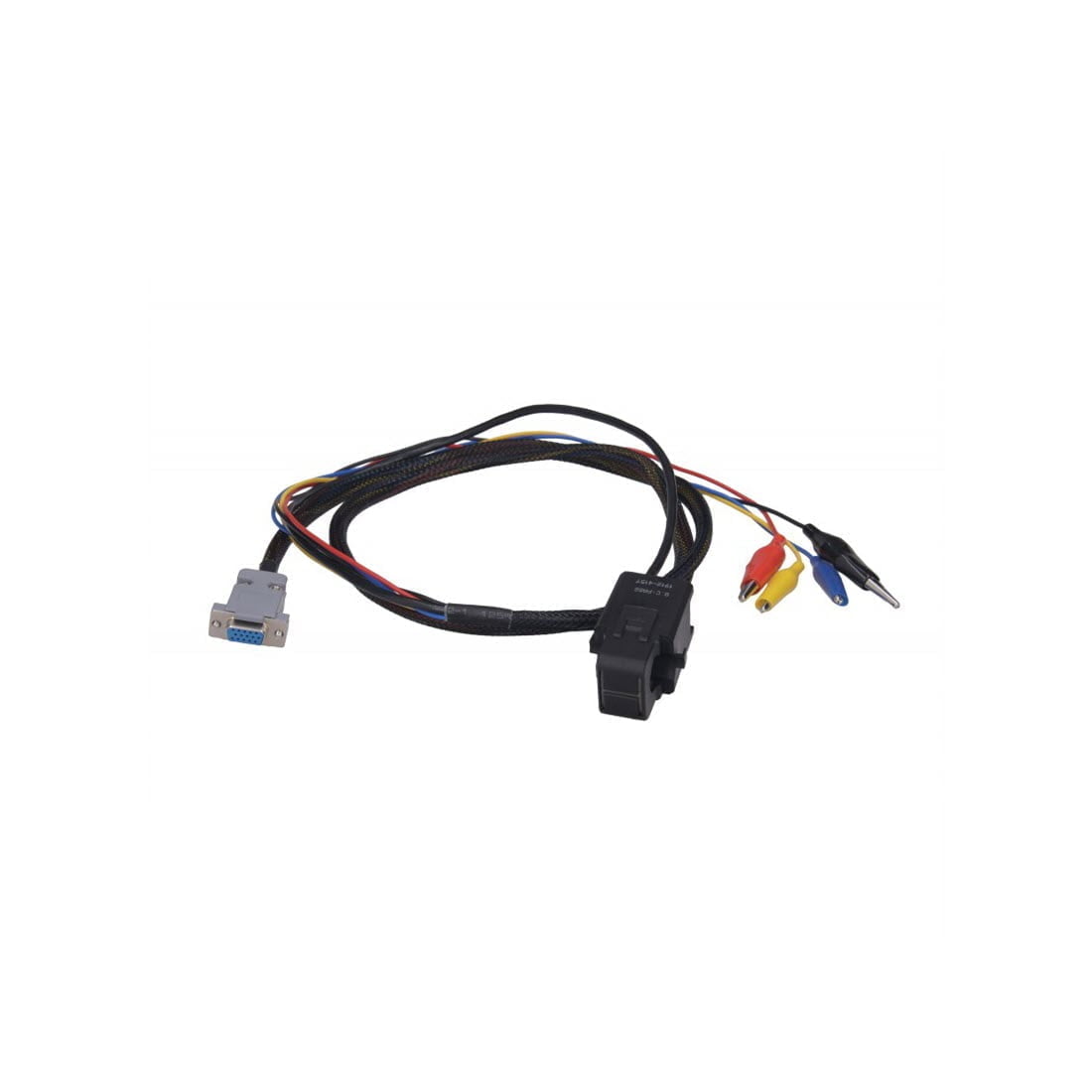

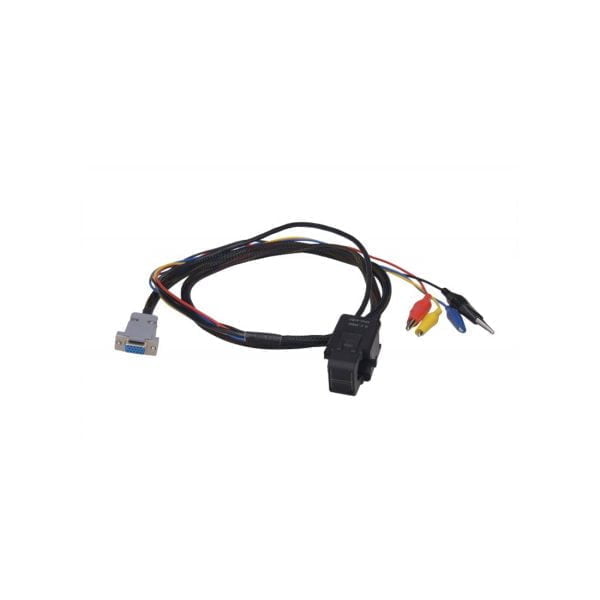

MS-33503 Optional Cable For Tester MS016

Product Description

MS-33503 optional cable for tester MS016 for testing starters and starter circuits

To be used with MS016

The purpose of diagnostic cable MS-33503 is to provide the connection between the tester MS016 and an automotive unit, whether it is tested directly on a car or on the test bench that provides its fixation and power supply

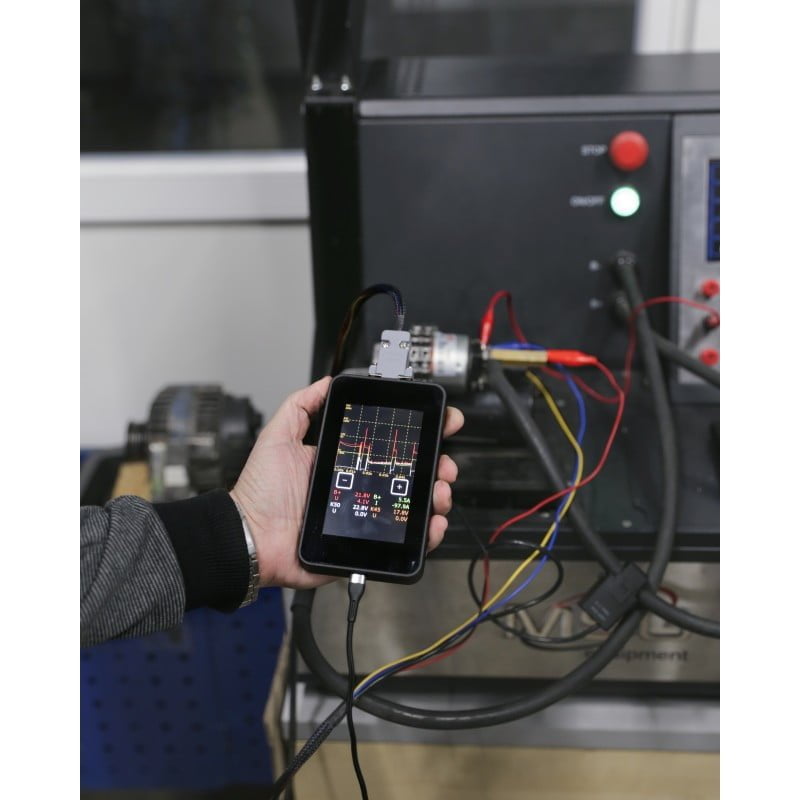

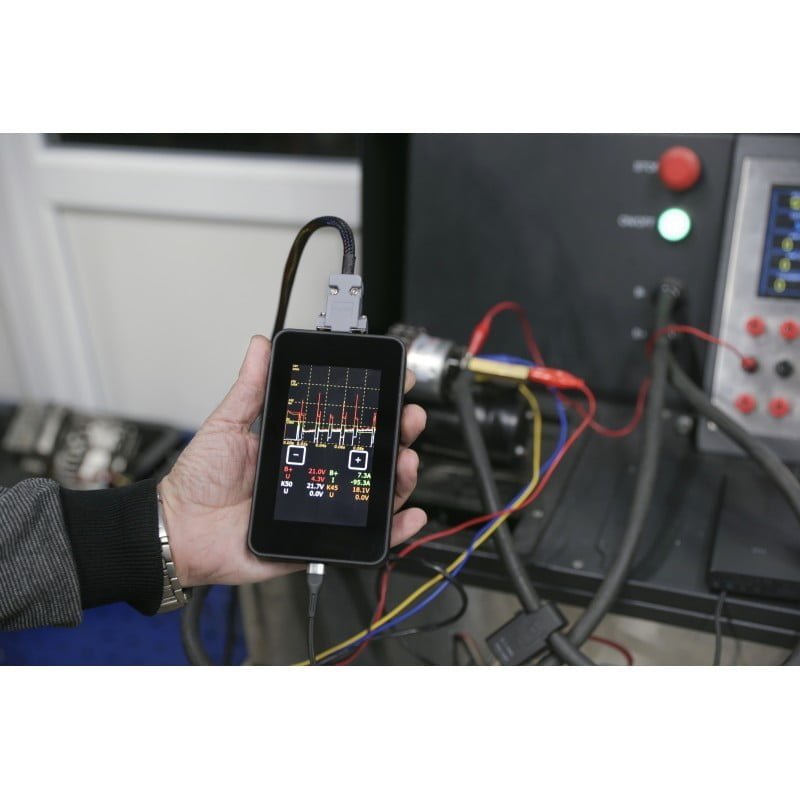

Using the tester MS016, we can register both a voltage across starter terminals 31, 30, 50, 45 and a current across terminal 30 during the engine start. The measured parameters are displayed on the tester screen as diagrams. In addition, the maximum and minimum values are displayed numerically. This information helps recognize problems with the starter, battery, or wiring.
