MS121 Tester For Diagnostics Of Electromagnetic Valves And Clutches Of Vehicle AC Compressors

Product Description

MS121 Tester for diagnostics of electromagnetic valves and clutches of vehicle AC compressors

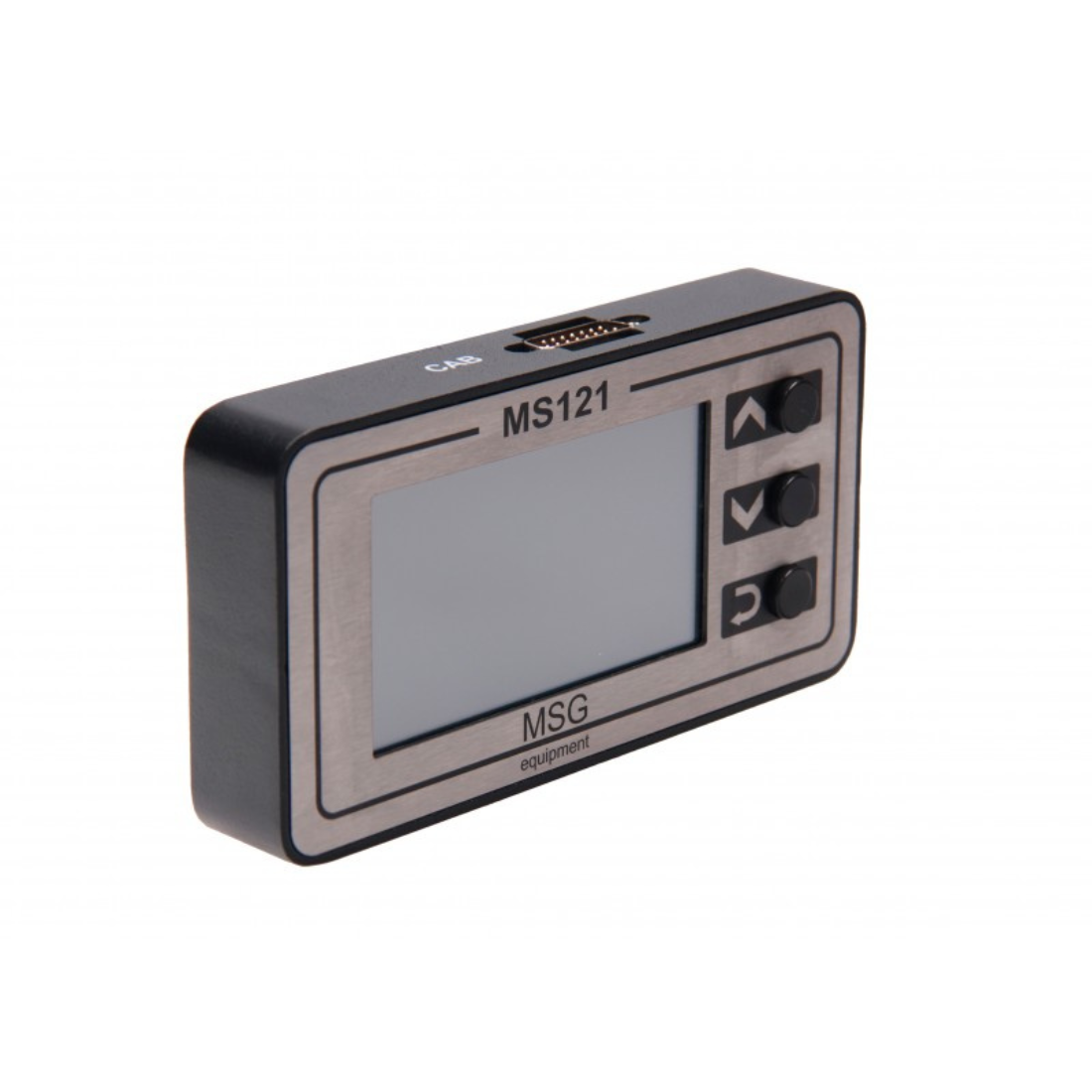

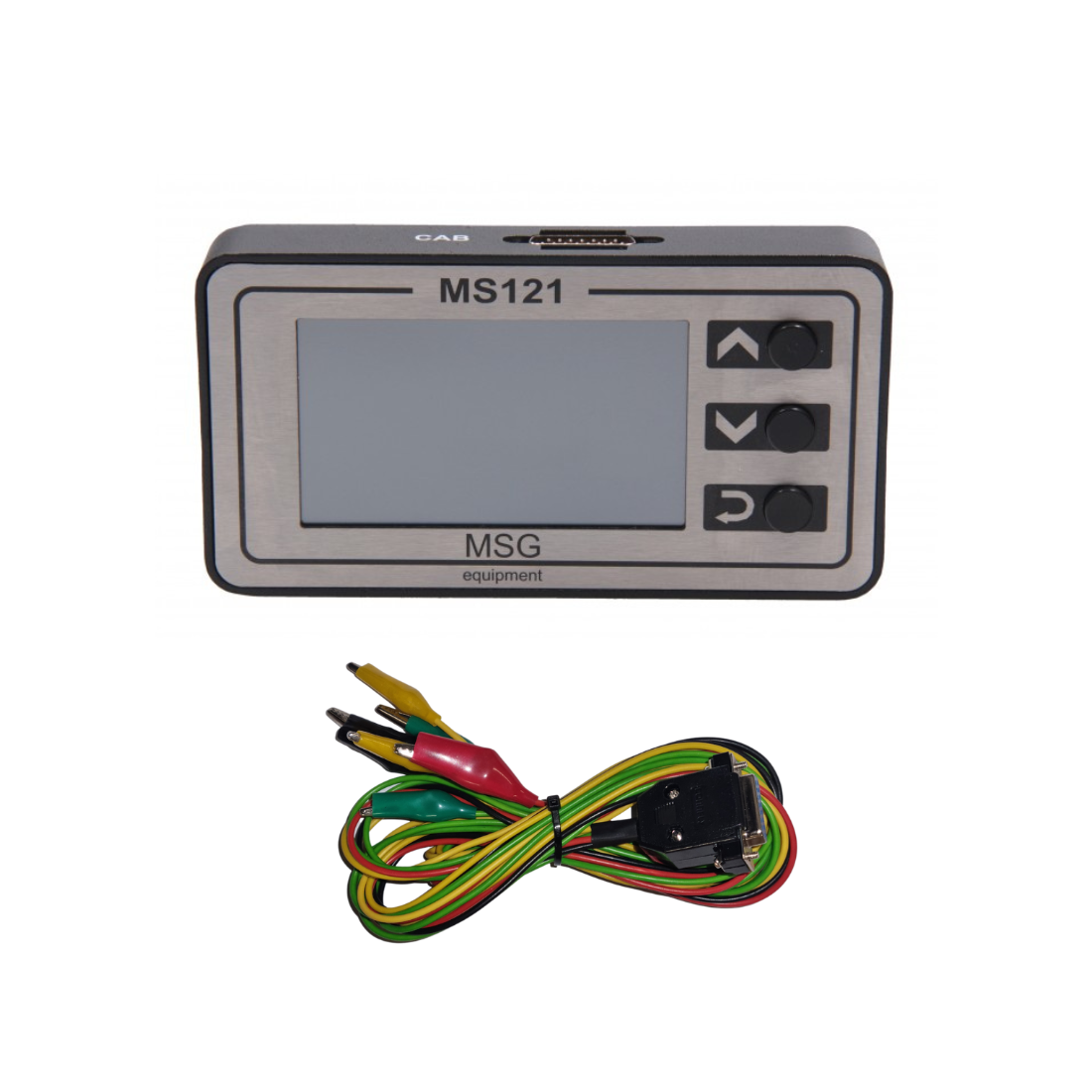

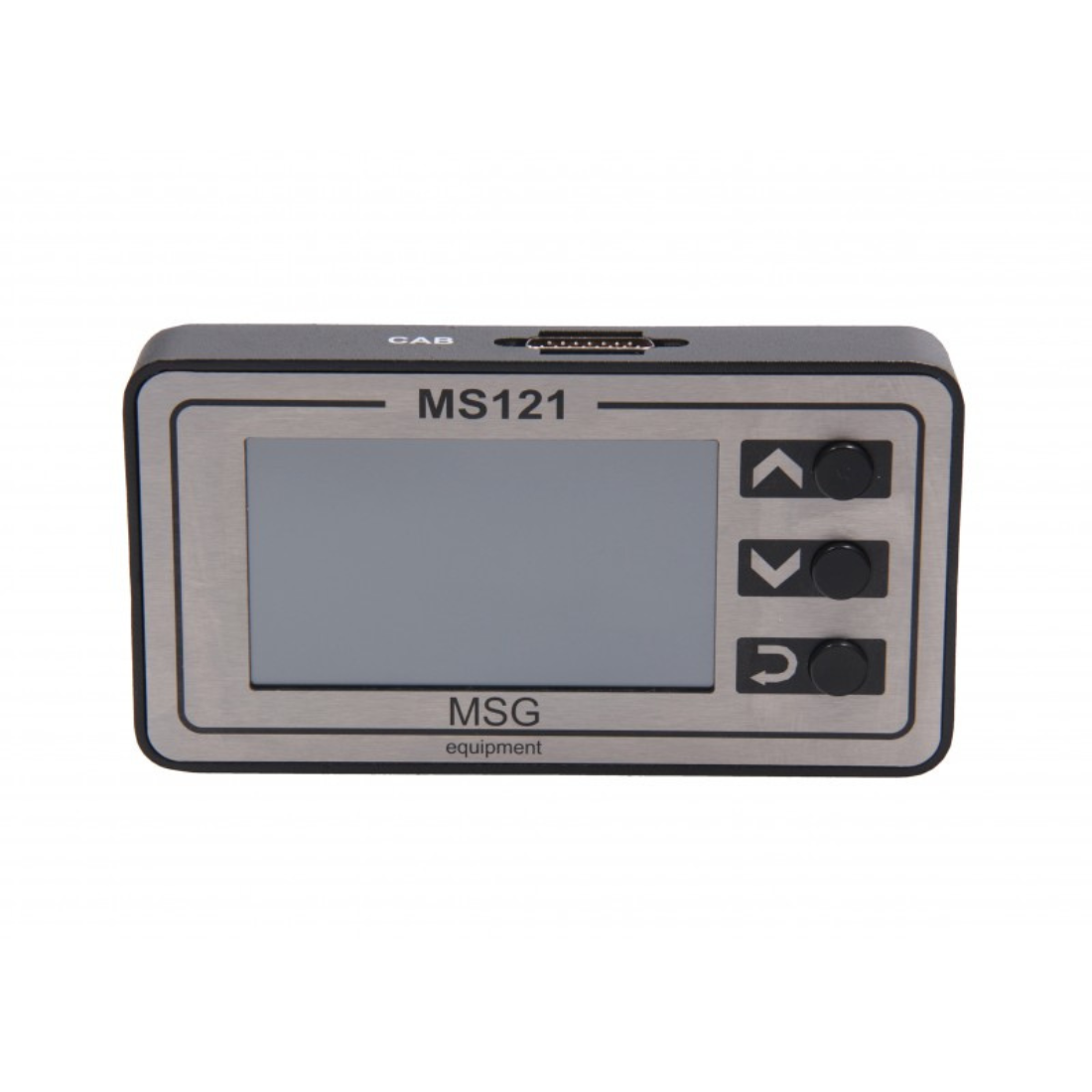

Tester MS121 is a compact device for testing both electromagnetic clutches and control valves of automotive climate systems.

Purpose:

Tester MS121 is used to perform quick and easy check of the following parameters of electromagnetic clutch and control valve:

• presence of a diode
• current consumption
• short circuit (cs)
• circuit break (cb)
• rate of valve opening

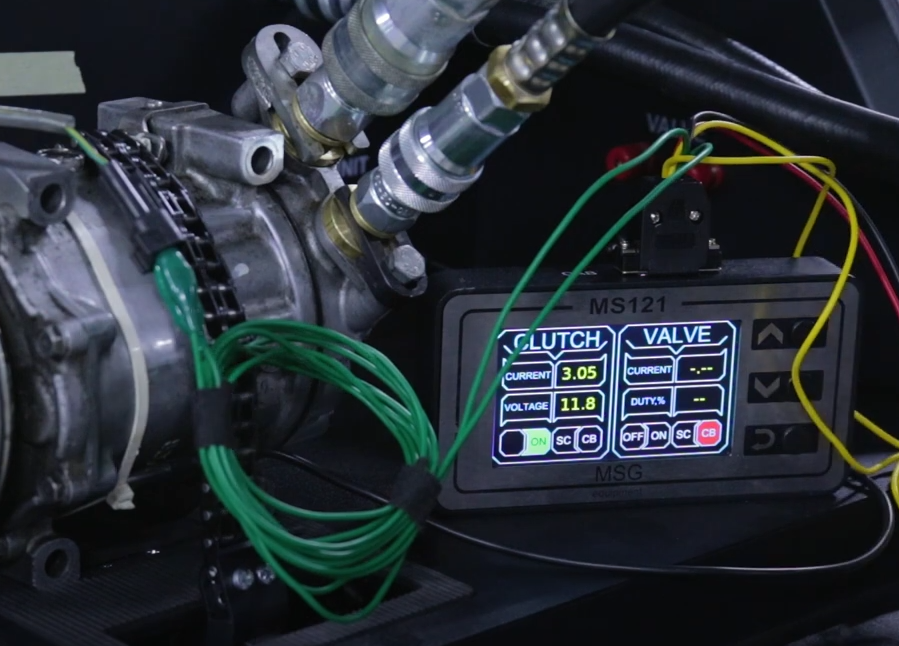

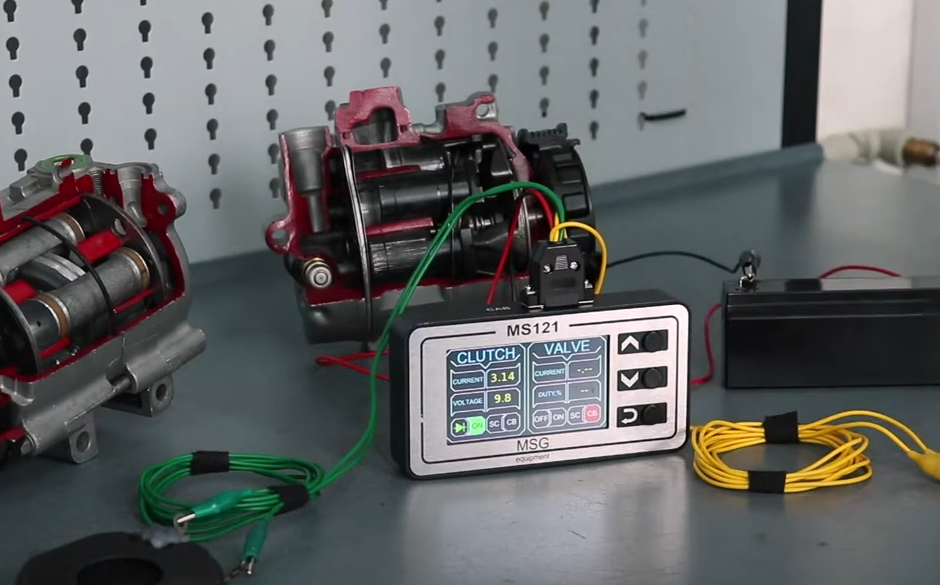

Both clutch and valve can be tested either on the compressor removed from a car (at a repair shop) or directly on a car.

Advantages:

• Simplicity and ease-of-use;
• Automatic polarity selection for connection of the tested unit;

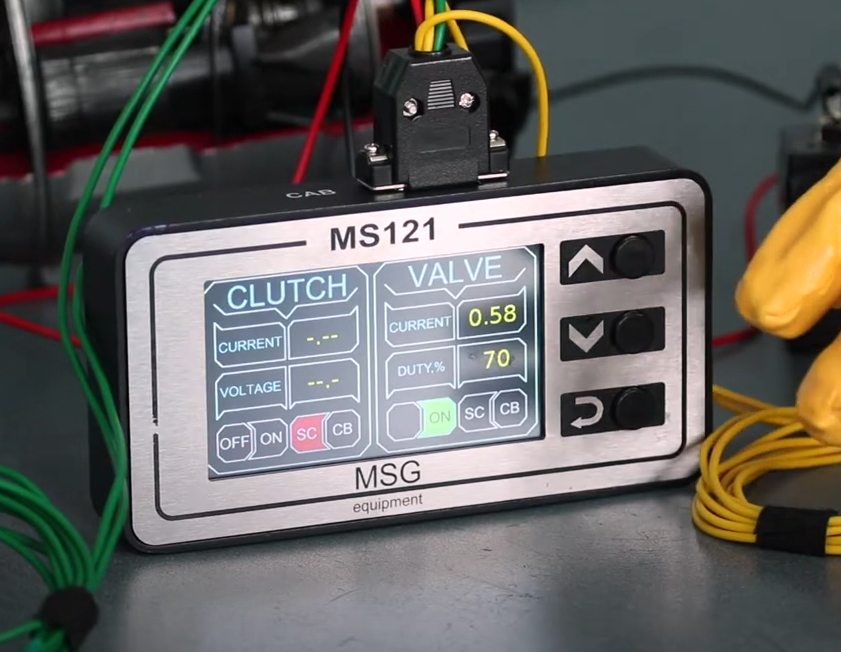

• Simultaneous testing of a clutch and a valve;
• Possibility of a compressor electromagnetic valve control;
• Possibility to test without removing from a car.

Technical Info:

• Supply voltage: 10 – 16V/5А
• Supply type: battery, vehicle power network.
• Dimensions (L×W×H), mm: 167×88×27
• Weight, kg: 0.2
• Automatic clutch polarity selection: yes
• Short circuit protection: yes

Clutch testing:

• Voltage of tested electromagnetic clutches, V: 12
• Types of tested electromagnetic clutches: diode, no diode
• Tested parameters of electromagnetic clutches: presence of diode, current consumption, open circuit, short circuit
• Testing current, max А: 5

Control valve testing:

• Types of tested electromagnetic valves: diode, no diode
• Tested parameters of electromagnetic valves: duty cycle (rate of valve opening), consumption current, open circuit, short circuit
• Adjustment range of valve opening: 20%…95%
• Testing current, max А: 1,2
