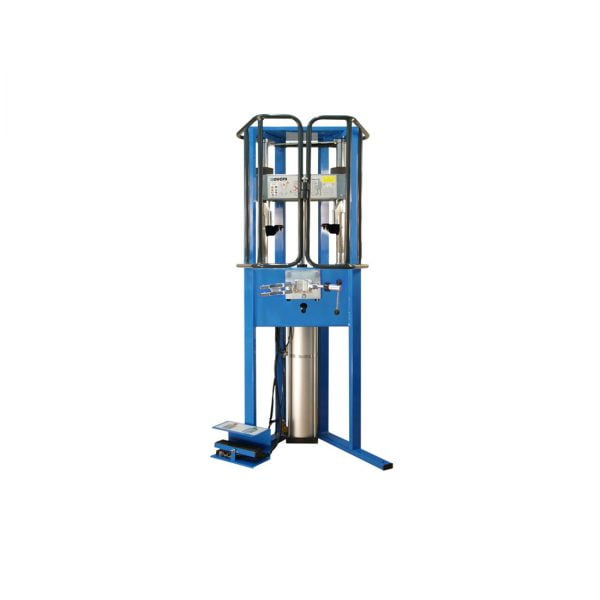

Pneumatic Spring Compressor, Compression Force: 2452 kg

Product Description

Govoni Pneumatic Coil spring compressor – Passenger cars SUV and Light Commercial vehicles

Special offer €2250 + vat normal list price €2654 + vat
Including free delivery in Ireland, for transport costs outside of Ireland please inquire

Main Features

• Auto Leveling System: The two auto leveling upper arms allow to work easily both on conical and misaligned springs.
• Cylinder: Stroke & Power: It is possible to use this auto leveling machine also in case of long shock absorbers as the ones installed on light commercial vehicles, off roads and wagons, thanks to its 330 mm stroke. With a working pressure of 8 bar the machine exerts a compression force at 2452 kg without losing power.
• Aluminum technology: The cylinder is made in light alloy and nylon resin with fiberglass avoiding consequently the corrosion and the oxidation of the parts of the machine.
• Brackets system: The frontal and lateral clamps’ holders grant quick mounting and dismounting replacement both of the clamps and of the vice.
• pedal and safety guard with safety valves: The foot-pedal works only when the safety valve is closed; if it is open the foot-pedal is blocked. Consequently the machine can be disconnected without dangers granting the maximum safety. If the safety guard remains open, the machine is equipped with a safety valve that does not allow working operations.
• Tools Rack: The machine is equipped with a practical and steady tools rack.
• Machine supplied with vice to cover most of the absorbers for cars on the market (optional brackets can be added at any time later)

Specification:

• CE approved machine in compliance with 2006/42/CE (Machine Directive)
• Machine weight: 65 Kg
• Working pressure: 8 bar
• Cylinder stroke: 330 mm
• Compression force: 8 bar = 2452 Kg

Standard equipment:

• Basic unit, 2452 Kg
• Vice clamping jaw for absorber tube, Ø 40-60 mm
• Small clamping jaw, Ø 78 – Ø 130 mm
• Medium clamping jaw, Ø 105 – Ø 185  mm

Optional:

• Vice large (not very pouplar)
• Large clamping jaw Ø 125 – Ø 205  mm (not very pouplar)
• Optional Universal Upper Bracket for Nissan, Renault, Peugeot, Tesla, Bmw, Ford, Mercedes & Mini and many more Click here to see
• Lower bracket leftwards up to 2.5 ton, EG Nissan Qashqai Click here to see
• Upper brackets pair, Japanese cars eg Toyota Honda etc, BMW rear shocks Click here to see
• Coil spring clamp Click here to see
• Piston puller / locker for gas shocks Click here to see
• Set of tools for opening shocks absorbers Click here to see
