Product Description
Power Steering Online Training 12 Months Access
COVERED IN THIS COURSE:
Power steering systems development and electrification has both lowered the fuel consumption and reduced their need for service and repair. Electric power steering systems becoming more common has also allowed for additional equipment, such as Parking Assist and Lane Departure Aid to become more common on vehicles today. Hydraulic and electro-hydraulic systems have not disappeared though, due to greater steering feel.
- Steering and hydraulic power steering components
- Hydraulic pressure adjustment in the hydraulic pump and power steering

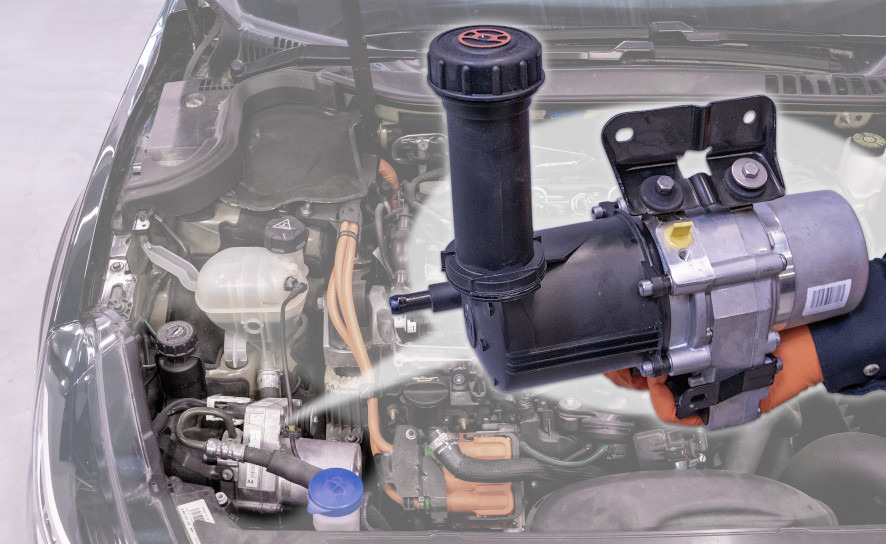

- Electro-hydraulic power steering – operation
- Electric power steering structures

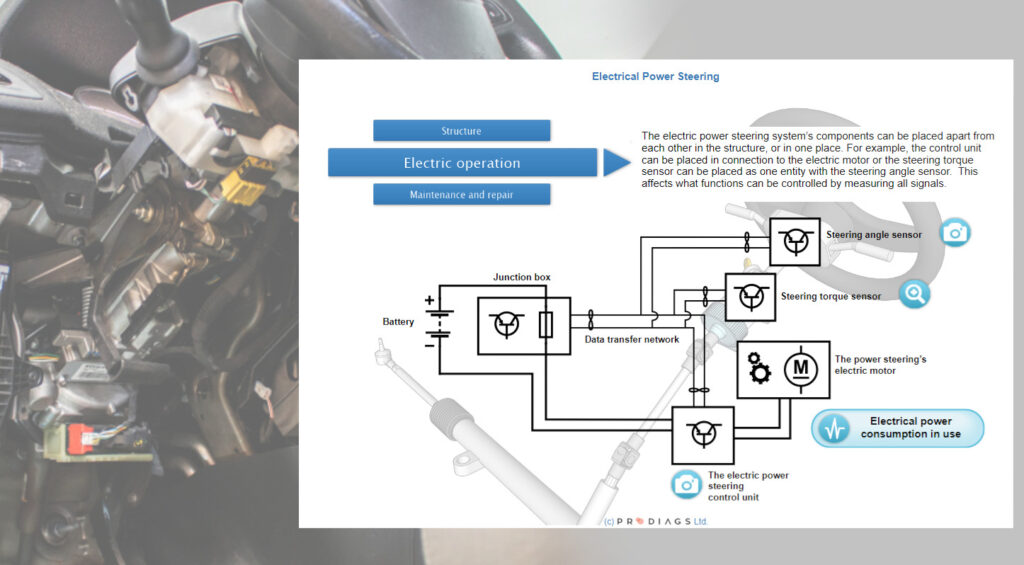

- The power steering electrical operation
- Steering angle and steering torque sensor
WHY THIS COURSE?
All on-road vehicles have power steering; hydraulic, electric or a combination – electro-hydraulic. In vehicles with a combustion engine, the power steering was quite similar in different makes and models for a long time, but modern power steering systems are smarter and more efficient.
WHAT WILL YOU LEARN?
The power steering and steering structures are located in the passenger compartment and engine bay. The most common jobs are checking the hydraulic systems fluid level and checking for leaks, and replacement of the joints connected to the steering rack and wheel support. When performing repairs inside the cabin, the steering column is often well hidden, and the operation of it and components connected to it is not always understood.

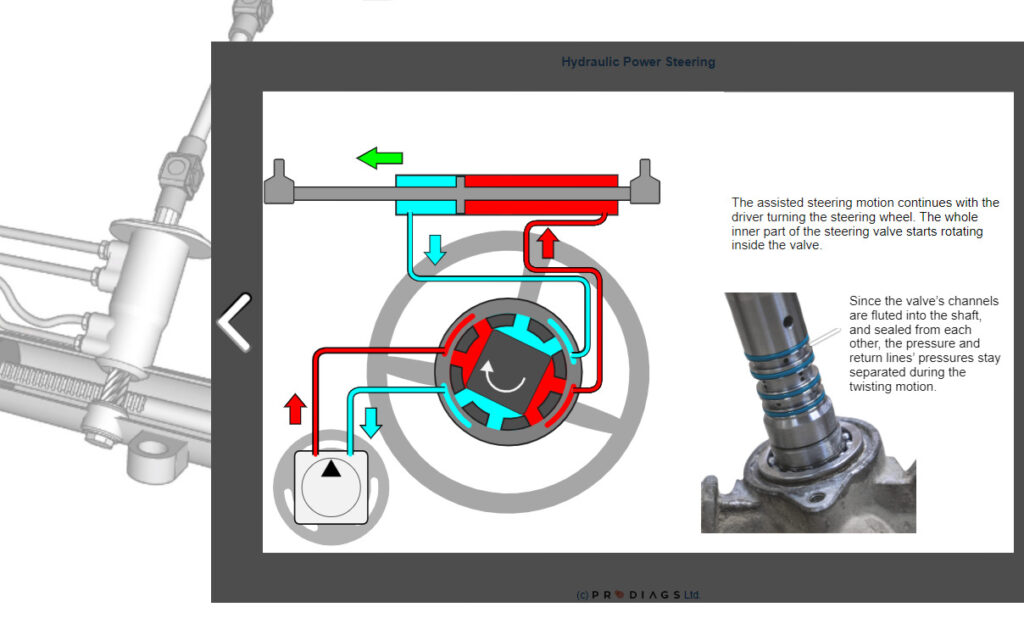

In the study, you will go through different power steering structures, their components and operation. You will understand how the fluid pressure is led through the steering valve in direction with the steering motion when the driver starts or finishes the motion.
The electrification of power steering systems has created structures that have allowed for moving components, partly or completely, from the engine bay into the cabin. Electric power steering systems have brought solutions like Column EPS, Single-Pinion EPS, Dual-Pinion EPS and Parallel Axis EPS. The development of power steering systems have freed up space in the engine bay and brought more precise steering and sensors, such as the steering torque sensor and steering angle sensor.
Prerequisites
No prior knowledge required for taking this module.
Content Equivalence
This course’s topics and objectives correspond in scope to a conventional half day training event.Once you have made your payment, you get immediate access to the content in the form of a license valid for 12 months. You’ll save time and money by not needing to travel.
System Requirements
Internet connection and PC or laptop with browser. Recommended screen resolution 1024 x 768 or higher.
Learning Outcomes
After studying you will be familiar with the structures and their function. You know in which situations and jobs to take the power steering components into consideration. Additionally, you have a good starting point for applying your knowledge when servicing and troubleshooting.
Certificate
After completing your module of study and approved completion of the exercises, you will be allowed to take the final exam. After completing the final exam, you can print a Prodiags certificate from your attainments register as proof of your expertise.
HOW TO BUY?
Just click on this link below or in the description above and this will link you to the Prodiags online training shop
Click here to purchases this course or other courses on Prodiags website
And add it to your cart and complete the order and you will then receive a email with your username and a link to activate the course.
You must activate the course within 3 days of receiving the email and when activated you will have 12 months access to the course.
Note the email you use to place the order will be your username for the course.
It can take up to 24 hrs (Monday to Friday) to receive the activation email
On the support page it has information on how to order and how to use etc, click here to view support page
Reviews
There are no reviews yet.
