Scanmatik Bench Cable

Product Description

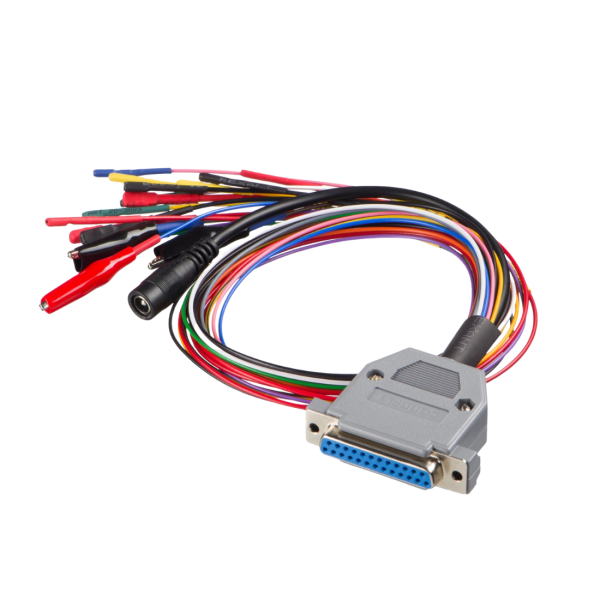

Scanmatik Bench Cable

Universal 53 & 71 module cable (boot/bench) For use with Scanmatik 2 PRO J2534 VCI

Features

• The adapter has reverse polarity protection
• Power supply indicator (green), Power supply for ECU indicator (red), Boot mode indicator (blue)
• Automatic power supply switching for ECU by (L-line)
• Automatic generation Boot (2 pc.) and CNF(for 53 module).

Boot cable PINOUT:

• red +12V (1 big connector(2.5mm) и 2 small connectors)

• black GND (1 big connector (2.5mm) и 1 small connector)

• white CAN H (1 small connector)

• green CAN L (1 small connector)

• yellow + black line (with green shield) K-Line(1 small connector)

• yellow GPT1(1 small connector)

• orange GPT2(1 small connector)

• violet VPP
• blue CNF1(for 53)( crocodile terminal, 1KOhm)
• grey boot1(for 53)( crocodile terminal, 1kOhm)
• brown boot2(for 53 )( crocodile terminal, 1kOhm)
