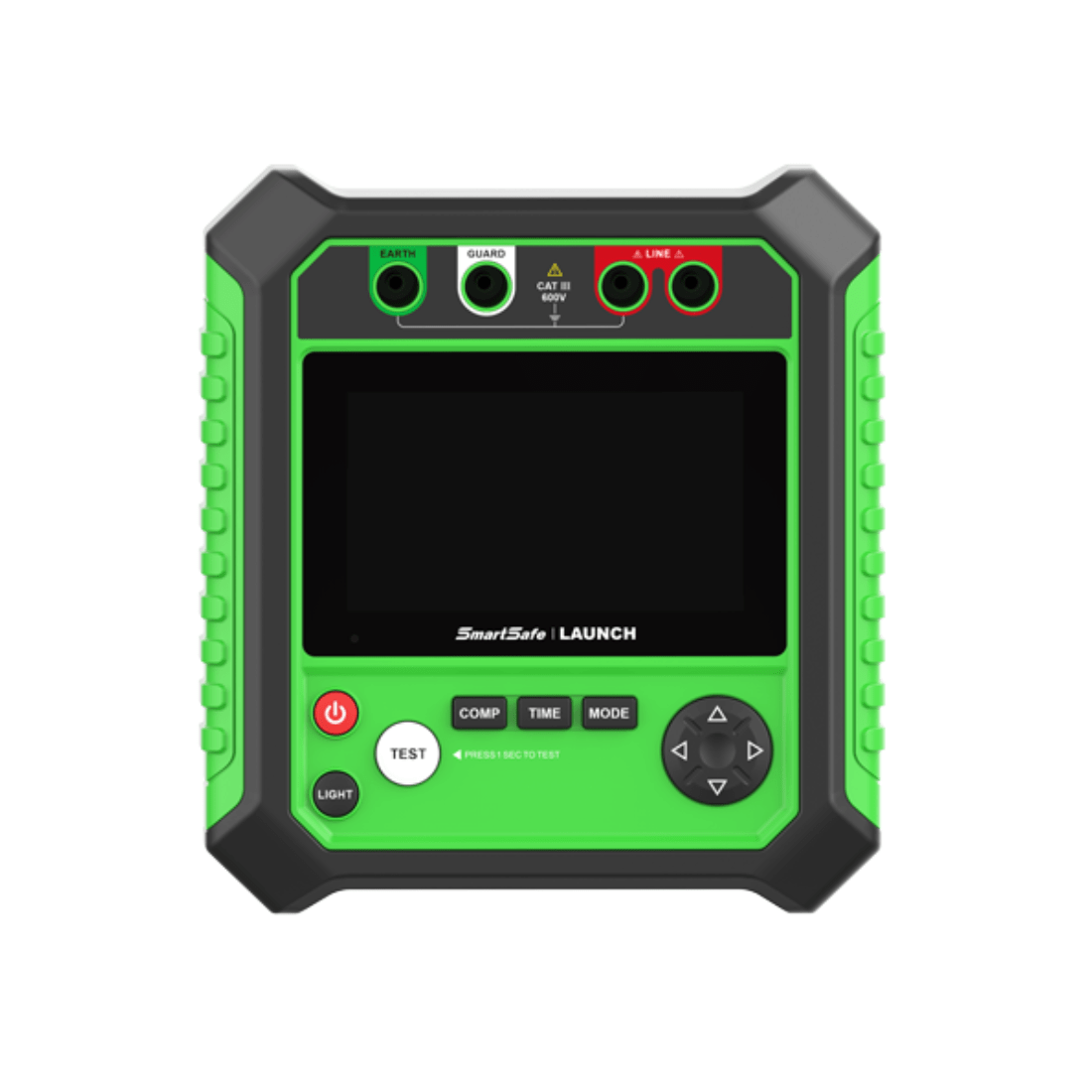

SmartSafe iSmartEV RT100 Insulation Tester for Electric Vehicles

SmartSafe iSmartEV RT100 Insulation Tester for Electric Vehicles

614.64 ex. VAT

2 in stock (can be backordered)

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

SmartSafe iSmartEV RT100 Insulation Tester for Electric Vehicles

iSmartEV RT100 insulation tester is equipped with powerful measurement and data processing software, thus it can complete measurement of the insulation resistance, voltage, and other parameters. Its stable performance and easy operation are suitable for field measurement and maintenance users of power equipment and power supply lines.

iSmartEV RT100 is an insulation resistance tester for electric vehicle insulation resistance measurement. It supports three modes of comparative measurement, continuous measurement and timed measurement, and can measure AC and DC voltage.

Features:

  • Flexible application: Measure insulation resistance and AC/DC voltage, supports 3 modes- comparative measurement, continuous measurement and timed measurement
  • Wide measurement range: For different output voltages, resistance measurment ranges from 10M Ohm to 1000G ohm
  • Intelligent alarm: Low resistance alarm and over range alarm
  • Large screen back light: 5-inch display and LCD backlight for measurment in dark and low-light enviroments
  • Automatic shutdown: Energy-saving feature-automatically shuts down when not operated for 15 minutes

Functions:

  • Resistance measurement – Supported output voltage switching: 500V/1000V/2500V/5000V and it also supports three modes-comparative measurement, continuous measurement, and timed measurement.
  • Voltage measurement – Supports DC and AC voltage measurement
  • Other functions – LCD back light, Automatic shutdown, Over range alarm and High voltage warning indication

Technical Information:

  • Output voltage – 500 V/1000 V/2500 V/5000 V
  • Insulation resistance – 500V:10MΩ~20GΩ, 1000V:10MΩ~40GΩ, 2500V:10MΩ~100GΩ, 5000V:10MΩ~1000GΩ
  • Short-circuit current – <3.0mA
  • DC measurement – ±30 V~±600 V DC,resolution: 1 V, accuracy:±2%
  • AC measurement – ±30 V~±600 V AC,resolution: 1 V, accuracy:±2%
  • Display mode – 5-inch display
  • Battery – 3150mAh/11.4V
  • Temperature – 0~50℃
  • Dimension – 190×207×72mm

Product Specifications

Weight 3.6 kg
Dimensions 44 × 42 × 20 cm

User Manual
