Product Description

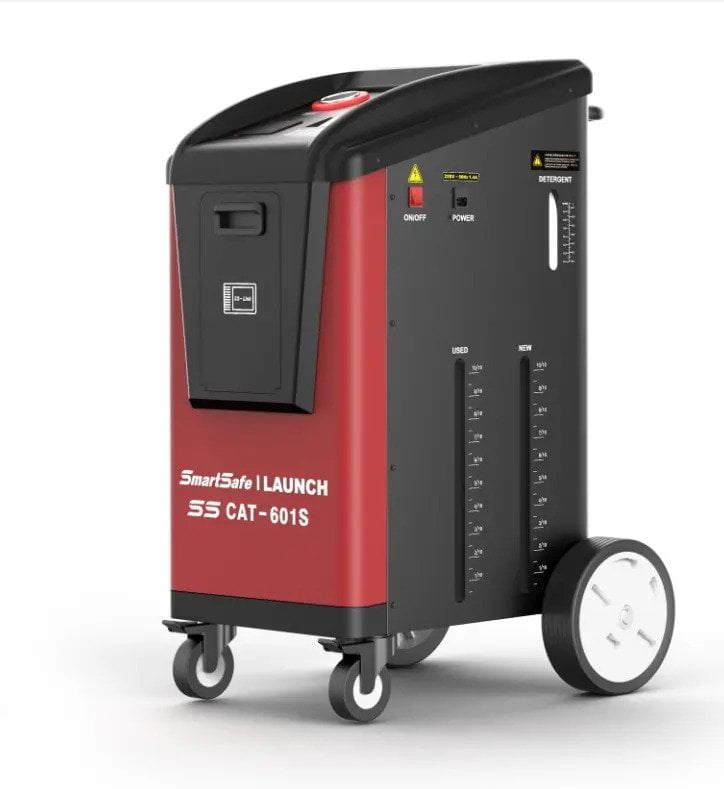

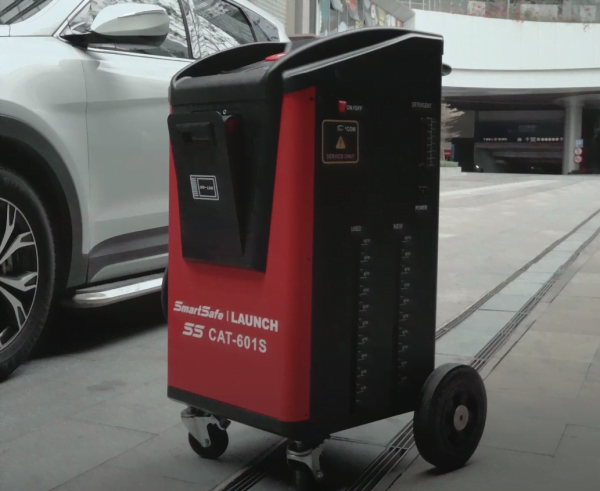

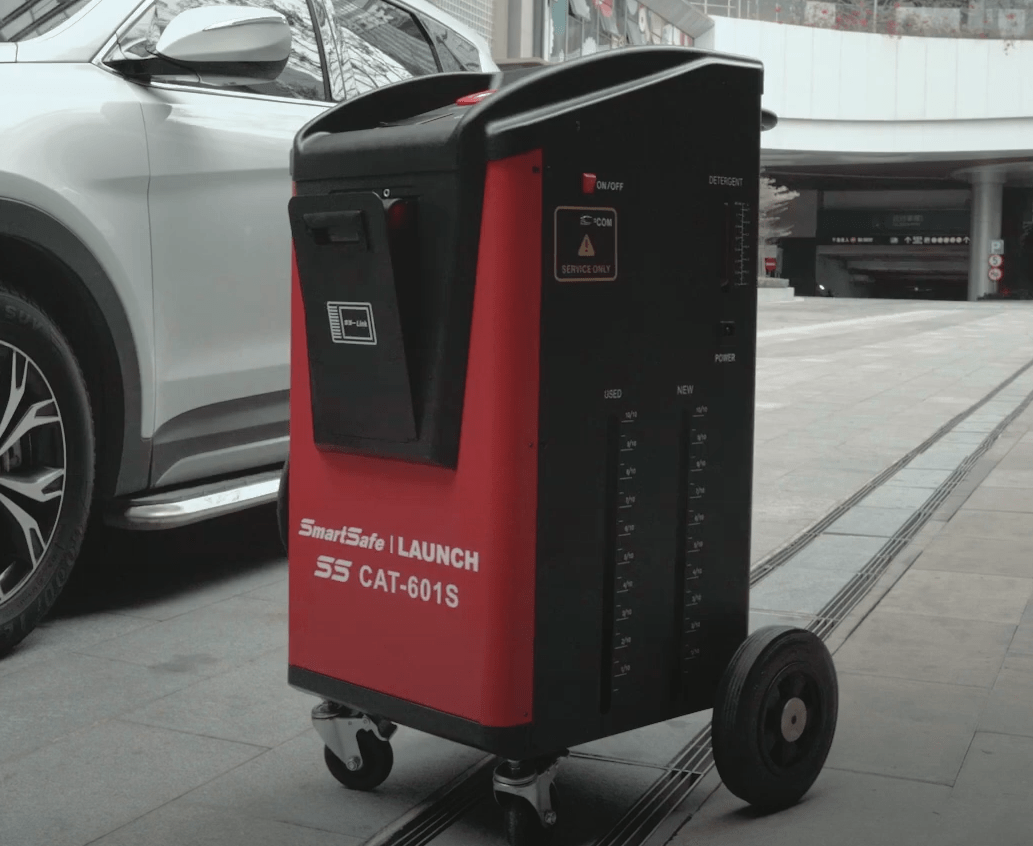

SmartSafe/Launch CAT-601S ATF Machine
The number of vehicles with automatic gearboxes has risen sharply in recent years. The recommendation is to service the gearbox system every 60,000 km / 37,500 miles, on average. With the right equipment, such as the CAT-601S ATF Machine, this is an uncomplicated job. With the CAT-601S you are assured of maximum professionalism and great ease of use.
The CAT-601S is delivered with a base adapter set to connect to some of the most common gearbox units, including dual clutch and CVT types and optional adaptor sets or individual adapters are available on request, The CAT-601S auto transmission cleaner and fluid exchanger can complete the flush and fluid exchange very quickly on a transmission, torque converter and radiator. The fluid exchange rate is nearly 100%
Features:

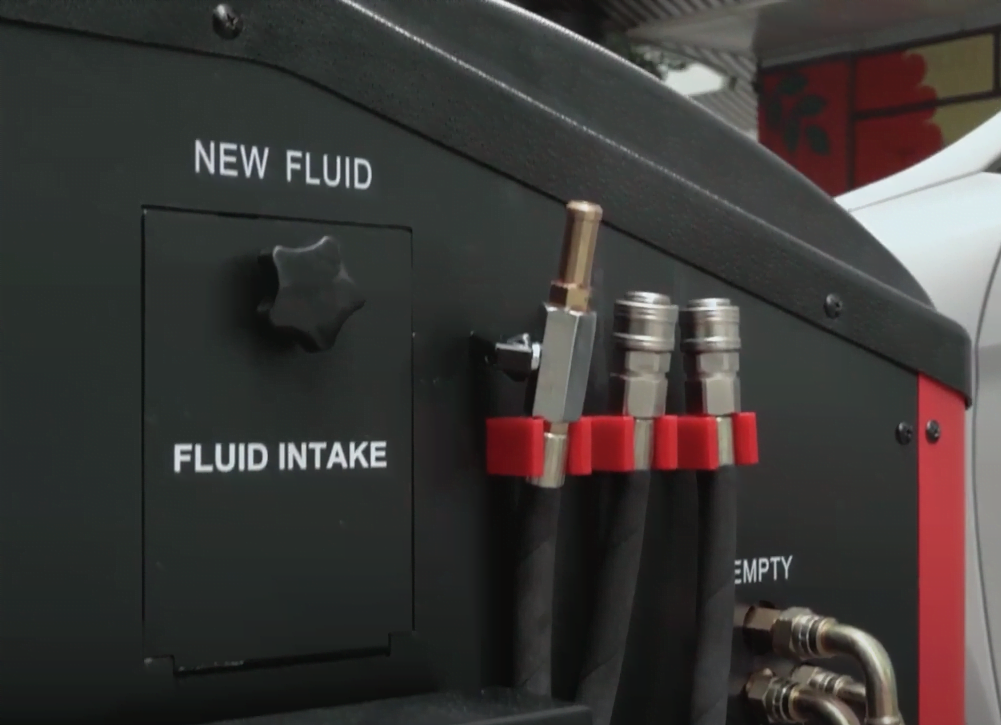

- Filling and recycling of automatic transmission fluid
- Automatic identification for the fluid flow inlet/outlet direction
- Circulating cleaning for automatic transmission
- Automatic exchange of new/used fluid

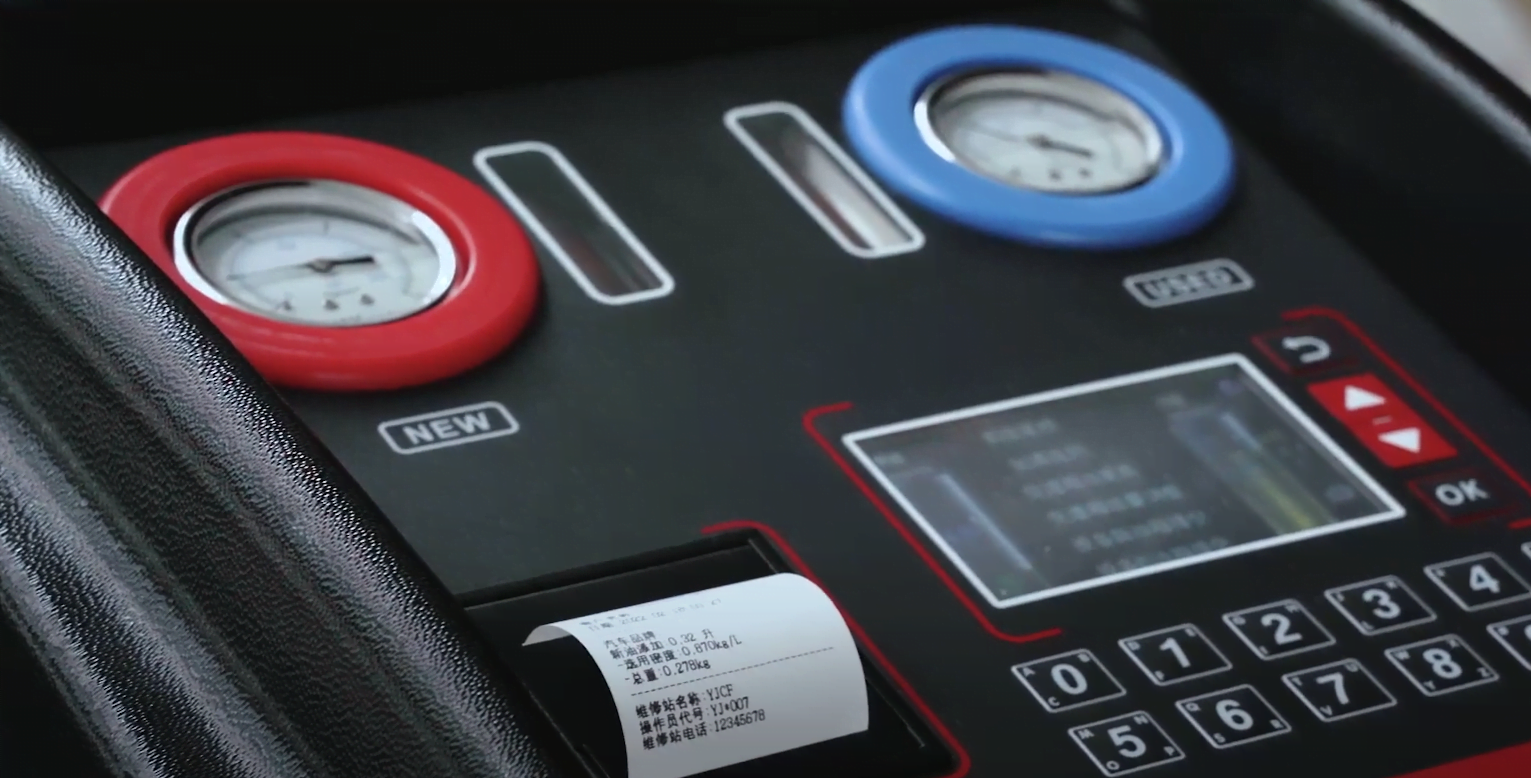

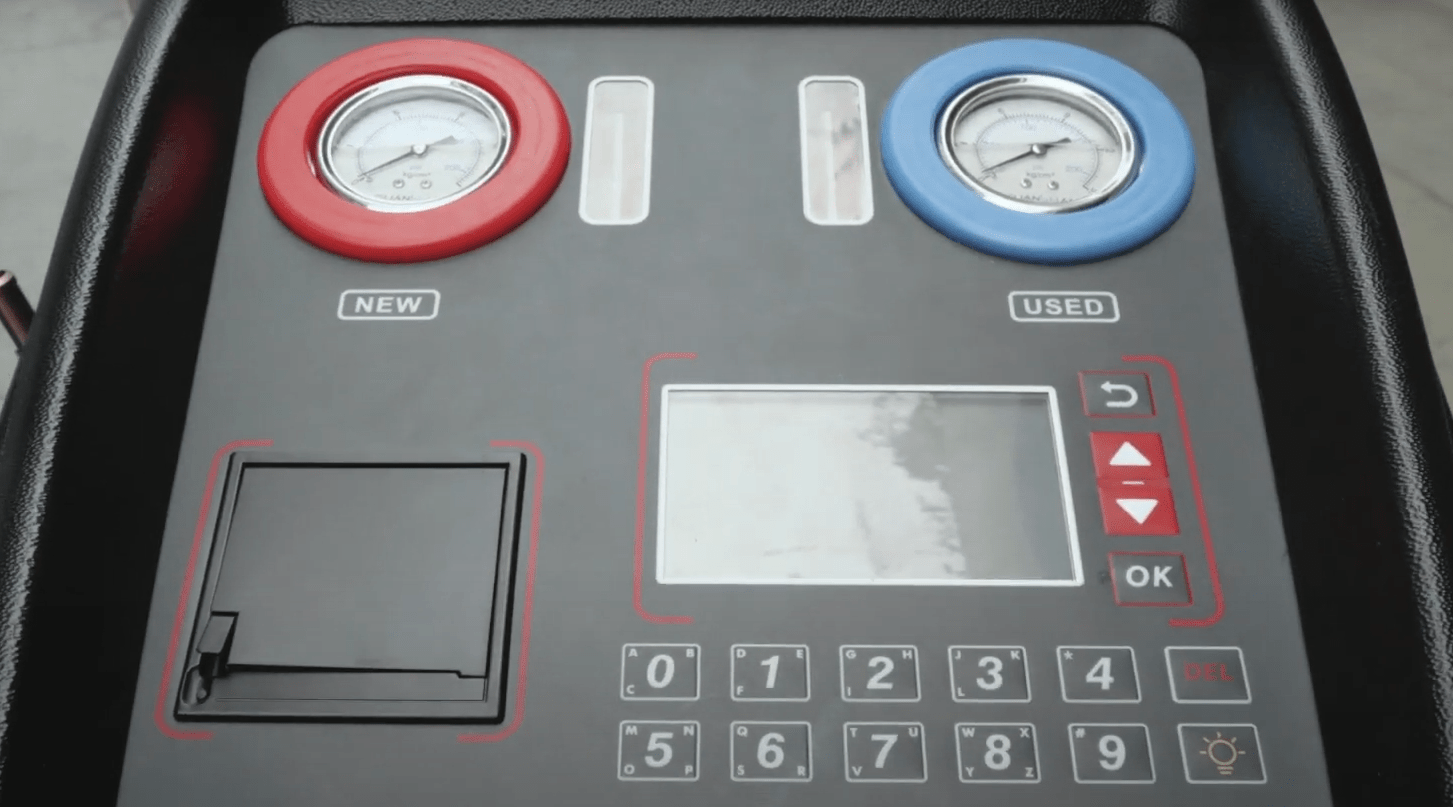

- Visual display of the fluid pressures
- Accurately display of the automatic transmission fluid temperature
- Intelligent electronic control for the full automatic equivalent exchange of new and used fluid
- Easy for detergent filling

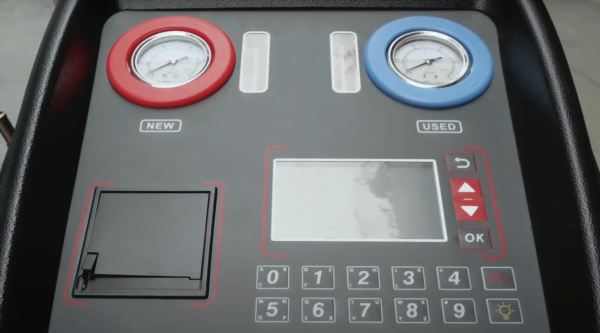

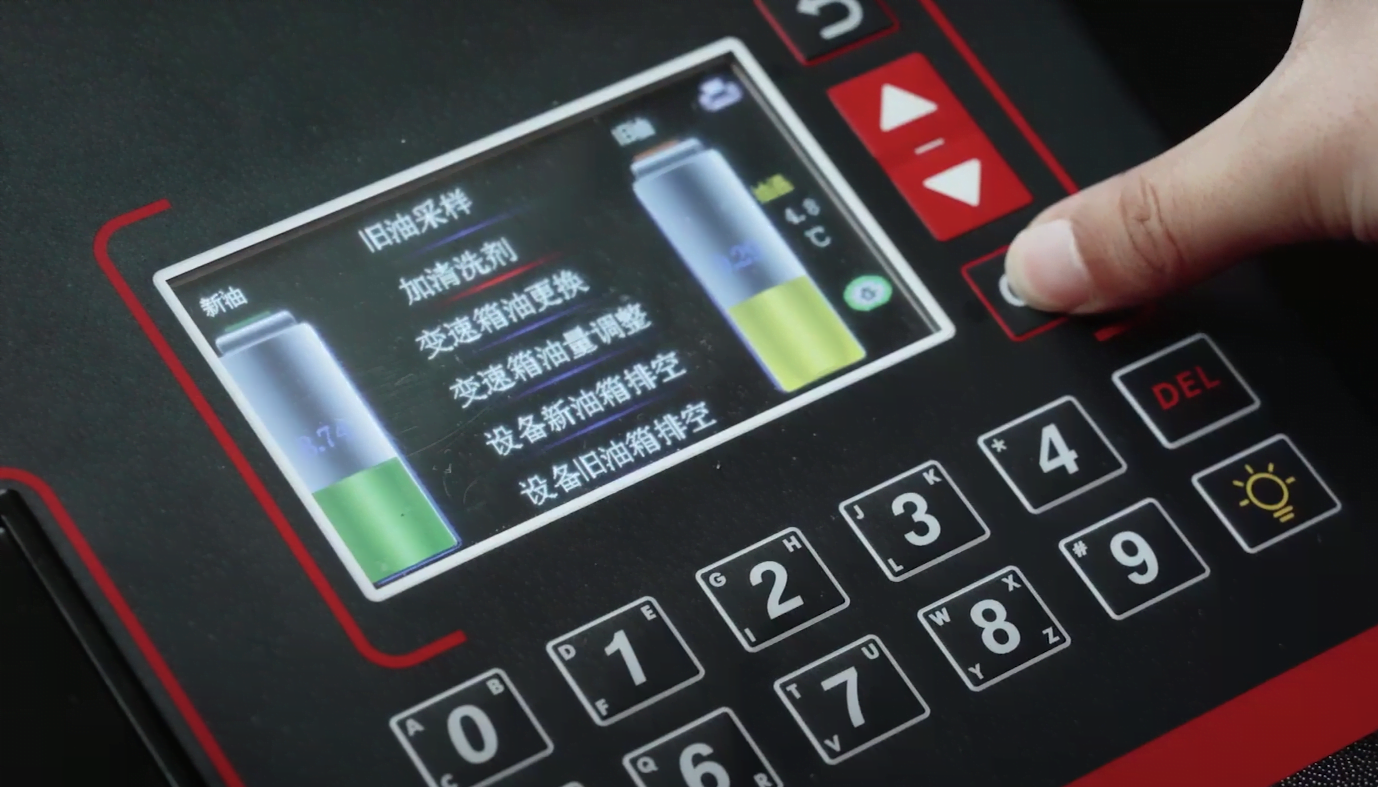

- LCD display
- Multiple language options
- 1 Years Manufacturers Warranty
Specifications:
- Power Supply: AC220±10%~50Hz/60Hz AC110±10%~60Hz
- Pump Power: 150W
- Exchange error range; ±100ml
- Pump Efficiency: 2L/min

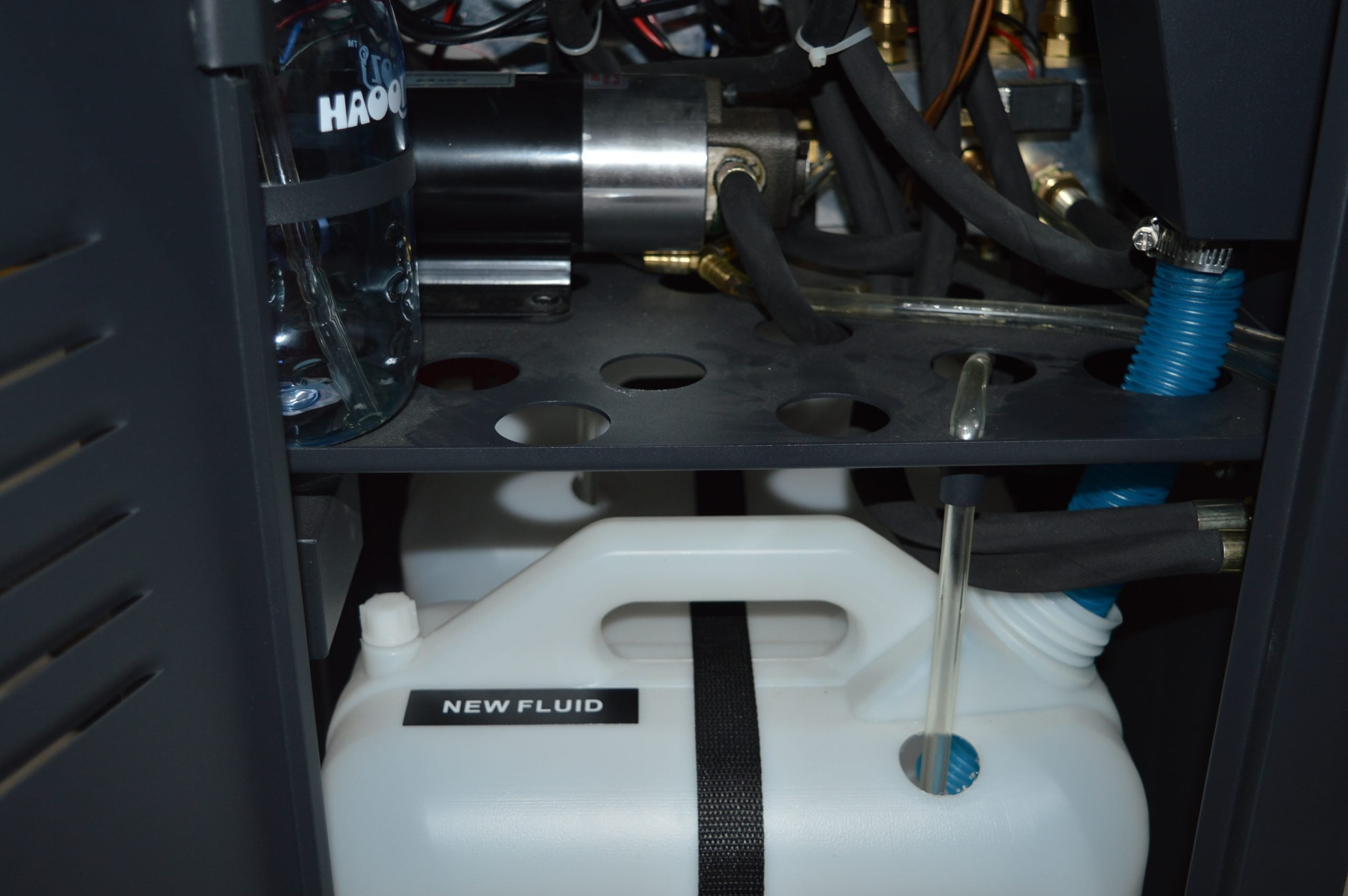

- Oil Tank Volume: 20L
- Detergent Tank Volume: 1000ml
- Temperature Sensitivity: ±1℃

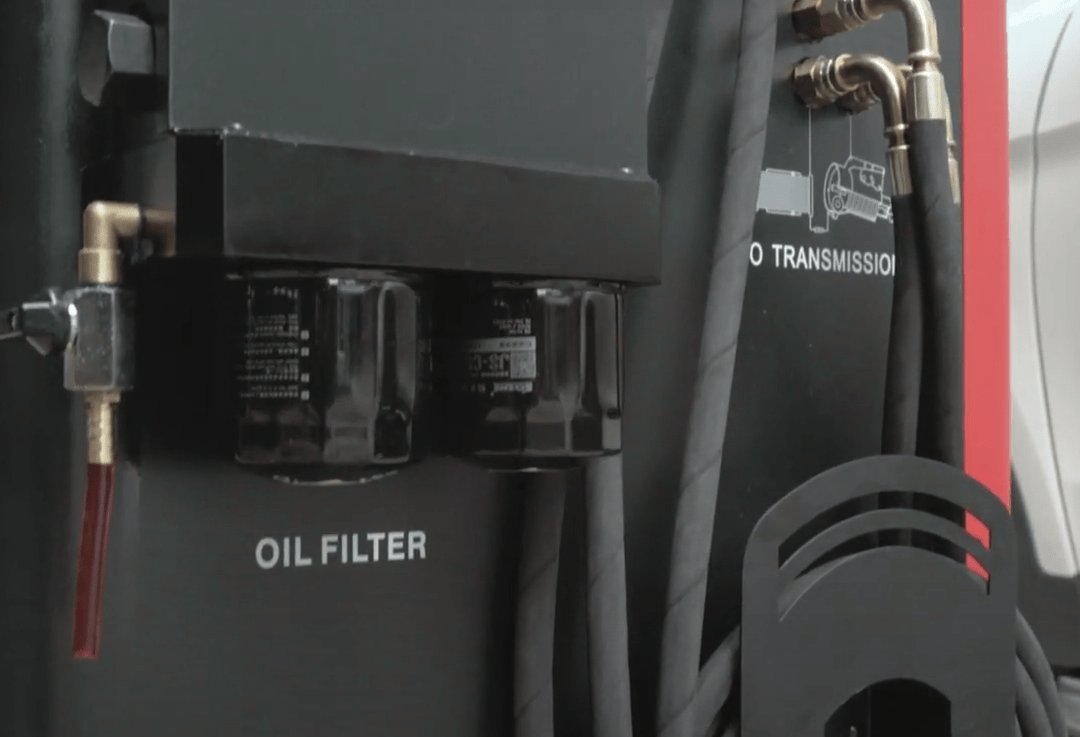

- Filter precision: 5μ
- Noise: <70db
- Working Temperature: -10~50℃
- Relative Humidity: <85%
- Pressure gauge: 0-150psi
- Fluid outlet hose: 2.5m
- Fluid return hose: 2.5m
- Fluid draining hose: 1.2m
- Filter life span: About 1 year if only being used once daily
- Size: 588 x 672 x 1024m

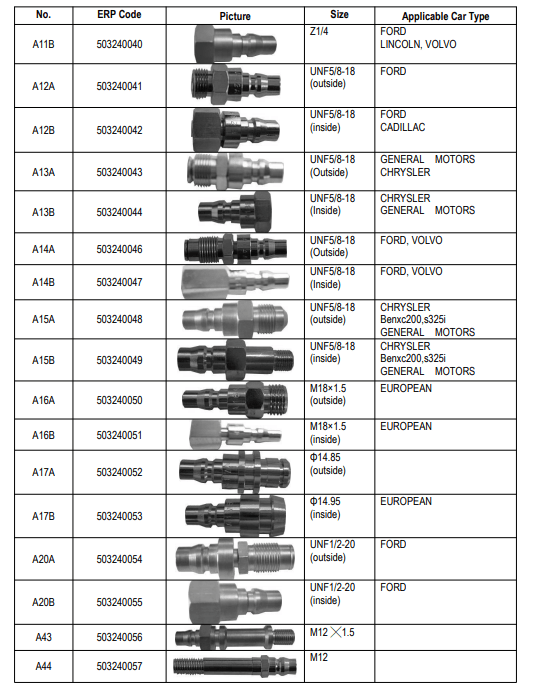

Included Adapters:
Options:
- GEA IDEA Online Information Package For Auto Transmission Maintenance, 1 Year Subscription, click here for details
- Various adaptors and or sets
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All SmartSafe/Launch ATF machines come with 1 years manufacturers warranty.
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and where possible a loaner unit will be left with the user until the unit is delivered back.
We aim to keep the customer up and running and will either have the issue fixed or if possible a loaner unit delivered to the customer within 48 hours (Monday to Friday)
The 2 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 2 year warranty are
Hoses and vehicle connection couplings
Service parts (filters,etc)
Scales calibrations (if knocked out of calibration due to mishandling)
Database updates
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, incorrect fluids, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop ready to work and spend 2 hours onsite providing training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
