SmartSafe/Launch iSmartADAS PRO+ Premium Kit
SmartSafe/Launch iSmartADAS PRO+ Premium Kit Originally €13950+ VAT, On Sale At €12950+ VAT
This is the same unit as the Launch X-431 ADAS PRO+ Premium and it can be used with the following brands of diagnostics tools that have the ADAS coverage, SmartSafe or Launch,
Vehicle manufacturers and the European Union are investing with the goal of making mobility both sustainable and safer. One of the first steps towards safety and autonomous driving is the implementation of advanced driver assistance systems (ADAS), which today are no longer reserved for high-end cars, but are increasingly present in small city vehicles, every day saloons, hatchbacks, sport utility vehicles and light commercial vehicles too.
Since July 2022 in Europe new vehicle designs have to incorporate some ADAS systems like automatic emergency braking (AEB) and lane keeping assistance (LKA). With this now being a requirement for new designs this means this type of technology is only going to keep growing in the coming years. The increase of these systems means that diagnostic, checking and calibration equipment for ADAS will become indispensable in the car repair sector.
Here is a list of some of the systems that can be fitted on today’s vehicles,
- ACC – ADAPTIVE CRUISE CONTROL
- ANV – AUTOMOTIVE NIGHT VISION
- AEB – AUTONOMOUS EMERGENCY BRAKING
- BSD – BLIND SPOT DETECTION, BSM – BLIND SPOT MONITORING, BSW – BLIND SPOT WARNING
- CDW – COLLISION DETECTION WARNING
- DDW – DROWSY DRIVER WARNING, DFW – DRIVER FATIGUE WARNING, DDD – DRIVER DROWSINESS DETECTION,
DMS – DRIVER MONITORING SYSTEM
- FCW – FORWARD COLLISION WARNING, FCWS – FORWARD COLLISION WARNING SYSTEM, FCA – FORWARD COLLISION AVOIDANCE
- LDW – LANE DEPARTURE WARNING, LDWS – LANE DEPARTURE WARNING SYSTEM
- LKA – LANE KEEPING ASSIST
- PD – PEDESTRIAN DETECTION, PDS – PEDESTRIAN DETECTION SYSTEM
- TLR – TRAFFIC LIGHT RECOGNITION
- And many more
As a comprehensive and flexible calibration tool, the iSmartADAS PRO+ calibration tool enables you to effectively and accurately calibrate various types of cameras, radars and lidars driving assistance systems, such as the front for lane departure warning system, radar sensors for adaptive cruise control and much more.
The premium kit includes all currently available panels for calibrating forward facing cameras for LDW lane departure warning system etc
And also includes radar targets, RCW and AVM (around view monitoring) targets
There is some other optional targets that are not included in the set, see list of other optional targets at the bottom of the page
The SmartSafe iSmartADAS PRO+ Premium Kit is very workshop friendly, we understand space can be limited in garages and a fixed structure can effect the day to day running of a workshop, with that said the iSmartADAS PRO+ main frame is connected to a base with 4 wheels allowing you to easily move it around your garage, saving you space and time.
Below are some examples of why you would need to carry out the checking/calibration on these systems:
- If the vehicle has been in an crash and needs a replacement radar or cameras
- The windscreen has been replaced and it has a camera mounted on it
- If the vehicle had suspension repairs and or wheels alignment
- If a system has lost its calibration
- When replacing faulty units
- When any of the ADAS systems are not working correctly
- If cameras or radar unit had to be removed to gain access to other components
- If distance measurement to the car ahead is incorrect
Contents of the premium kit:
- Main frame
- Tablet support unit
- Cross member
- Central distance measurement bracket
- Laser range finder for distance x 3
- LDW target holder
- Laser range finder for height
- Central Laser – LAC09-02
- Wheel clamp unit x 2
- Ranging panel LAC09-01
- Ground marker ADASGM
- Auxiliary mirror LAM09-04
- Laser reflector LAM09-03
- Plumb bob LAM09-06
- Five Line Laser
- Power adapter
- ADAS activation card, to activate the ADAS function on compatible diagnostic tool models in the following brands SmartSafe or Launch,
- User Manual
- VW – LDW LAM 01-02
- Mercedes – LDW LAM 01-01
- Honda – LDW LAM01-04-L
- Honda – LDW LAM01-04-R
- Toyota – LDW LAM01-06-1
- Toyota – LDW LAM01-06-2
- Toyota – LDW LAM01-06-3
- Nissan – LDW LAM01-07-L
- Nissan – LDW LAM01-07-R
- Hyundai/Kia – LDW LAM01-09
- Mazda – LDW LAM01-10
- Alfa Romeo – LDW LAM01-11
- Nissan/Renault – LDW LAM01-12-L
- Nissan/Renault – LDW LAM01-12-R
- Hyundai/Kia – LDW LAC01-13
- Subaru -LDW LAM01-15
- Mazda – LDW LAM01-16-L
- Mazda – LDW LAM01-16-R
- Honda – LDW LAM01-17
- Suzuki -LDW LAM01-18-L
- Suzuki – LDW LAM01-18-R
- Mitsubishi – LDW LAM01-19-L
- Mitsubishi – LDW LAM01-19-R
- Honda – LDW LAM01-20
- Subaru – LDW LAM01-21
- Sprinter – LDW LAM01-23-L
- Sprinter – LDW LAM01-23-R
- Suzuki – LDW LAM01-25
- Target extension rod 1 LAM09-08
- Target extension rod 2 LAM09-09
When you see L or R at the end of the above part numbers it means the target is in 2 parts left and right for example
Sprinter – LDW LAM01-23-L and Sprinter – LDW LAM01-23-R is a left and right boards for doing the front camera on a Mercedes sprinter
And for one Toyota type the part numbers ends in 1, 2 and 3, Toyota – LDW LAM01-06-1, Toyota – LDW LAM01-06-2, Toyota – LDW LAM01-06-3 these 3 part numbers is for one type of vehicle,
The reason SmartSafe split some of the boards into 2 boards when possible is to save space and issues handling and transporting the boards
So the above board package has board combinations for 19 different vehicles

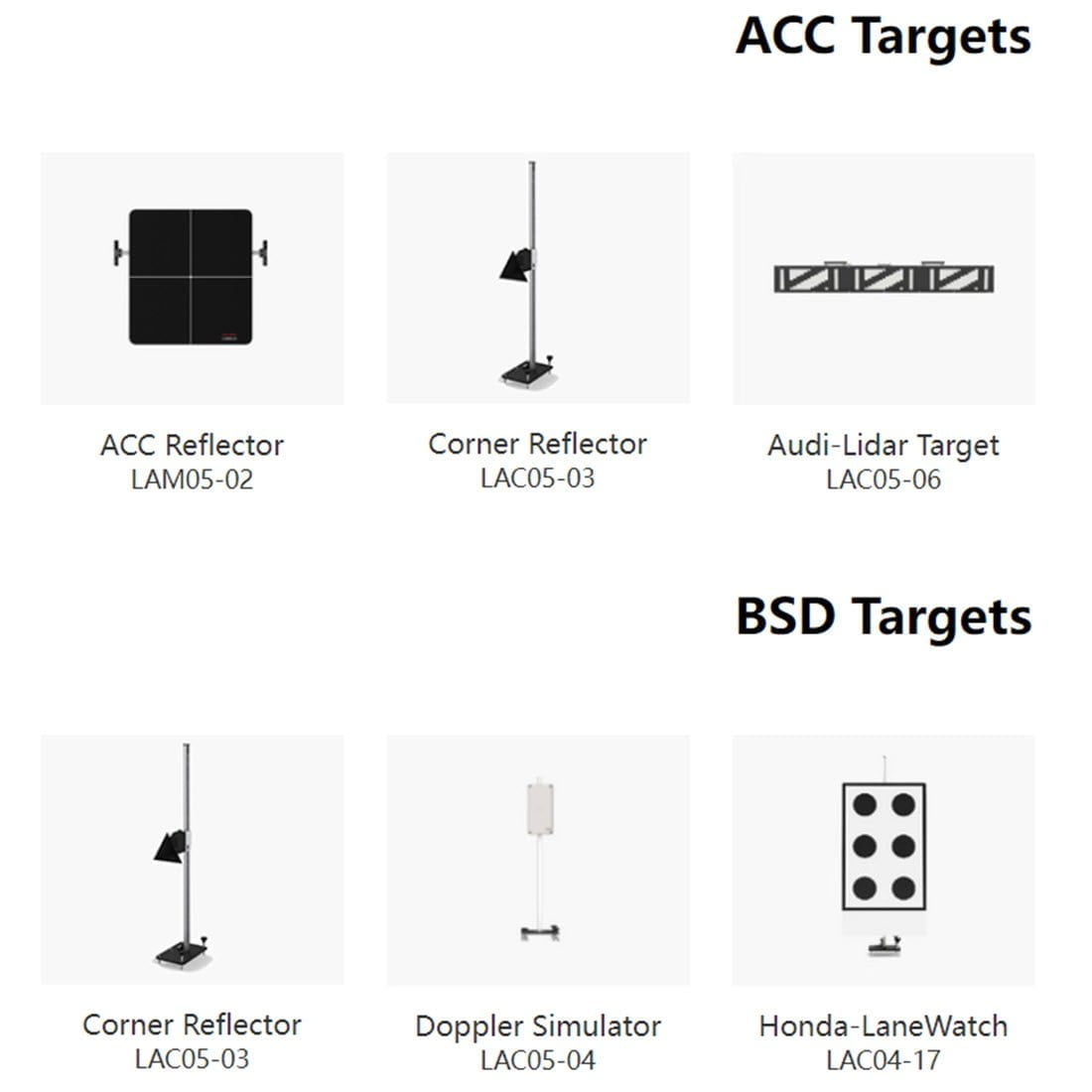

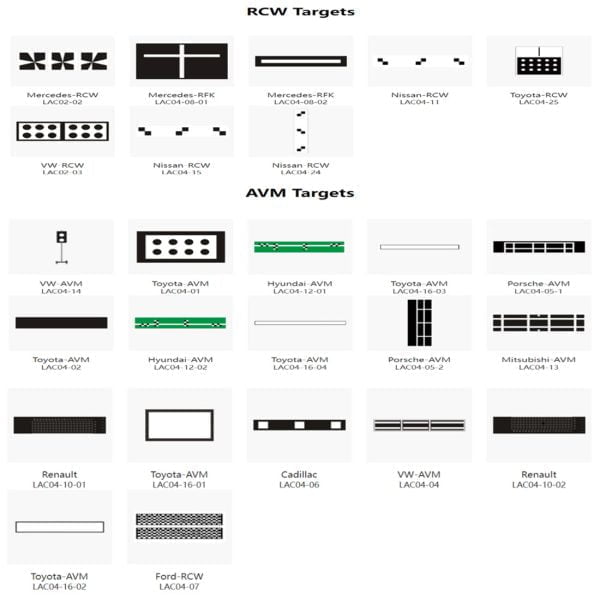

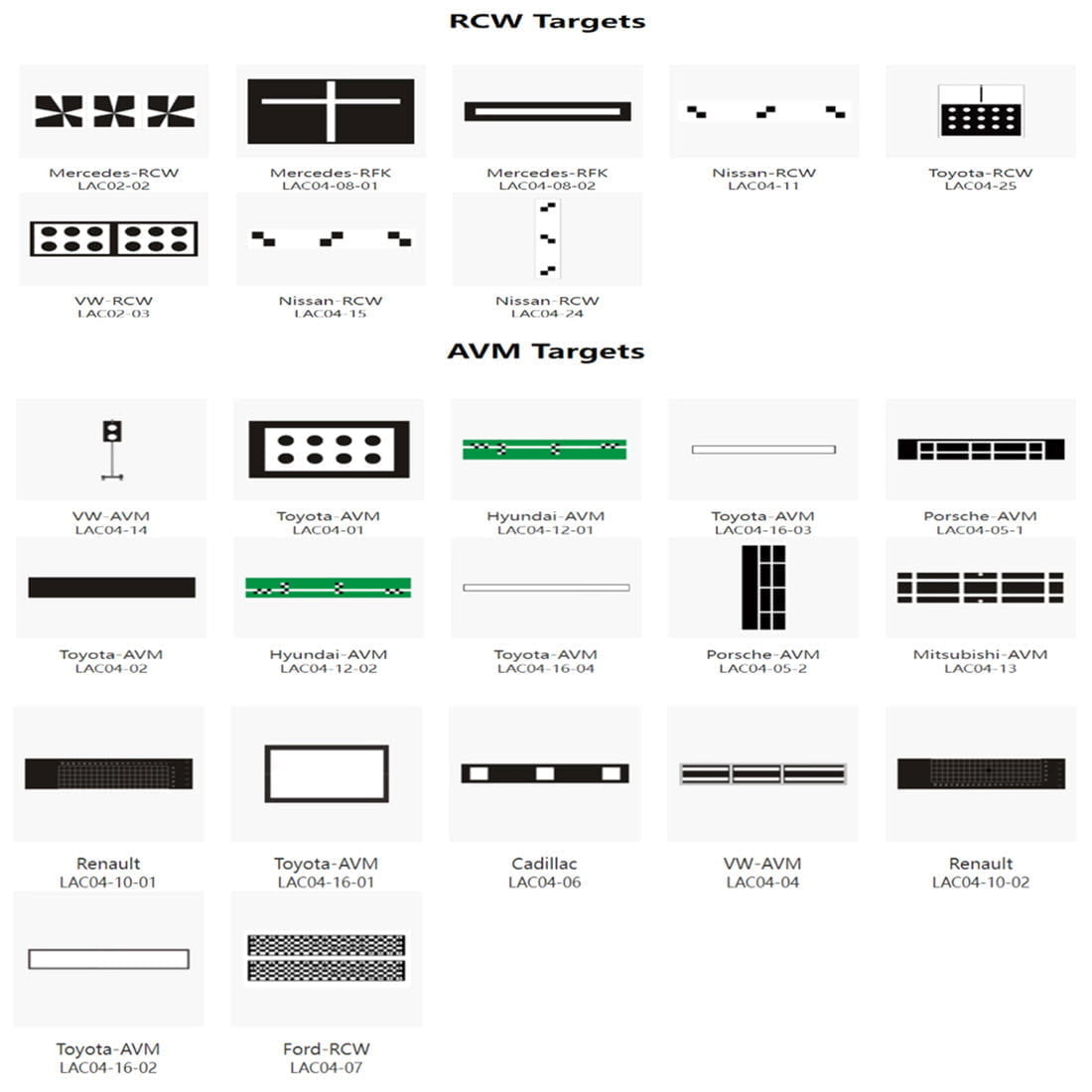

And this premium kit also includes all of these Radar, Lidar, RCM and AVM targets:
- ACC mounting plate LAM09-03
- ACC reflector LAM05-02,
- Corner reflector LAC05-03
- Doppler simulator LAC05-04
- Lidar target-VW/Audi LAC05-06
- Honda – AVM LAC04-01
- Honda – AVM LAC04-02
- Nissan – RCW LAC04-11
- Hyundai – AVM LAC04-12-01
- Hyundai – AVM LAC04-12-02
- Mitsubishi – AVM LAC04-13
- Nissan – RCW LAC04-15
- Toyota – AVM LAC04-16-1
- Toyota – AVM LAC04-16-2
- Toyota – AVM LAC04-16-3
- Toyota – AVM LAC04-16-4
- Honda – lane watch LAC04-17
- Nissan – RCW LAC04-24
- Toyota – RCW LAC04-25
- Cadillac – AVM LAC04-06
- Ford – AVM LAC04-07
- Mercedes – RCW LAC02-02
- VW – RCW LAC02-03
- VW- AVM LAC04-04
- Mercedes – RFK LAC04-08-01
- Mercedes – RFK LAC04-08-02
- Renault – AVM LAC04-10-01
- Renault – AVM LAC04-10-02
- VW – AVM LAC04-14
- Porsche – AVM LAC04-05-1
- Porsche – AVM LAC04-05-2
The above package also includes:
- Delivery
- Set up
- On site Training
Other optional targets:
Other options:
Thinking about purchasing ADAS calibration equipment?, give us a call, we can now give live demonstrations of this unit at our premises.
And we use this equipment in our own workshops so are in a ideal position to support and back up this product,
Only logged in customers who have purchased this product may leave a review.
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
The SmartSafe iSmartADAS PRO+ Premium Kit comes with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit (subject to availability) delivered to the customer within 72 hours (Monday to Friday)
The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 1 year warranty are
Machine calibrations (if knocked out of calibration due to mishandling)
Database updates
Problems with the diagnostic tool caused by virus and other software’s installed that are causing problems,
Damage to any of the components caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop and Install/set up the unit and once set up will provide 6 hours onsite training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
