Sale!

iSmartLink ST08 Diagnostic Tool With 3 Years Updates

SmartSafe/Launch iSmartLink ST08 Diagnostic Tool With 3 Years Updates

Original price was: €795.00.Current price is: €695.00. ex. VAT

Available on back-order

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

SmartSafe/Launch iSmartLink ST08 Diagnostic Tool With 3 Years Updates
Also know as the  iSmartLink 801

Your budget option for a full diagnostic tool

Features:

  • Excellent all round vehicle coverage: covering over 100 US, Asian and European brands
  • Near OE-Level Diagnostics: Includes all you normal diagnostic functions including special functions like adaptions resets etc for a huge range of makes and models,
  • Special functions/adaptions: huge range of special functions/adaptions for many makes and models, supports special functions such as immobilizer and key coding, injector coding, reset brake bleed, reset TPMS, electronic throttle relearn, reset DPF, reset SAS, reset Oil, reset brakes, reset BMS etc for a huge range of vehicles
  • Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.
  • Live data: Numerical and graphing functions and also searchable
  • Maintenance Service: Oil Reset • EPB Reset • SAS Service • ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Service • DPF Regeneration • Throttle Matching • Gearbox Matching • AFS Reset • Sunroof Initialization • Suspension Calibration • EGR Adaption, etc, 26 functions available in total, and still expanding.
  • Online Coding: ST08 supports online coding for BENZ, BMW, PORSCHE, VW, AUDI, SEAT for some systems and models. This helps to match and code new ECUs after a replacement, or to unlock the hidden functions (also know as Retrofits and Conversions) bringing more possibilities to your car.
    (for coding it does a huge range of systems and models in the above brands but we don’t claim all)
  • AutoScan: In many cases all you have to do is select the brand and then the tool will auto id the rest of the vehicle details
  • System topology diagram: The network topology diagram shows the networks and control units in a diagram which is very useful for us to understand how the different networks and systems are connected and when you do a full system scan we can see at a glance a overview of all the available systems and there status (this feature is new and is being added to many makes and models as updates go by)
  • SGW security gate way: Optional FCA SGW yearly subscription provides SGW unlock for FCA vehicles (Abarth, Chrysler, Dodge, Jeep, Alfa Romeo, Maserati, Ram trucks, Lancia and Fiat)
    Optional Renault SGW token activations provides SGW unlock for Renault and Dacia
    VAG group SGW unlock available in conjunction with 3rd party providers on pay as needed basis (full VAG SGW unlock coming soon)
    SGW unlock for other brands coming soon
  • Multilingual menu support: Chinese Simplified, Chinese Traditional, English, Japanese, Korea, French, Spanish, Portuguese, Italian, Russian, Deutsch, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Farsi, Finnish, Hungarian, Swedish, Turkish, Serbian.
  • Compatible with: SmartSafe/Launch ADAS calibration equipment which can be found here
  • Compatible with: SmartSafe/Launch CAT-601 ATF machine and also the Immo G3 programming tool
  • Printing/share: Pint diagnostical reports via WIFI to a WIFI printer

Specifications

Tool:

  • CPU: 4Core 1.8GHz
  • System: Android 10
  • Memory: 4 GB
  • Storage: 64 GB
  • Display: 8 inch
  • Resolution: 1280*800
  • Battery capacity: 6300mAh/7.6V
  • Camera: 8MP
  • Wi-Fi: 2.4GHz/5GHz
  • Working temperature: 0~50℃
  • Storage temperature: -10~60℃

VCI:

  • Working voltage: 12V
  • Working current: ≤60 mA
  • Input voltage: 9~18V DC
  • Communication: BT, USB
  • Working temperature: 0-50℃
  • Storage temperature: -10~60℃

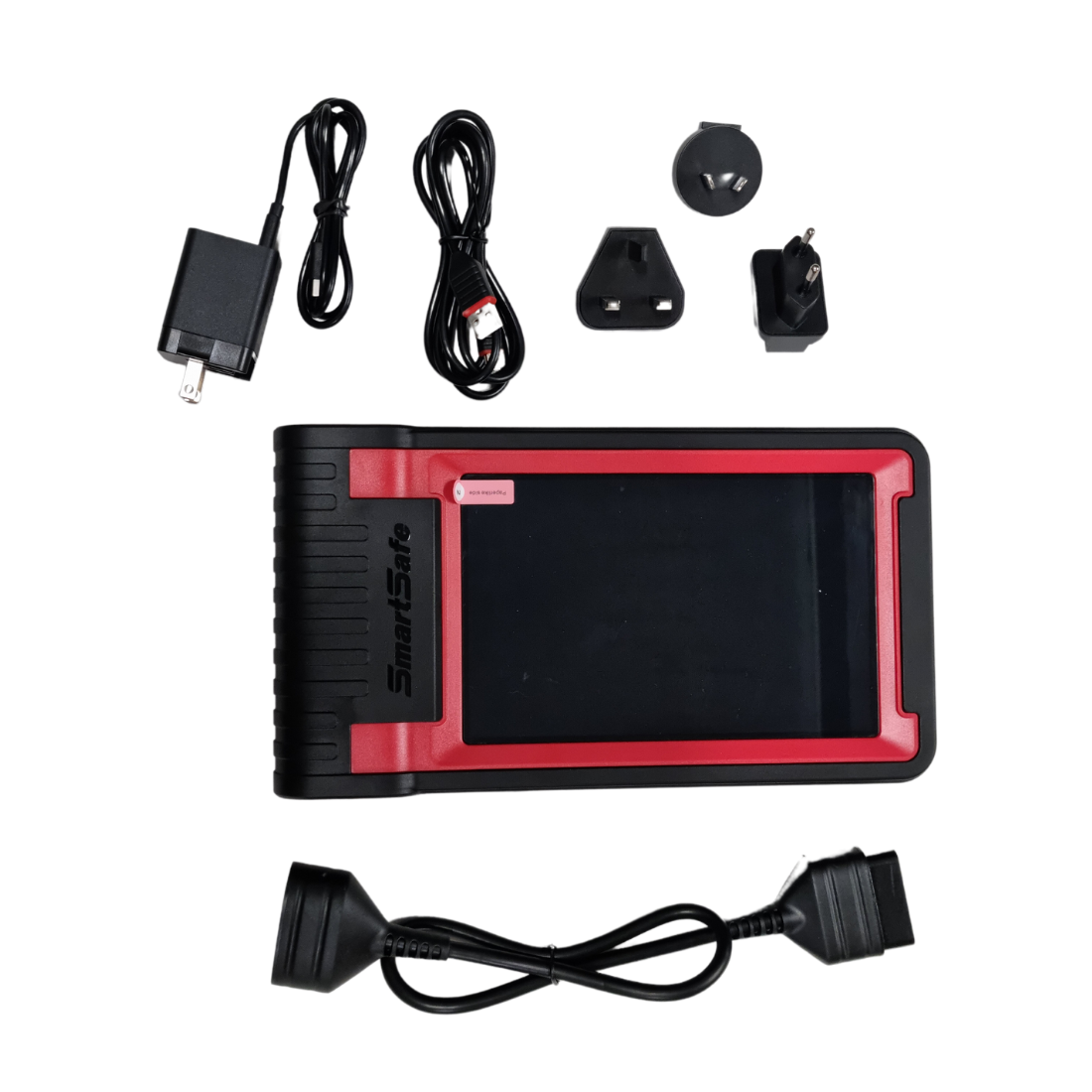

What’s in the box?

  • Tablet
  • VCI Dongle
  • OBD II Extension Cable
  • Data Cable (Type A-Mini B)
  • Charging Cable (Type-C)
  • Power Adaptor
  • Password Envelope

Options:

Product Specifications

Weight 5.2 kg
Dimensions 53 × 46 × 23 cm

User Manual

The below videos show the ST08 (formally know as the 801) being used with the Smartsafe ADAS equipment
to calibrate ADAS systems, Note for the ADAS software to be activated on the ST08 you must purchase a ADAS activation card of when you purchase a ADAS system the activation card comes with the ADAS system

    If you want to ask a pre-sale question about this product, please feel free to use the form below.

    Your First Name (required)

    Your Phone (required)

    Your Last Name (required)

    Your Email (required)

    Your Question

    General
    We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
    As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
    We are also in a great position to support these products as we use them every day in our own workshop,
    Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
    All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.

    Warranty
    All SmartSafe diagnostic tools come with 1 year warranty
    And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
    We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).

    Items excluded from the 1 year warranty are
    Cables and OBD connections,
    Problems caused by other APPS or other software’s that the user installs on the device
    Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorized modifications.

    Delivery and Training
    Ryan’s Automotive or a courier will deliver the unit to your workshop registered and updated and ready to work,
    And spend 1 hours onsite (or if not possible to call onsite can provide training over team viewer and phone) providing training on use of the machine.
    We also can provide extra chargeable training if required.

    Support
    Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use).
    We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
    Additional support packages are required for vehicle technical support.

    Not included in the support
    Technical information that is found on systems like Autodata, Alldata etc,
    The above support does not include vehicle technical support but we are always willing to help customers were we can.

    Repairs not covered by the warranty and after the warranty period
    For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
    1 Log into the unit via team viewer
    2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
    3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
    4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
    5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
    6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)
