Product Description

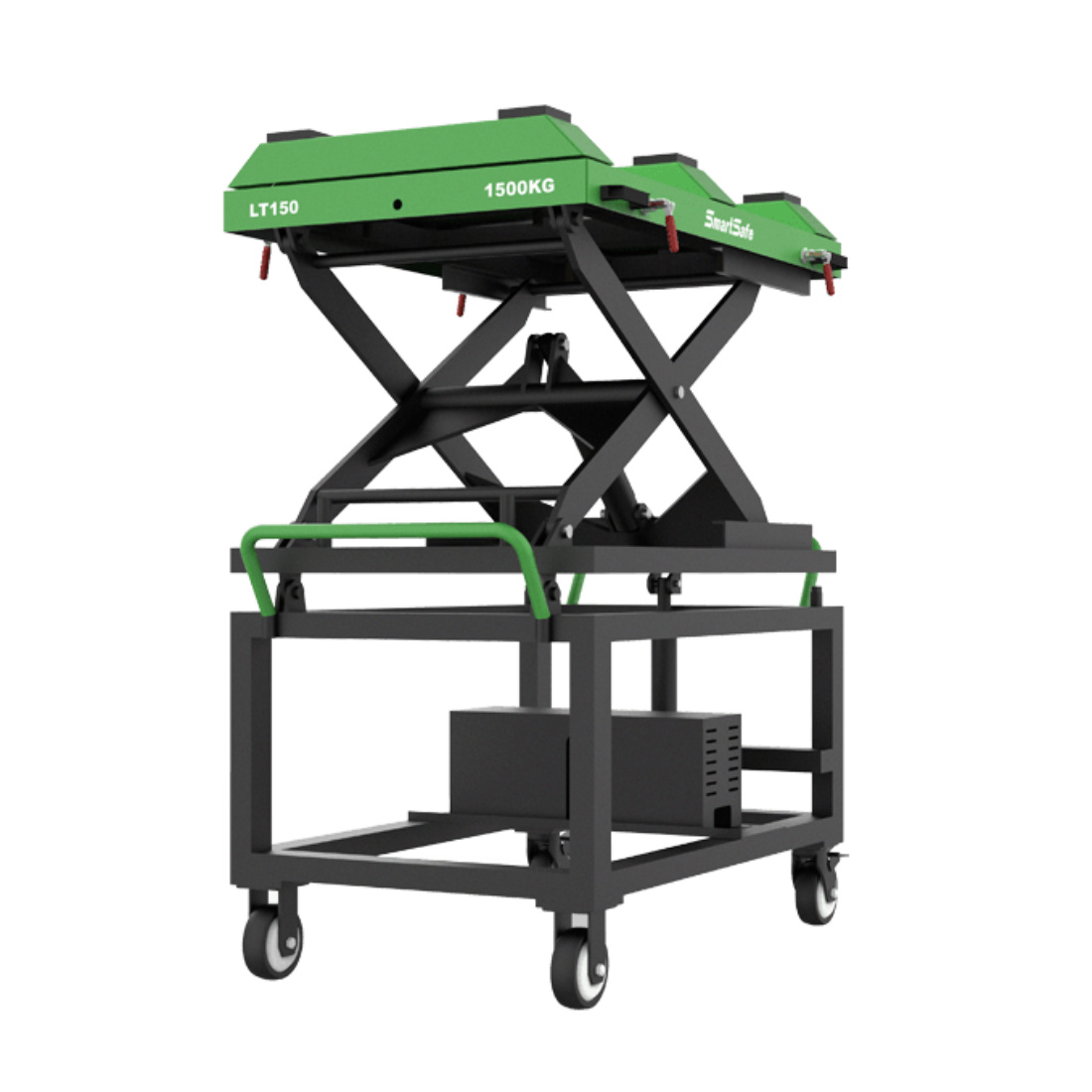

SmartSafe/Launch LT150 EV Battery Lift
A professional electrical vehicle battery pack disassembly and assembly machine, and can quickly and safely complete the battery pack disassembly and assembly from the bottom of the vehicle, and move and repair positions. Equipped with heavy 360 universal mobile casters to move or lock in place, and equipped with pressure insulation protective pads to protect the safety of maintenance personnel.
Features
- With a rated lifting capacity of up to 1.5T, it meets the needs for most electrical vehicle battery disassembly and installation in the market.
- Utilizing laser materials and robot welding to ensure high precision and quality.
- Powered by an asynchronous AC motor, the hydraulic gear pump drives the cylinder with the assistance of balancing support bars, ensuring smooth lifting and lowering.
- Equipped with heavy duty 360 degree swivel caters for easy mobility.
- The platform surface is fitted with rubber insulation pads to prevent maintenance personnel from coming into contact with electricity.
- This model has a movable table, which is convenient for screw alignment during battery installation, and can be adjusted within a range of 40mm from front to back, left and right.
- This model can also tilt by 4 degrees
Products Parameters
Voltage | AC90~264V/40~60Hz | Platform Width | 800mm |
Operating Voltage | 220V | Platform Length | 1260mm |
Power | 0.75KW | Tilt Angle | 4° |
Rated Lifting Weight | 1500kg | Ascending Time | 18s |
Minimum Height | 1100mm | Descending Time | 11s(descending speed adjustable) |
Maximum Height | 1850mm | Demensions | 1500x800x1100mm |
