Product Description

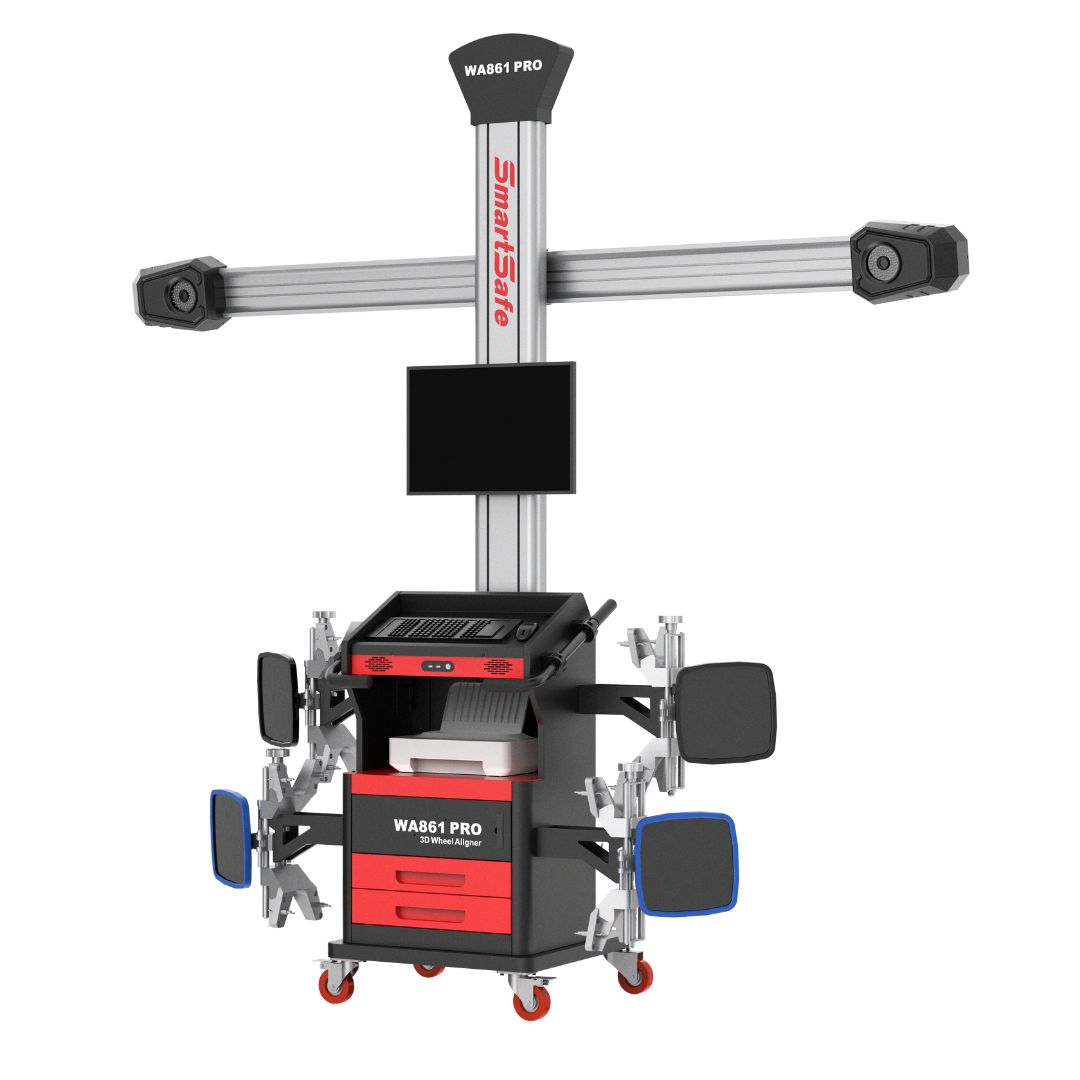

SmartSafe/Launch iSmart4WA X-861 Pro 3D Wheel Aligner (Also known as WA861 PRO)
Making four wheel alignment faster, more accurate and more labour saving.
The X-861 Pro 3D wheel aligner is an intelligent 3D four wheel aligner that can collect wheel alignment data at ultra high speeds and high precision from the vehicle.
Features:
- Superfast transmission speed throughout 5Gbps bandwidth and USB3.0 enables you to delivers the image fast.
- Wide angle of view on better performance 5MP camera, make it easy on large cars.
- Automatically adjust the height of camera beam electrically to follow the vehicle on the lift
- HD Camera lens with temperature compensation function,
- Simpler alignment procedure with LED indicator and computer voices reminder.
- Start to use in seconds, no more tedious work of pre-calibration.
- Body & Chassis and tire diameter measurement.
- Built for improving productivity by movable cabinet and beam.
- Broadest application with big scissor lift, On the floor, four-post lift, pit, small scissor list, two-post lift. (Alignment on 2 post and small scissor lifts is done it the wheel free mode which by some is not recommended)
- 50000 + global vehicle model database
- 8 to 12 cm rolling compensation, saving time and effort
- The whole machine is movable and can be shared by multiple stations, which improves the space utilization rate of the repair shop
- Supports standard measurement and quick measurement, can measure key parameters such as toe-in, camber, caster angle, kingpin inclination, thrust angle, etc, supports wheelbase, wheelspan, and axle deviation.additional measurements such as shift, wheel offset, diagonal, center offset, etc
- Support measurement report saving and printing
Standard equipment: Includes everything needed to start doing alignment
- Cabinet
- Beam and cameras
- Auto tracking post
- Wheel targets including clamps, 4 pieces
- Turn tables
- Steering wheel holder, 1 piece
- Brake pedal depressor, 1 piece
- Operators manual, 1 piece
- Computer with windows installed
- Computer monitor
- Computer mouse
- LED display
- Printer
The above packages includes: (included for Ireland, for outside of Ireland please enquire)
- Delivery
- Set up
- On site Training
Technical Specifications:
- Power Supply: AC 1PH AC220V±10% 50Hz AC110v±10% 60HZ
- Monitor: 32 inch colour monitor
- High spec PC with windows 10 operating system
Surrounding Requirements:
- Ambient temperature: -30°C~+55°C
- Relative humidity: ≤85%
- Light condition: No direct infrared light to the targets
- Lift platform height difference: front/end height difference < 6mm
- The aligner has to be within 1.5 to 2.8 meters from the front axle, so this would need to be considered for the space in front of your lift or pit
Measuring Range:
Optional extras:
Please contact us for more information or to arrange a demo
Only logged in customers who have purchased this product may leave a review.
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All SmartSafe wheel aligners come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit (subject to availability) delivered to the customer within 72 hours (Monday to Friday)
The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 1 year warranty are
Machine calibrations (if knocked out of calibration due to mishandling)
Database updates
Problems with the PC caused by virus and other software’s installed that are causing problems,
Damage to any of the components caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop and Install/set up the unit and once set up will provide 4 hours onsite training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs and Calibrations not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance and calibrations that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
