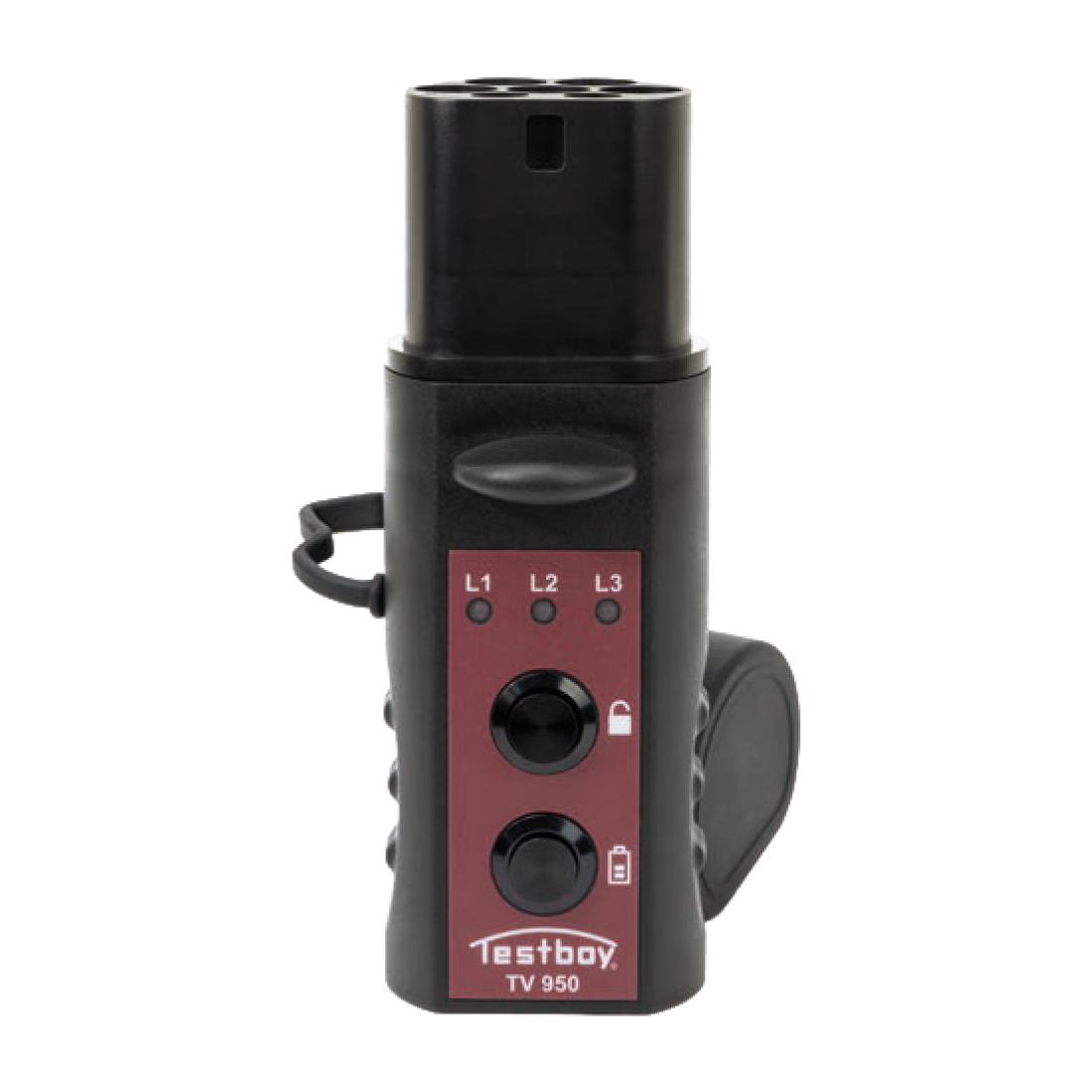

TESTBOY TV 950 EV Wallbox tester

Product Description

TESTBOY TV 950 EV Wallbox tester

The Testboy TV 950 is an EVSE (Electric vehicle supply equipment) charging station tester that checks the most important functions of the charging station in no time to ensure safe charging. This quick tester simulates a vehicle that is ready to charge, checks the plug locking and also shows the current phases via an LED display.

Features:

• Checking the functionality of TYP-2 charging stations/wallboxes/portable chargers/granny cables
• Power supply via TYPE-2 socket
• Phase display via 3 LEDs
• Simulation of vehicle states A, B & C
• Can be used on all common wall boxes with and without a permanently connected cable and portable chargers/granny cables

Specifications:

• Advertisement: 3 LEDs for phase display (L1, L2, L3)
• Power supply: EVSE charging station, mains voltage
• Dimensions: 165x58x51mm
• Weight: 330g
