Timing Tools For, 1.0, 1.2, 1.4 & 1.5 TSI VAG Group Petrol Engines

Product Description

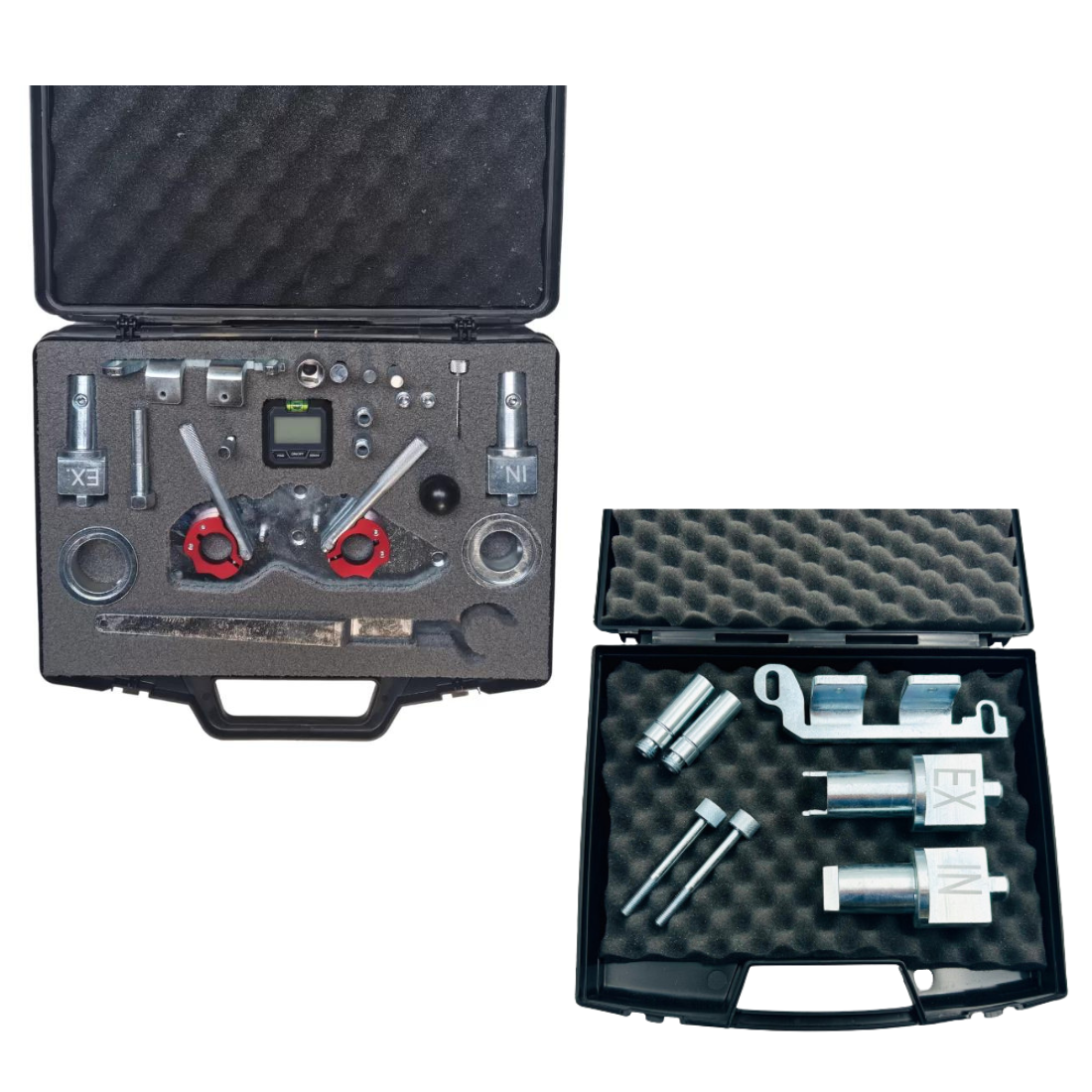

Timing Tools For, 1.0, 1.2, 1.4 & 1.5 TSI VAG Group Petrol Engines

This timing tool uses a battery-powered digital inclinometer in conjunction with precision-made adapters and alignment tools to ensure camshafts are set to the manufacturer’s specifications.

This kit has been designed to give the user the ability to set and check the engine timing of Volkswagen EA 211 Group 4-cylinder 1.5 TSI petrol engines without the need for electronic angle gauges and a laptop.

Application Vehicles:

AUDI: A1 FROM 2018, A3 FROM 2017, Q2 FROM 2018, Q3 FROM 2018.

SEAT: ARONA 2017 TO 2021, ATECA FROM 2016, IBIZA 2013 TO 2021, LEON FROM 2012, TARRACO FROM 2019, MII 2012 – 2020, TOLEDO 2014 – 2022, ALHAMBRA FROM 2015.

SKODA: KAMIQ FROM 2019, KAROQ FROM 2017, KODIAQ FROM 2017, OCTAVIA III/IV FROM 2013, SCALA FROM 2019, SUPERB III 2017-2020, SUPERB FROM 2020, FABIA 2014 – 2022, YETI FROM 2014 – 2017, RAPID FROM 2015.

VOLKSWAGEN: ARTEON 2018-2020, GOLF VI FROM 2012, GOLF VIII FROM 2013, PASSAT FROM 2018, POLO 2014 TO 2021., UP FROM 2011, GOLF VI FROM 2012, LOAD UP FROM 2014, SCIROCCO 2014 – 2018, CC FROM 2015 – 2017, SHARAN FROM 2015, TIGUAN FROM 2015, T-ROC FROM 2017, T-CROSS FROM 2018.

CUPRA: LEON FROM 2022, FORMENTOR FROM 2020, ATECA FROM 2023.

Engine Codes: CHZA, CHZB, CHZC, CHZD, CHZF, CHZJ, CHZK, CHZL, CPGA (CNG), DKRF, DKRC, DKRB, DKRA, DKLD, DKLC, DKLB, DKLA, DKJA, DBYA (TGI), CJZA, CJZB, CJZC, CJZD, CYVA, CYVB, CYVD, CHPA, CMBA, CPVA, CPWA + TGI, CUKC, CUKB, CXSA, CZCA, CZDA, CZDD, DJKA, DGEB, DGEA, DADA, DFYA, DHFA, DPCA, DACA, DPBA, DACB, DPBE, DXDB

Engine Variant: Engine variants include EA211, EVO 4-cylinder 1.5TSi ACT.

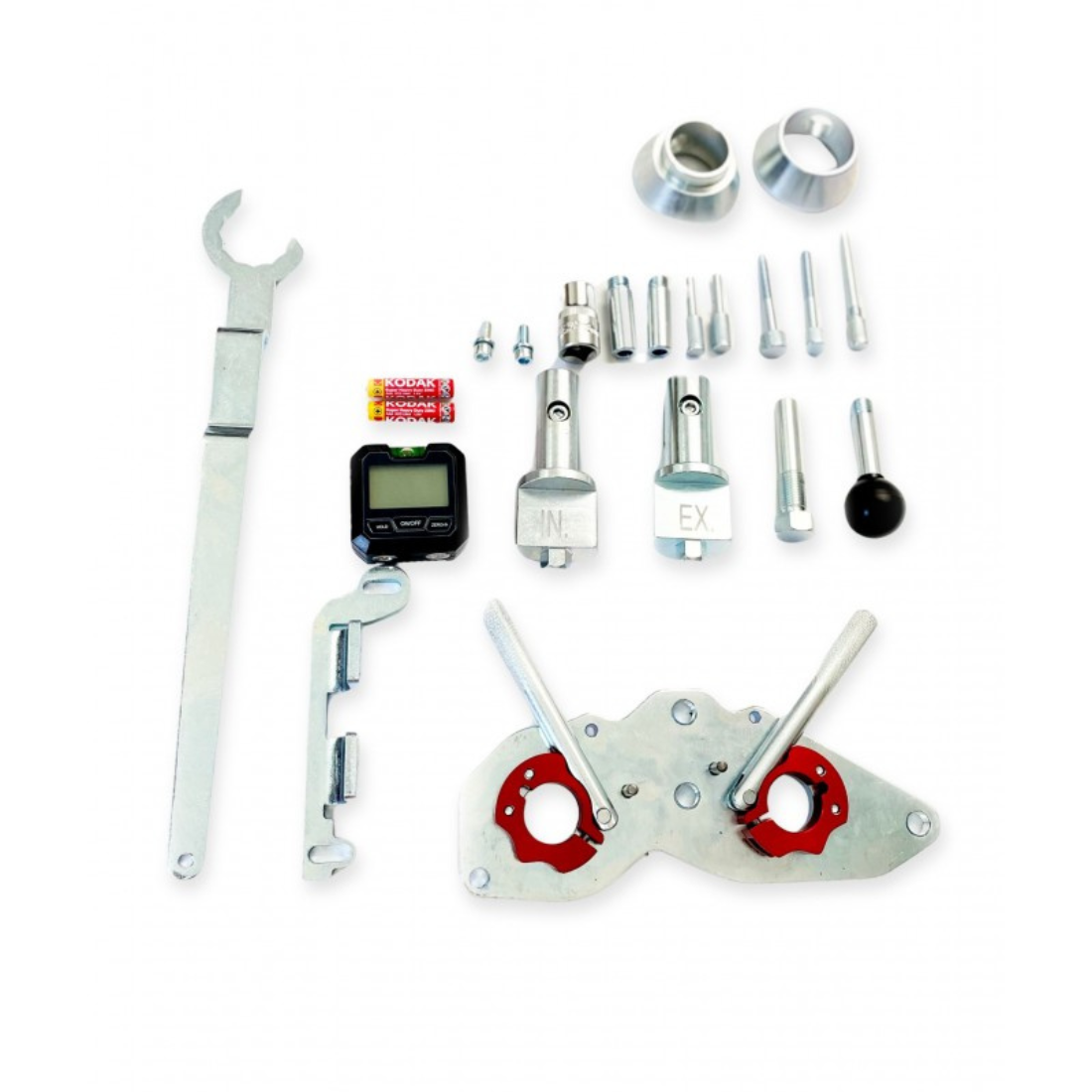

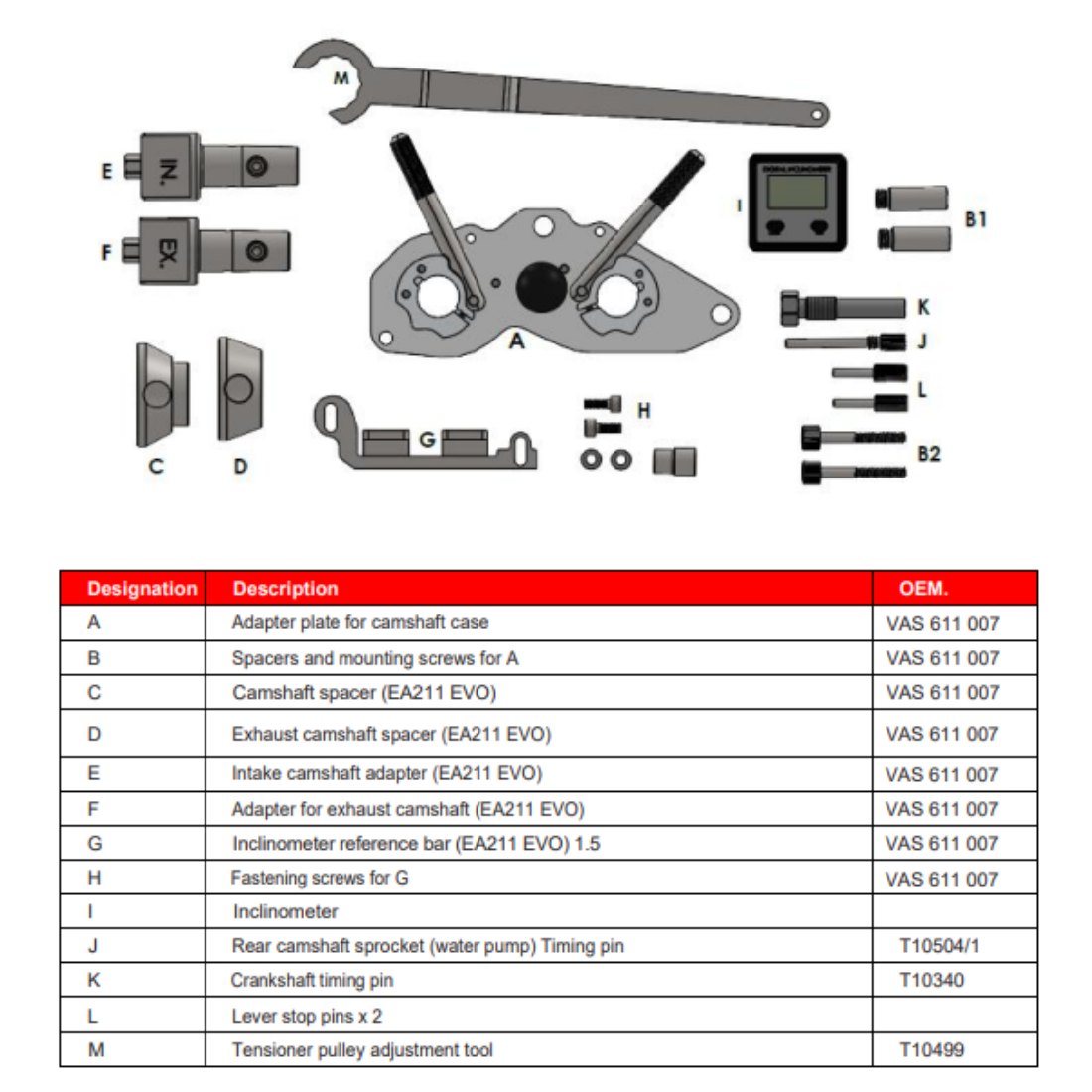

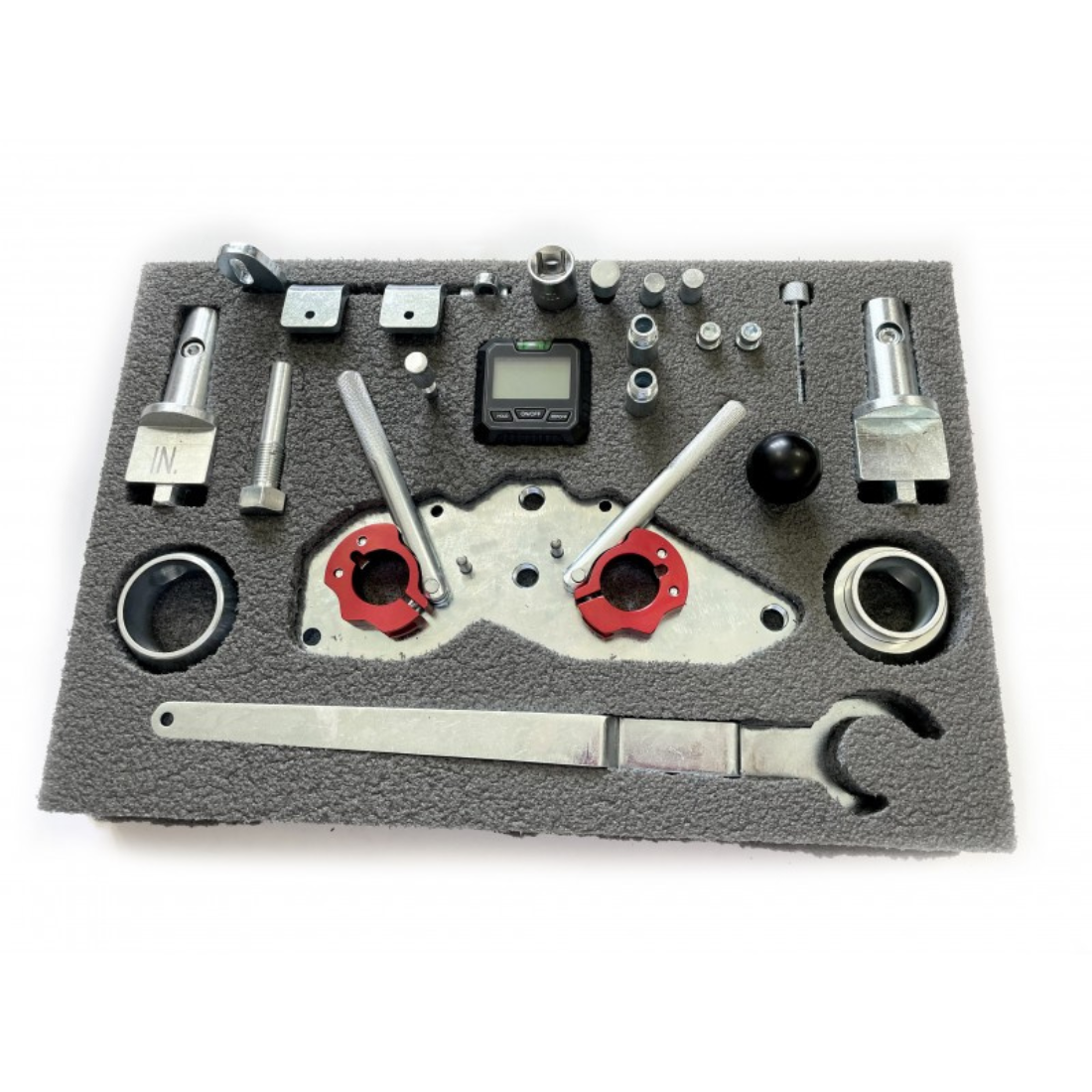

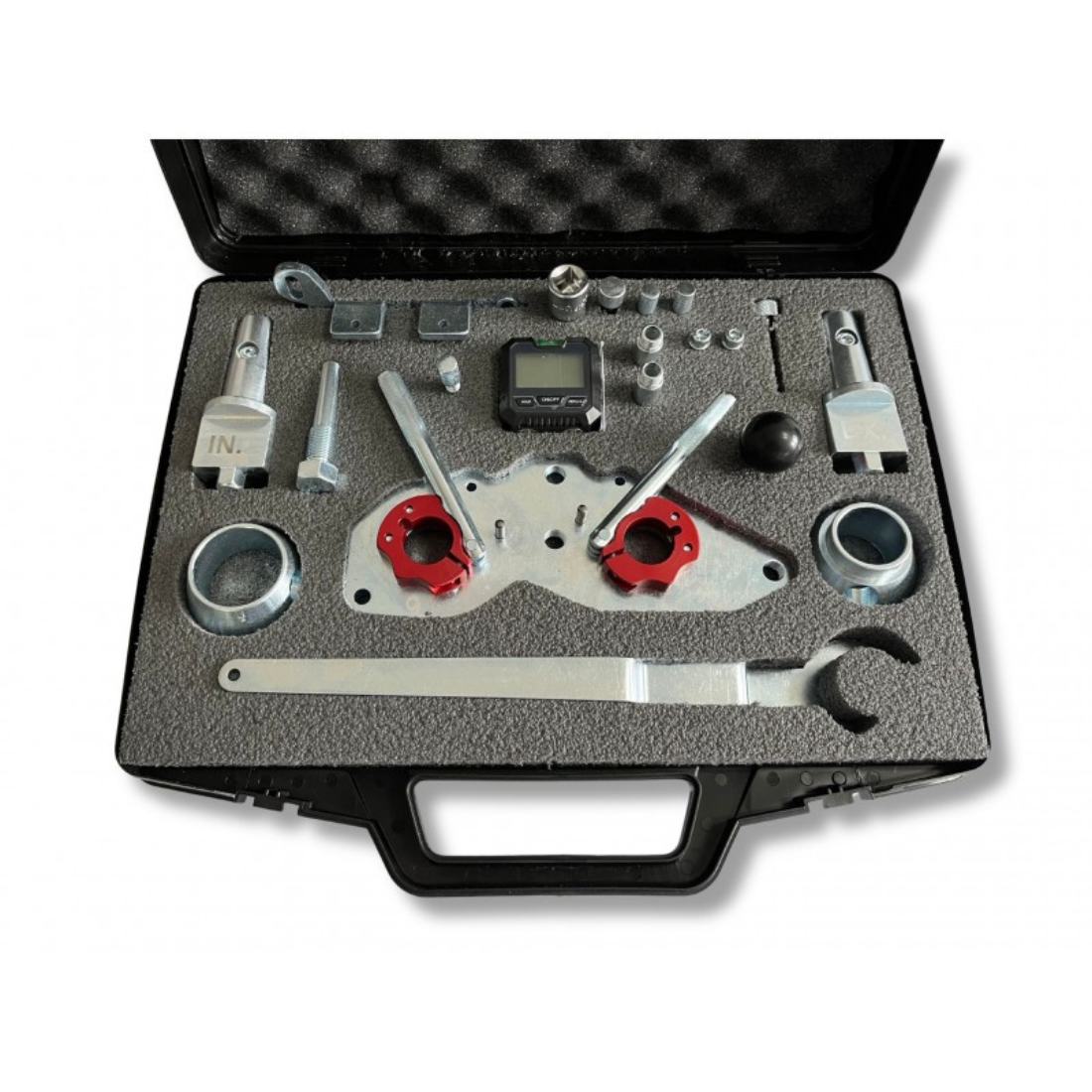

Kit Contents:

A – Adapter plate for camshaft case VAS 611 007

B – Spacers and mounting screws for A VAS 611 007

C – Camshaft spacer (EA211 EVO) VAS 611 007

D – Exhaust camshaft spacer (EA211 EVO) VAS 611 007

E – Intake camshaft adapter (EA211 EVO) VAS 611 007

F – Adapter for exhaust camshaft (EA211 EVO) VAS 611 007

G – Inclinometer reference bar (EA211 EVO) 1.5 VAS 611 007

H – Fastening screws for G VAS 611 007

I – Inclinometer

J – Rear camshaft sprocket (water pump) Timing pin T10504/1

K – Crankshaft timing pin T10340

L – Lever stop pins x 2

M – Tensioner pulley adjustment tool T1

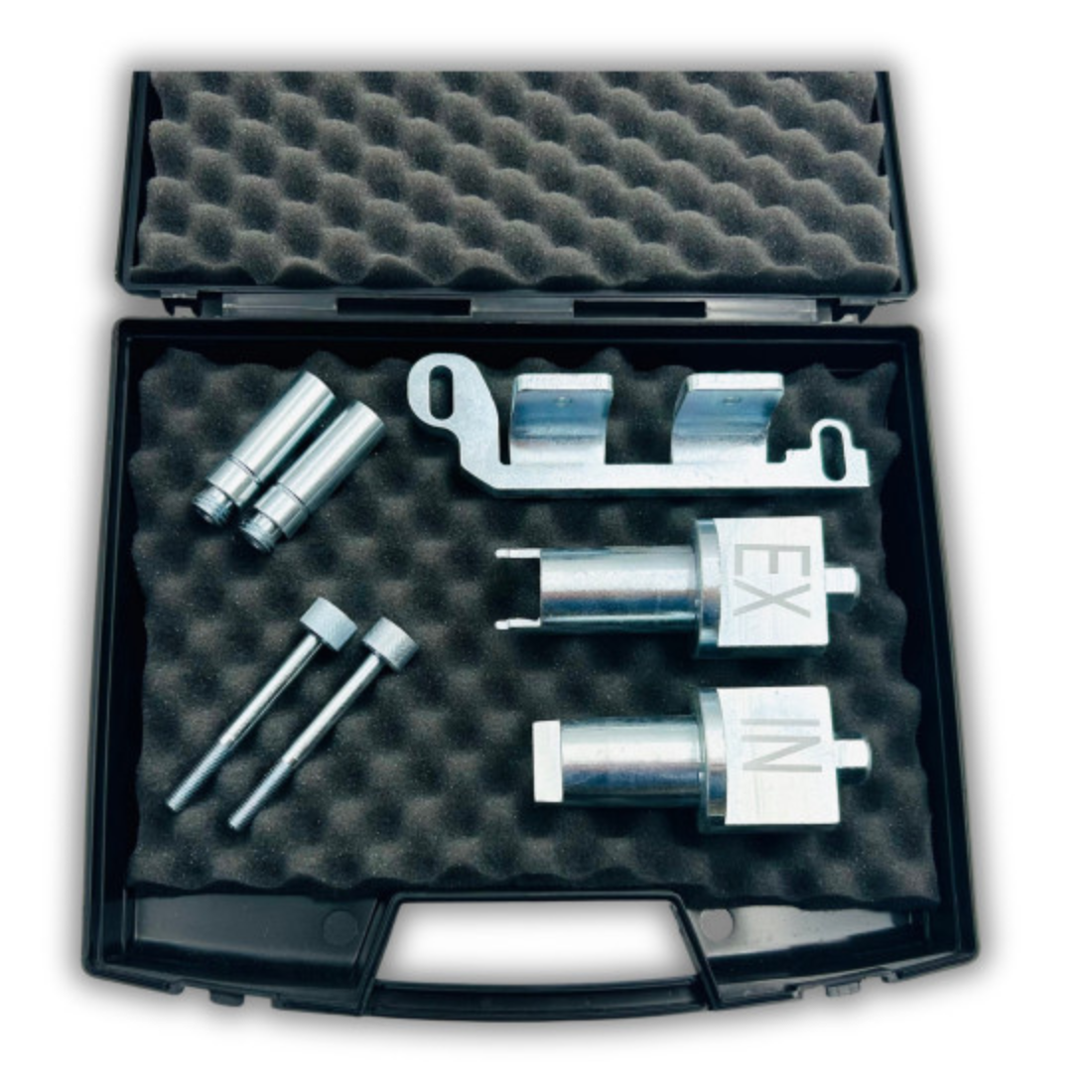

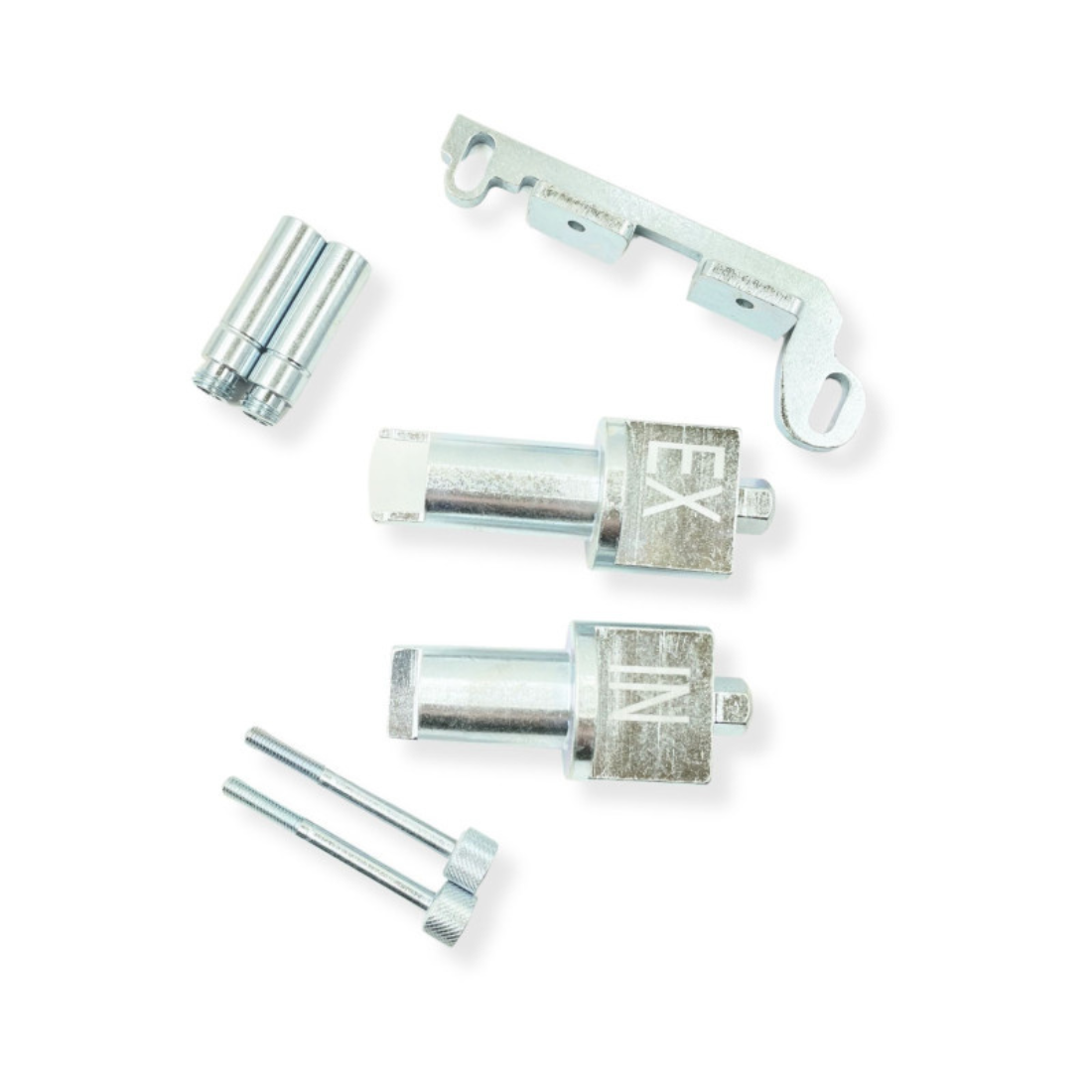

1.0, 1.2, 1.4 TSI Kit
