Timing Tools For Mercedes 1.6 & 2.0 Petrol Engines

Product Description

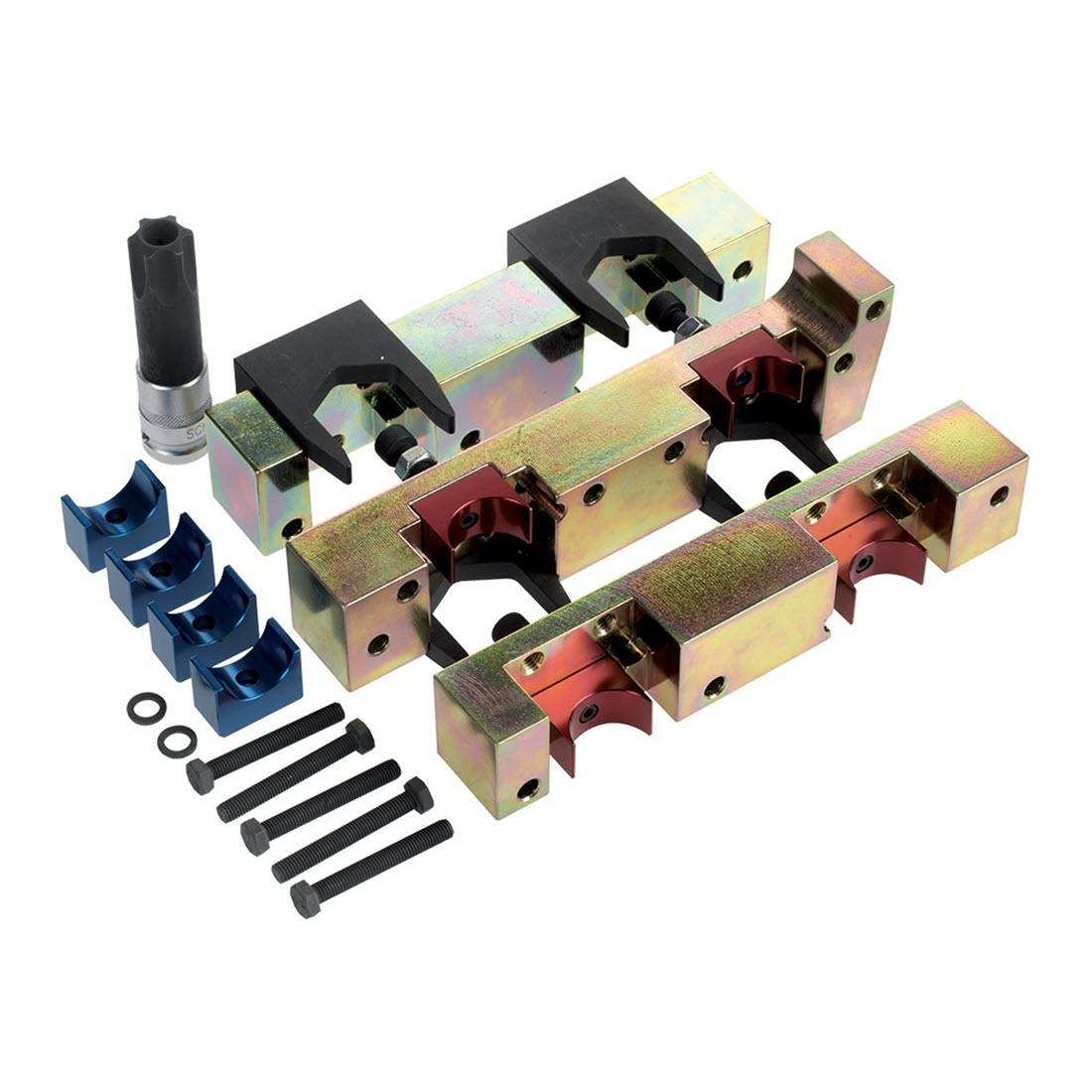

Timing Tools For Mercedes 1.6 & 2.0 Petrol Engines

Specifically designed for vehicles fitted with the chain driven 1.6/2.0 direct injection petrol engines.
These engines are found in the late A, B, CLA, C and E Class vehicles.
Due to the type of construction used on these engines the camshaft needs to be clamped in place to allow dismantling and assemble of the cylinder head.
Designed to allow removal and assembly of the camshafts.
Supplied with small and large diameter clamp pieces to ensure the camshaft is correctly held in place.
Supplied with special Star socket bit for the camshaft pulleys.

Models:

• Mercedes A-Class 176 1.6/2.0 (since 2012)
• Mercedes B-Class 242/246 1.6/2.0 (since 2012)
• Mercedes CLA 117 1.6/2.0 (since 2012)
• Mercedes C-Class 204 1.6/2.0 (since 2011)
• Mercedes C-Class COUPÉ 1.6/2.0 (since 2011)
• Mercedes E-Class 212 1.6/2.0 (since 2011)

Engine Codes:

• M133
• M270
• M274

Click here to see more detailed application list

This set comes in a storage case not show in the above picture
