Nitrogen/Hydrogen Total Test Kit from Wigam

Product Description

Nitrogen/Hydrogen Total Test Kit from Wigam

Includes a high end Semi-conductor leak detector for R134a, R1234yf and AZOIDRO (N2-H2).

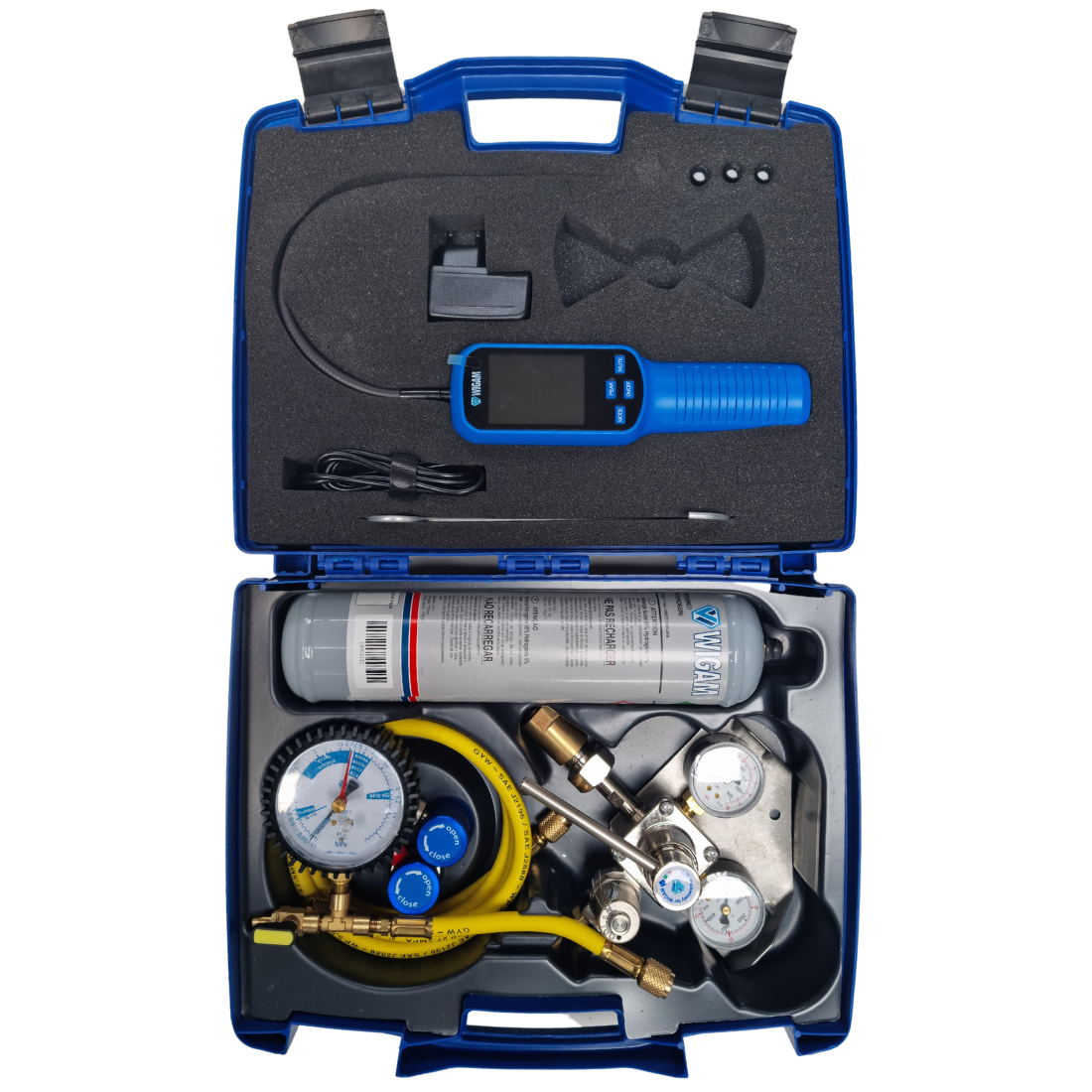

Kit Contents: Everything needed for N2-H2 leak testing on R134a and R1234yf

• AZ200/50 nitrogen regulator with dual connection. Adaptor suitable for 1 litre N2-H2 bottles and also Stargas 10 liter bottle (GB Type G5/8″ M BS341 Nr3)
• Voyager electronic leak detector
• Control pressure gauge Ø80, class 1 with positioning index and adjustment screw.
• 1/4 “SAE HD flexible hose, 1500mm + 200mm.
• AZOIDRO cartridge 1lt – 110 bar, valid for 9-10 tests @ 5 bar. (or upgrade at any time and add the 10L cylinder and trolley)
• Low pressure quick couplers for R134A and R1234YF.

Voyager Technical features:
• Semi-conductor technology.
• Multiple sensitivity levels (3g/year).
• Sound alarm and optimized graphics on LCD screen.
• High quality sturdy probe.
• “Mute” button and headphone connection.
• Peak recording function.
• Sturdy case.
• Rechargeable lithium-ion battery.
• Complies with CE n.1516/2007, EN14624, SAE J1627, SAE J2791, SAEJ2913.
• Detects all halogenated refrigerants including:
-CFCs: R12-R11-R500-R503
-HCFCs: R22-R123-R124-R502
-HFCs: R134A-R404A-R125-R407C-R507-R410A-R32
-HFOs: R1234yf and R1234ze
-HC: R600-R290

Options:

• Gas Control Leak Detection Spray 400ml

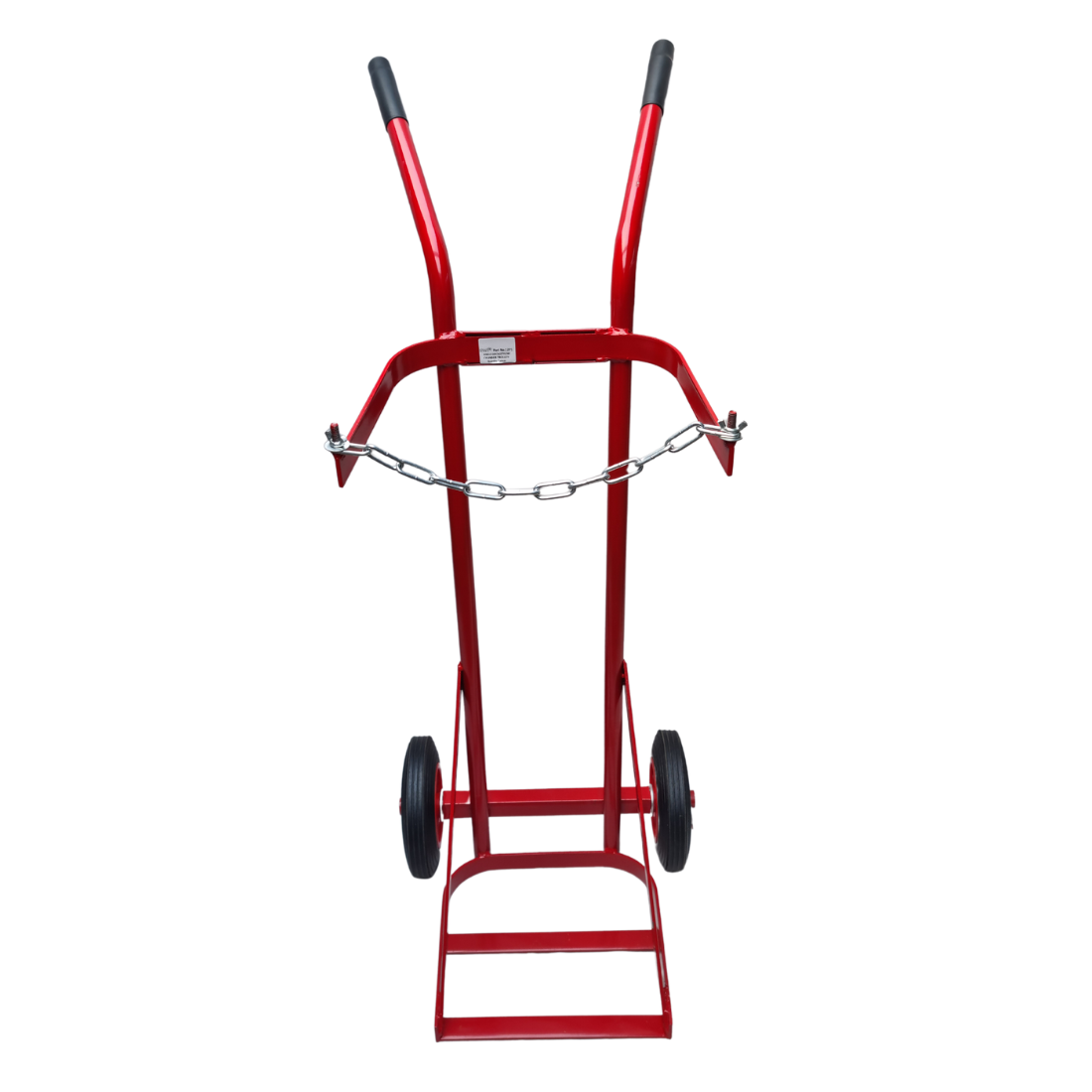

• Single Gas Bottle Trolley (needed if you want to use with 10L cylinder)
• 10L Nitrogen/Hydrogen Gas For A/C Leak Testing
